Product Details

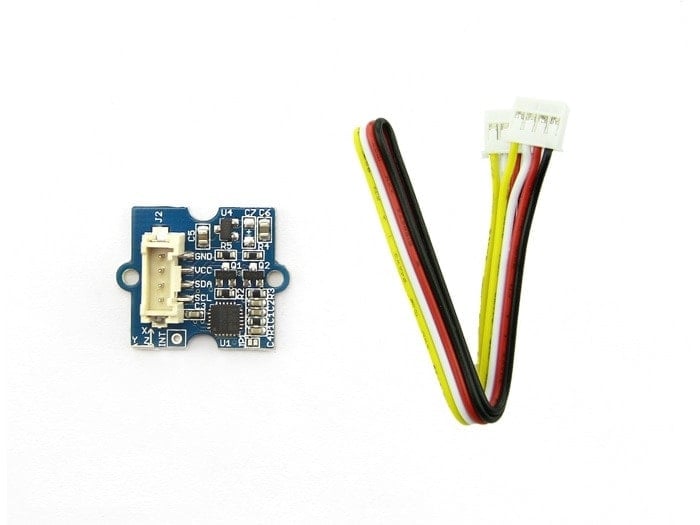

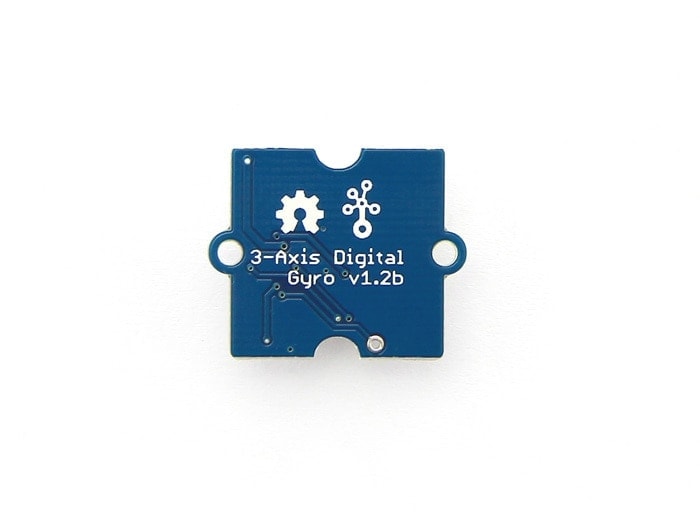

Grove - 3-axis Gyro module based on ITG 3200. It is the world's first single-chip, digital-output, 3-axis MEMS motion processing gyro optimized for gaming, 3D mice, and motion-based remote control applications for Internet connected Digital TVs and Set Top Boxes.
Features
- Grove compatible interface
- Digital-output X-, Y-, and Z-Axis
- Fast Mode I²C (400kHz) serial interface
- ±2000°/s full scale range and 14.375 LSBs per °/s sensitivity
- Low 6.5mA operating current for long battery life
- On-chip temperature sensor
- Integrated amplifiers and low-pass filters
- RoHS and Green compliant
Documents
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials
