Product Details

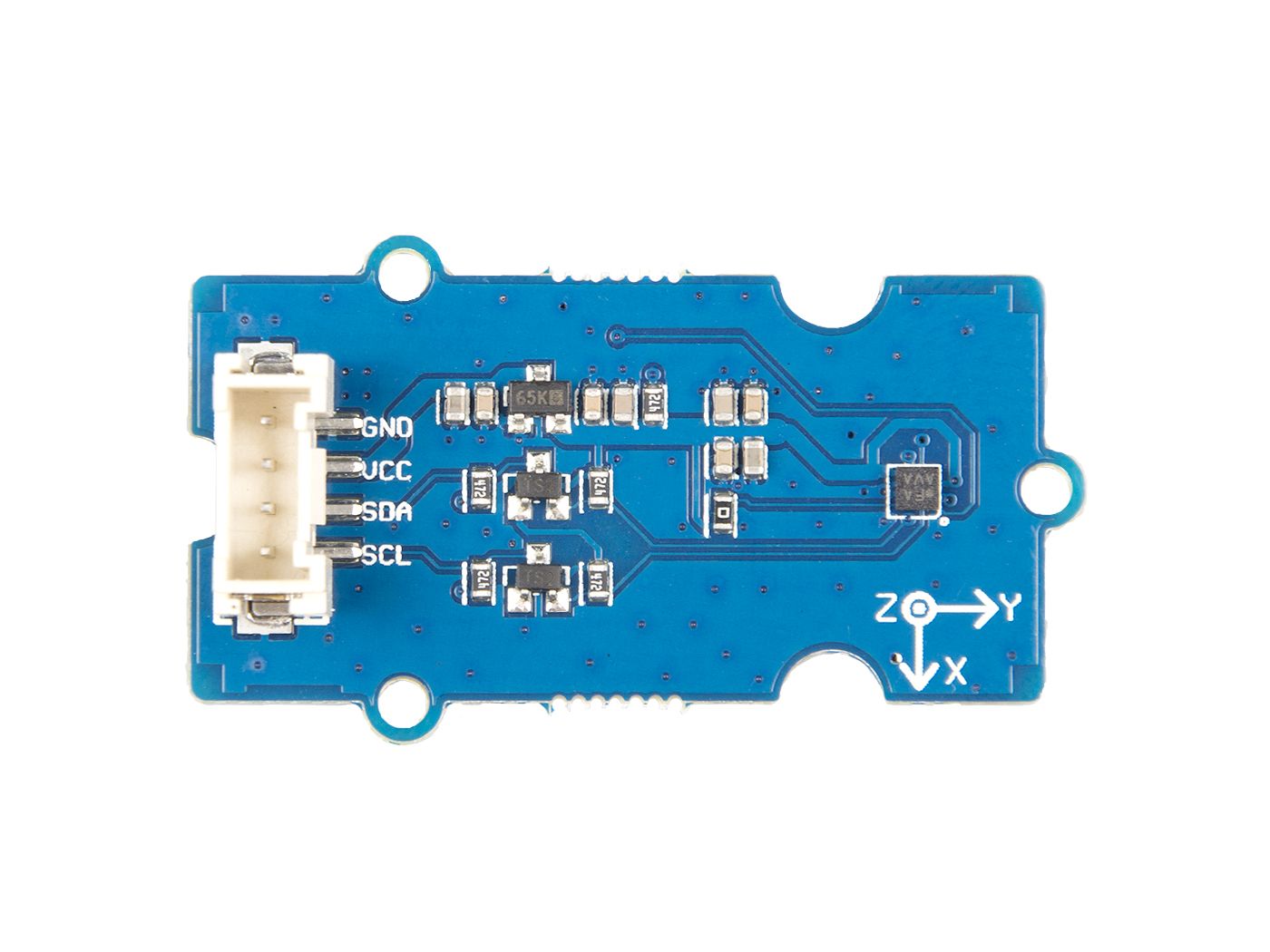

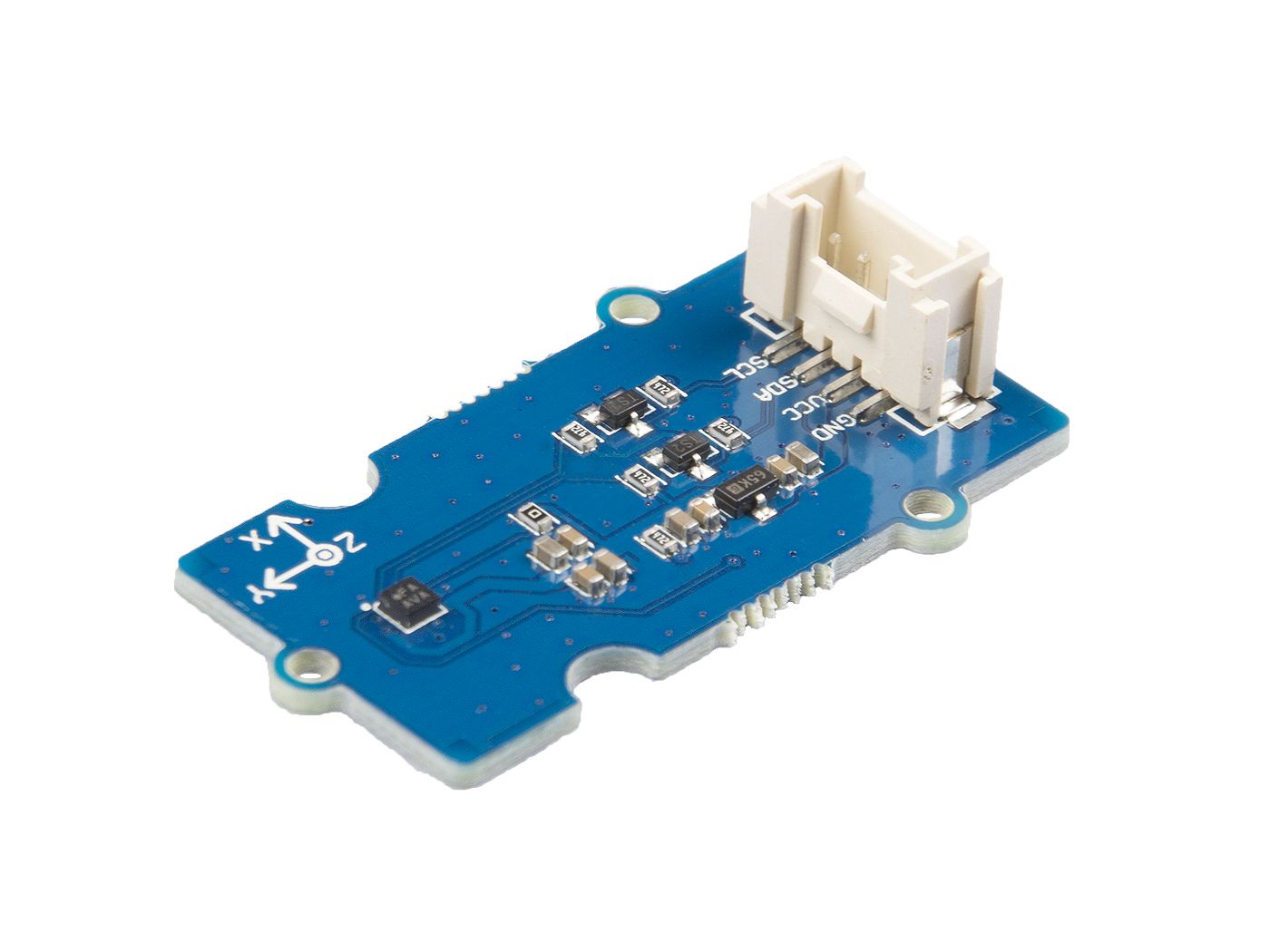

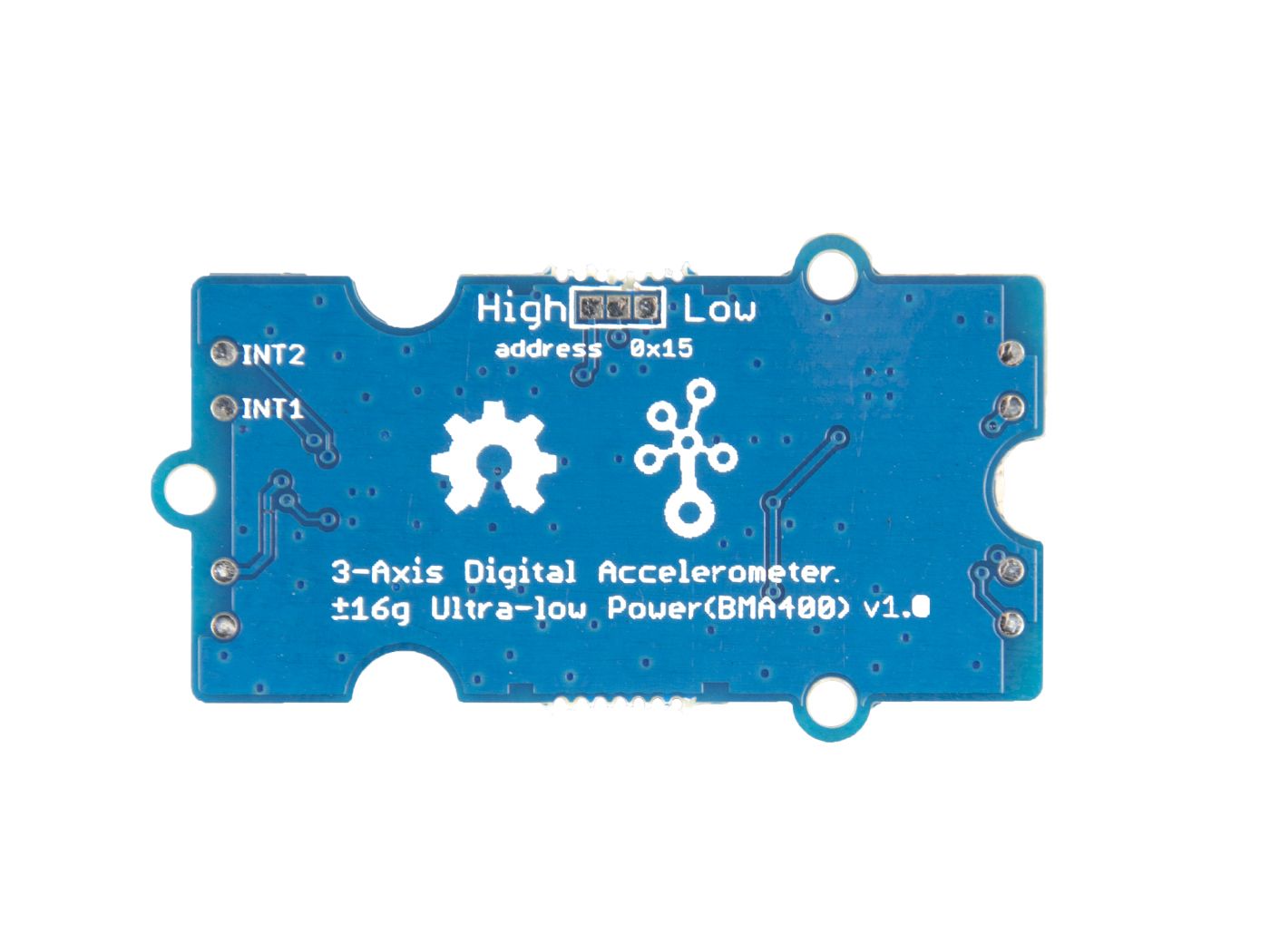

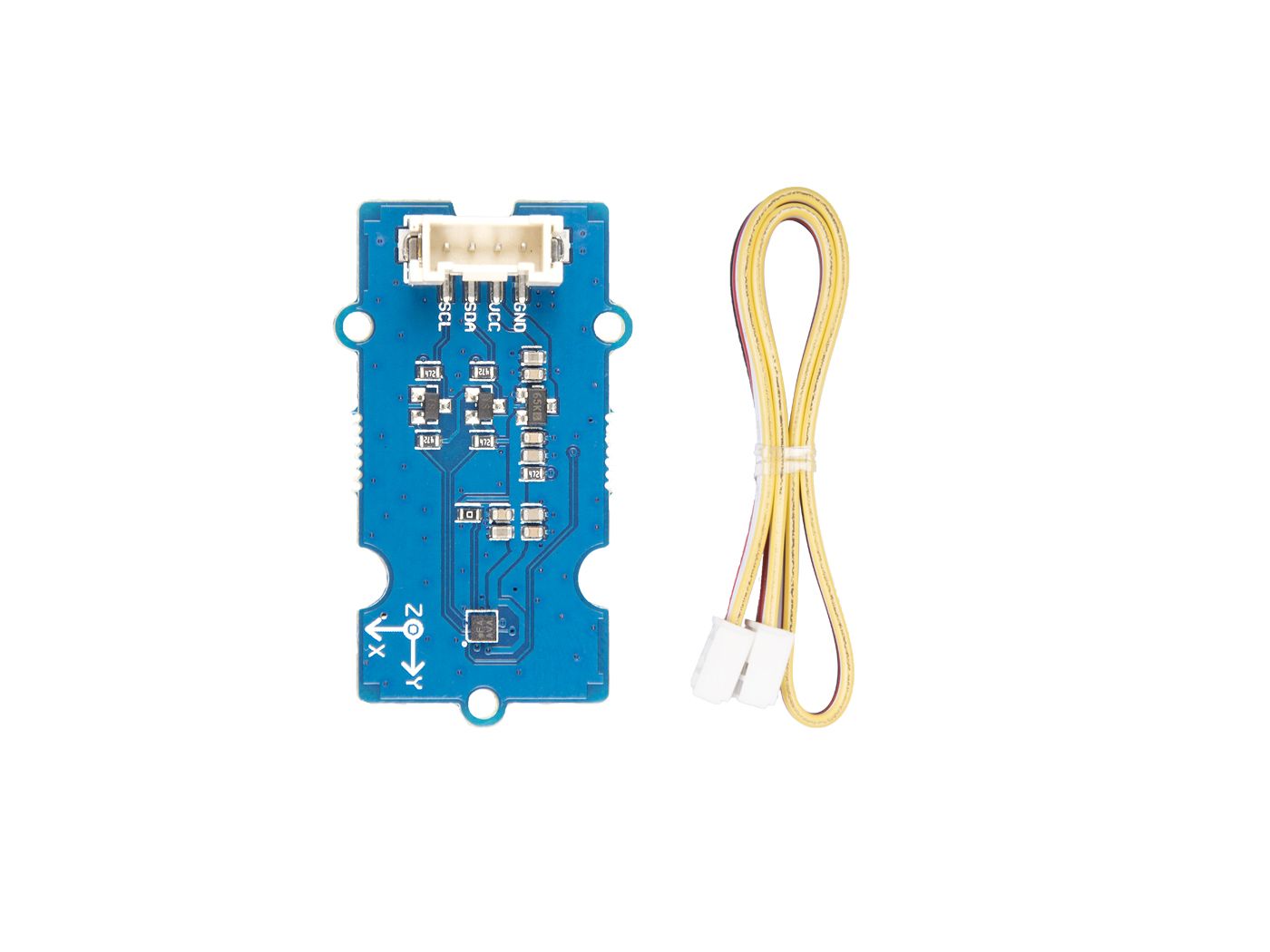

The Grove - 3-Axis Digital Accelerometer ±16g Ultra-low Power (BMA400) sensor is a 12 bit, digital, triaxial acceleration sensor with smart on-chip motion and position-triggered interrupt features. It can detect your movement posture, such as Walking, Running, Standing still.
Features
- Ultra-low power
- Programmable functionality
- On-chip FIFO
- On-chip interrupt features
- Auto-low power/Auto wakeup
- Activity/In-activity
- Step counter
- Activity Recognition(Walking,Running,Standing still)
- Orientation detection
- Tap/Double tap
Specification

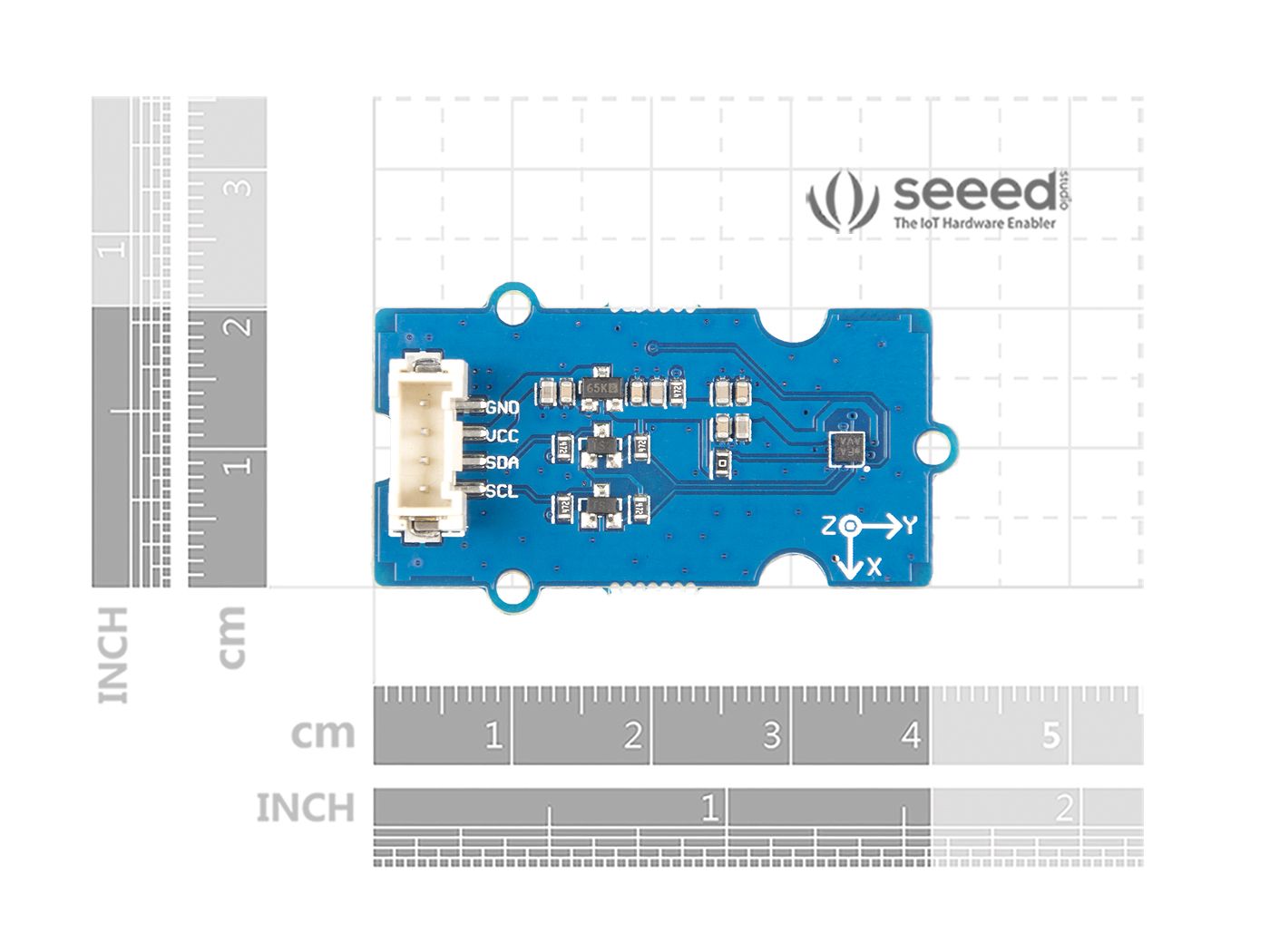

| Dimensions | 40mm x20mm x7mm |
| Weight | G.W 9.2g |
| Battery | Exclude |
| Operating Voltage | 3.3V / 5V |
| Power consumption | 18uA @5V / 14uA @3.3V |
| Acceleration Range | ±2g, ±4g, ±8g, ±16g |
| Sensitivity | 1024LSB/g @±2g / 512LSB/g @±4g / 256LSB/g @±8g / 128LSB/g @±16g |
Resources
- Grove - 3-Axis Digital Accelerometer ±16g Ultra-low Power (BMA400) Eagle Files
- Seeed BMA400 Library
- Datasheet BMA400
- XC6206 DATASHEET
