Product Details

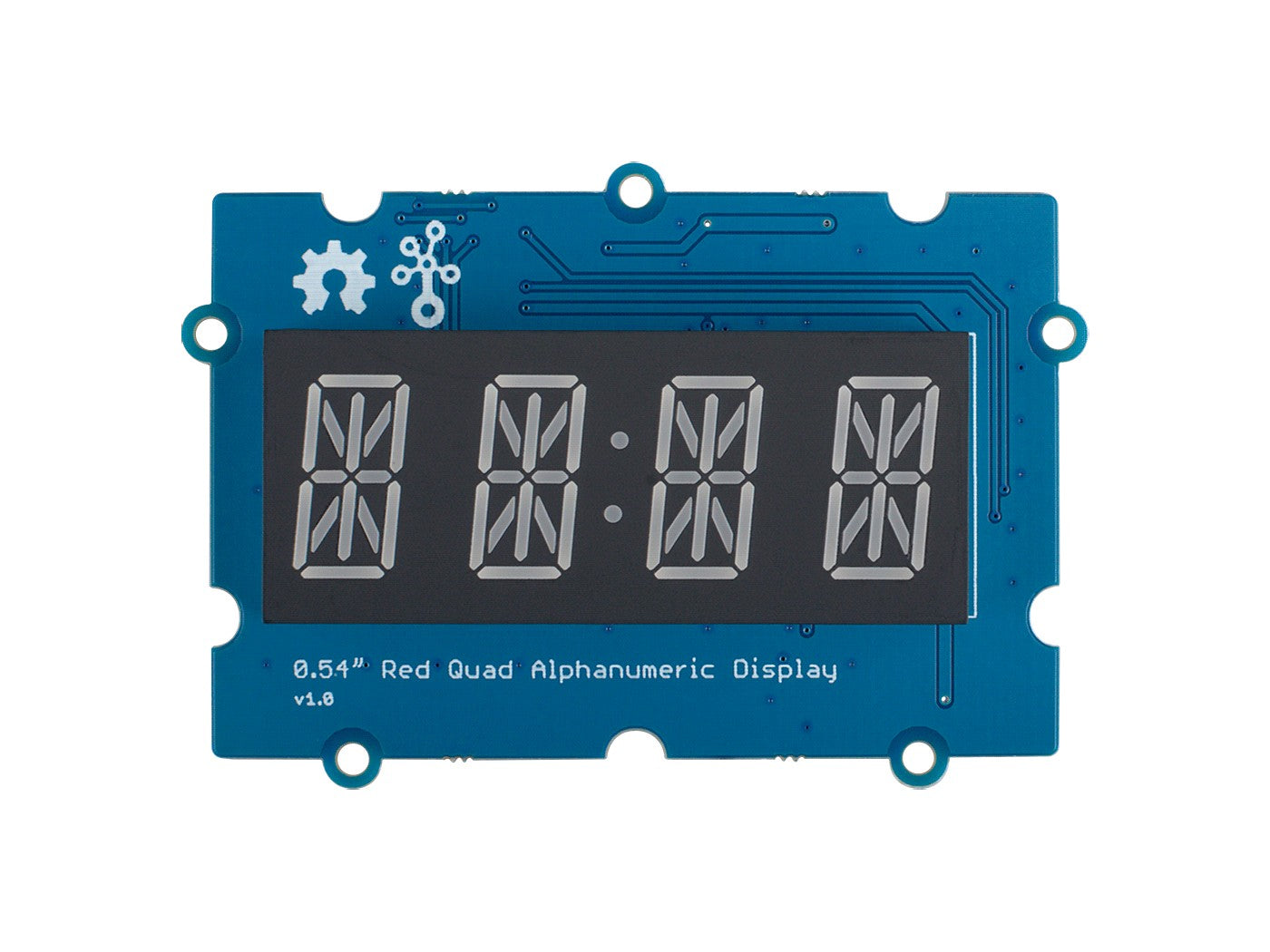

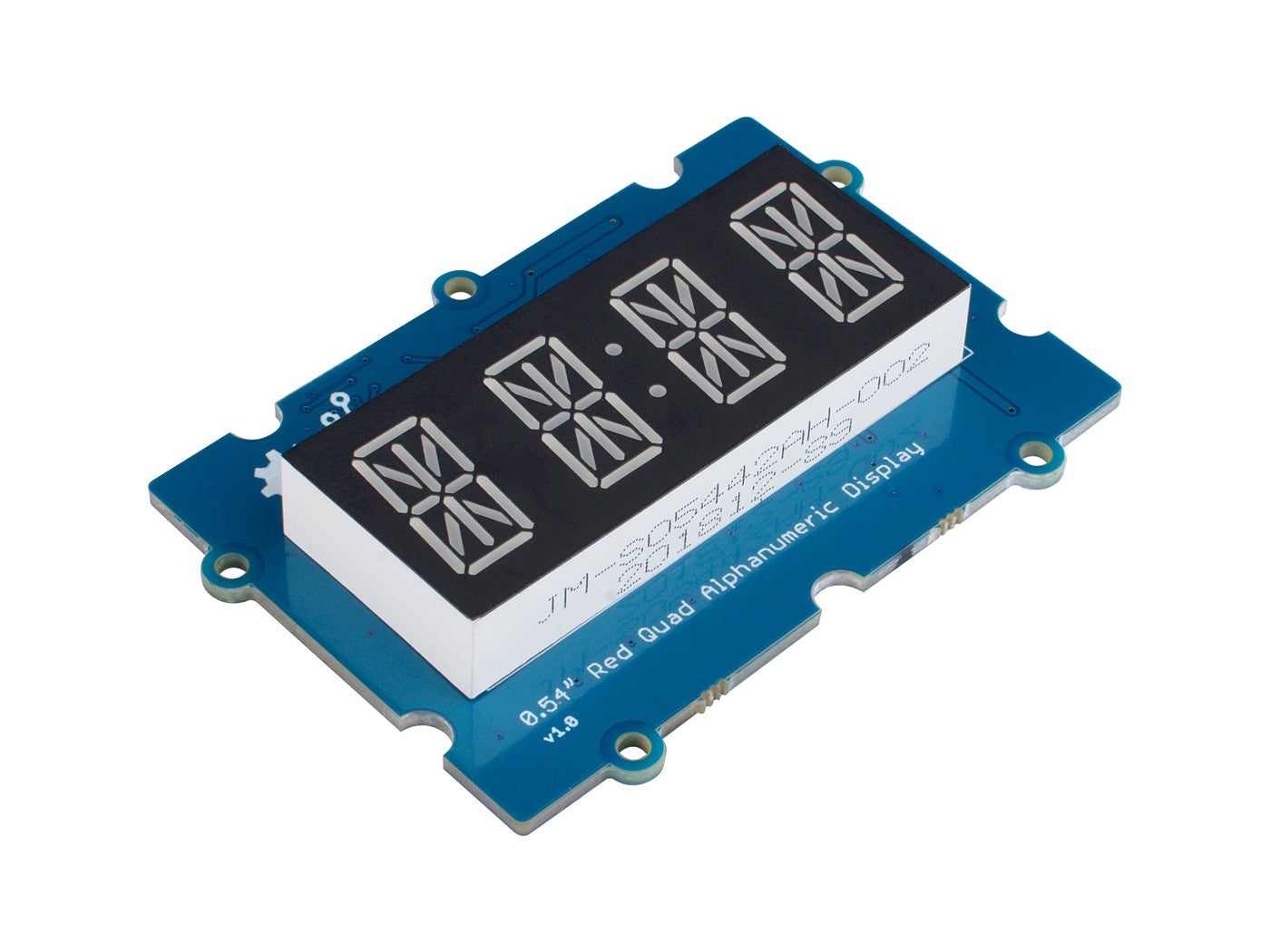

This module is a 4 digit alphanumeric display with high brightness and red backlight, each digit is consists of a 14-segment digital tube. The commonly used 7-segment display, such as our Grove - 4-Digit Display can only display the numbers 0-9 and a limited number of letters. In contrast, the 14-segment digital display does not have this limitation, it can display all the characters, that's why we call it alphanumeric display.
Usually, the 14-segment display needs to use 17 or more wires to control the display, which means that a large amount of IO of your main control board (such as Arduino) will be occupied. With the help of on-board HT16K33 chip and Grove connector, we made it an i2c display, only four wires are enough. No troublesome soldering and no complicated wiring
Features
- Can display all letters and numbers
-
Ultra-high brightness:30mcd
-
Grove I2C, only takes two IO pins
-
Onboard drivers, easy to use
- Cathode display
Applications
- Clock display
- Display speed, temperature, etc.
- Letter display

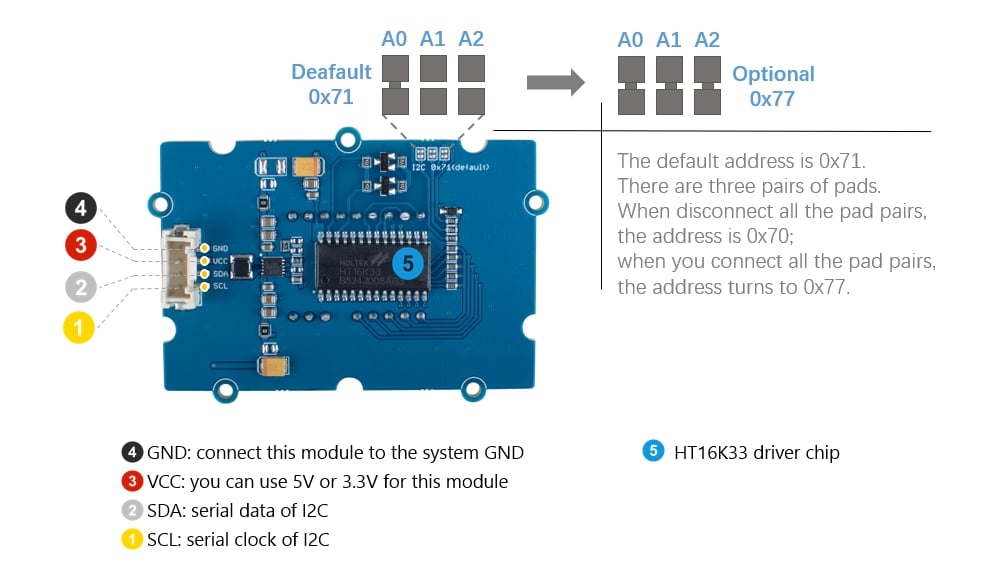

Pinout
Resources
MPN 104020133
