GP/GNSS antenna MCX for Navio [SL4]

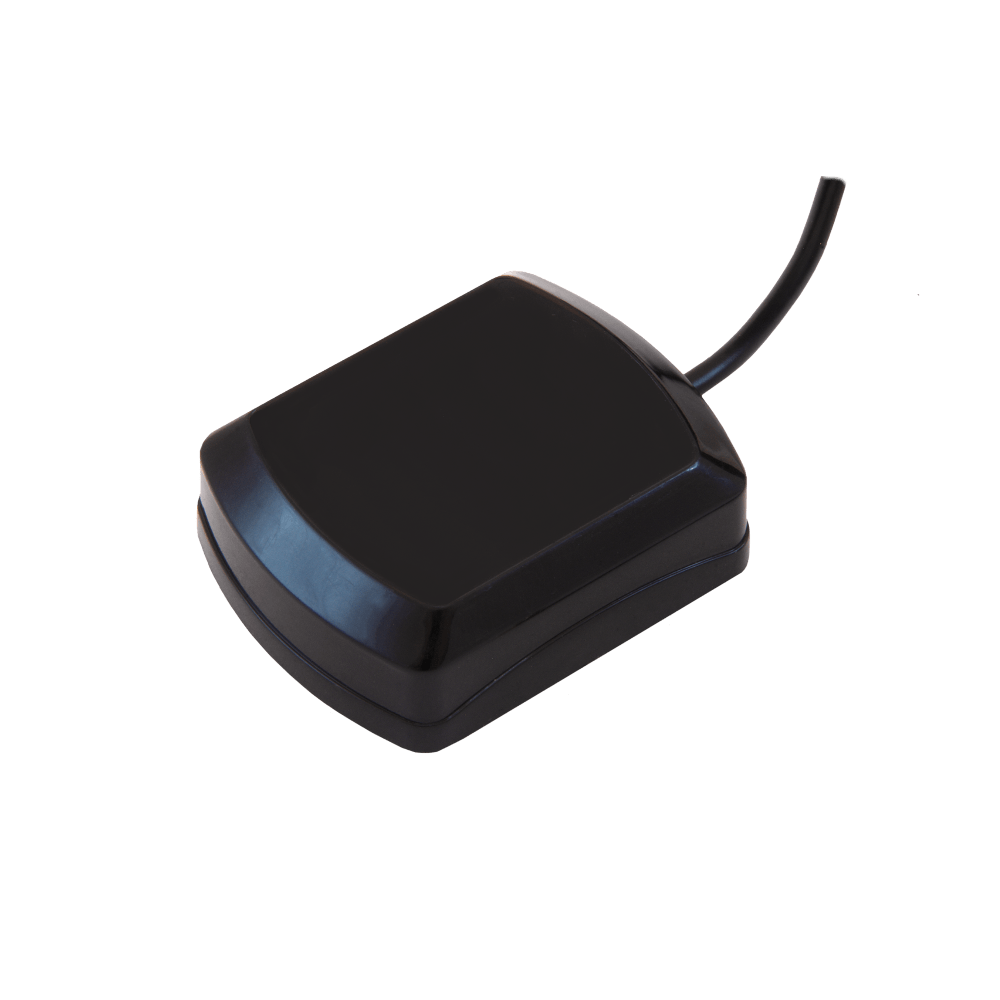

Unlock precision with the JC Antenna JCA002 , a GPS/GNSS active antenna designed to deliver top-tier performance for your navigation and positioning needs. Engineered with an MCX connector and specifically tailored for Navio setups, this antenna ensures your drone, rover, or other GNSS-enabled device stays on course, even in challenging environments.

With a frequency range of 1561.098~1610MHz , the JCA002 offers reliable, right-hand circular polarization (RHCP) to boost your satellite signal reception. Enjoy a 2dBic gain at zenith and an impressively low noise figure under 1.5dB —because when it comes to data accuracy, noise is not your friend. The low Voltage Standing Wave Ratio (VSWR) of less than 1.5 ensures optimal signal transfer without unnecessary loss, and with a robust impedance of 50Ω , this antenna means business.

Built to withstand harsh conditions, the JCA002 operates efficiently from -40℃ to +85℃ , with an IP65~IP67 rating ensuring dust and water resistance. Whether you're navigating dense forests or open fields, the 3-meter RG174 cable gives you the flexibility to mount it exactly where you need it.

Datasheet Download

Key Specifications:

• Antenna Frequency Range: 1561.098~1610MHz
• Polarization: Right-Hand Circular (RHCP)
• Gain: 2dBic (Zenith)
• Voltage Standing Wave Ratio (VSWR): <1.5
• Impedance: 50Ω
• Axial Ratio: Max 3dB
• LNA Gain: 28±2dB
• Noise Figure: <1.5dB
• Supply Voltage: 2.2~5.5V DC
• Current Consumption: <15mA
• Mechanical Cable: RG174
• Connector: MCX
• Radome Material: ABS
• Mounting Method: Adhesive
• Operating Temperature: -40℃~+85℃
• Relative Humidity: Up to 95%
• Ingress Protection: IP65~IP67
• Vibration Resistance: 10 to 55Hz with 1.5mm amplitude for 2 hours
• Environmental Compliance: ROHS Compliant
