Flywoo GOKU H743 Pro Mini 45A Stack (20x20) – Overkill? Maybe.

Listen, we know the drill. You push your quad too hard, the magic smoke escapes, and you’re back here browsing for a replacement while your bank account gently weeps. Enter the Flywoo GOKU H743 Pro Mini Stack. This isn’t just another 20x20 flight controller; it’s a computing beast squeezed into a footprint smaller than a Jaffa Cake. Whether you’re running a cinematic rig with a DJI O3 Air Unit or a stripped-down racer, this 45A stack ensures you have enough overhead to fly like a maniac without turning your electronics into expensive toast.

Why You Want It

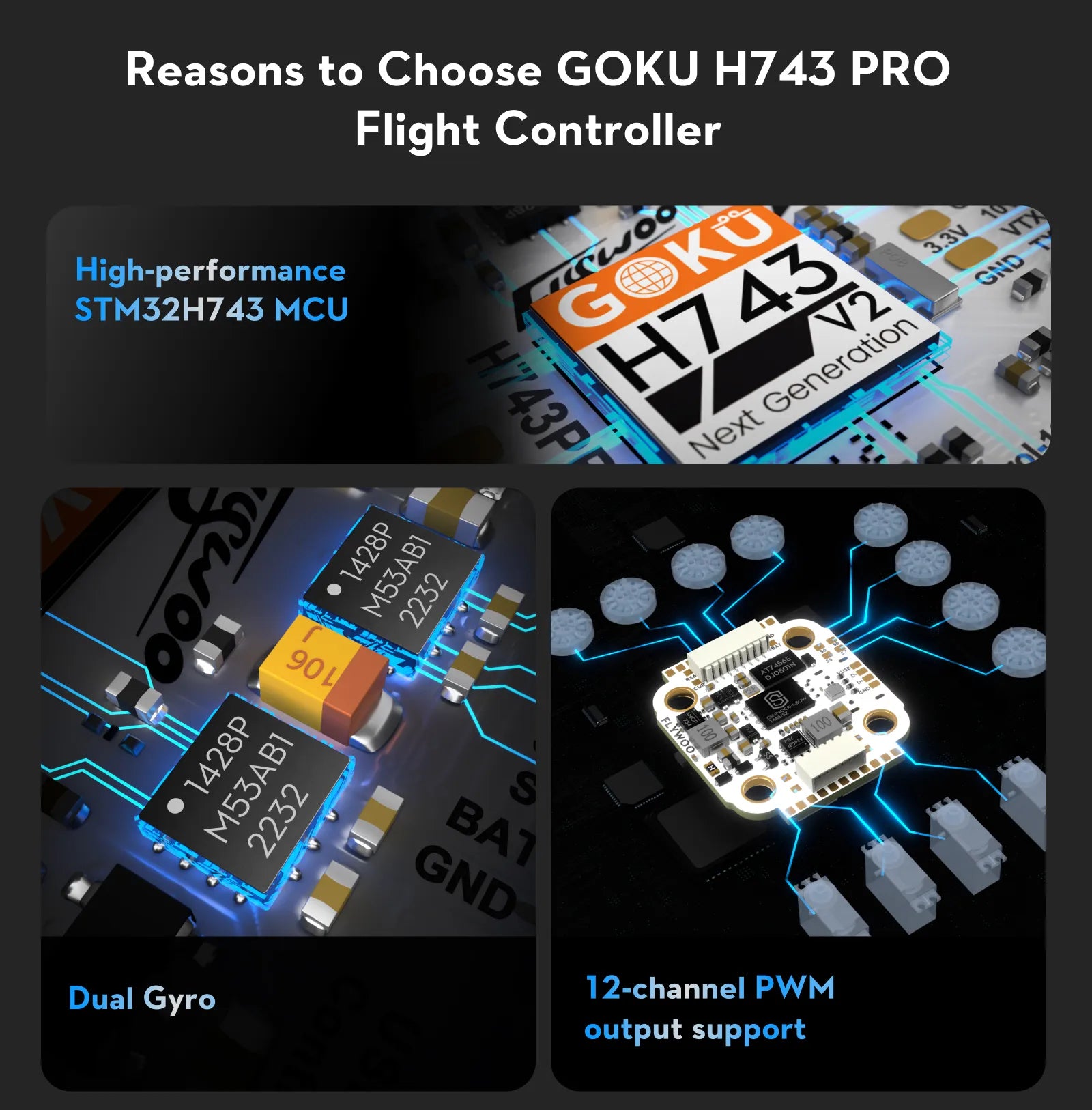

Let’s be real: do you need a 480MHz processor to spin four motors? Probably not. But since when has "need" ever stopped you? The STM32H743 chip effectively future-proofs your build against whatever bloated features Betaflight devs dream up next.

Flywoo also slapped on Dual Gyros (ICM42688P) to smooth out the noise from your bent props, and a massive 512MB Blackbox. That’s right, half a gigabyte of logging space to record your stick inputs in excruciating detail, so you can see exactly the moment you panicked and hit that ghost branch. It supports X8 configs too, just in case you hate battery life and want to build a heavy-lift cinelifter.

Specifications

• MCU: STM32H743VIH6 (480MHz of pure silicon muscle)
• Gyros: 2× ICM42688P (Because two is one, and one is none)
• Blackbox: 512MB (Enough to log a flight to the moon, or one of your crashes)
• BEC: Dual 10V/2A & 5V/2A (Hungry peripherals welcome)
• ESC Current: 45A Continuous (Don't push it to 50A, we know you will)
• ESC Firmware: BLHeli_32 / AM32 supported (Dshot1200 ready)
• Mounting: 20x20mm (M2 holes, includes M3 adapter grommets usually)
• Weight: ~12.2g Combined (Lighter than the dirt stuck to your motors)

GOKU H743 PRO Mini Flight Controller

• BetaFlight Firmware: Flywoo H743PRO
• INAV Firmware:  Flywoo H743PRO
• APM Firmware:Flywoo H743PRO
• Flash: 2MB
• MCU: STM32H743VIH6
• Gyroscope: ICM42688P*2
• OSD: AT7456E(LGA16)
• Barometer: DPS310/SPL06
• Black Box: 512MB
• UARTS: 1/2/3/4/6/7/8
• I2C:1
• PWM:12
• Input Voltage: 7.4V-26V/2-6S LiPo/Lihv
• BEC: 10V2A/5V2A
• Camera support：CAM1,CAM2
• Flight Controller Size:  32mm x 29mm x 8.4mm（Height including plug）
• Mounting Holes: M2 20x20mm
• Weight: 5.8g

GOKU G45M BL32 / AM32 4in1 ESC

• Support BL32 / AM32
• Support Dshot300, Dshot600，Dshot1200
• PWM frequency: 24k-128k
• Input Voltage: 3-6S Lipo
• Continuous Current: 45A
• Firmware:

  AM32：AT32DEVF421
  BL32 ： GOKU_F4A32_PRO
• Weight: 6.4g

The GOKU H743 Flight Controller Experience

It flies smooth. It handles high-power builds. It has ports for everything including GPS, because we know you don't trust your video feed range. It’s the stack you buy when you’re done compromising.

What’s in the Box*

• 1× GOKU H743 PRO Mini FC
• 1× GOKU G45M 45A ESC
• 1× Capacitor (Solder this on, or don't come crying to us)
• 1× Set of Anti-vibration gummies
• 1× Cable Pack (DJI, XT30, etc.)

Disclaimer

*Factory packaging lines are chaotic places; cables and gummies are subject to change, but the raw processing power is guaranteed.

Still Here?

You’re reading the footer? The H7 chip processes PID loops faster than you read sentences. Seriously, this Flywoo stack has 512MB of memory waiting for your data. Go add it to your cart and get back to the workbench before your soldering iron goes cold and auto-shuts off again.
