Product Details
Introducing the GOKU GM10 Nano V3 GPS, the latest marvel from FLYWOO. This minuscule GPS module, powered by the cutting-edge M10050 GNSS chip, sets new standards in positioning accuracy and speed. A notable upgrade from the GM8 V2, the GM10 V3 is your go-to solution for impeccable navigation and rapid satellite acquisition.
Key Features
- Ultra-Lightweight Design : At just 2.2g, this GPS module won't weigh you down.
- Advanced GPS Module : Incorporates three modules for superior functionality.
- 4-Pin Pad Connector : Simplifies installation and ensures secure connectivity.
Specifications
Electrical Characteristics
- Chipset : M10050 (Tenth Generation Chip)
- Receiving Formats : GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS
- Default Protocols : GPS, Galileo, BeiDou
- Frequency Bands : GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
- Channels : 72 Searching Channels
Sensitivity
- Tracking : -162dBm
- Reacquisition : -160dBm
Data and Update Rate
- Support Rate : 4800bps to 921600bps (Default 115200bps)
- Data Level : TTL or RS-232 (Default TTL level)
- Data Protocols : BF4.3.X (UBLOX), BF4.2.X (NMEA)
- Output Frequency : 1Hz-10Hz (Default 10Hz)
Operational Limits
- Altitude : 50,000m Max
- Velocity : 500m/s Max
- Acceleration : Less than 4g
Power Consumption
- VCC : DC Voltage: 3.3-5V
- Operating Temperature : -40°C to +85°C
- Storage Temperature : -40°C to +105°C
Indicators
- PPS LED : Yellow. Not lit when GPS not fixed, flashes when fixed.

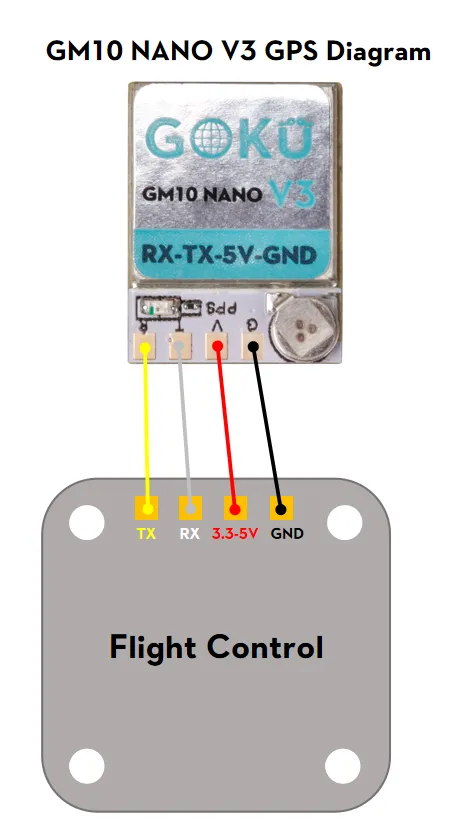

- Module Pins : RX, TX, 3.3-5V, GND
What's in the Box
- 1x GM10 Nano V3 GPS
- 1x 100mm Cable
- 1x Copper Foil
Disclaimer: Accessories included may vary based on supply.
