Product Details

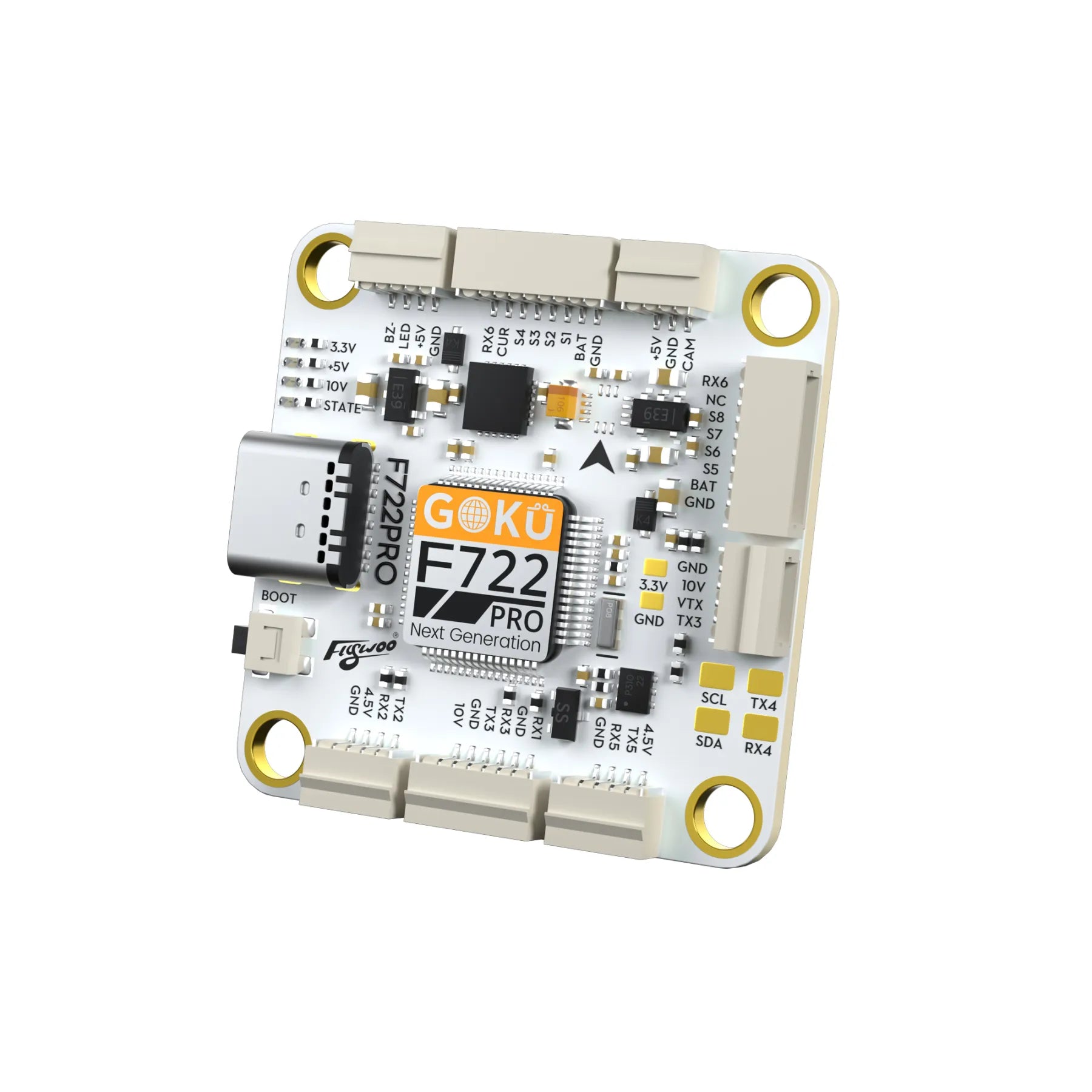

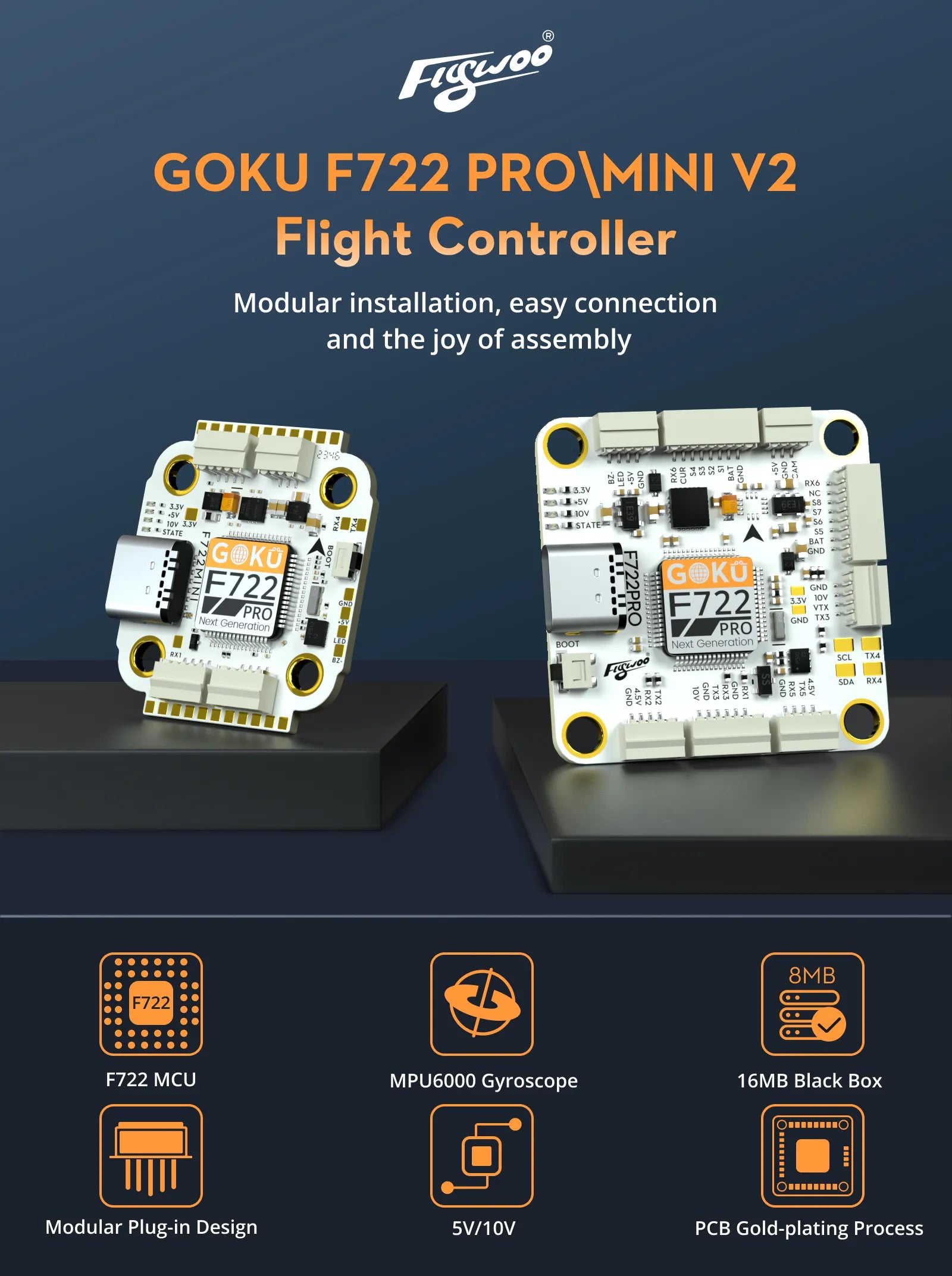

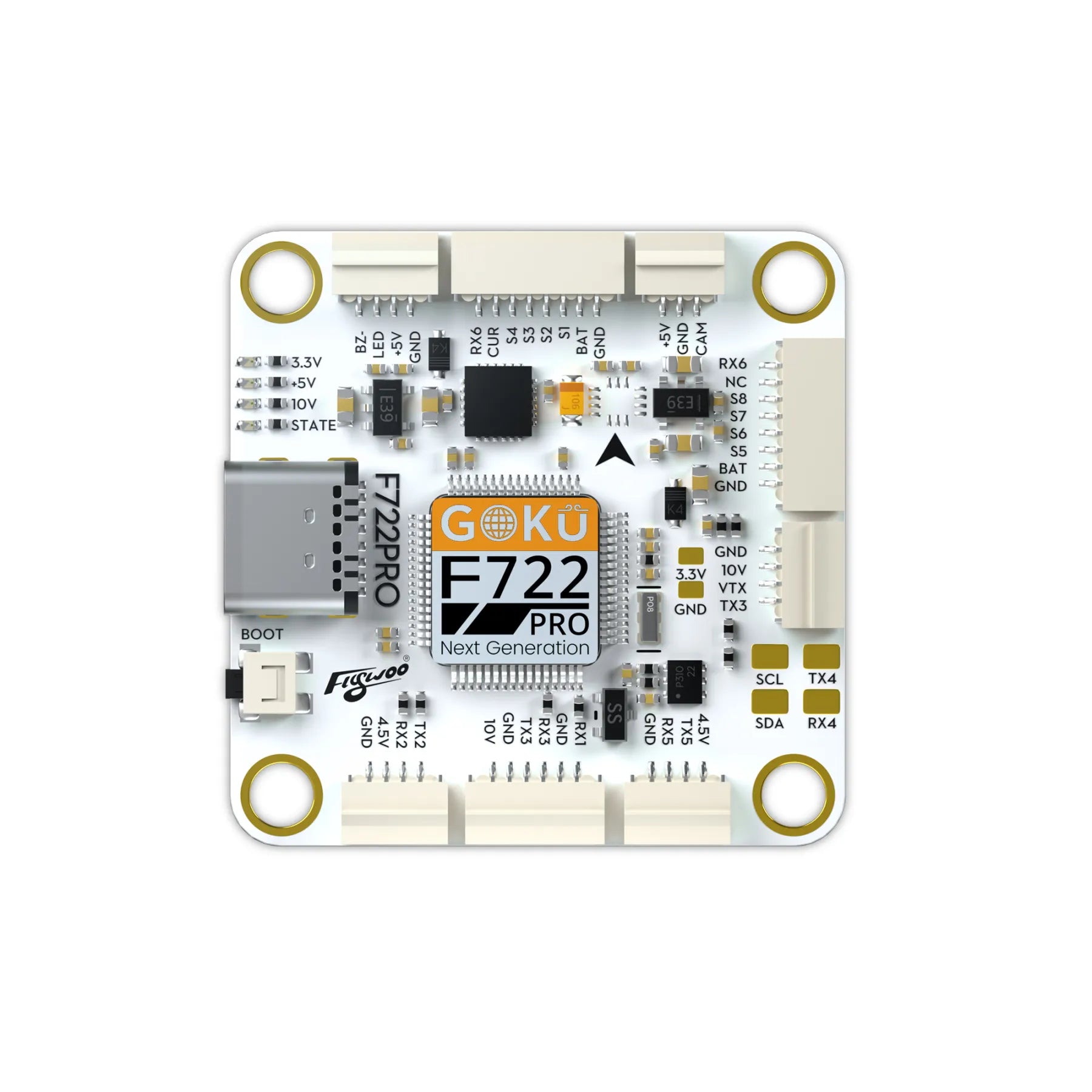

GOKU F722PRO Flight Controller - The Ultimate Powerhouse for Smooth, Precise Flight
Looking to take your drone builds to the next level? The GOKU F722PRO from Flywoo offers unparalleled performance with a user-friendly design. Packed with a powerful STM32F722 processor, this flight controller delivers the lightning-fast response and precision every pilot dreams of. Thanks to its modular design and plug-and-play functionality, the GOKU F722PRO simplifies setup and maintenance, letting you spend more time flying and less time fussing over connections.
Key Features:
- Top-Tier Processing Power : Powered by the high-performance STM32F722 processor, capable of speeds up to 216MHz for ultra-fast response times.
- Precision Gyroscope : Choose between the trusted MPU6000 or the advanced ICM42688 gyroscope for ultra-smooth flight stability and control accuracy.
- Modular & Flexible : Features snap-lock sockets for plug-and-play ease—no soldering required. Retains solder pads for builders who prefer a custom setup.

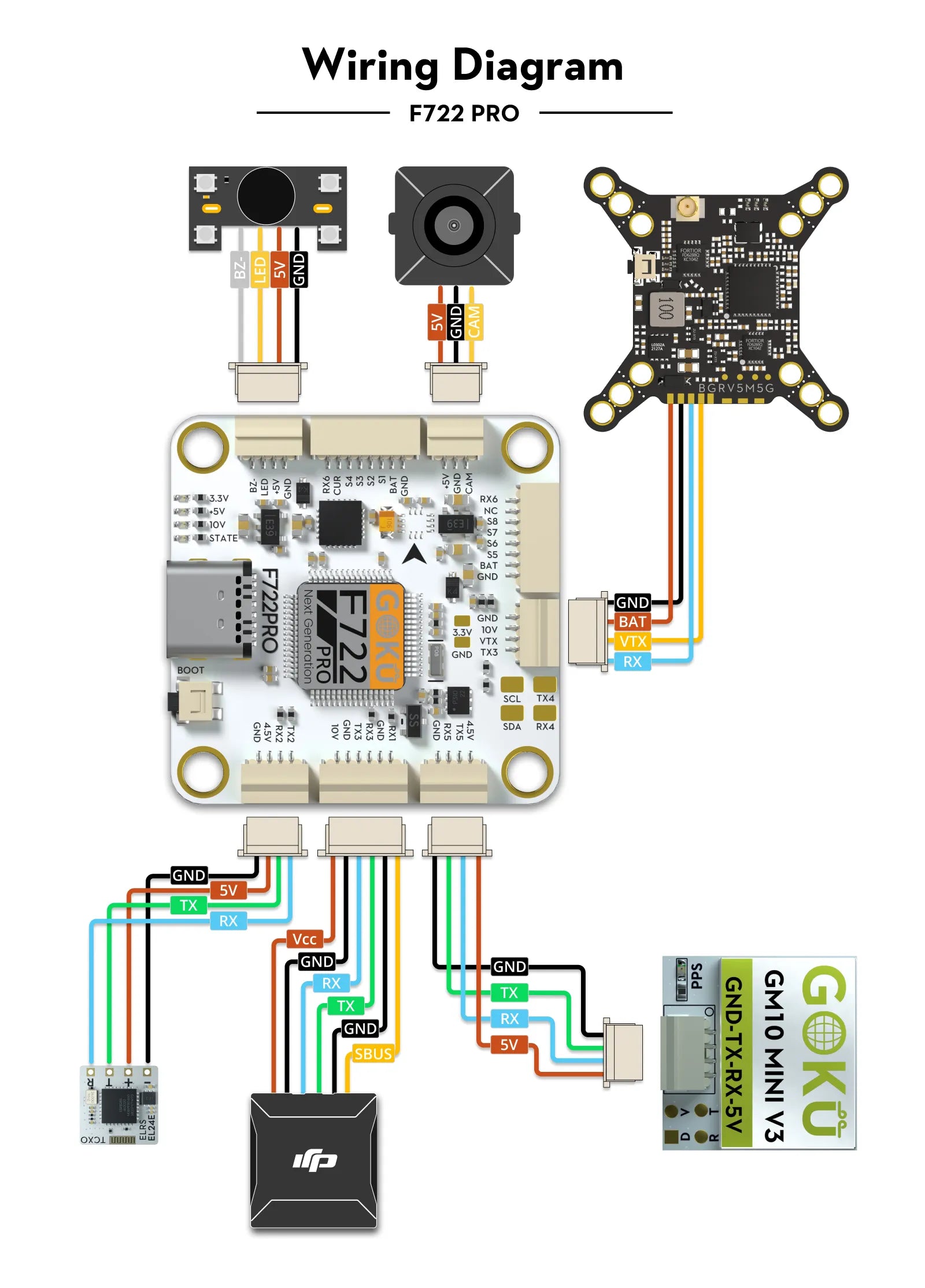

- Seamless DJI Integration : Plug-and-play support for the DJI O3 Air Unit makes integrating DJI's digital transmission system effortless.
- Ample Data Storage : Equipped with a 16MB Black Box for detailed flight data storage, so you can fine-tune your performance after every flight.
- Stable Power Output : Includes 10V/3A and 5V/3A BECs to provide reliable power to your VTX and peripherals.
- Supports 8 Motors : Supports up to 8 motor outputs, with dual 4-in-1 ESC sockets reserved for easy connections.
- Rugged and Reliable : Built with immersion gold PCB technology for superior durability, ensuring resistance to heat and high current demands.
Specifications:
- Product Name : GOKU F722PRO
- BF Firmware : FLYWOO F722PRO
- INAV Firmware : FLYWOO F7
- MCU : STM32F722
- Gyroscope : MPU6000 / ICM42688

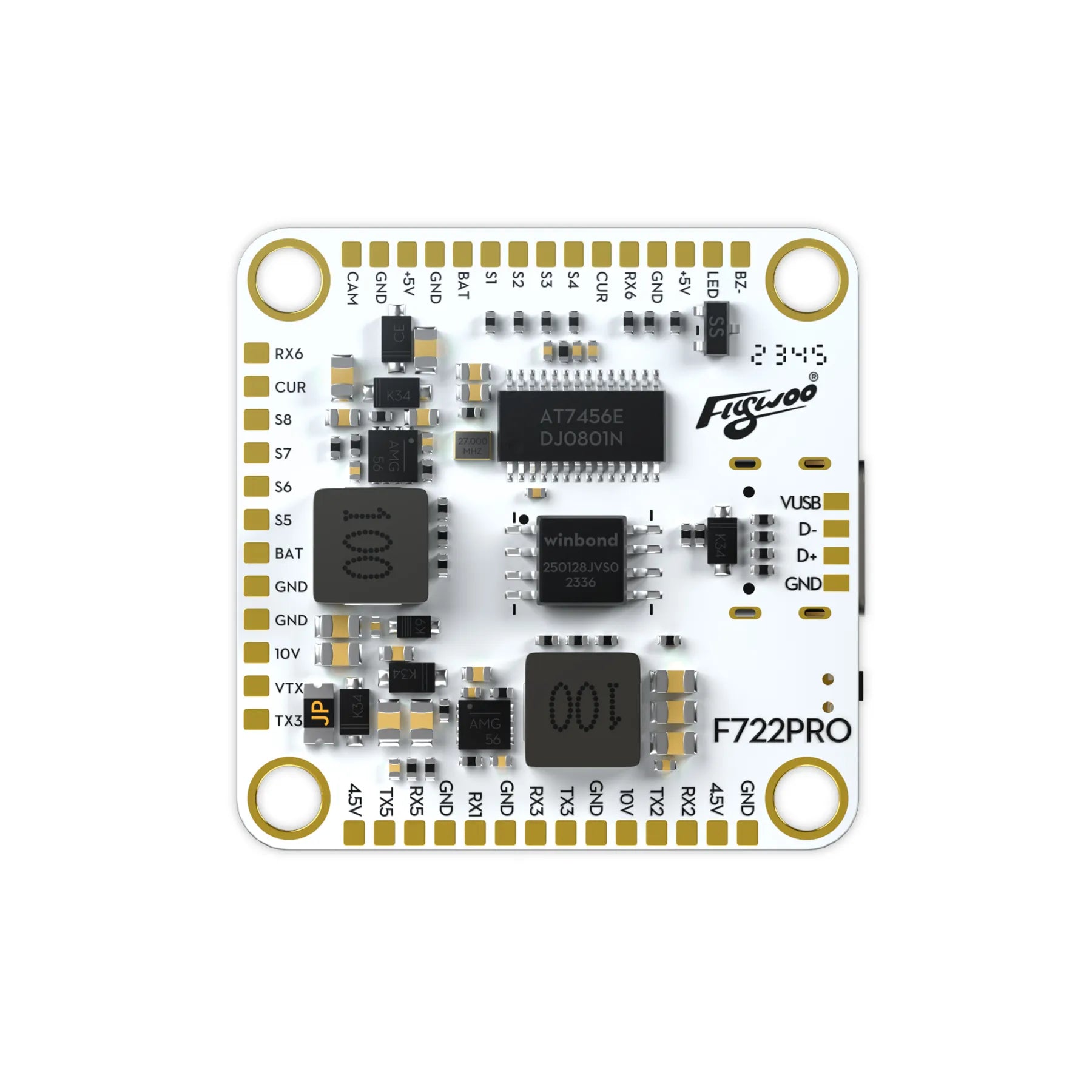

- OSD : AT7456E
- Barometer : DP310
- Black Box : 16MB

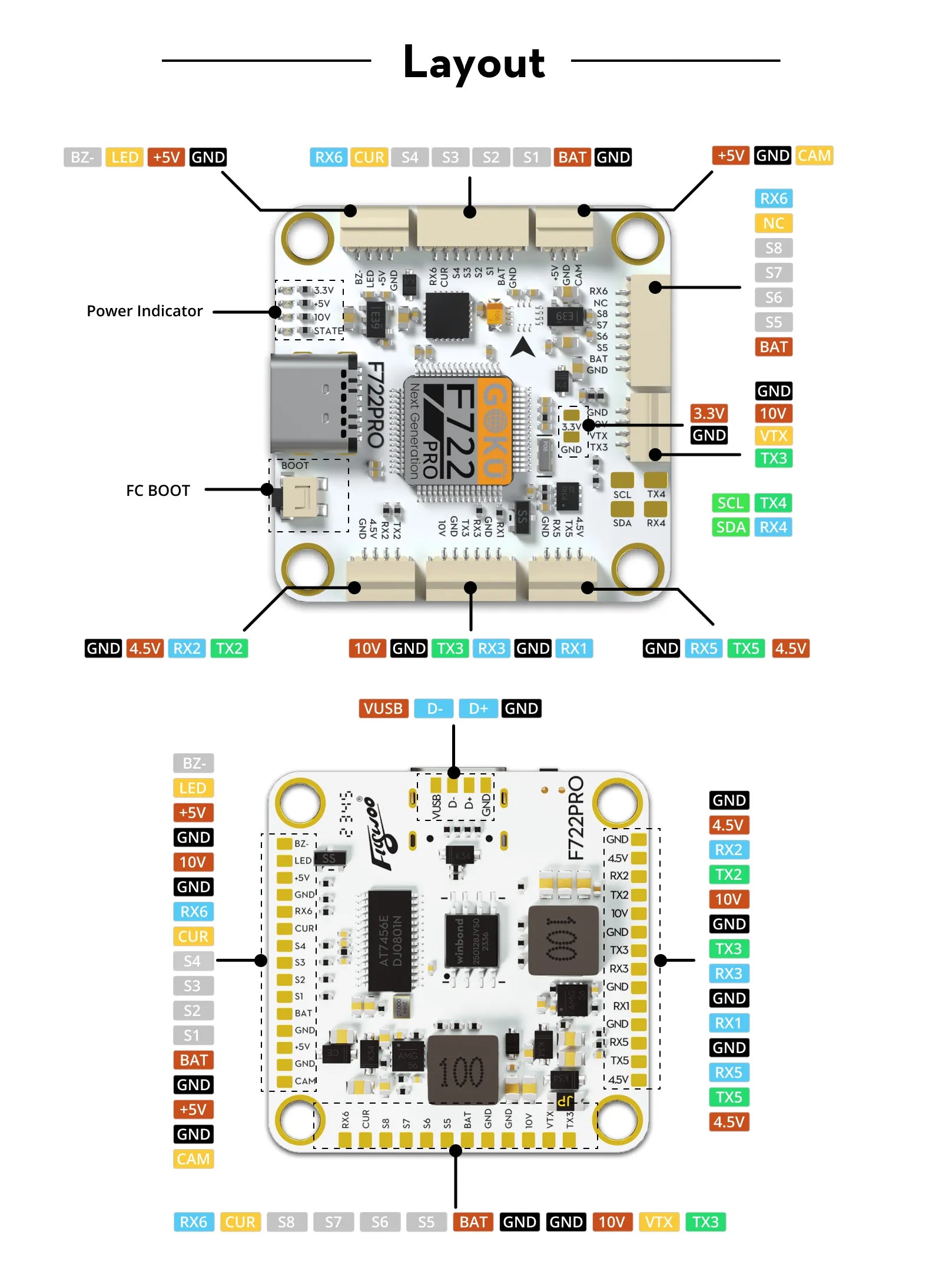

- UARTS : 1/2/3/4/5/6
- Input Voltage : 7.4V-26V (2-6S LiPo)
- BEC Output : 10V/3A and 5V/3A

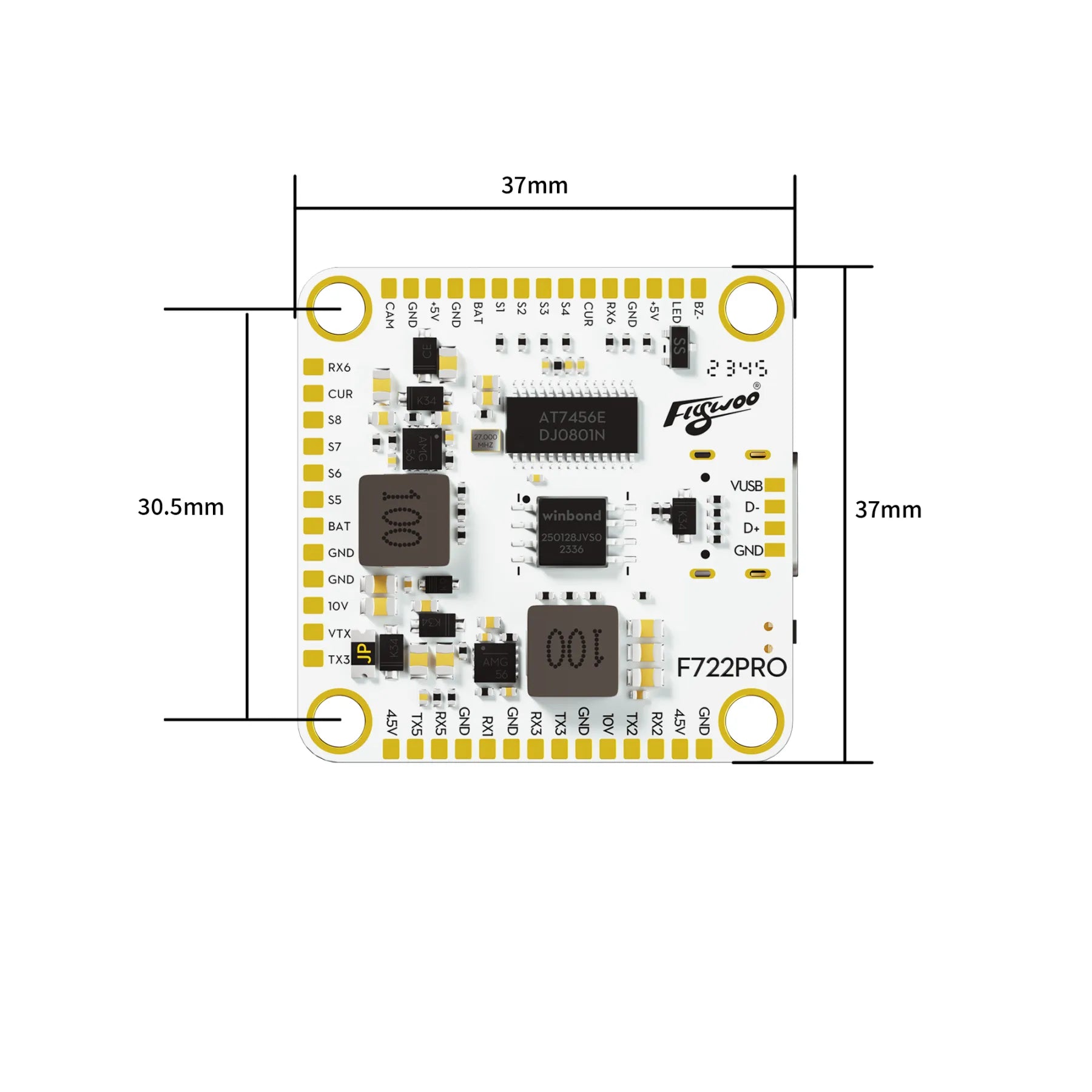

- Size : 37mm x 37mm x 8mm
- Mounting Holes : M3 30x30mm

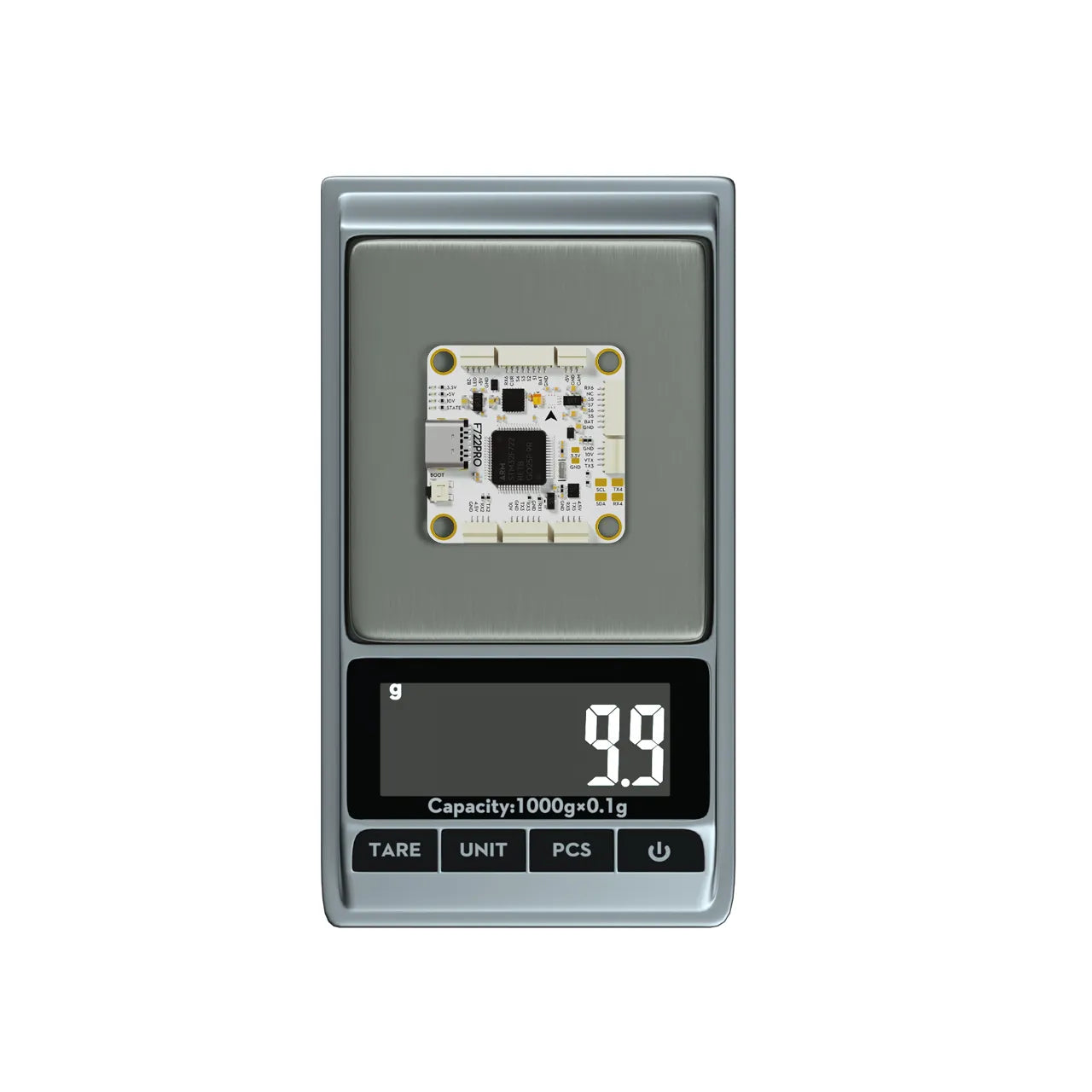

- Weight : 9.9g

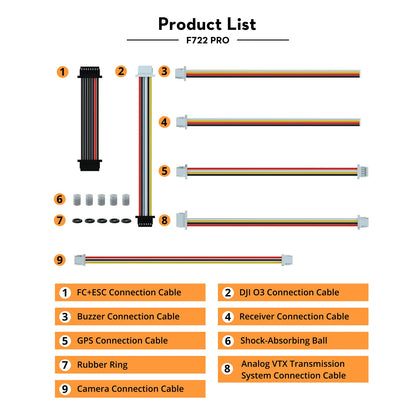

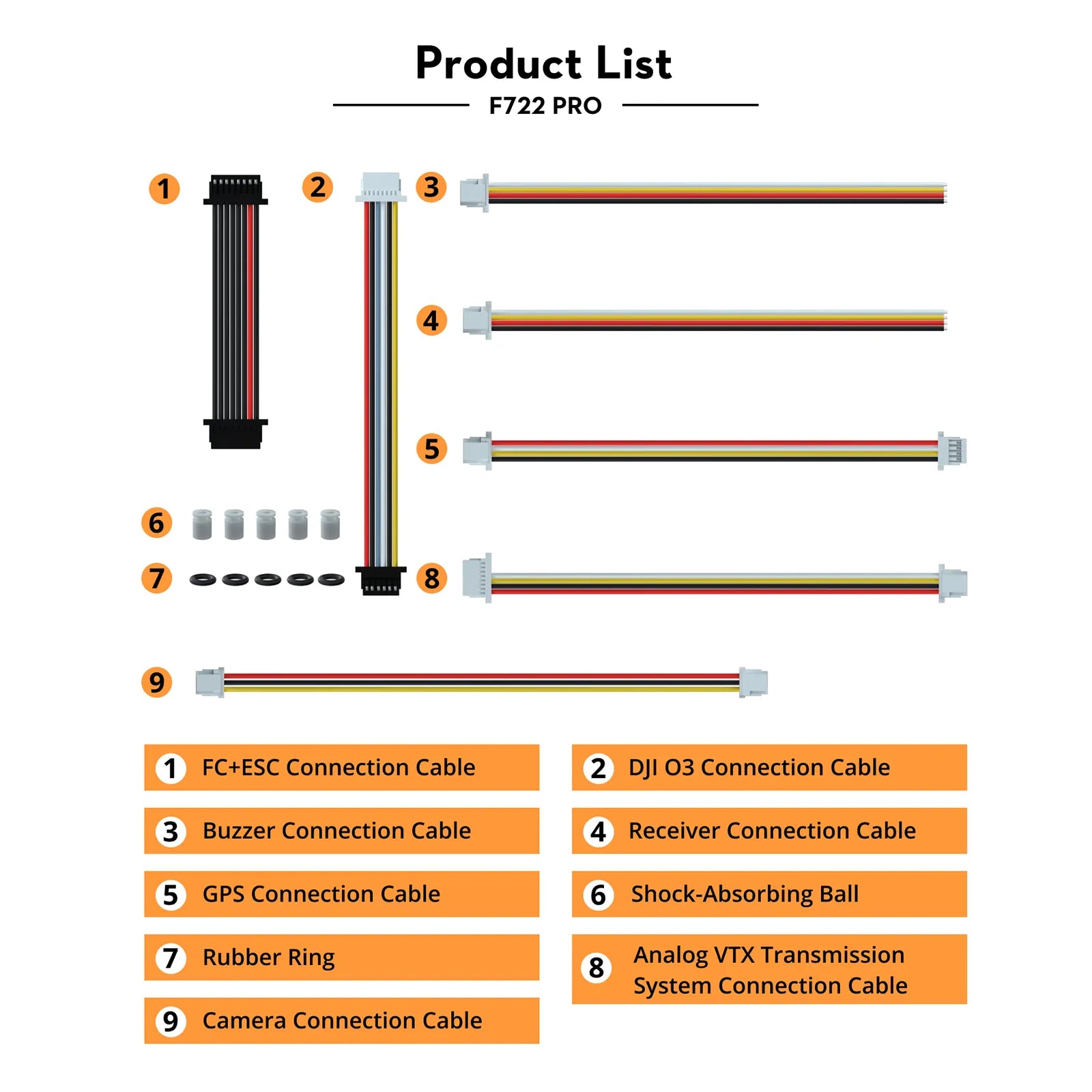

What's in the Box:
- 1 x FC & ESC Connection Cable
- 1 x Buzzer Connection Cable
- 1 x GPS Connection Cable
- 1 x DJI O3 Connection Cable
- 1 x Receiver Connection Cable
- 4 x M3 Shock-Absorbing Balls
- 7 x M3 Rubber Rings
- 1 x Analog VTX Connection Cable
- 1 x Camera Connection Cable
Note : The included accessories may vary depending on supply availability.
