Product Details

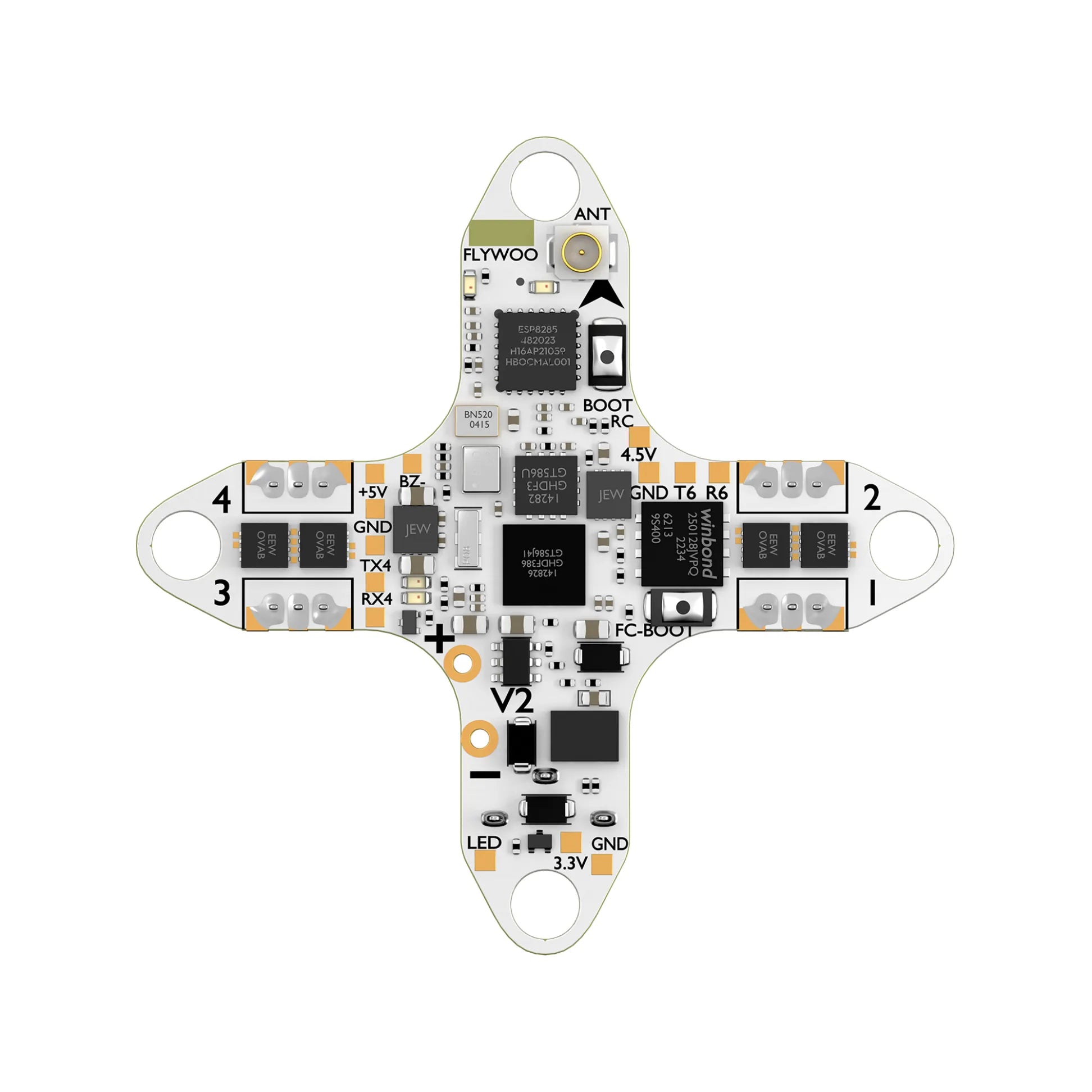

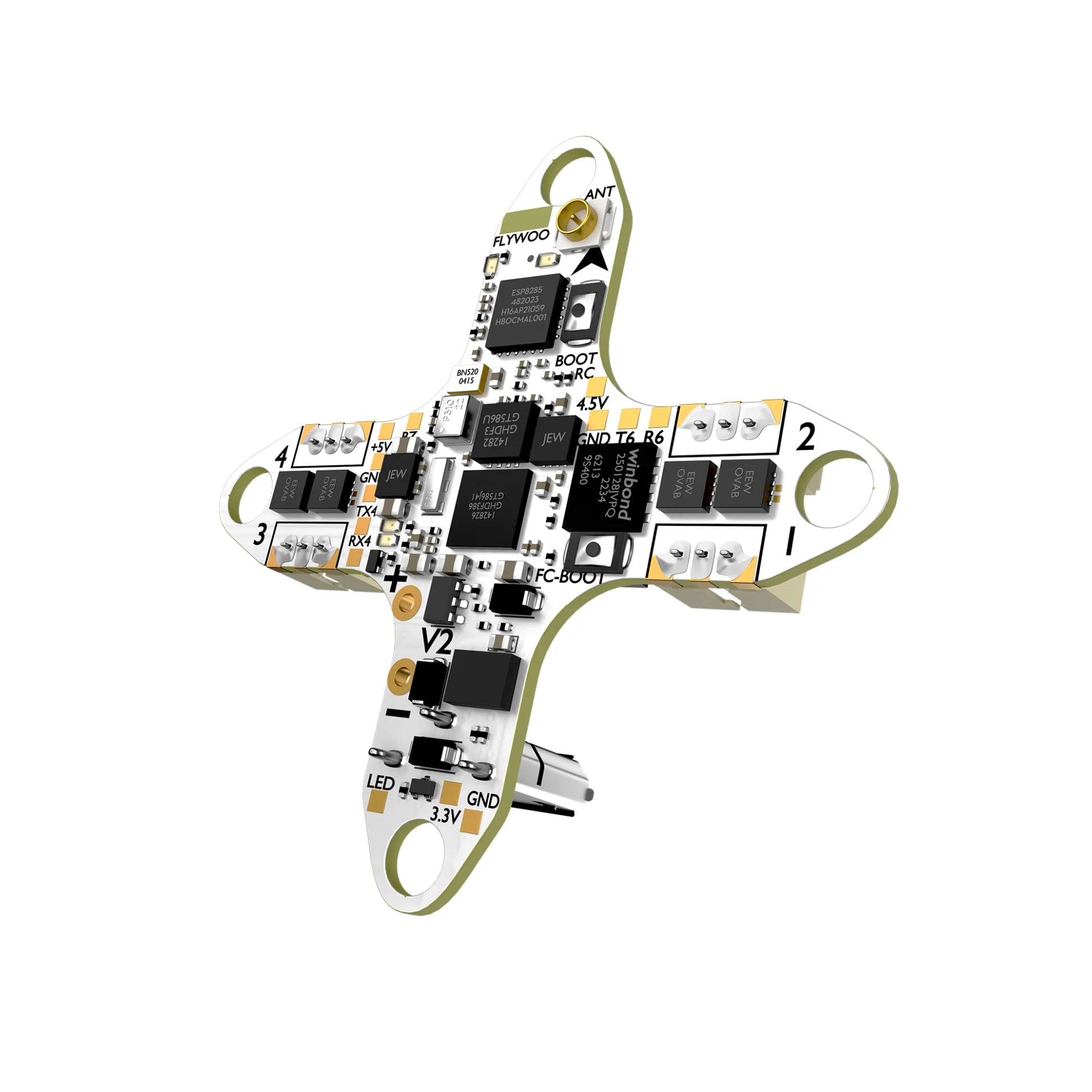

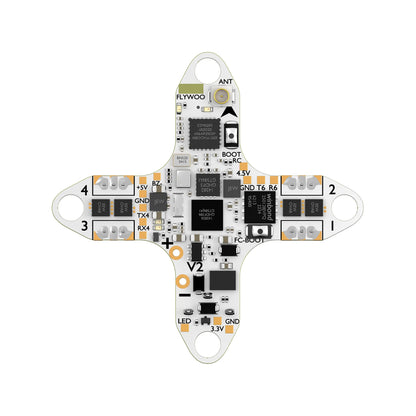

GOKU F405 HD 1S 5A ELRS AIO V2.0
This is the GOKU F405 HD 1S 5A ELRS AIO V2.0—the all-in-one flight controller ESC stack for people who want HD FPV without turning a tiny quad into a wiring crime scene. Early SEO bribes: GOKU F405 AIO, 1S 5A ELRS AIO, DJI O4 AIO flight controller. If you’re skimming (don’t lie): it’s small, HD-ready, ELRS-built-in, and yes—we’re here to monetize your micro-quad addiction.
Why You Want It
Because soldering five separate boards onto a 1S frame is a cry for help. The GOKU F405 HD AIO crams an F405 MCU, 5A ESCs, and ExpressLRS into one neat package that plays nicely with DJI O4, Walksnail, and HDZero. It’s made for micros that punch above their weight—clean HD video, solid RF link, and flight performance that won’t feel like a compromise just because your quad is tiny.
Specifications
- MCU : STM32F405BGA
- IMU : ICM42688P
- Barometer : SPL06
- Black Box : 8M
- OSD Support : No

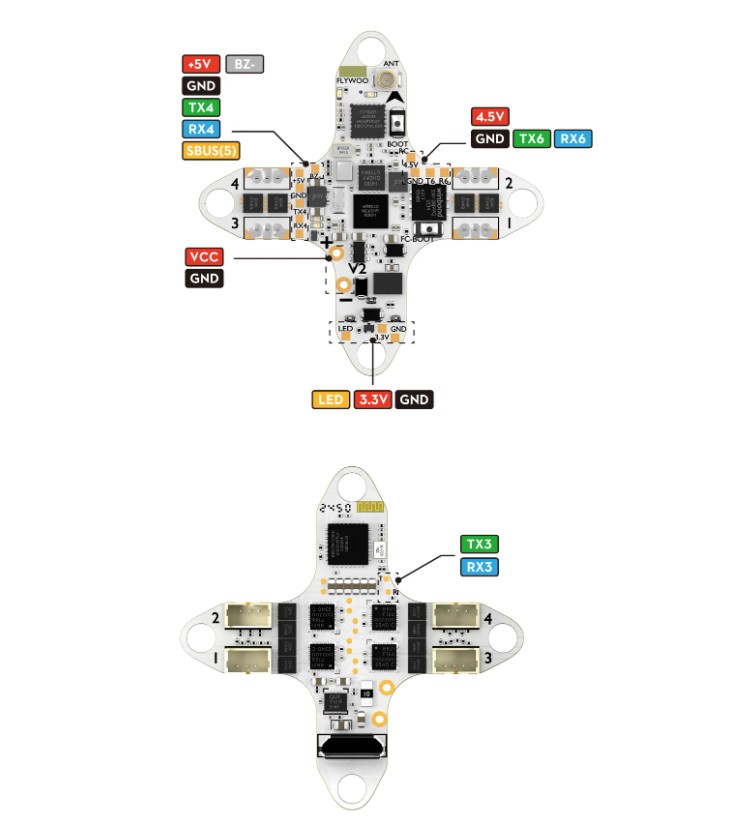

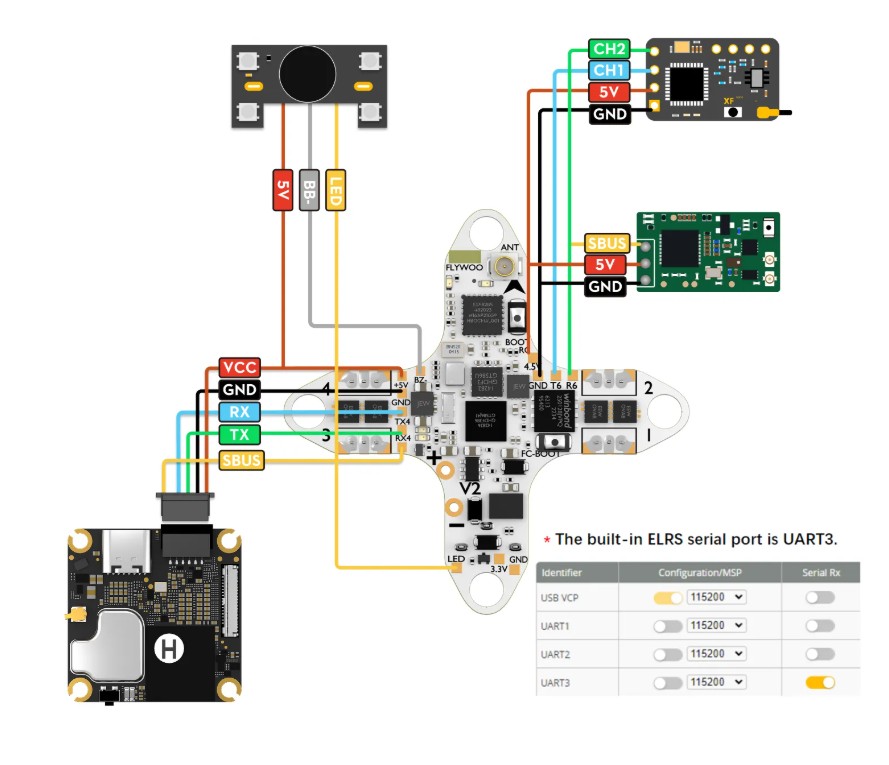

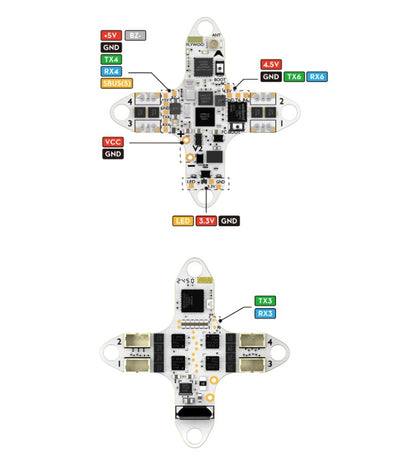

- UART : UART 3（For ELRS),UART4,UART5(SBUS),UART
- Protocols : CRSF, SBUS, iBus, Spektrum
- BEC : BEC:5V 3.0A MAX（Support DJI O4 Air Unit）
- RX : Flywoo TCXO EL24E 2400 RX 3.0.0
- FC Firmware : FLYWOOF405S_AIO

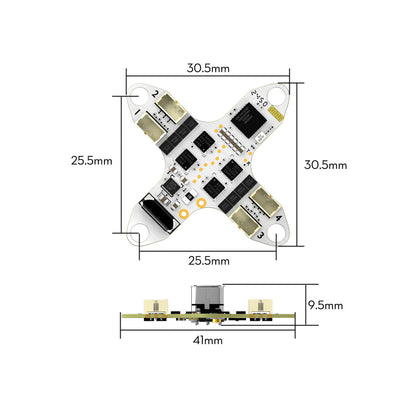

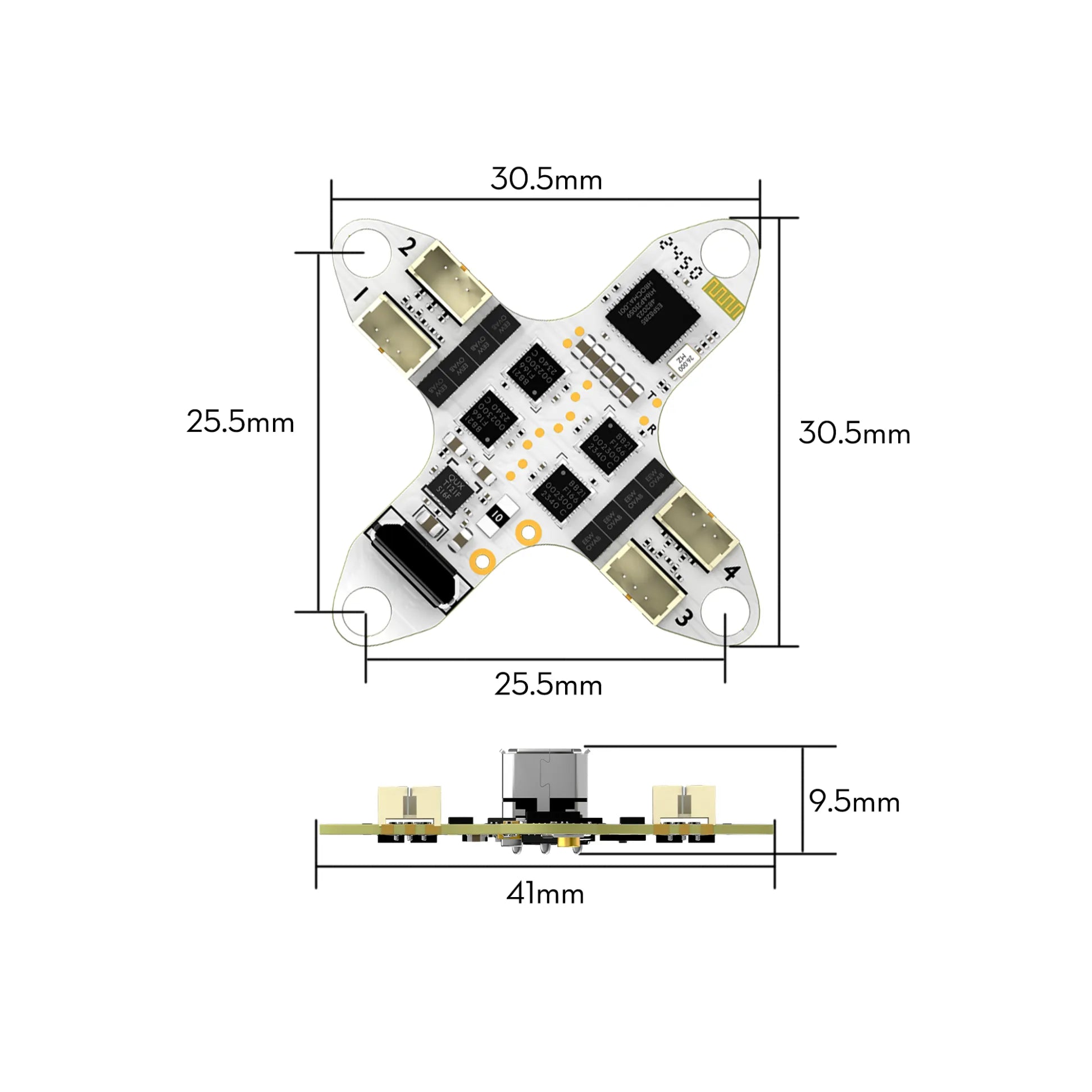

- Dimensions : 30.5 x 30.5mm
- Mounting Holes : Standard 25.5/25.5mm square to center of holes

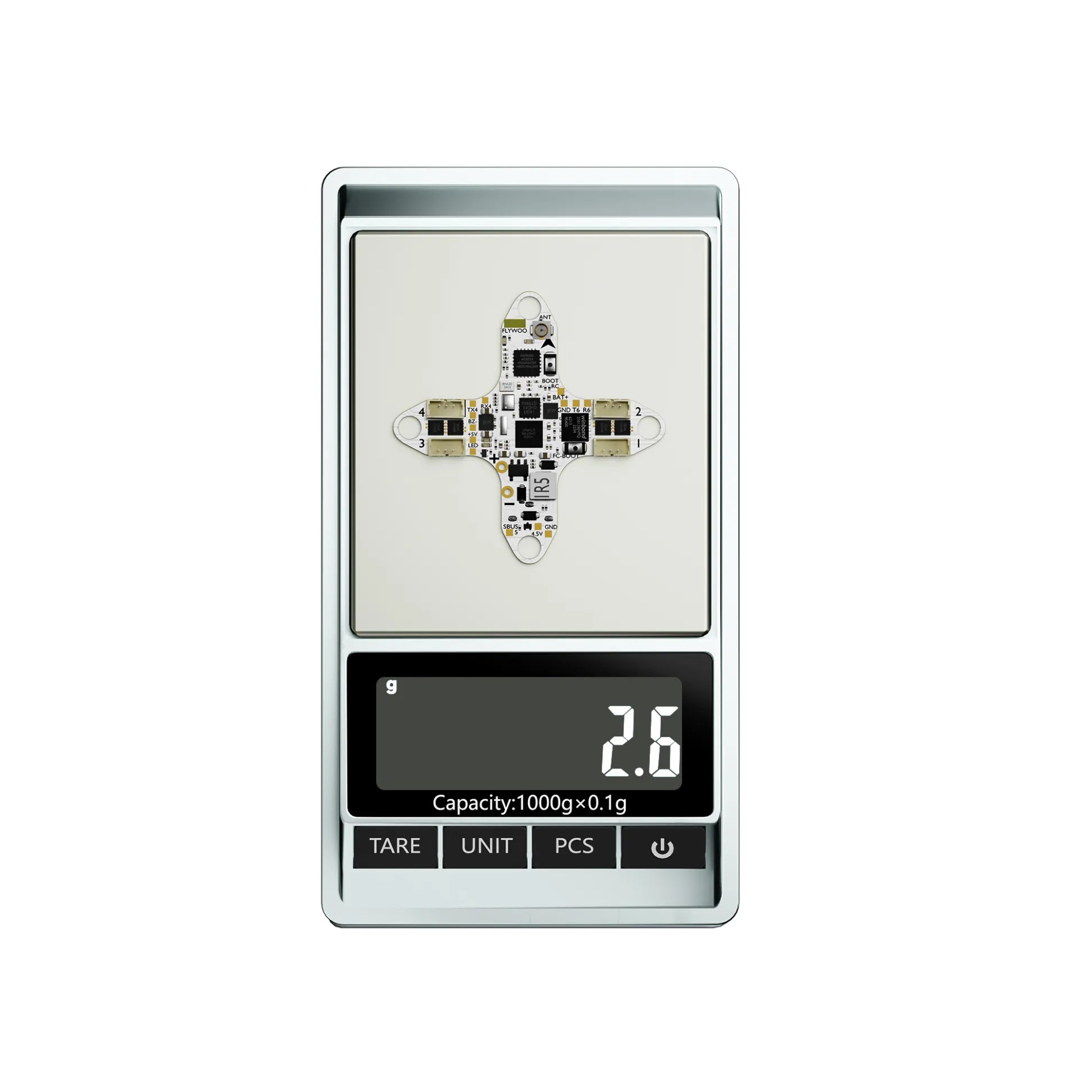

- Weight : 2.6g

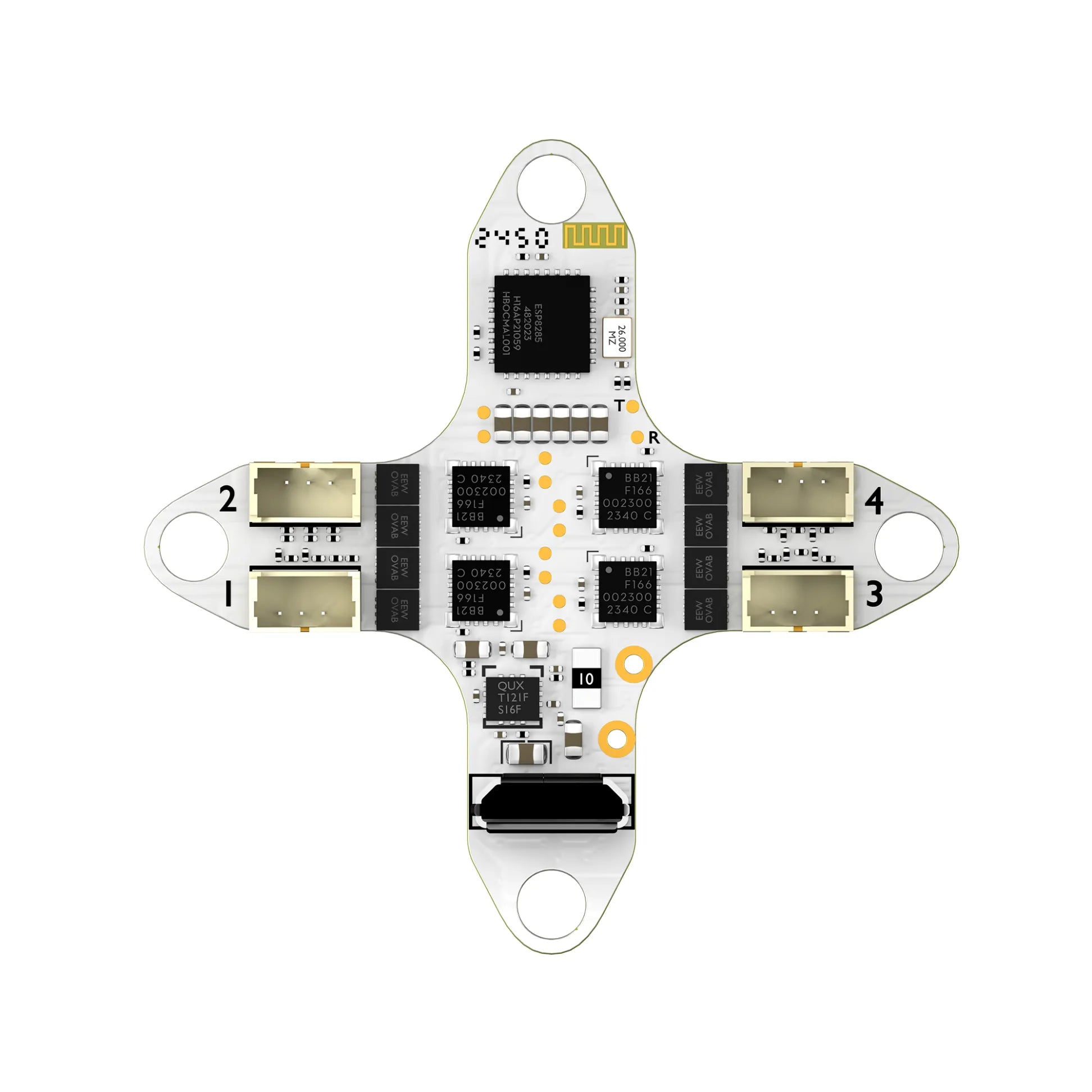

Onboard 4in1 ESC
- Power input : 1S Only
- Current : 5A continuous, 8A peak
- ESC firmware : O_H_5_48KHz_V0.19.hex Bluejay firmware
- Digital signal protocol : DShot300, DShot600
- Motor Connector : JST1.25
- Battery connector : A30
O4 1S BEC Module
- Input Voltage : 2.65V-5V (1S battery voltage)
- Output : 5V/3A
- Dimensions : 11mm x 8mm x 2.2mm
- Weight : 0.4g
What’s in the Box*
- 1× GOKU F405 HD 1S 5A ELRS AIO V2.0
- Accessories
Disclaimer
*Accessory list may change without notice. Supply chains are a myth, deal with it. HD video, ELRS built in, 1S simplicity. This AIO does the work so your micro quad doesn’t suffer.
