Product Details

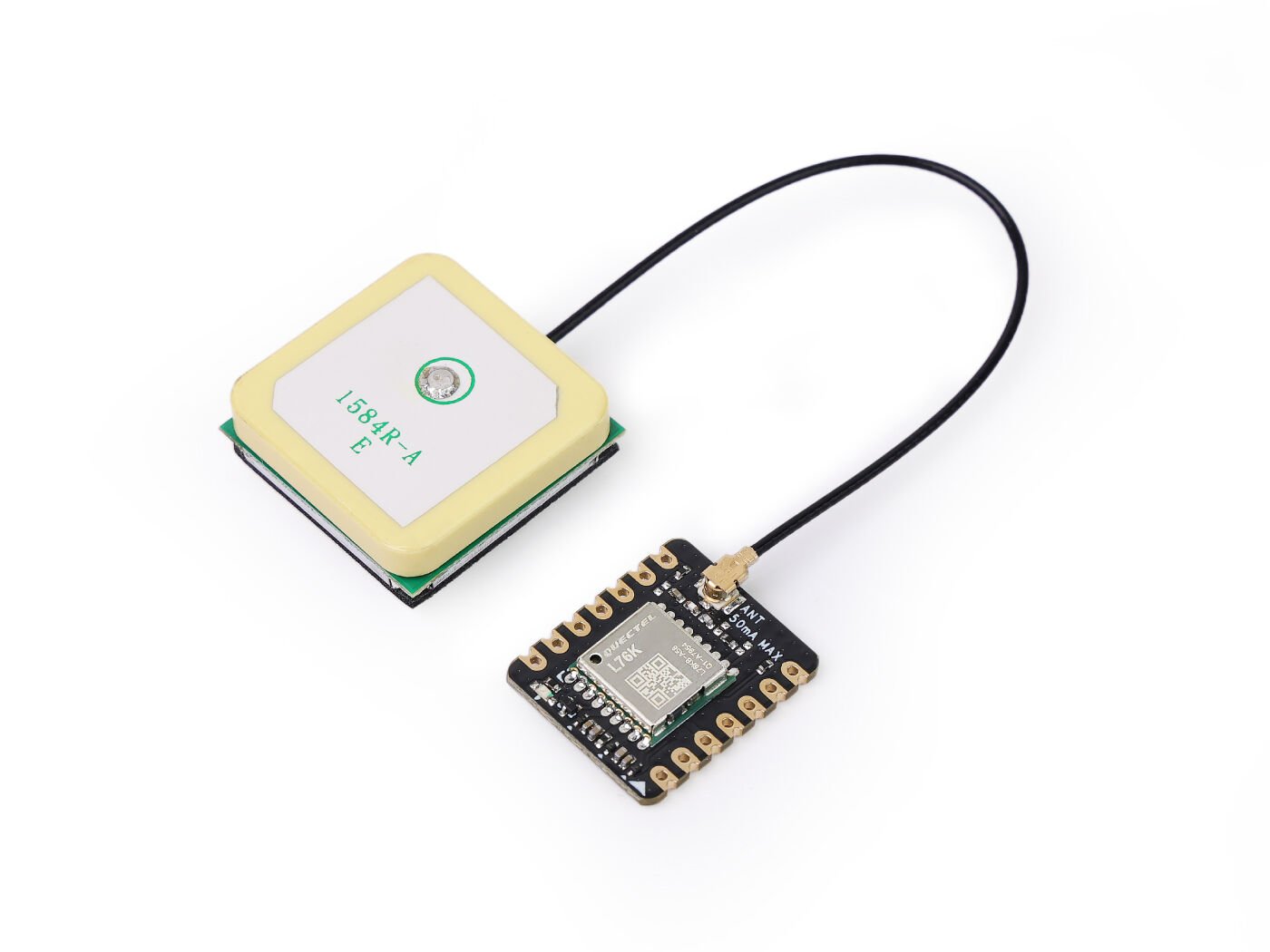

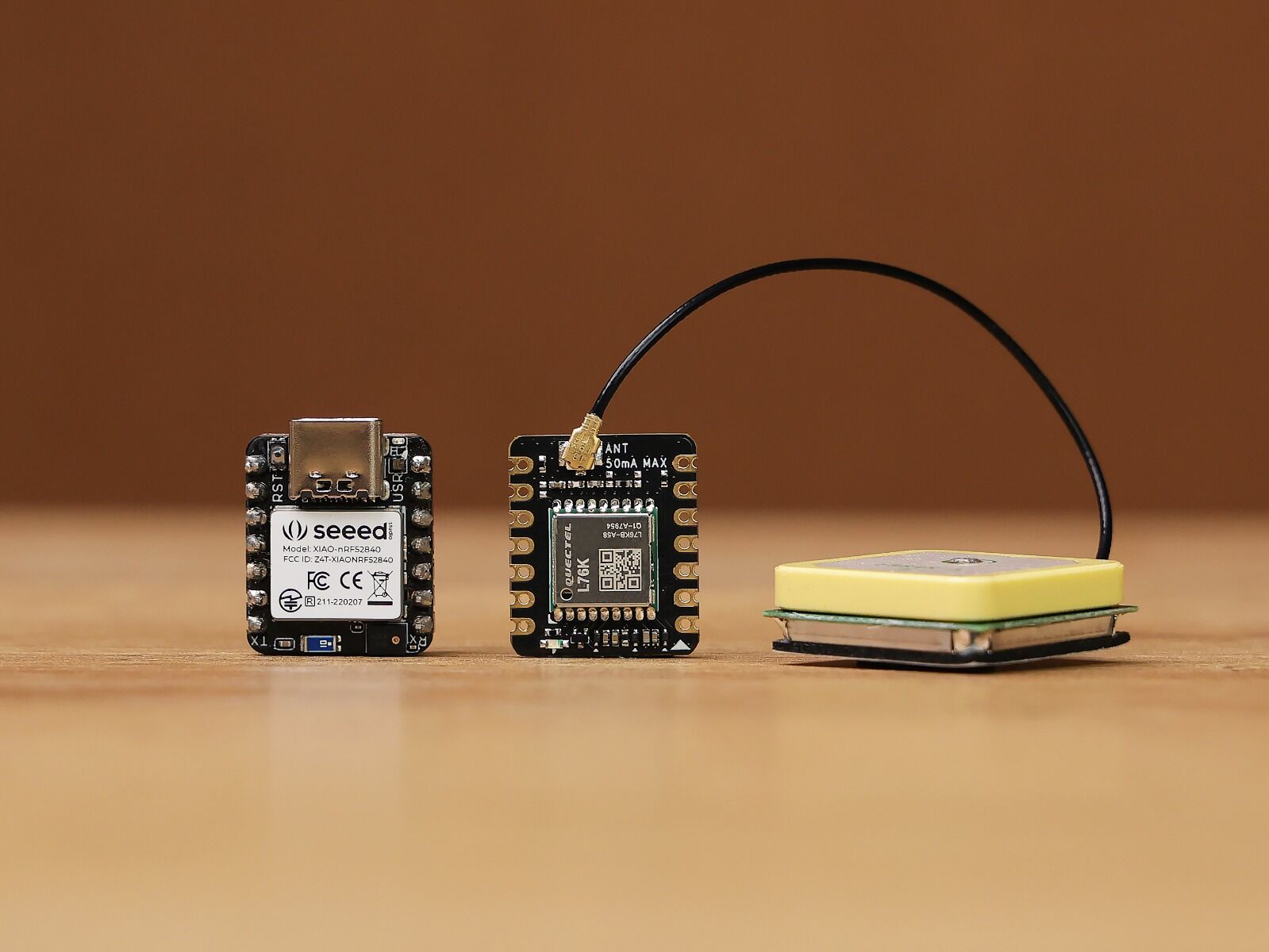

GNSS Add-on Module for Seeed Studio XIAO - Compact GPS Tracker with UART Interface
The L76K GNSS Module , designed for the Seeed Studio XIAO series, is a precision-driven multi-GNSS receiver powered by Quectel L76K. It supports GPS, BeiDou, GLONASS, and QZSS for robust global positioning. Whether you're building a compact GPS tracker or optimizing robotics, this module's low power consumption and versatile compatibility make it a game-changer.
Equipped with AGNSS, a high-sensitivity ceramic antenna, and intelligent signal filters, this module ensures reliable, high-accuracy tracking across diverse applications, from smart city innovations to logistics management.
Key Features
- Enhanced Signal Clarity: Built-in Low Noise Amplifier (LNA) and Surface Acoustic Wave (SAW) Filter reduce interference for accurate readings.
- Multi-GNSS Capability: Tracks multiple systems (GPS L1 C/A, BeiDou B1, GLONASS L1) simultaneously for precision.
- Energy-Efficient Design: Operates at just 41mA during tracking and a mere 360μA in standby mode.
- Compact Size: Measures only 18mm x 21mm, perfect for space-constrained projects.
- Active Ceramic Antenna: Outperforms traditional antennas with better signal reception across wide frequencies.
- User-Friendly Visual Feedback: Green LED blinks with 1PPS output, indicating successful signal acquisition.
Specifications
| Parameter | Details |
|---|---|
| GNSS Bands | GPS L1, GLONASS L1, BeiDou B1 |
| Channels | 32 Tracking, 72 Acquisition |
| Sensitivity | Tracking: -162dBm, Re-acquisition: -160dBm |
| Position Accuracy | 2.0m CEP |
| Velocity Accuracy | 0.1m/s |
| Interface | UART (Default 9600bps) |
| Antenna | Active, 1559-1606MHz, U.FL connector |
| Power Consumption | 41mA (Tracking), 360µA (Standby) |
| Dimensions | 18mm x 21mm |
Applications
- GPS Navigation
- Asset Tracking
- Robotics Projects
- Smart City Systems
- Logistics and Freight

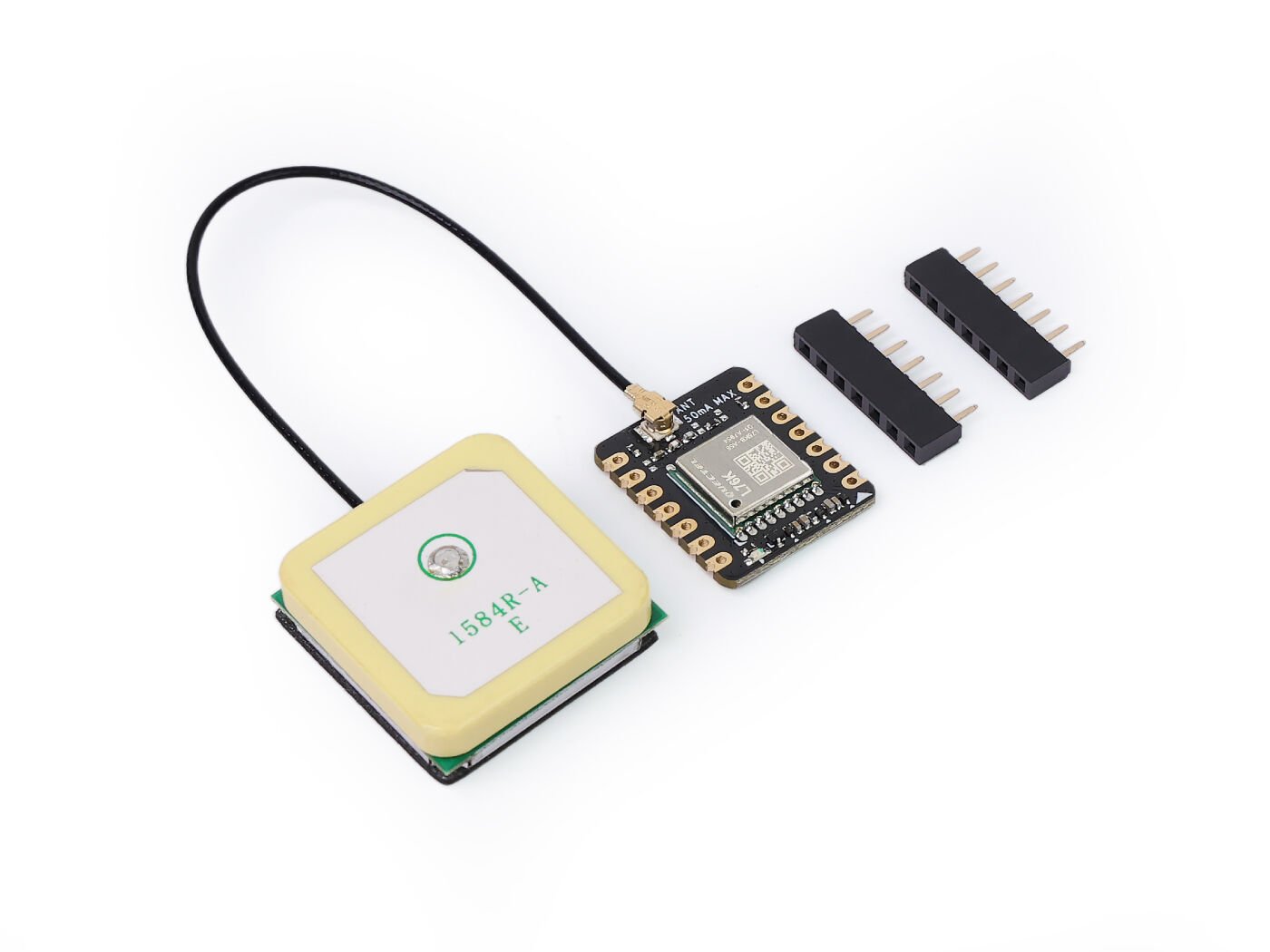

What's in the Box?
- 1 x L76K GNSS Module
- 1 x Active Antenna with iPex Connector
- 2 x 7-Pin Female Headers (2.54mm)
Disclaimer: Included accessories may vary based on supply.
