Product Details
A whoop sized flight controller with its layout optimised for toothpick builds with full support for 2-6S input. The JHE GHF packs a 20A ESC using new MOSFETS to be more robust to voltage spikes compared to other flight controllers in this class. Furthermore, the motor headers are not pre-soldered making it easier for those who prefer to direct solder their motors.
&feature=emb_title
Specification
- Brand Name: JHEMCU
- Model: GHF411AIO Pro
- Item Name: F4 OSD Flight Controller Built-in 25A/35A 4in1 ESC
- Size: 32.5×32.5mm
- Mounting Hole: 25.5×25.5mm

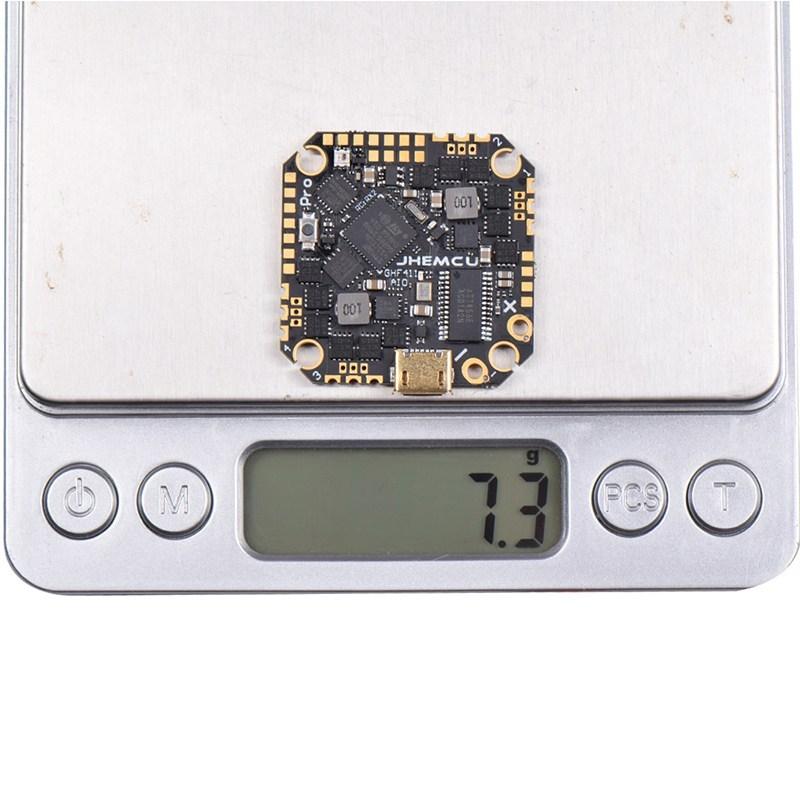

- Weight: 7.3g
- CPU: STM32F411CEU6 (100MHZ)
- MPU: MPU6000 ( SPI)
- Firmware: Betaflight JHEF411
- Built-in Betaflight OSD ( AT7456E)
- BEC Output(two): 9V/2A, 5V2.5A
- USART: UART1,UART2
- Receiver;SBUS,IBUS,DSM2,DSMX ,TBS (UART2)
- Blackbox: 8MB
- Built-in Current Sensor
- Support WS2812 LED
- Input Voltage: 2-6S Lipo
- ESC Current: 25A
- Firmware: BLHELI_S G-H-30.HEX
- Support PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600

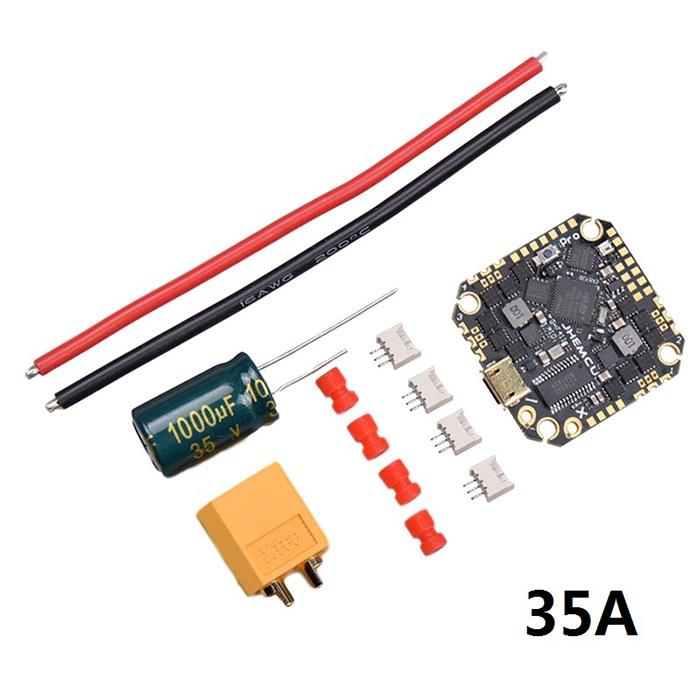

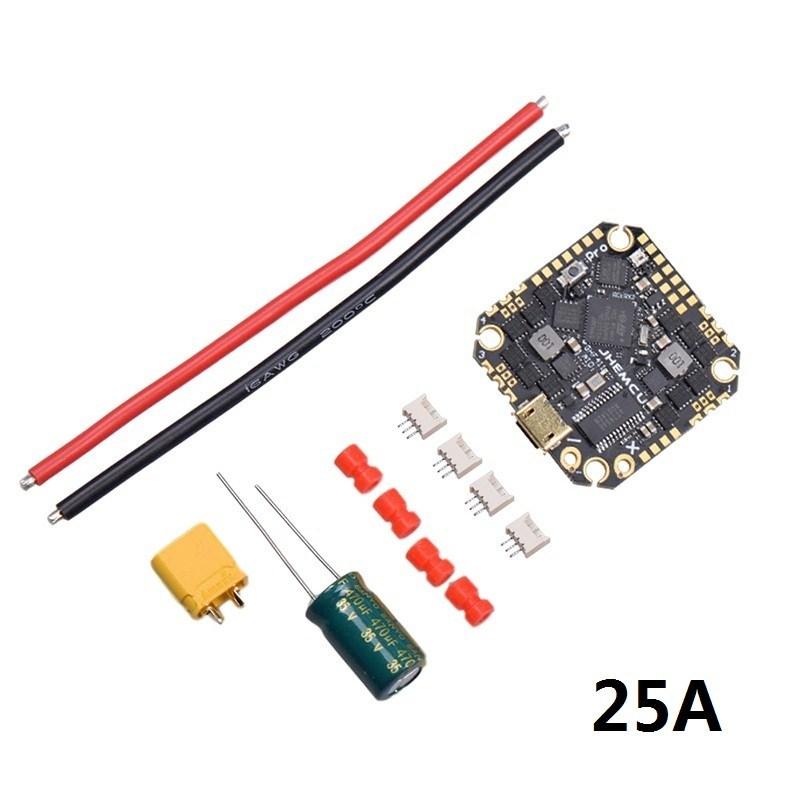

Included
- 1x F4 GHF411PRO AIO
- 1x XT30 Connector
