Product Details

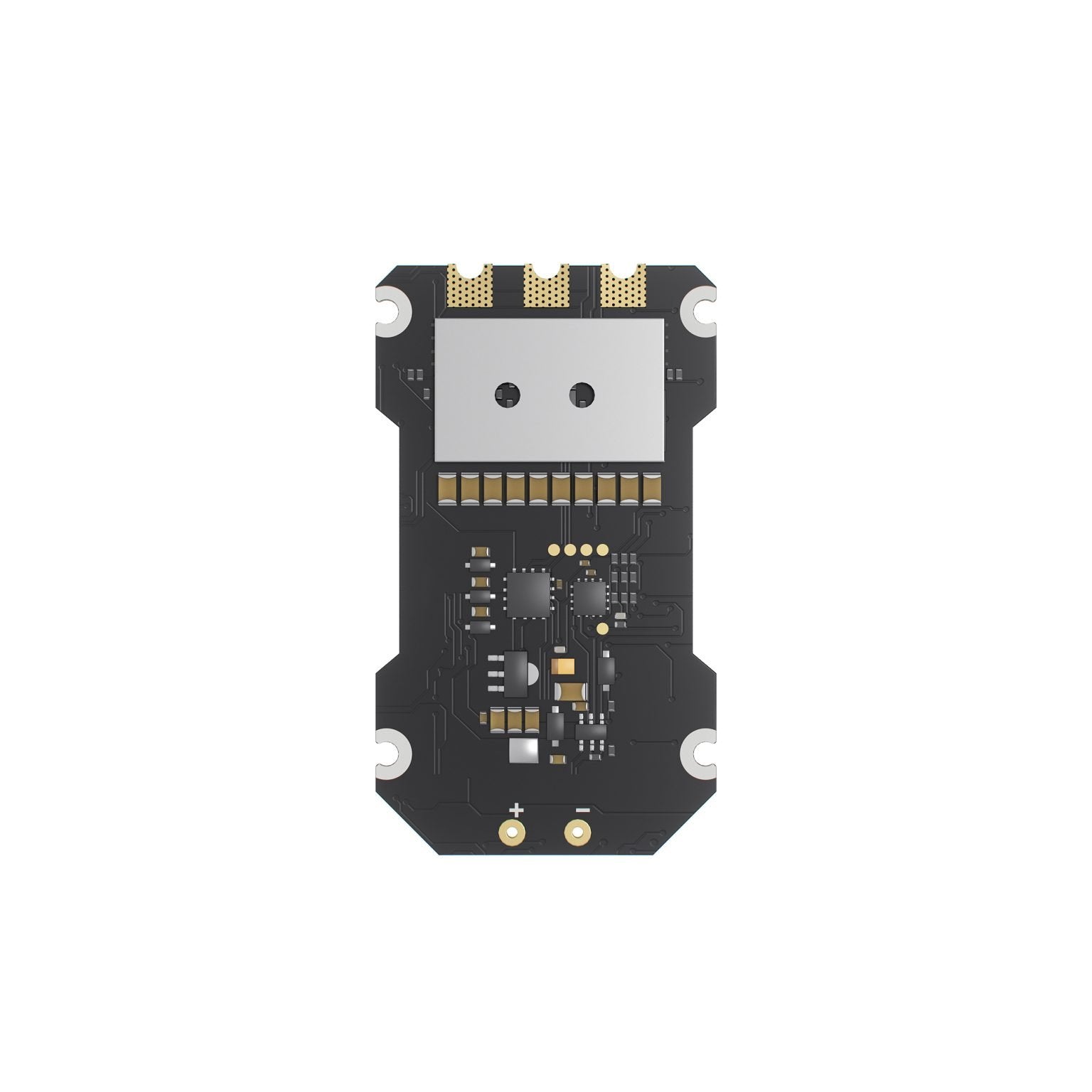

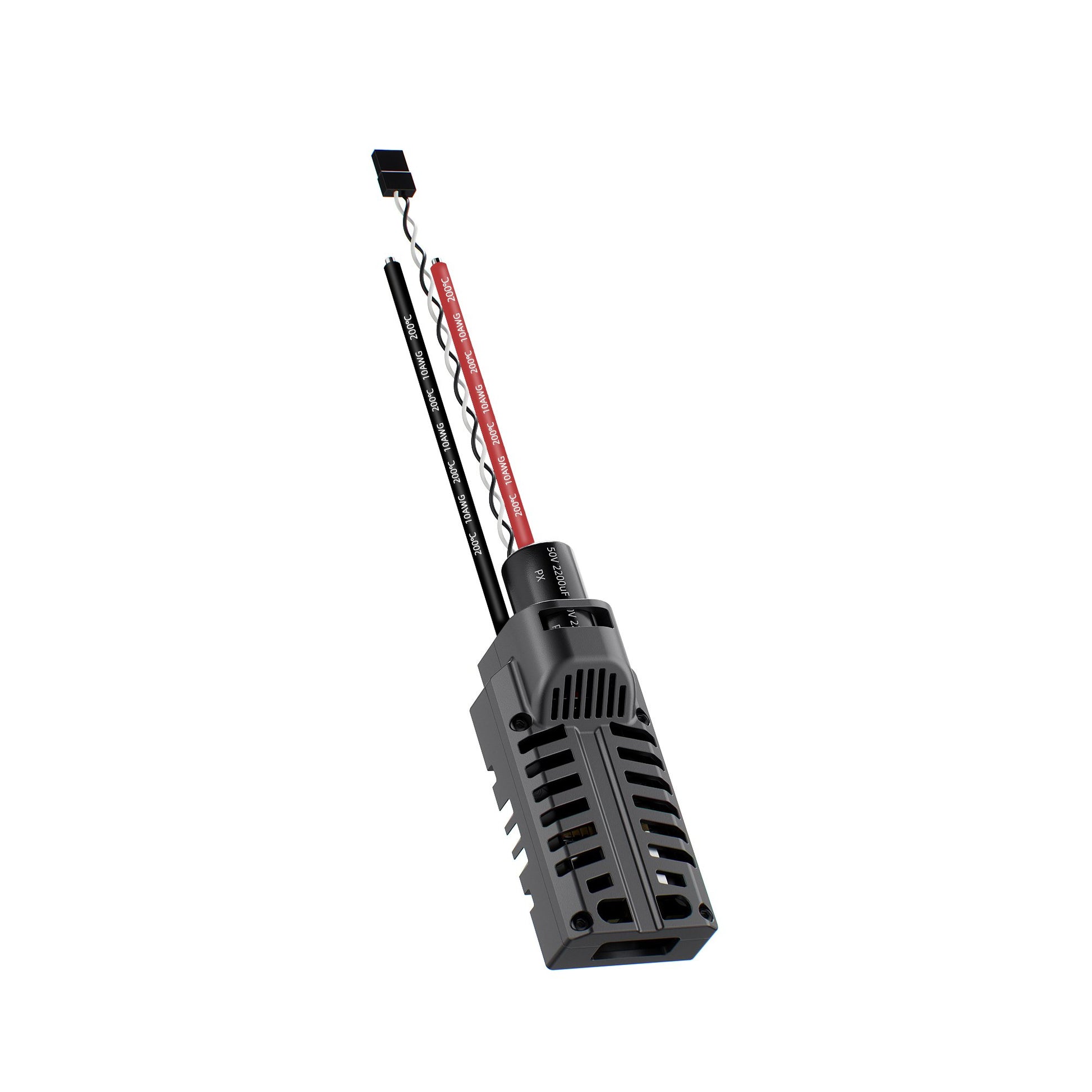

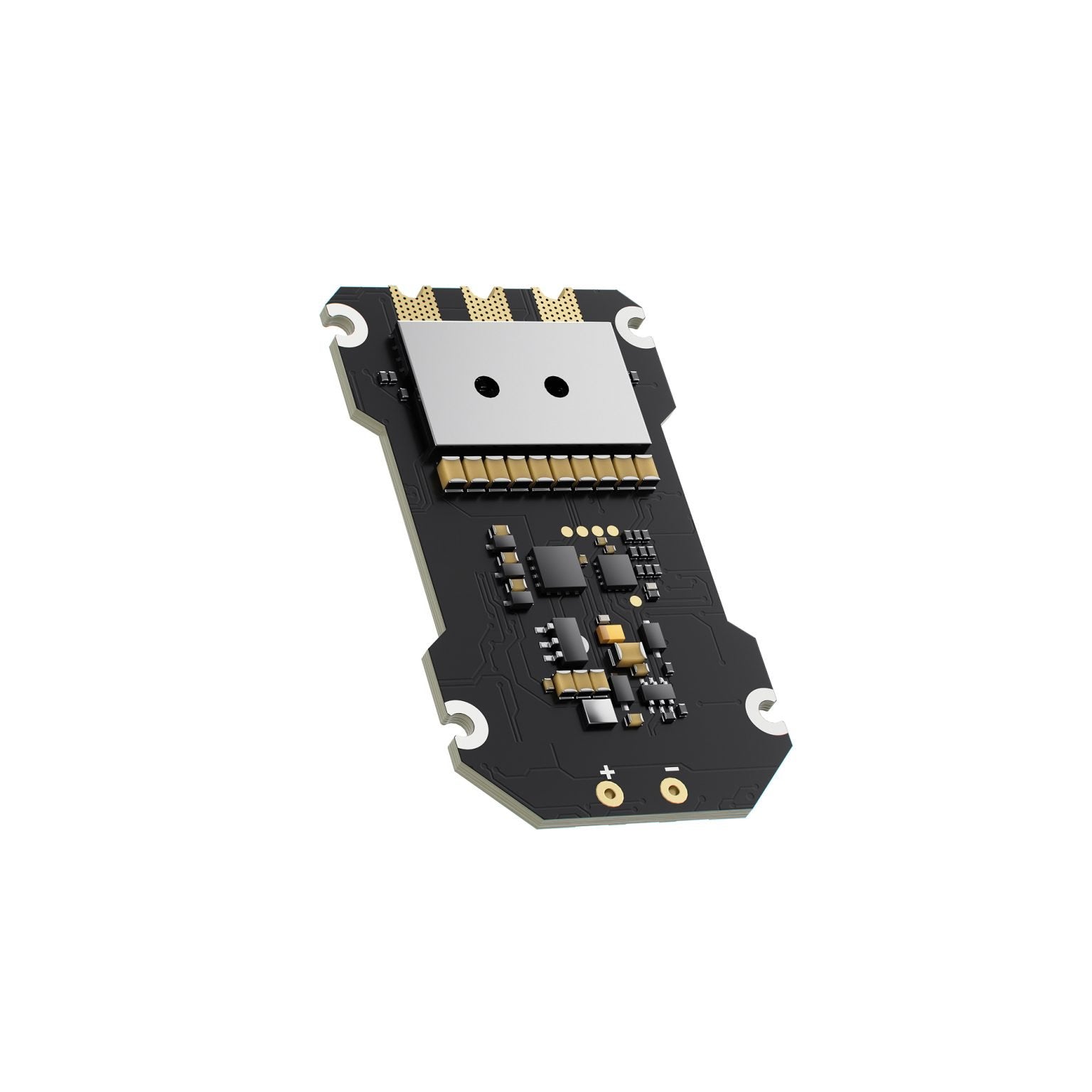

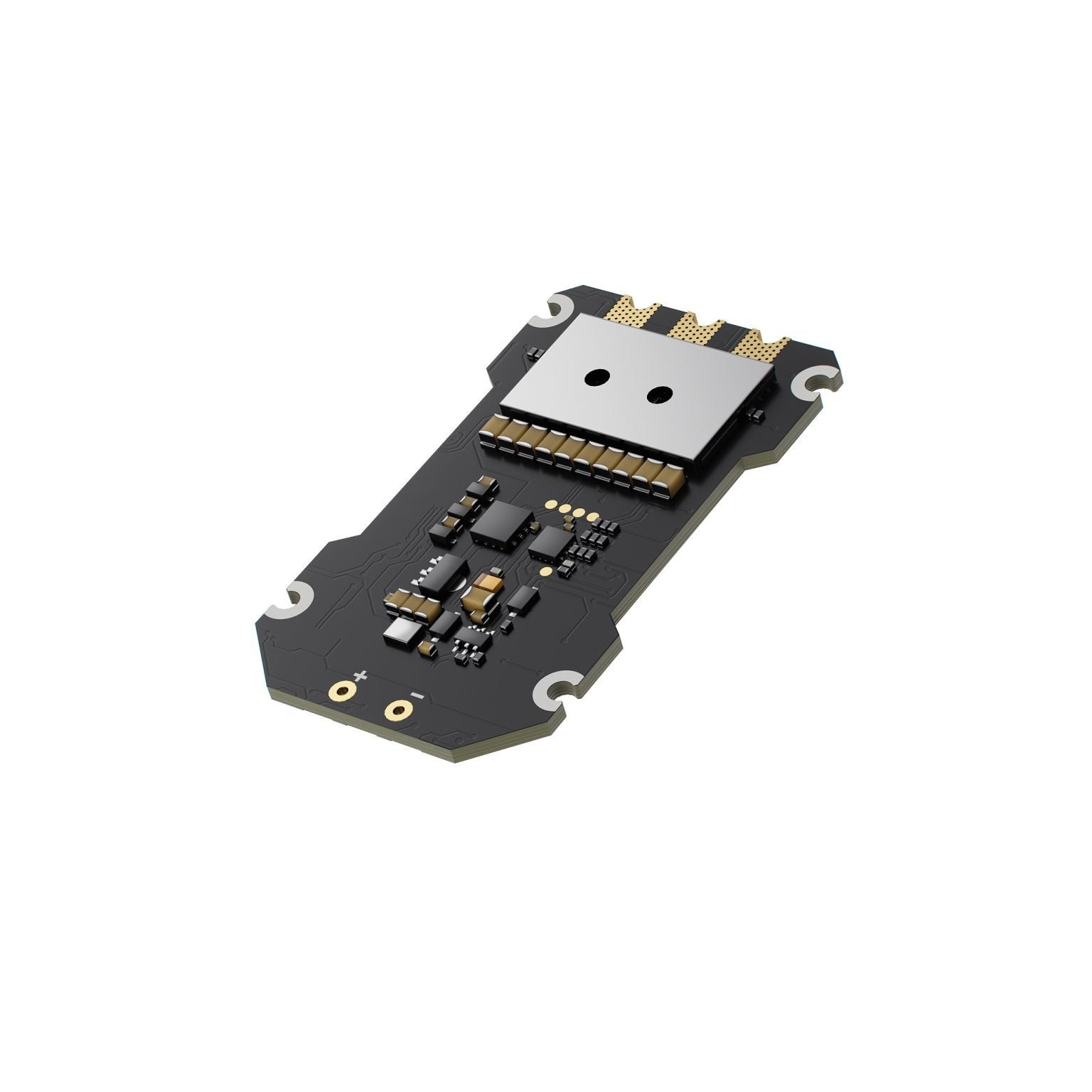

GEPRC TAKER S80 8S BLS 80A ESC
Looking for a robust ESC for 8-cell builds that doesn’t choke under load? The **GEPRC TAKER S80** delivers 80 A continuous, supports 3–8S LiPo, and runs BLHeli_S with DShot support—ideal for heavy rigs needing reliability. (Yes, we stock it.)
Why You Want It
Because for big quads, the ESC often becomes the weakest link. This model gives you headroom, stable current, and compatibility with modern protocols. It’s built to handle demanding motors and aggressive flying—plus it includes high-quality capacitors and wiring to reduce voltage spikes.
Specifications
- Input voltage: 3–8S LiPo
- Continuous current: 80 A
- Burst current (5 s): 85 A
- Supported protocols: DShot 150 / 300 / 600
- Dimensions: 36 × 76 mm (case)
- Mounting hole spacing: 29.6 × 48.55 mm
- Weight: 68.8 g (with-case version)

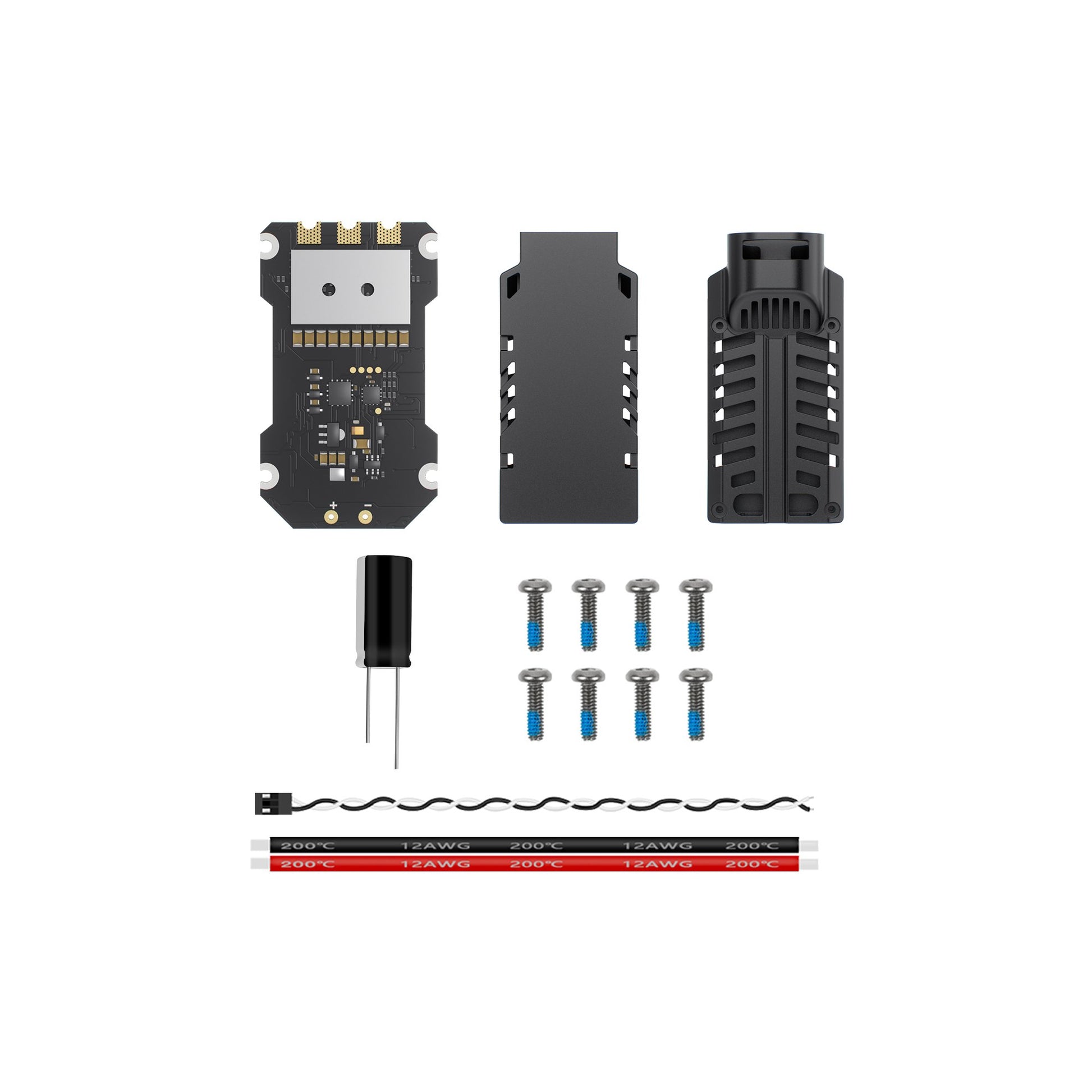

What’s in the Box*
- 1 × TAKER S80 8S BLS 80A ESC
- 1 × 50 V 2200 µF capacitor (included)
- Power cables (black & red 10 AWG, 240 mm)
- 2-pin Dupont wire (110 mm) for signal connection
Disclaimer
*Wire lengths, connectors, or included parts may vary by production batch. Always test and verify connection before flight.
Still Here?
If you’re powering high-thrust motors with 7″–8″ props or running big rigs on 8S, this ESC gives you the reliability you need.
