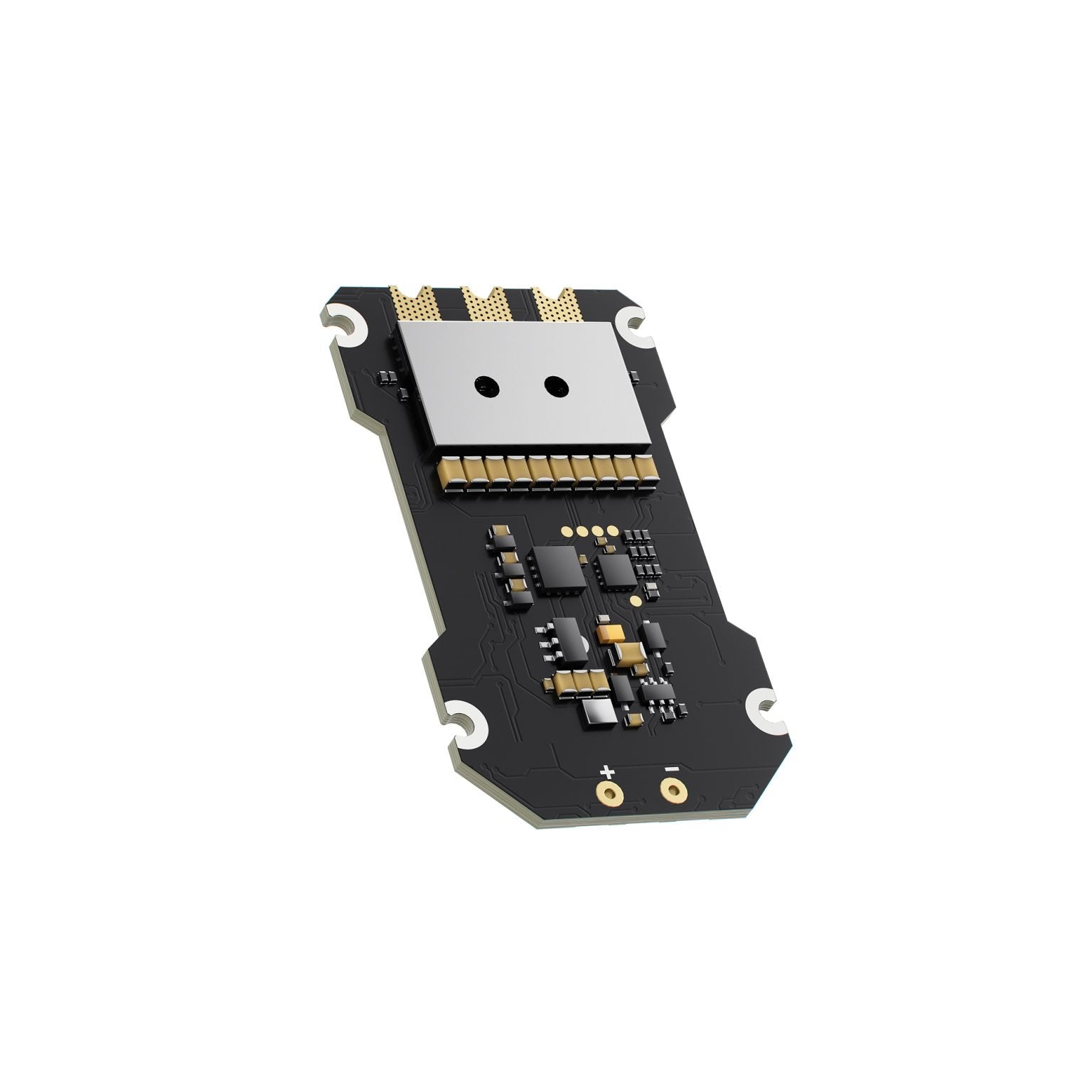

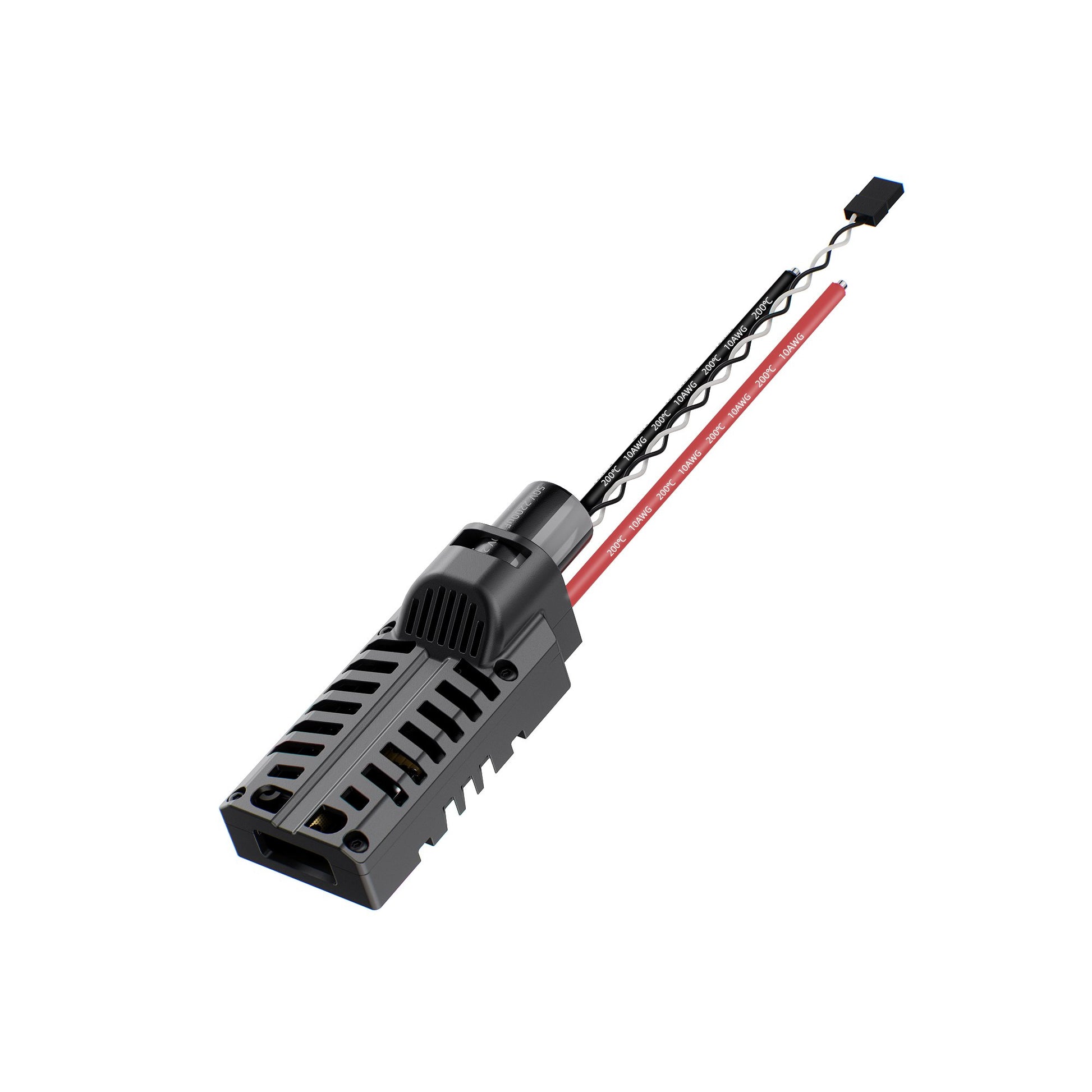

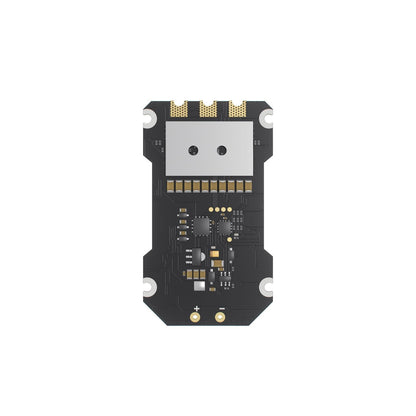

GEPRC TAKER S100 8S BLS 100A ESC

Need raw power and robust performance for 8S race or freestyle builds? The GEPRC TAKER S100 is a stand-alone **100 A BLHeli_S ESC**, built for high current, low latency, and durability. (Yes, we sell this beast.)

Why You Want It

Because pushing your motors is only half the battle—the ESC has to keep up. With 100 A continuous current rating, support for 8S input, and BLHeli_S firmware compatibility, this ESC handles stress without folding. It’s ideal for heavy rigs, high thrust setups, or builds primed for performance. Add good cooling and clean wiring, and you’re set.

Specifications

• Input Voltage: 3-8S Lipo
• Ammeter: Not Supported
• Continuous Current: 80A
• Burst Current: 85A(5 seconds）
• Protocols Supported: Dshot 150/300/600
• ESC Dimension: 32.5x55mm
• Mounting Holes: 29.6×48.5mm
• Case Material: PC
• Case Dimension: 36x76mm
• Weight: 28g

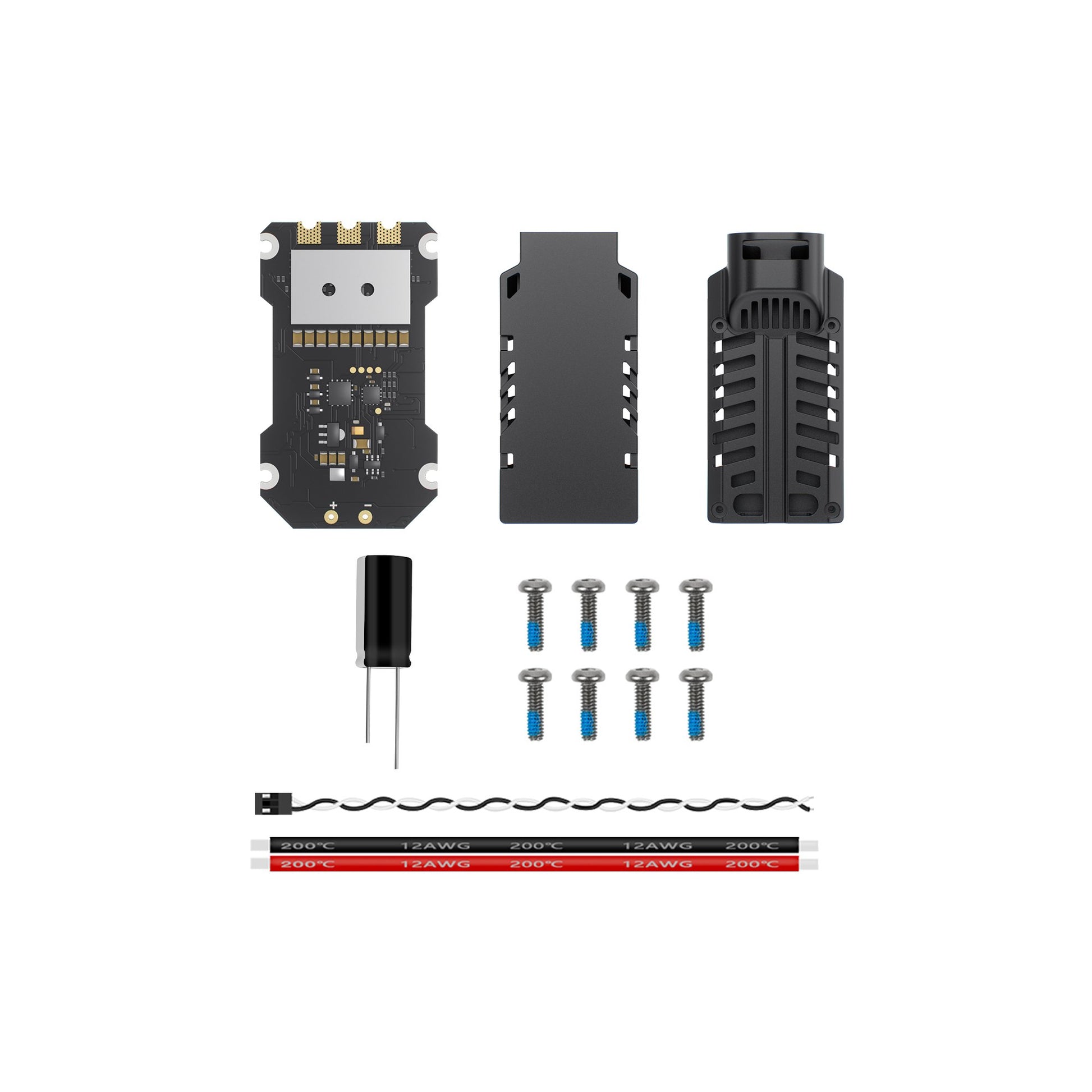

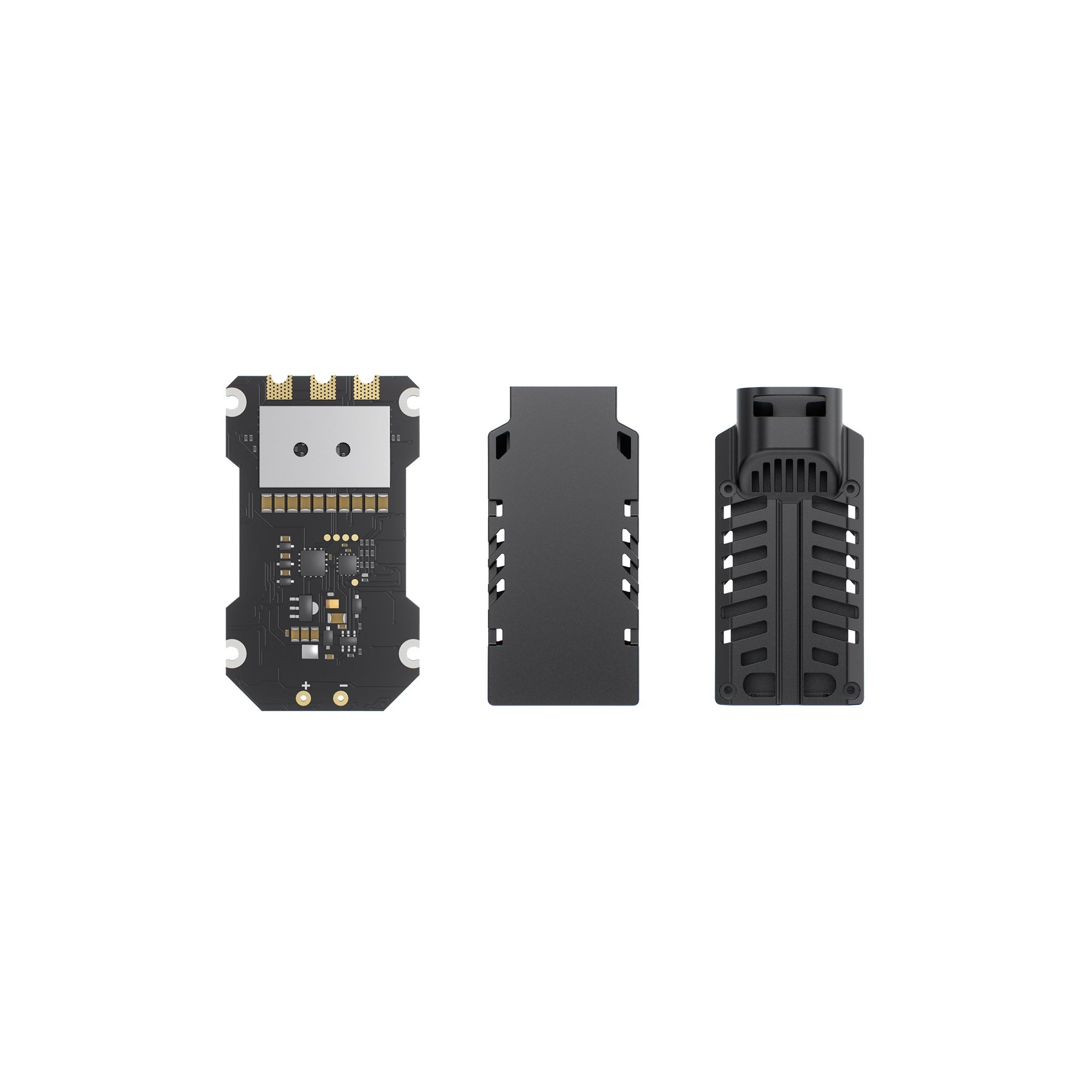

What’s in the Box*

• 1 x ESC Board
• 1 x 50V 1000μF Capacitor
• 1 x 10AWG (3.4mm²) Black Silicone Wire (240mm)
• 1 x 10AWG (3.4mm²) Red Silicone Wire (240mm)
• 1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (110mm)
• 1 x Single ESC Top Case (Black) Molded Part
• 1 x Single ESC Bottom Case (Black) Molded Part
• 8 x Grade 12.9 Round Head Hex Socket Screws, Black Nickel Plated — M2*7 [Pre-applied Glue]


Disclaimer

*Actual wire lengths, connector types, or hardware may vary by production batch. Always check polarity and do a bench test before flight.

Still Here?

If you're building big rigs that demand serious current or pushing 8S to its limits, this ESC gives you headroom—and confidence. Want pairing guides (motor / prop), layout tips for cooling, or a UK-version spec sheet? I can draft that in a heartbeat.
