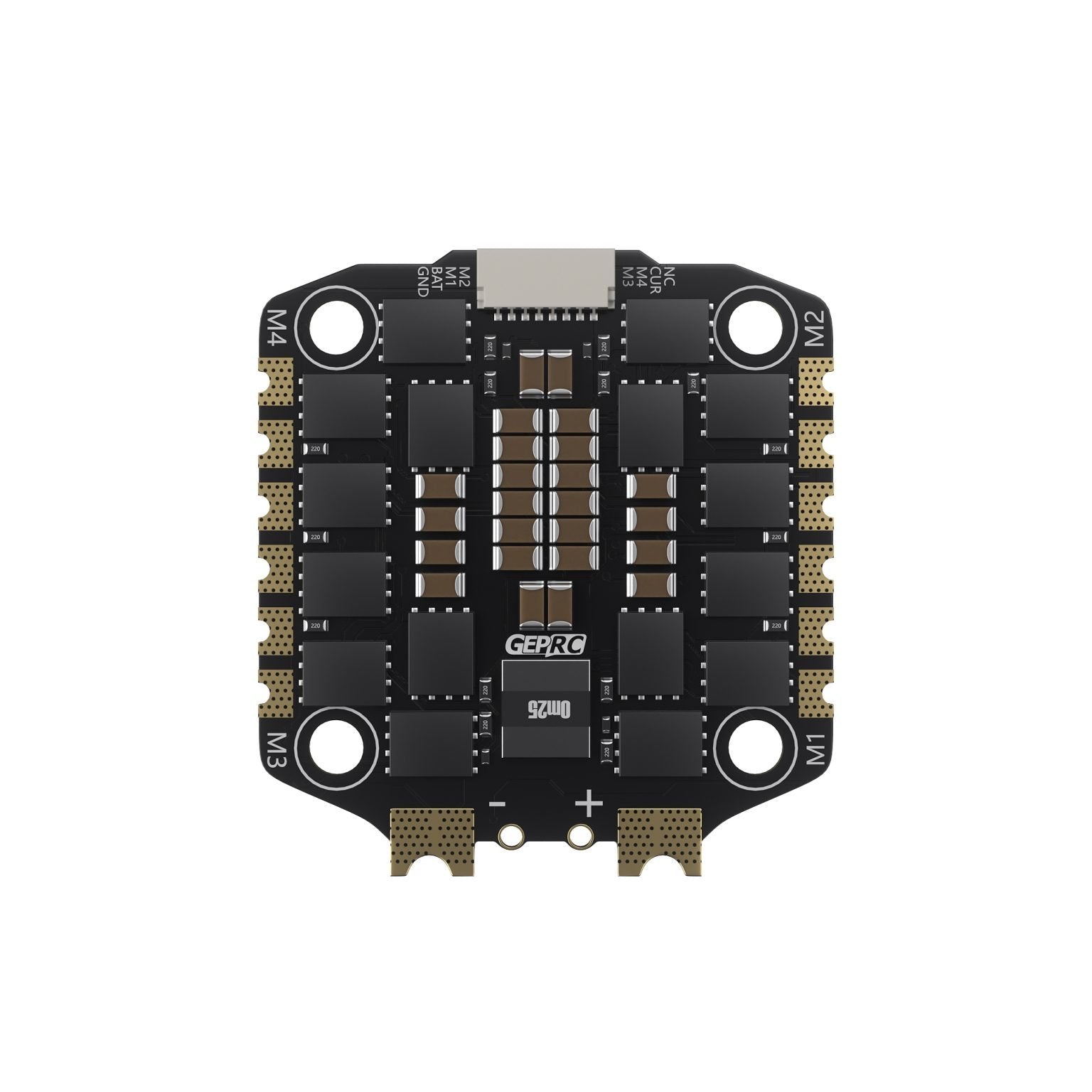

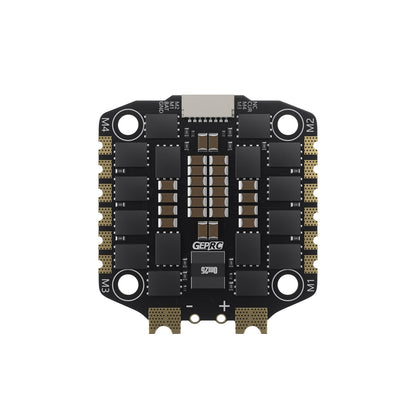

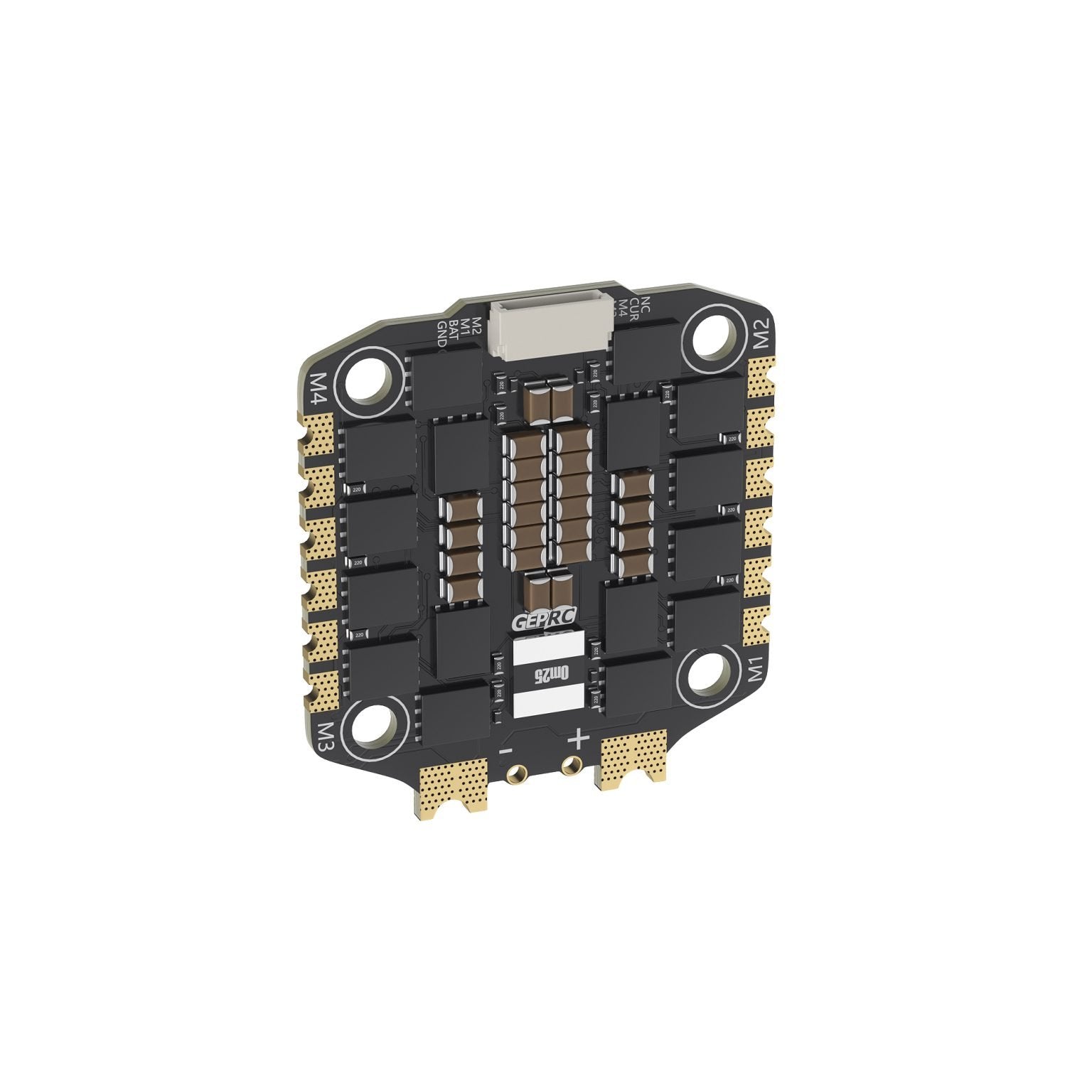

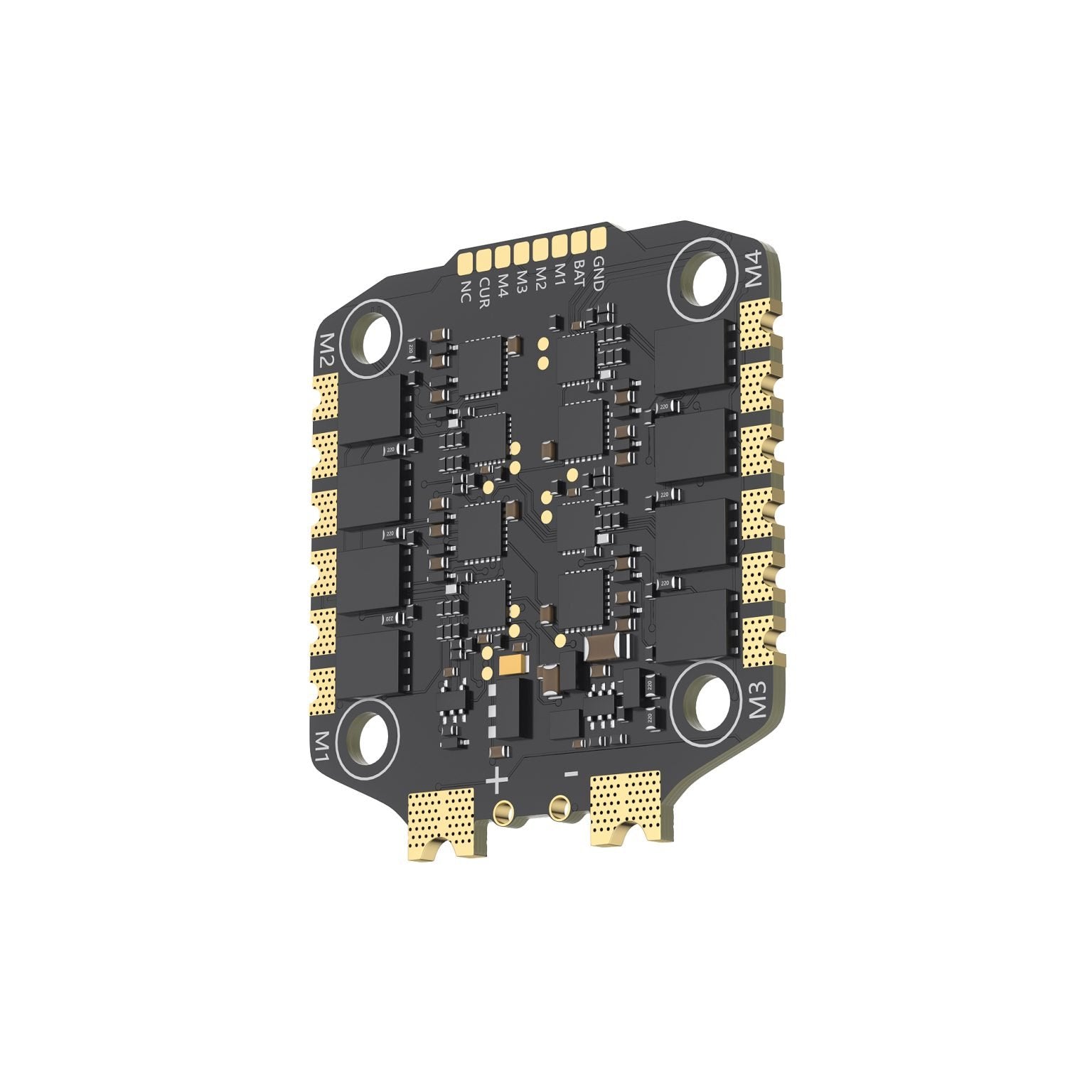

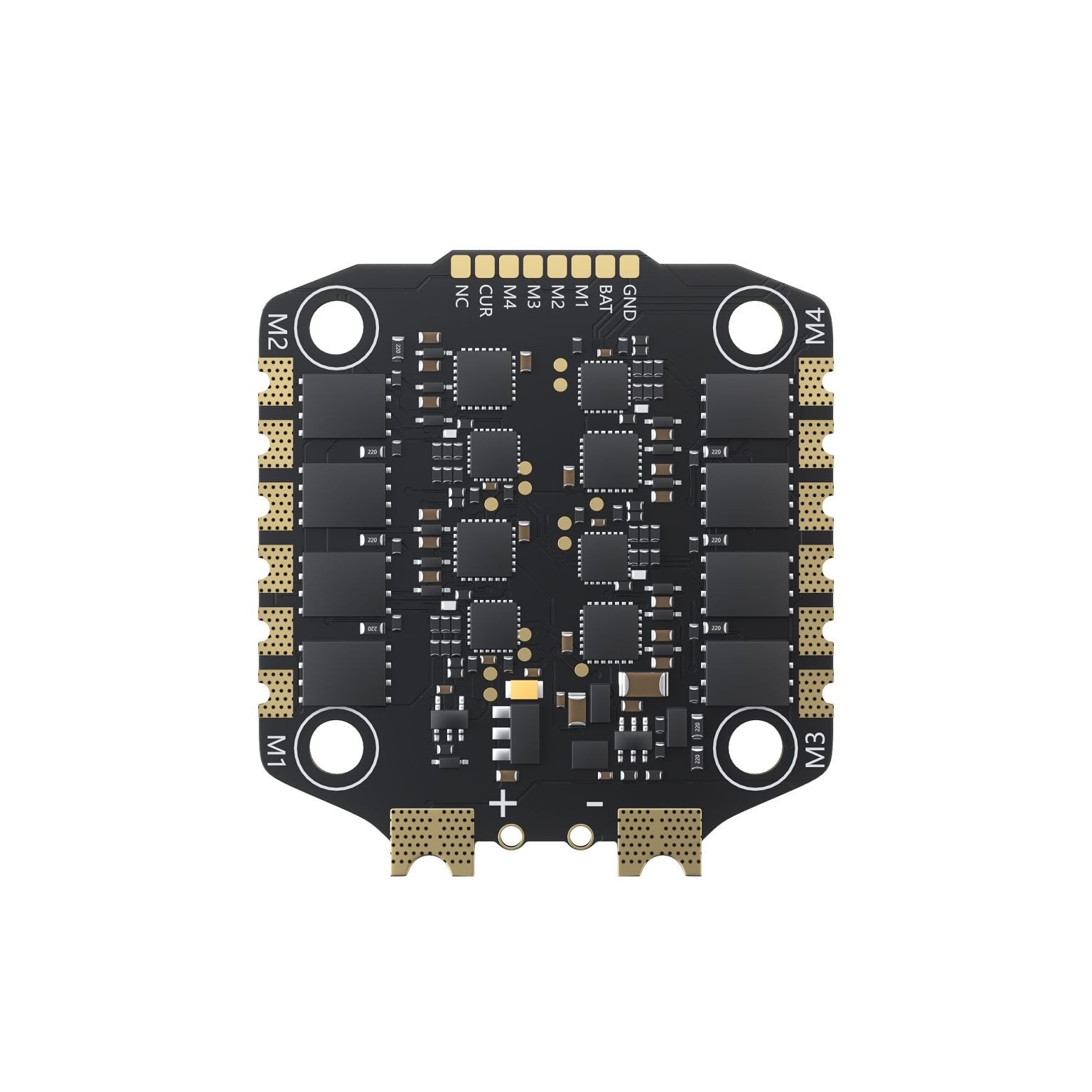

GEPRC TAKER H65_8S_BLS 65A 4-in-1 ESC

If you're pushing your FPV rig toward 8S territory without turning it into a wiring nightmare, meet the **TAKER H65_8S_BLS 65A 4-in-1 ESC**. Four ESC channels, up to 65 A continuous, and room to breathe on big builds. (Yes, we stock serious hardware.)

Why You Want It

Because fabricating separate ESCs is messy and heavy. This 4-in-1 board simplifies your stack, slims down wiring, and delivers serious headroom—supporting 3S to 8S input, full current telemetry, and modern protocols. It keeps your build clean without compromising power. (We still need to make margin, but this is worth it.)

Specifications

• Input Voltage: 3-8S Lipo
• Ammeter: Support
• Continue Current: 65A
• Burst Current: 70A(5 seconds)
• Support Protocol: Dshot 150/300/600
• Size: 42×45.7mm
• Mounting Holes: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
• Weight: 14.9g
• Target: B_X_30

What’s in the Box*

• 1 x ESC
• 1 x Capacitor
• 1 x Flight Controller Adapter Cable
• 1 x XT60 Power cable
• 4 x Silicone anti-shake pads

Disclaimer

*Connector lengths, pad layout, or included hardware may slightly vary per production batch. Always verify polarity and test under light load before full deployment.

Still Here?

Yes, you scrolled to the bottom. This ESC is for builders who want high performance *and* clean integration. Use it with 7″–8″ props or powerful 8S motors, and you’ll see how much wiring overhead you just cut. Want a UK-spec listing, schematic, or comparison vs 4S/6S boards? Just say the word—happy to help you ship smarter and sell better.
