Product Details

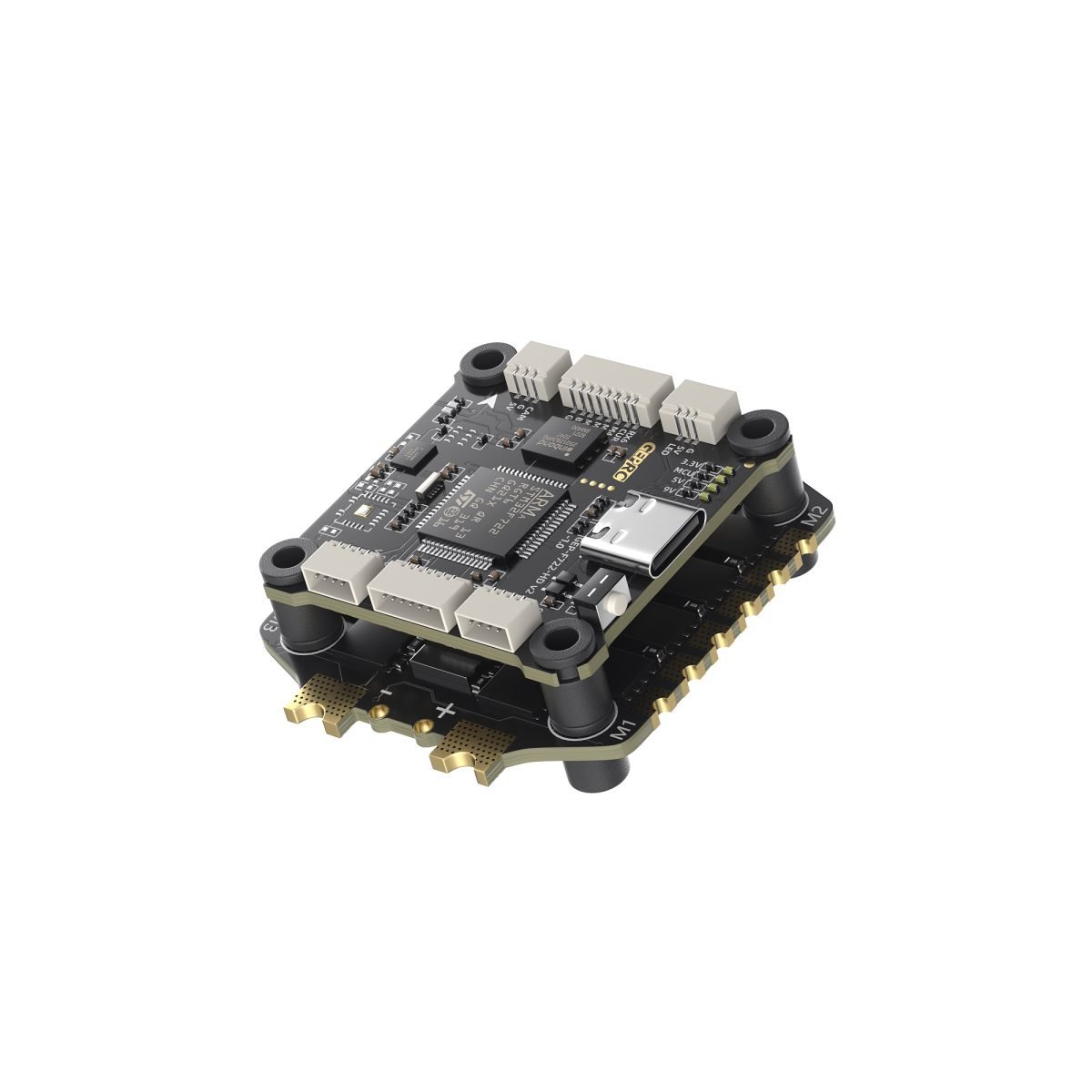

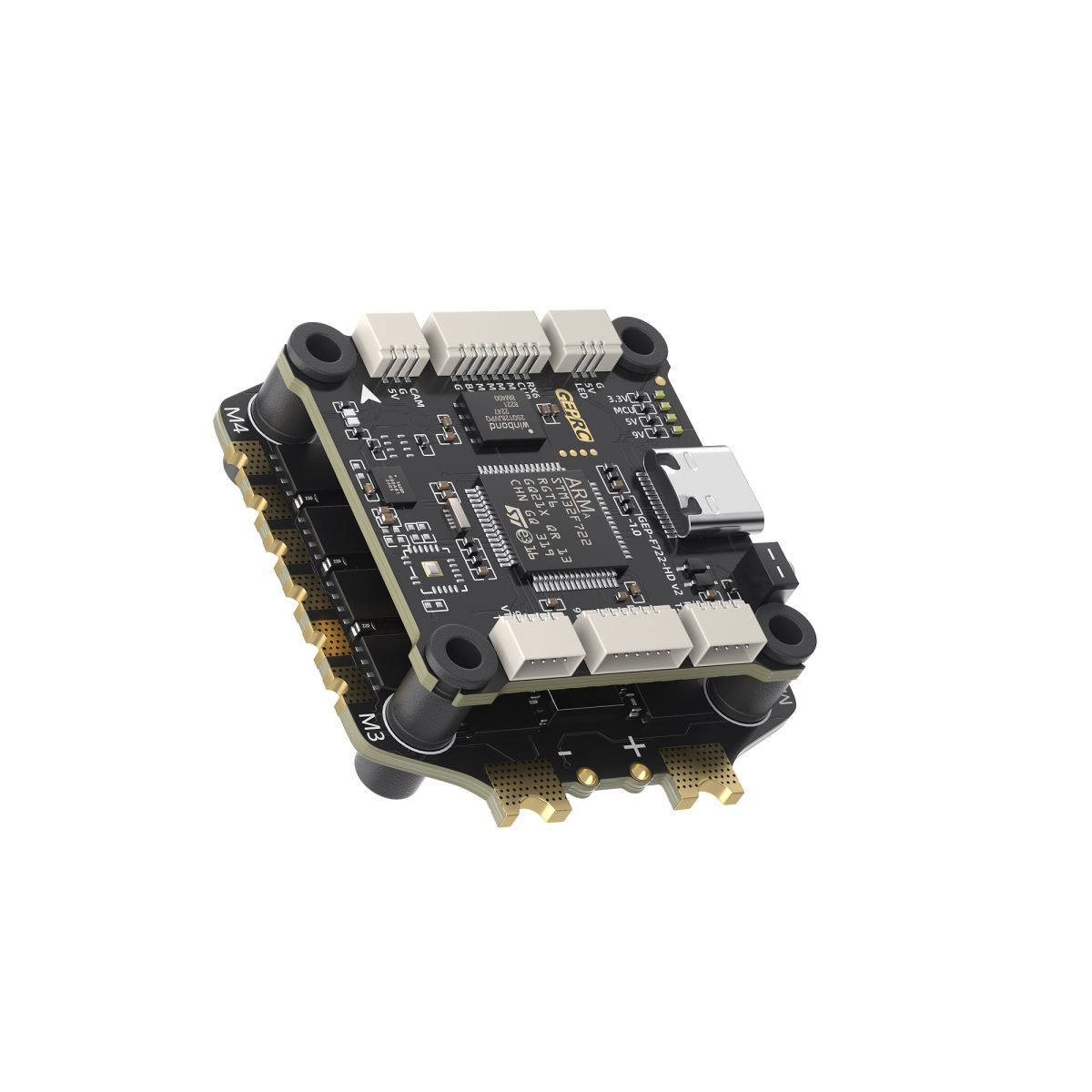

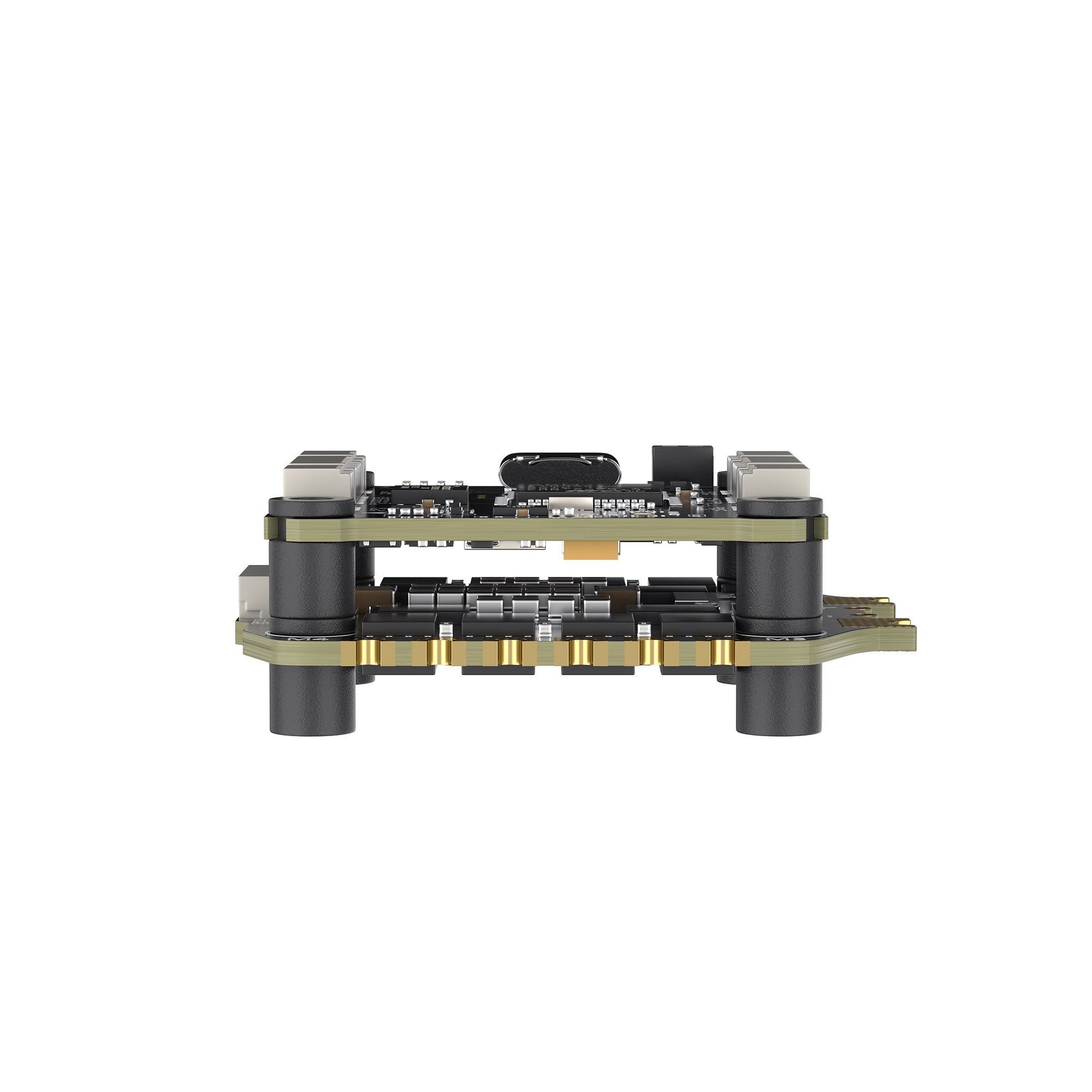

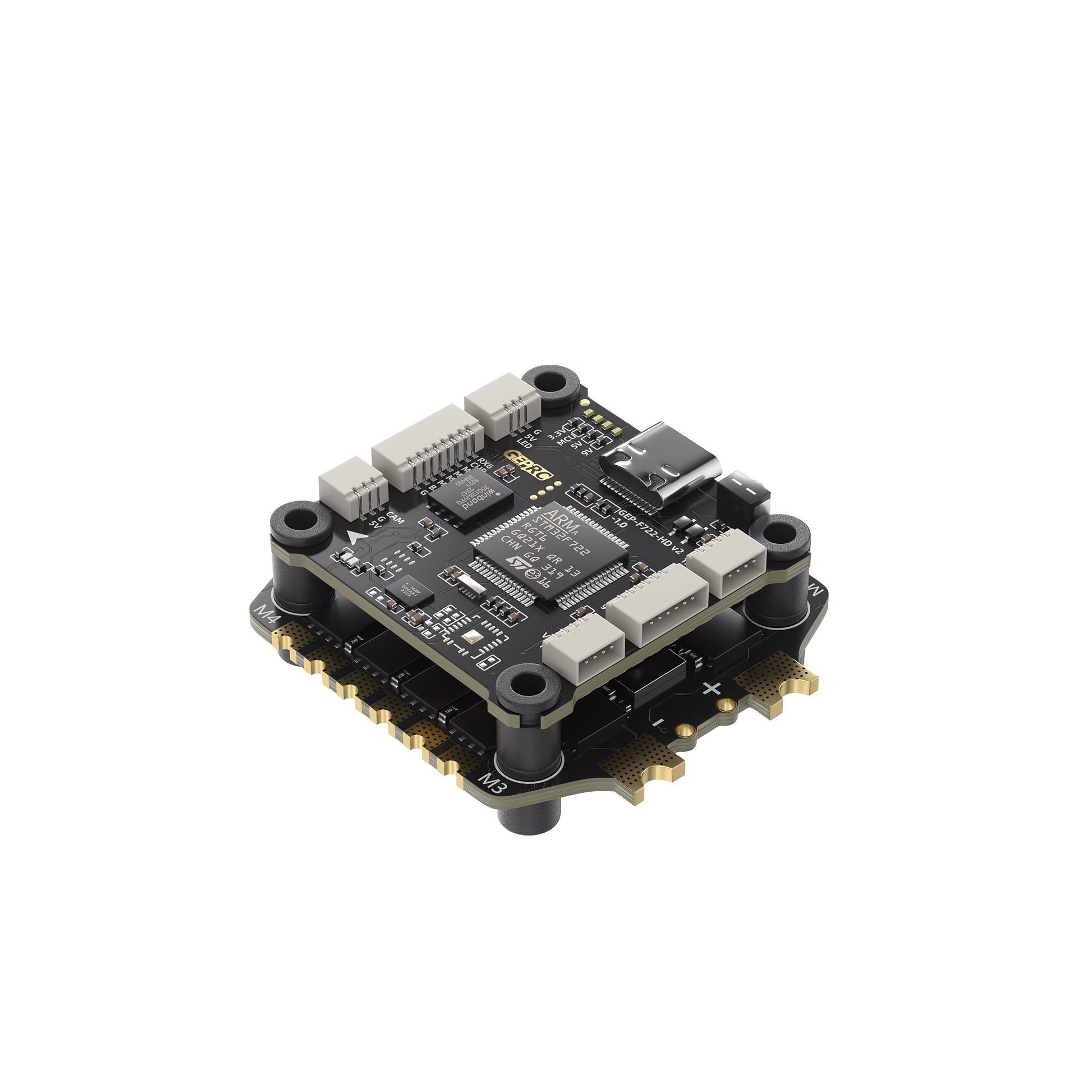

If you're serious about your FPV setup, the GEPRC TAKER F722 BLS 60A V2 Stack is your new best friend. Engineered for peak performance, this stack brings the latest technology to your fingertips, combining the GEP-F722-HD v2 Flight Controller with the TAKER H60_BLS 60A 4IN1 ESC to deliver smooth, stable, and reliable control of your quadcopter.
Top Features that Make a Difference:
- Powered by STM32F722 Chip: The heart of the stack, delivering fast and efficient processing for all your flight maneuvers.
- Latest ICM42688-P Gyroscope: Feel every tilt, roll, and yaw with precision - no more drift, no more jitters.
- 16M Black Box Storage: Record your flights in detail, perfect for tuning and analyzing performance.
- Type-C USB Interface: Say goodbye to fumbling with cables - plug in with ease.
- Direct DJI Air Unit Connection: Streamlines setup for DJI FPV users, letting you get airborne faster.
- Dual Independent BEC ( 9V@2.5A + 5V@3A): Provides consistent power for peripherals, keeping everything running smoothly.
- TAKER H60_BLS 60A 4IN1 ESC: Handles up to 60A continuous current with a burst up to 65A, ensuring your motors have all the juice they need.
- Integrated LC Filter: Reduces electrical noise for a stable, interference-free flight experience.
Technical Specifications:

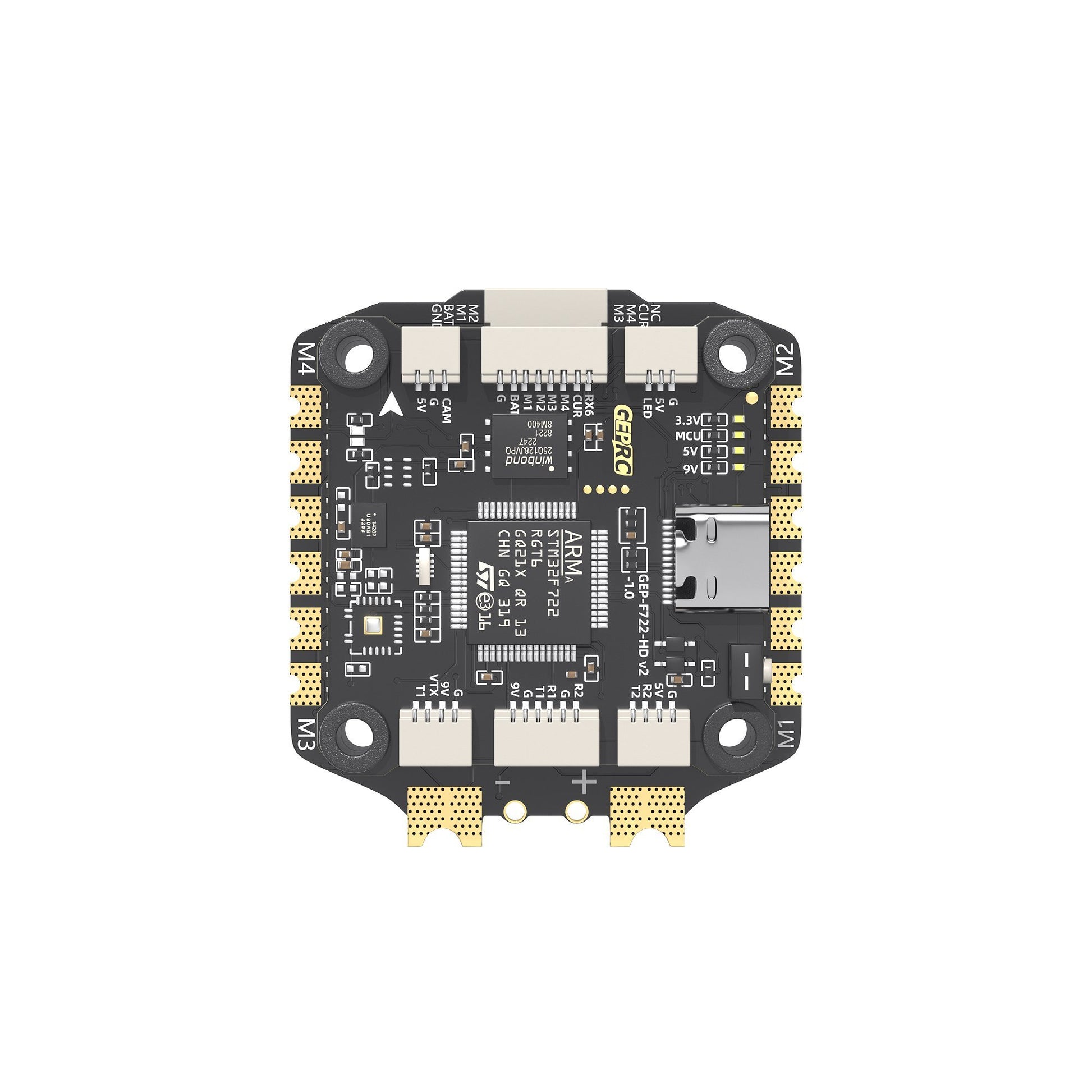

Flight Controller: GEP-F722-HD v2
- MCU: STM32F722
- Gyro: ICM42688-P (SPI)
- Black Box: 16M onboard
- OSD: BetaFlight OSD with AT7456E chip
- BEC: Dual - 5V@3A, 9V@2.5A
- Firmware Target: GEPRCF722
- Dimensions: 36.85 x 36.85mm (30.5 x 30.5mm mounting holes)
- Weight: 8.1g
- Input Voltage: 3-6S LiPo
- UART Ports: 5
- USB Interface: Type-C

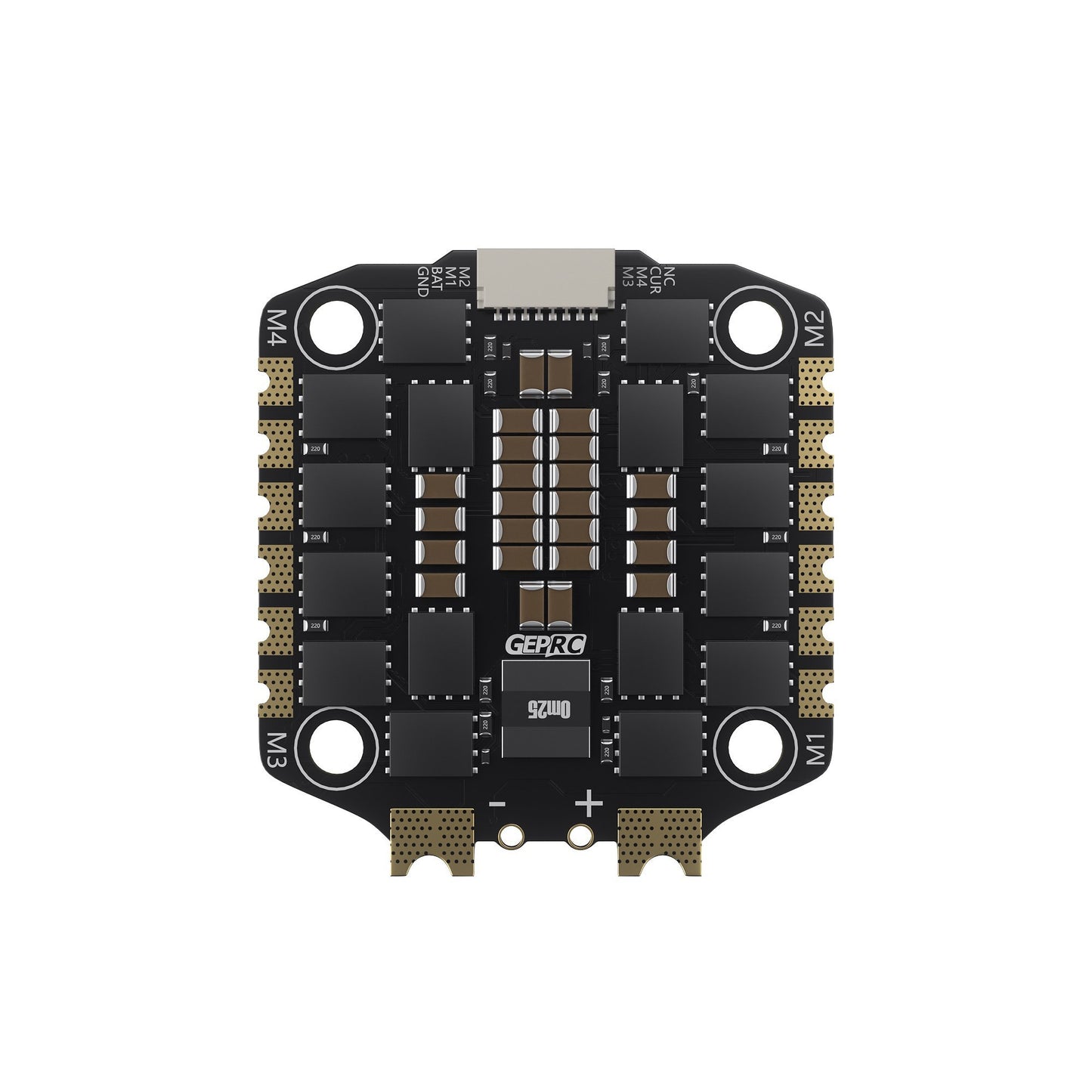

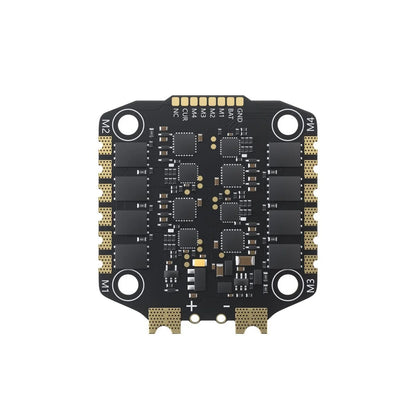

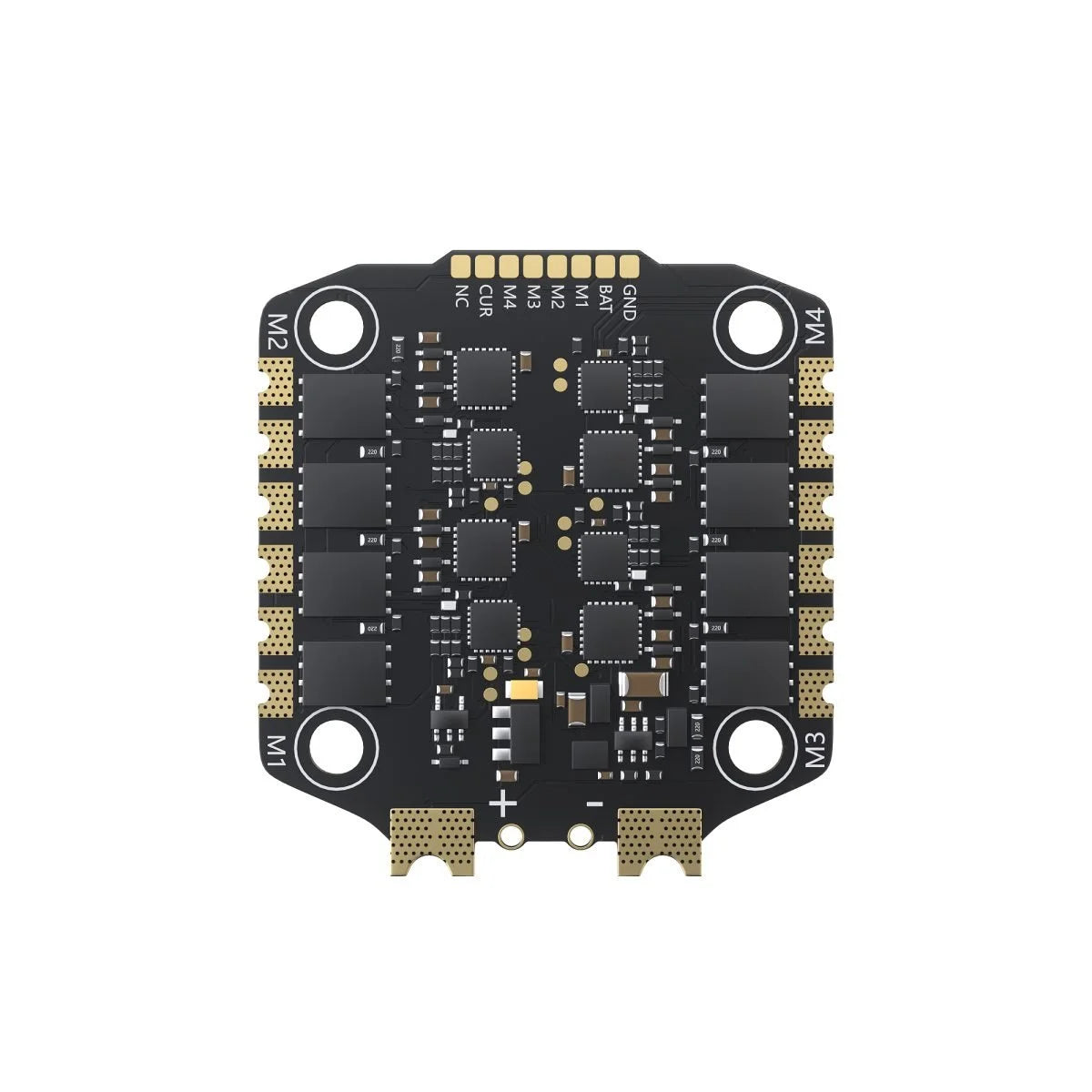

ESC: TAKER H60_BLS 60A 4IN1
- Input Voltage: 3-6S LiPo
- Continuous Current: 60A
- Burst Current: 65A (5 seconds)
- Protocols Supported: Dshot 150/300/600
- Dimensions: 42 x 45.7mm (30.5 x 30.5mm mounting holes)
- Weight: 14.9g
What's in the Box:
- 1 x GEP-F722-HD v2 Flight Controller
- 1 x TAKER H60_BLS 60A 4IN1 ESC
- 1 x Capacitor
- 1 x DJI Air Unit Adapter Cable
- 1 x Flight Controller Adapter Cable
- 1 x XT60 Power Cable
- 4 x M3*30 Screws
- 4 x M3*25 Screws
- 8 x Nylon Nuts
- 8 x Silicone Grommets
- 2 x SH1.0 4-pin Silicone Cable
- 1 x Camera Connection Cable
Note: Accessories included may vary based on supply.
