Product Details

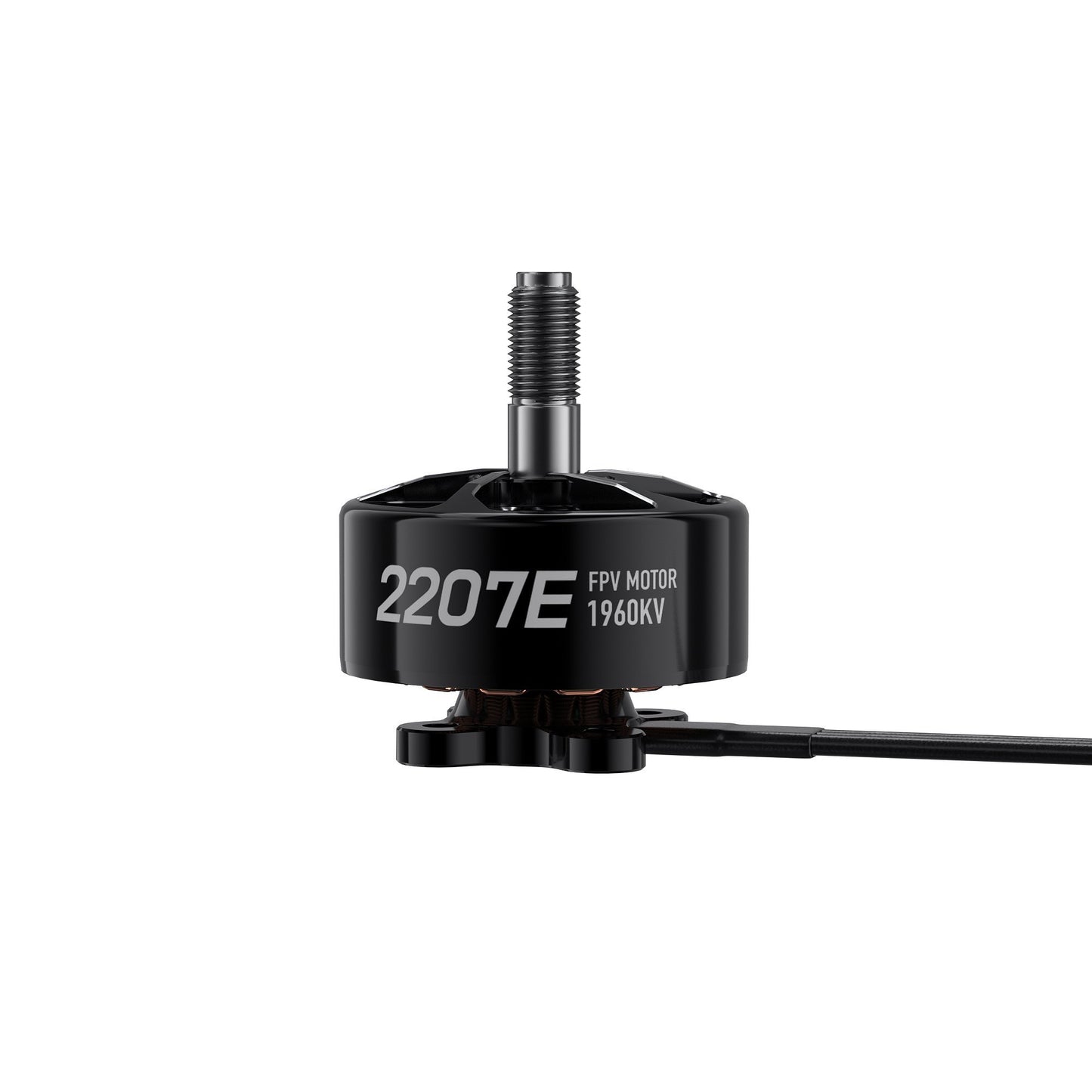

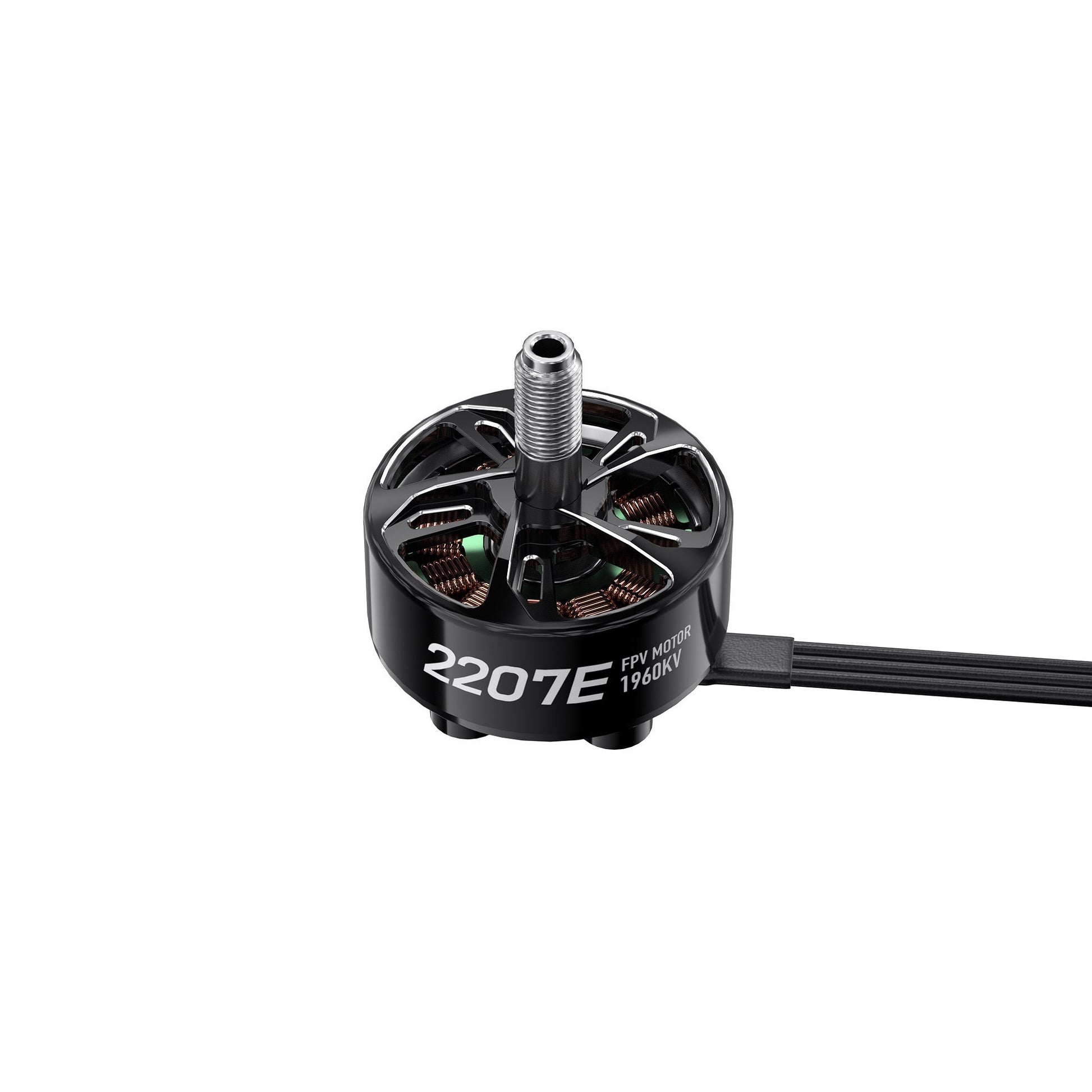

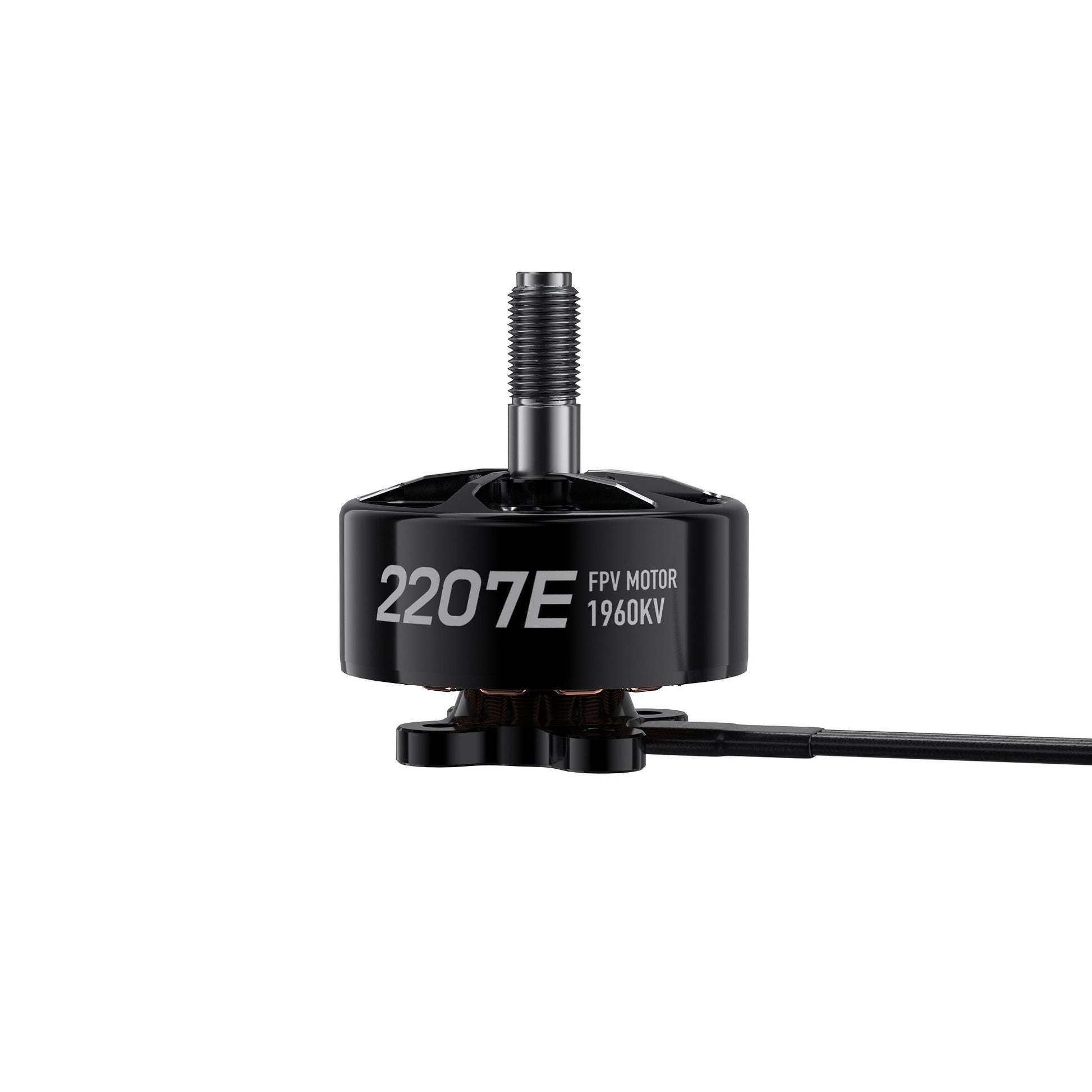

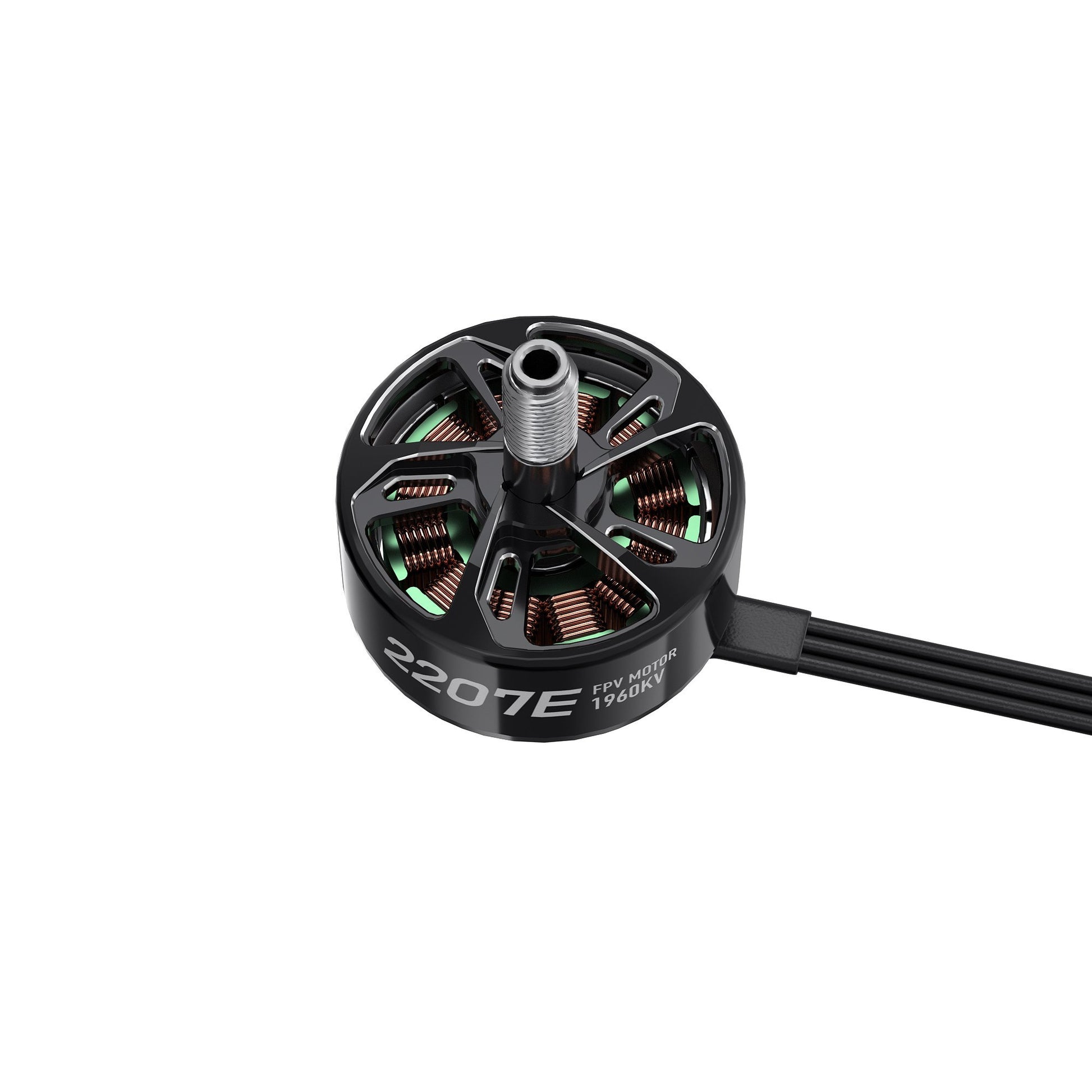

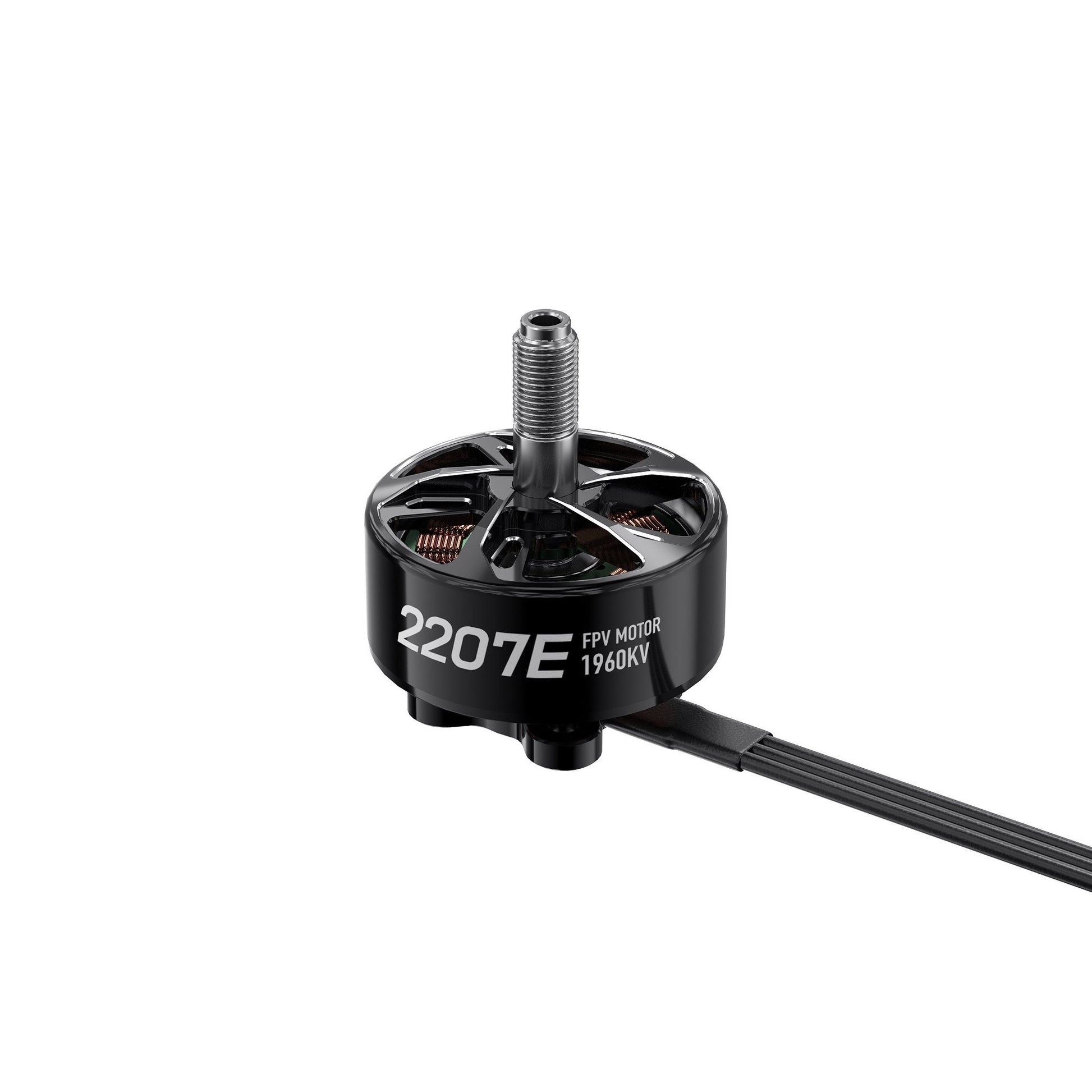

GEPRC SPEEDX2 2207E Motor 1960KV
Description:
The
GEPRC SPEEDX2 2207E Motor
is engineered for freestyle and racing pilots who demand precision, power, and efficiency. With its sleek
all-black glossy design
and innovative heat dissipation features, the SPEEDX2 delivers high responsiveness and effortless control in every manoeuvre.
Crafted from 7075 aerospace-grade aluminium using CNC machining, this motor offers the perfect combination of strength and lightweight design. Its N52H magnets , NMB/NSK bearings , and reduced rotor-stator gap ensure smooth and reliable performance, making it ideal for aggressive freestyle flying and competitive racing.
Key Features:
- Rapid Responsiveness: Reduced rotor-stator gap provides immediate response for sharp manoeuvres and precise control.
- Optimized Heat Dissipation: Extensive cutouts and the glossy black finish enhance cooling for sustained performance.
- Premium Materials: Made from 7075 aerospace-grade aluminium for durability and impact resistance.
- High Efficiency: Features N52H magnets and single-strand copper winding for maximum power output.
- Versatile Performance: Compatible with 4-inch to 5-inch 3-blade propellers and 6S power setups .
Specifications:
- Model: SPEEDX2 2207E Motor
- KV Rating: 1960KV
- Max Wattage: 1104.7W
- Peak Current: 44.57A
- Interphase Resistance: 69.85mΩ
- Input Voltage: 6S LiPo
- Compatible ESC: 50A / 6S
- Stator Configuration: 12N14P
- Bearings: NMB/NSK
- Magnets: N52H
- Propeller Compatibility: 4-5 inch, 3-blade
- Dimensions: 28 x 19.6mm
- Shaft Diameter: 5mm
- Shaft Length: 13.5mm
- Mounting Hole Spacing: 16x16mm
- Wire Specification: 20AWG / 150mm
- Color: Glossy Black
- Weight: 34.5g (with wires)
- Recommended Use: 4-5 inch freestyle and racing FPV drones
What's in the Box:
- 1 x GEPRC SPEEDX2 2207E Motor (1960KV)
- 1 x Set of Mounting Screws
