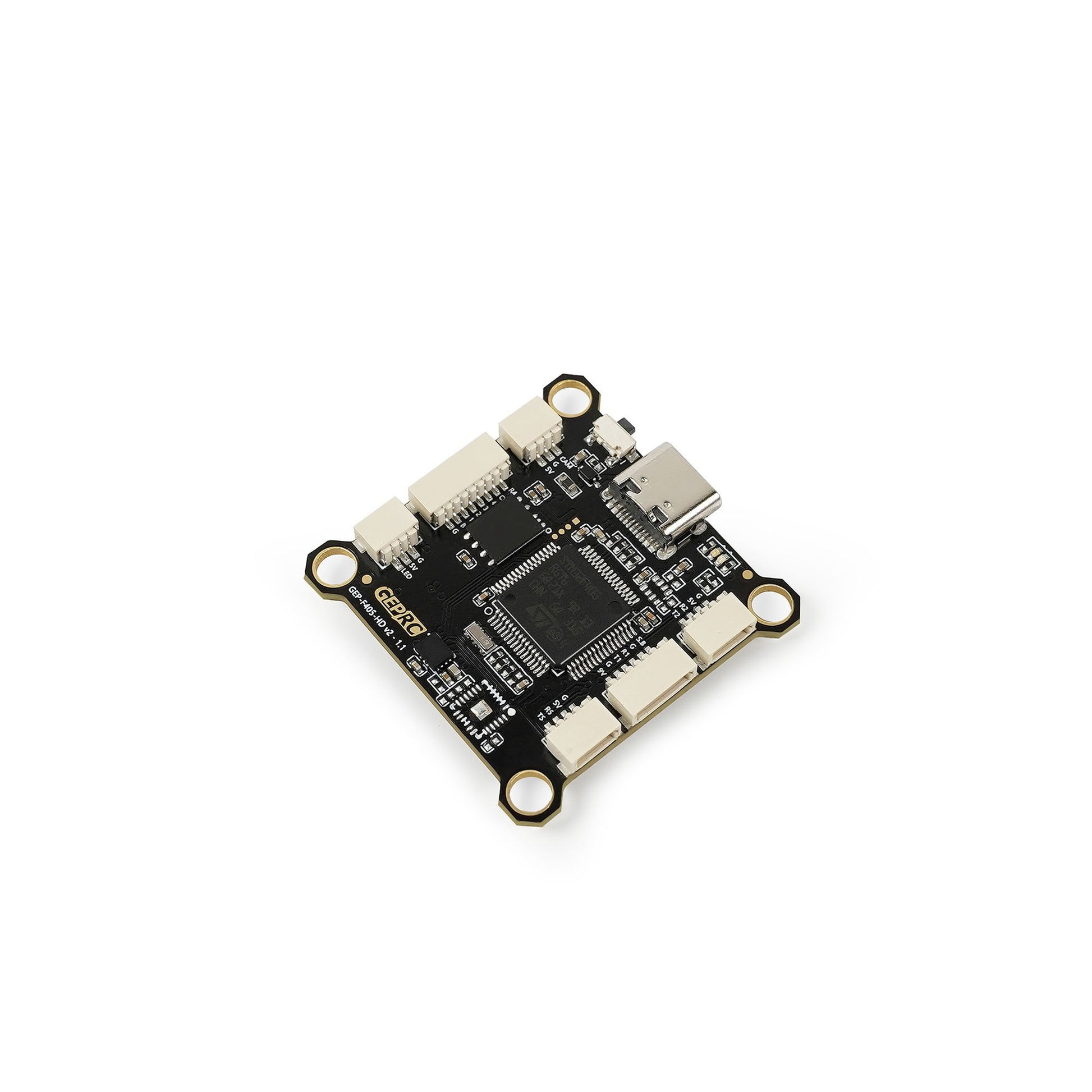

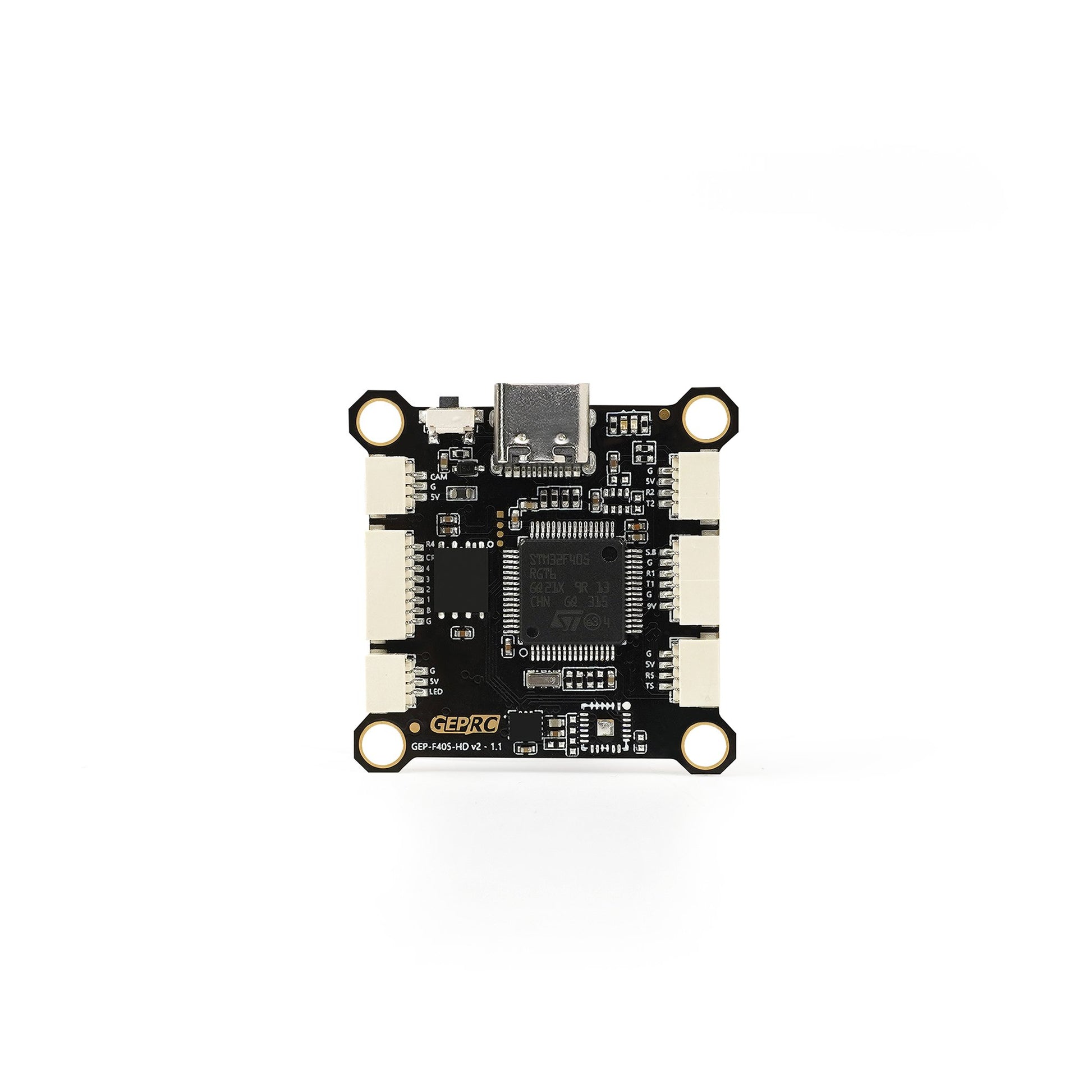

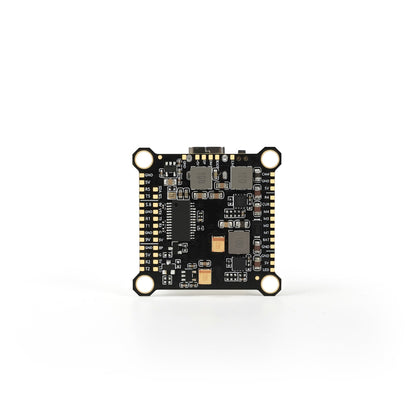

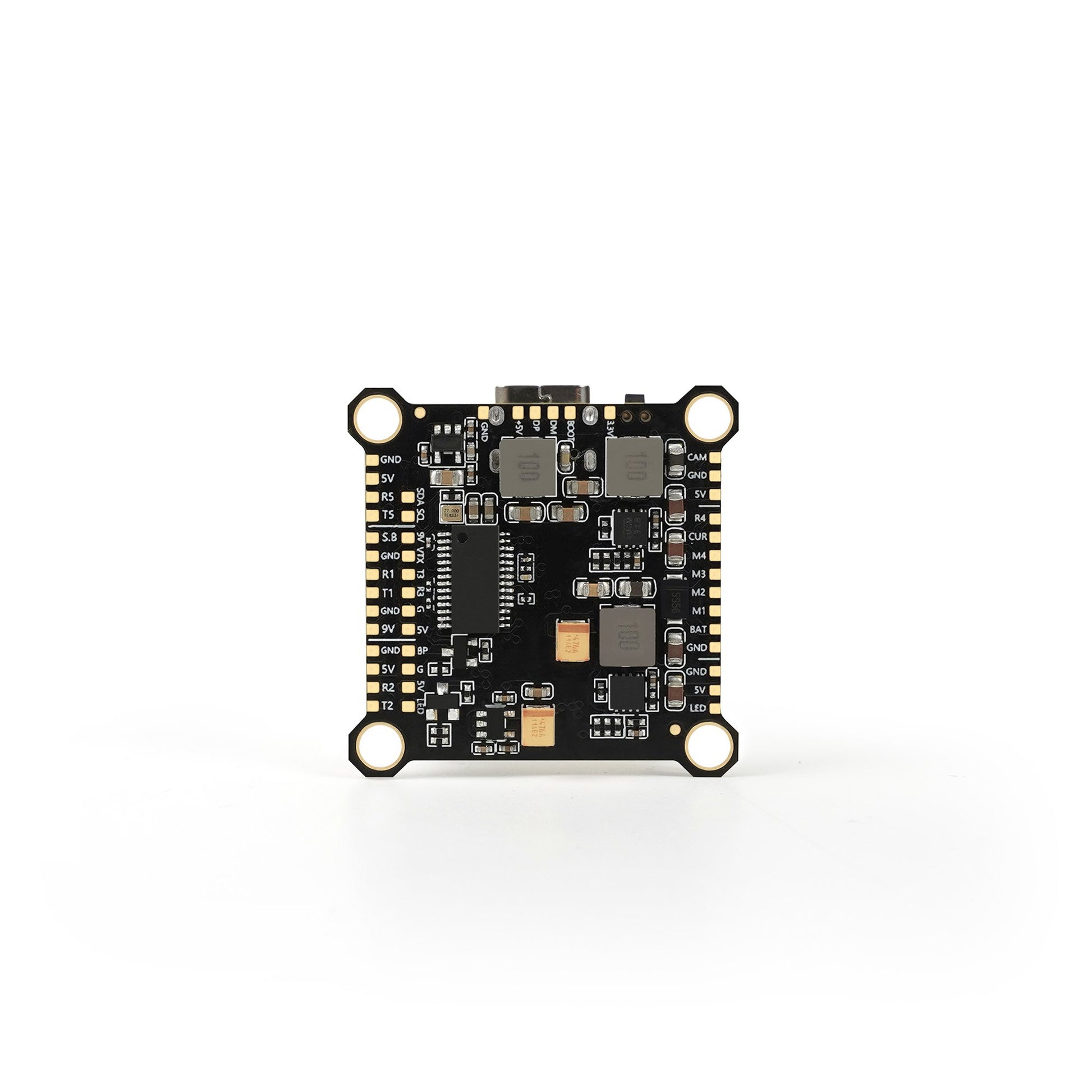

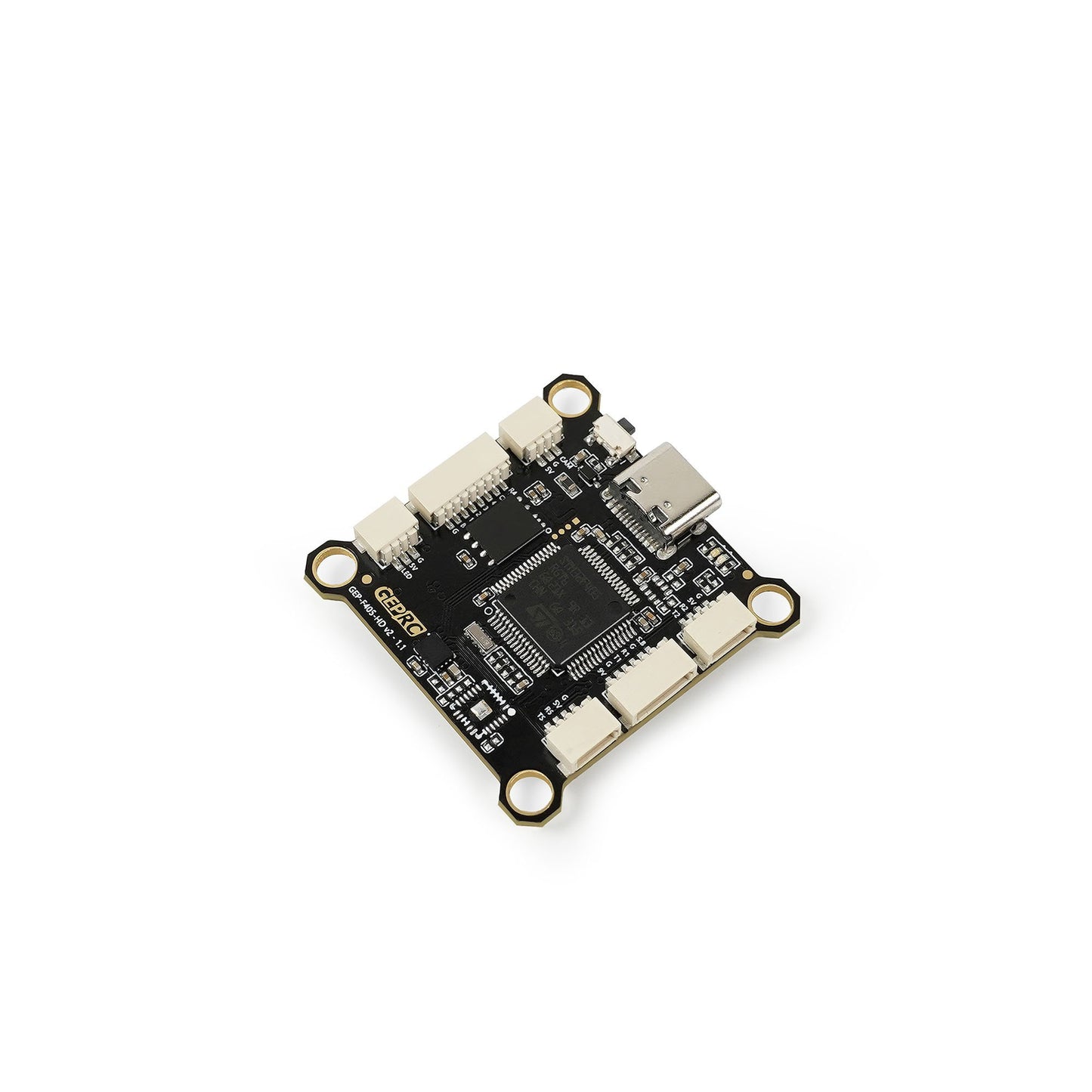

GEPRC GEP-F405-HD V2: The "I Hate Soldering" FC

Let’s be honest: you’re only looking at the GEPRC GEP-F405-HD V2 Flight Controller because you’ve reached that age where your eyes can’t track a 0.5mm solder pad without a magnifying glass and three pints of liquid courage. Designed for the 2026 pilot who values their sanity, this board is the plug-and-play gateway to digital FPV bliss. Featuring a native DJI Air Unit connector and the latest ICM42688-P gyro, it’s basically a legal bribe to get your build off the bench and into the bando before the magic smoke escapes.

Why You Want It

You want it because "mainstream STM32F405 chip" is code for "it actually works with Betaflight without requiring a PhD in firmware targets." We’ve integrated an LC filter to keep your video cleaner than your search history and dual independent BECs to ensure your VTX doesn't brown out just as you’re about to pull that cheeky power loop. It’s the FPV flight controller equivalent of a reliable Toyota—it won't win a beauty contest, but it’ll survive your "that'll buff out" moments better than that overpriced boutique board you're currently crying over.

Specifications

• MCU：STM32F405
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,9V@2.5A dual BEC
• Firmware Target：GEPRCF405

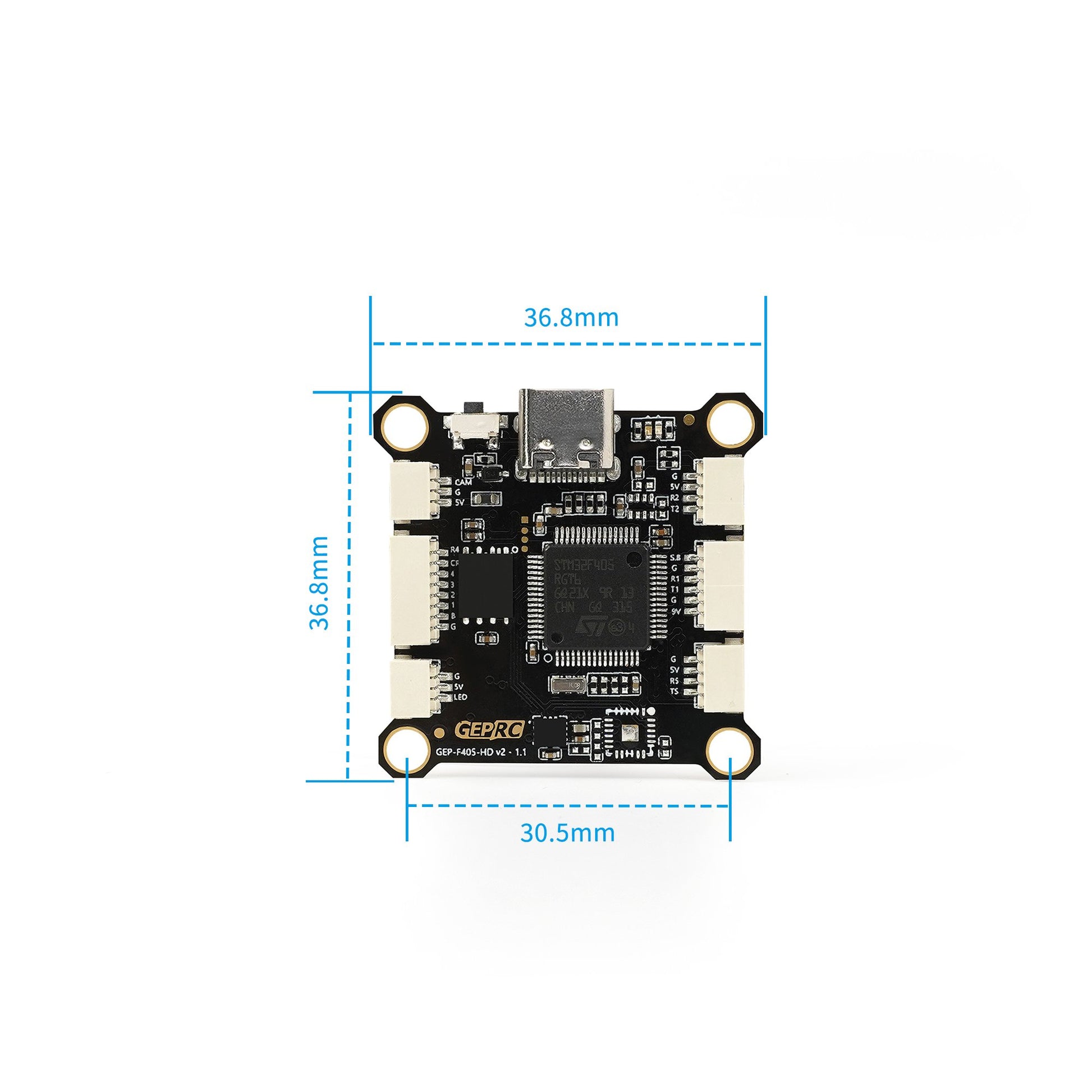

• Size：36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
• Input Voltage：3-6S LiPo
• UART：6
• Power Filter：Integrated LC filter

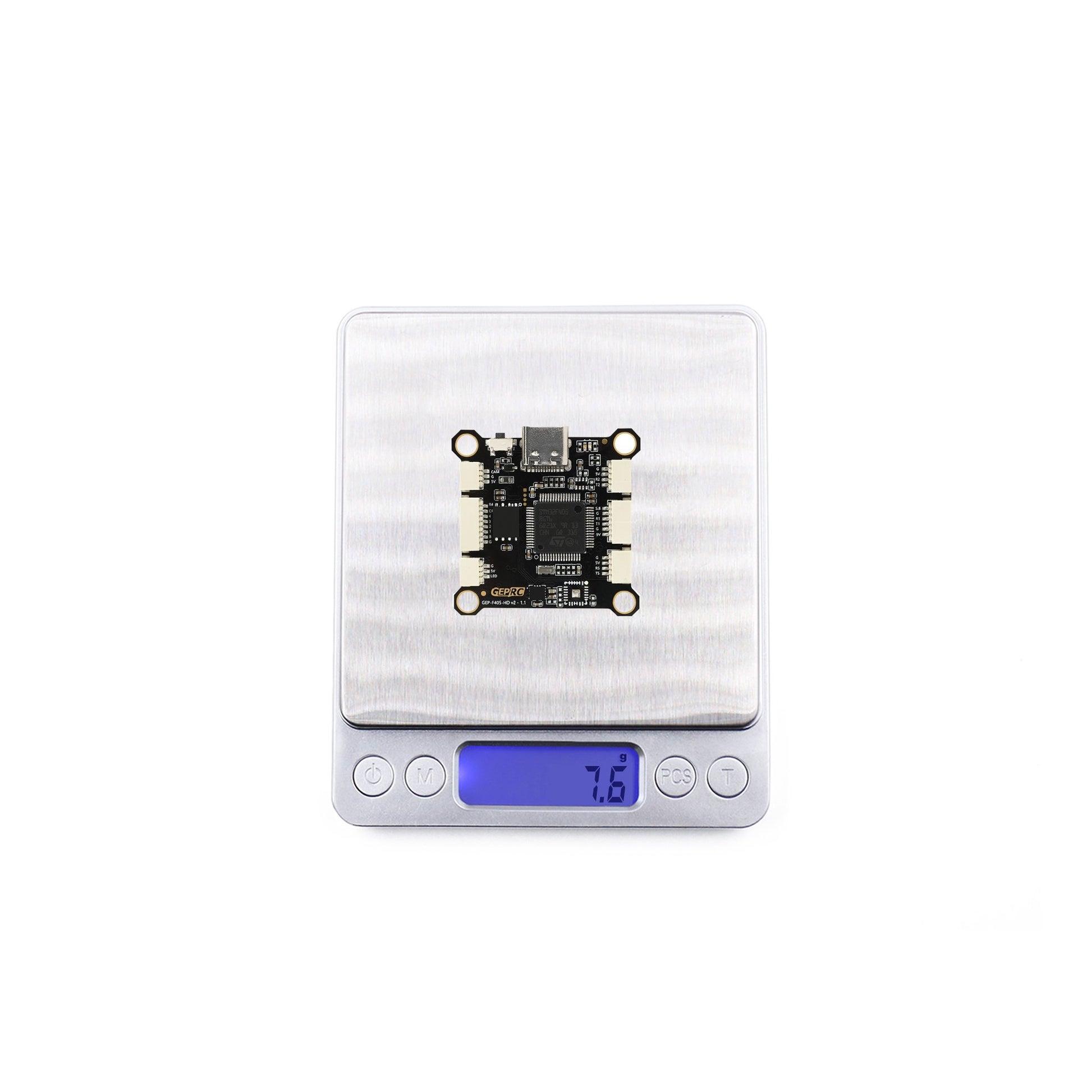

• Weight：7.7g

What’s in the Box*

• 1× GEPRC GEP-F405-HD V2 FC
• 1× DJI Air Unit Adapter Cable (The cable of dreams)
• 1× Flight Controller Adapter Cable
• 4× Silicone grommets (For when the vibes are just too much)
• 1× Camera connection cable & Nylon fixings

Disclaimer

Accessories might vary slightly because the supply chain is a cruel mistress, but the core board is 100% guaranteed GEPRC goodness.

Still Here?

If you’ve read this far, you’re either a true Betaflight OSD connoisseur or you’re procrastinating on that homework. Either way, stop overthinking your build. This F405 flight controller is the reliable, shock-absorbed brain your freestyle quad deserves. Add it to your cart, tell your partner it was "on sale," and go find a building to fly into. We need the replacement parts revenue anyway.
