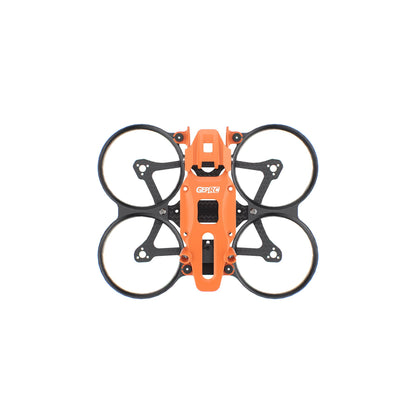

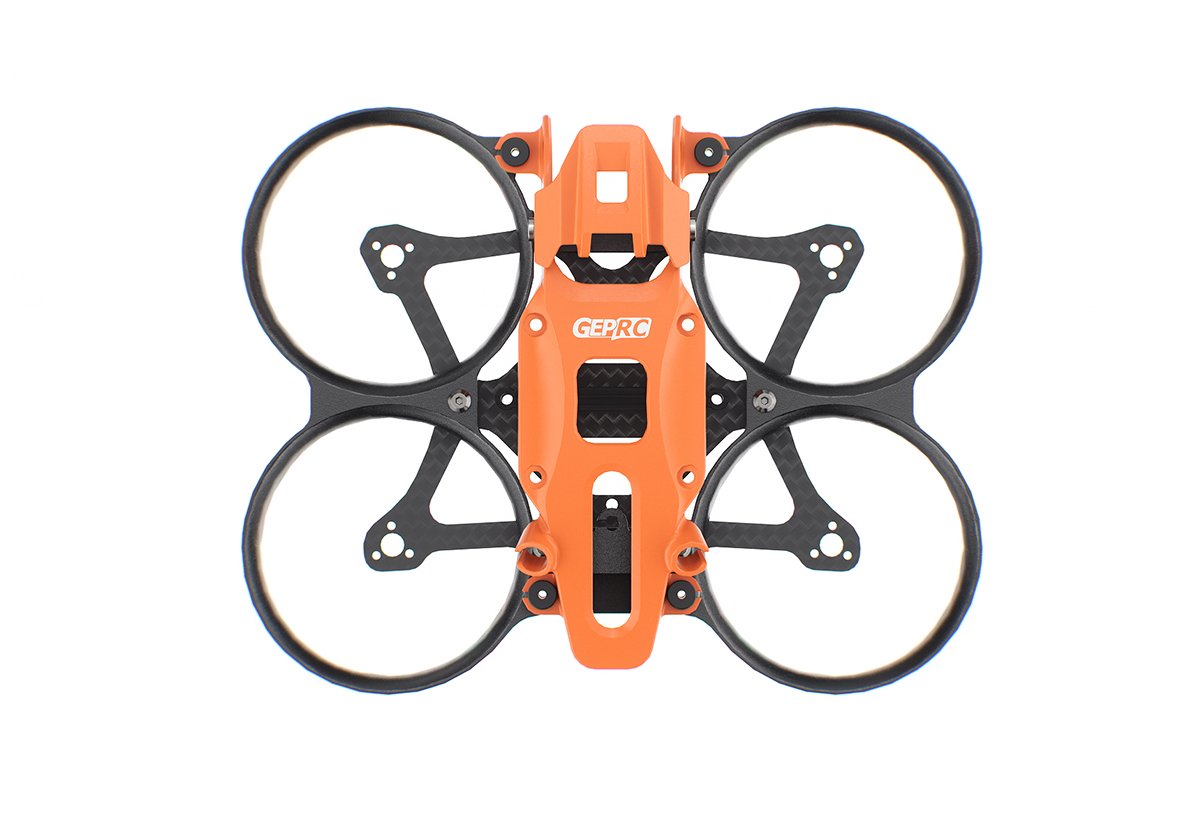

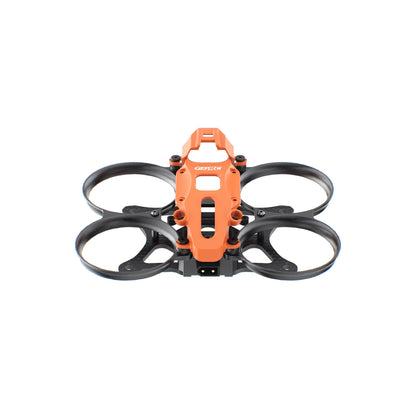

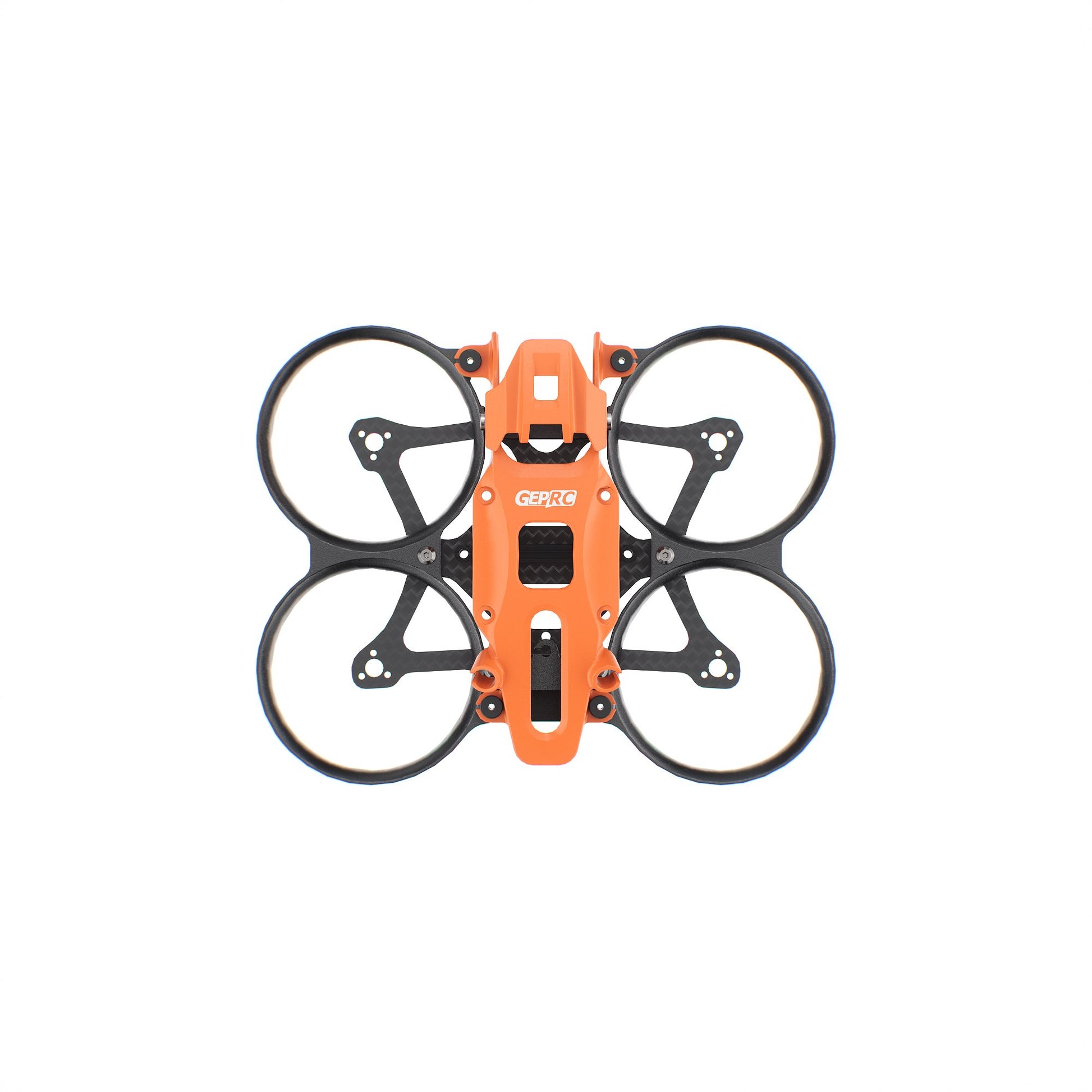

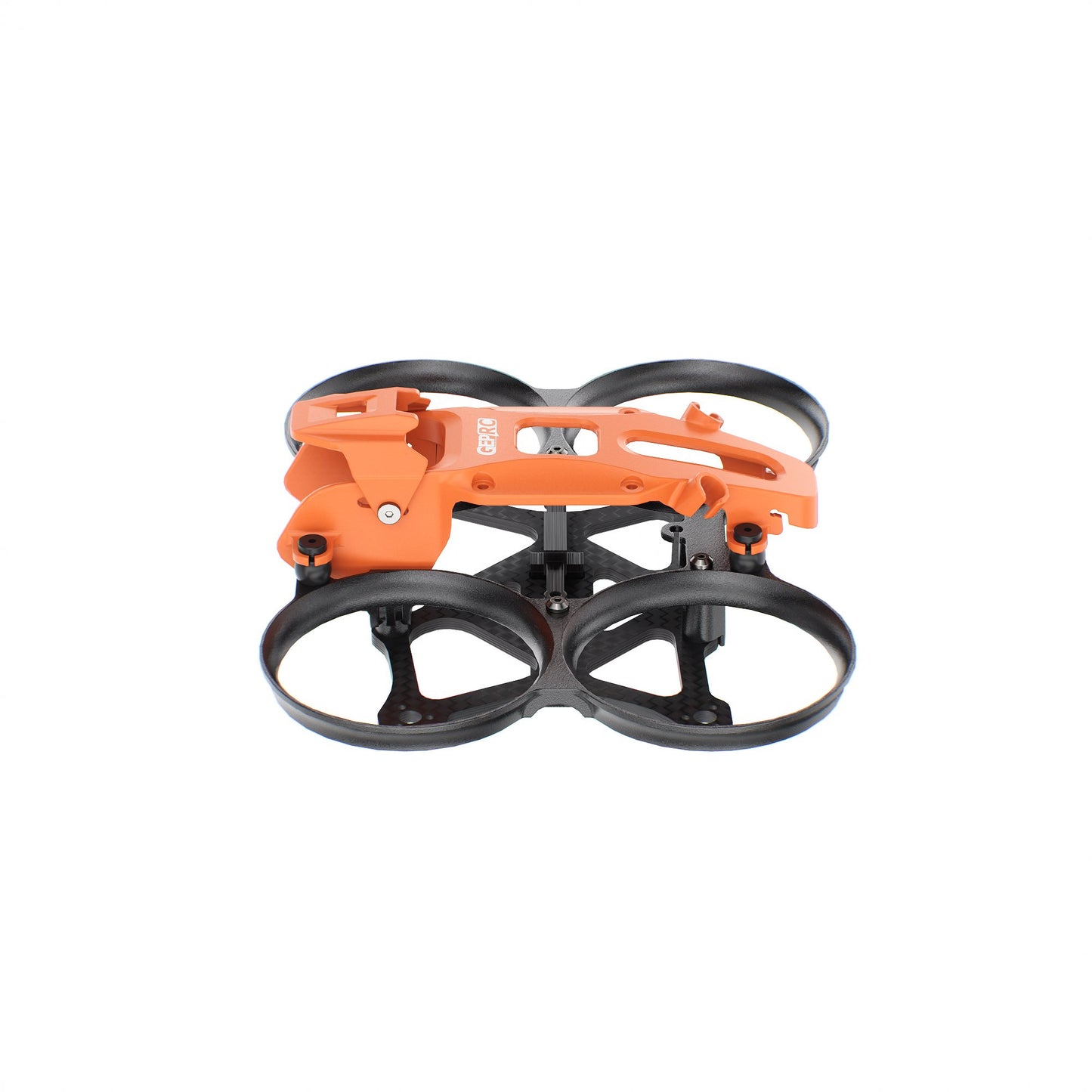

GEPRC GEP-DS16: The 1.6" Fortress for Your DJI O4

Look, we get it. You bought the DJI O4 Air Unit Pro because you wanted "cinema quality" from a drone that fits in your palm, but now you’re realizing that physics is a cruel mistress. Enter the GEP-DS16—a frame that treats your VTX with more respect than you treat your sleep schedule. It’s small, it’s orange (or grey, if you’re boring), and it’s built to actually fly.

Why You Want It

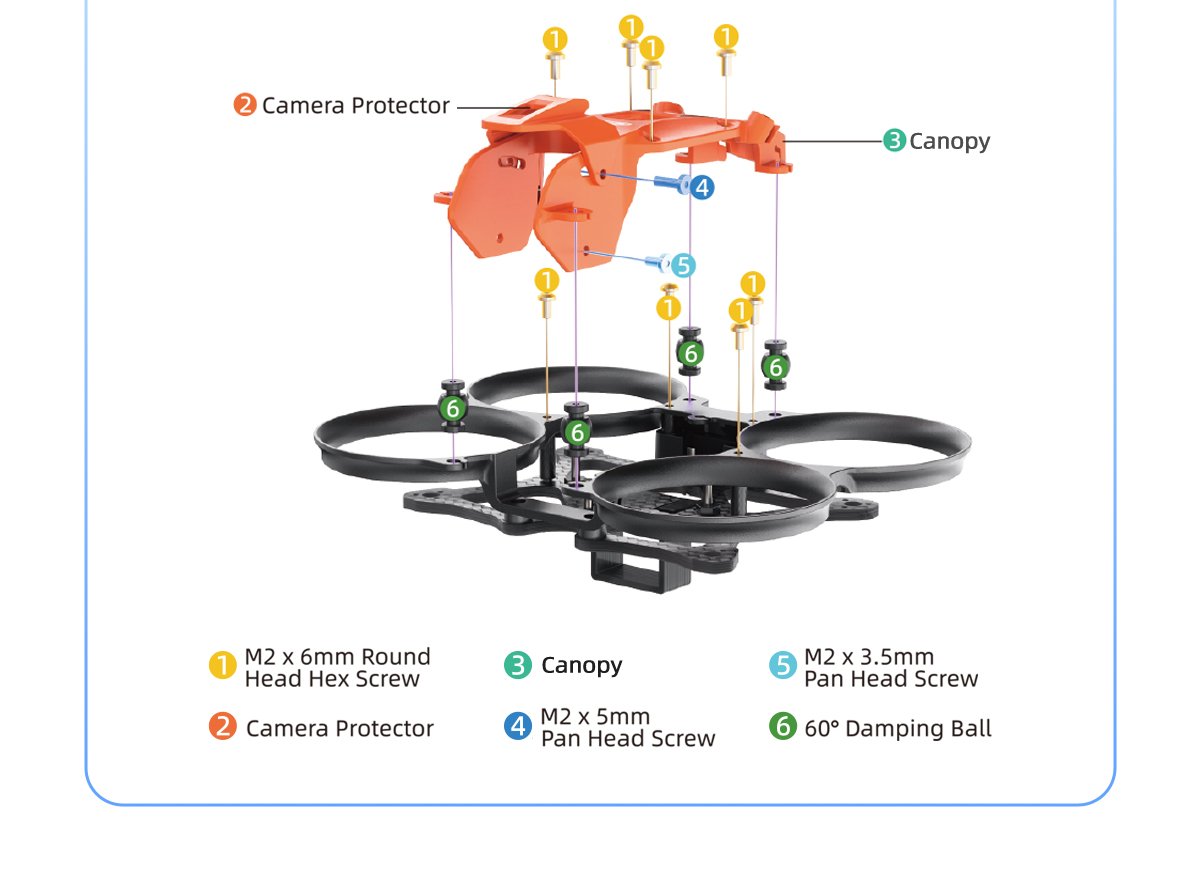

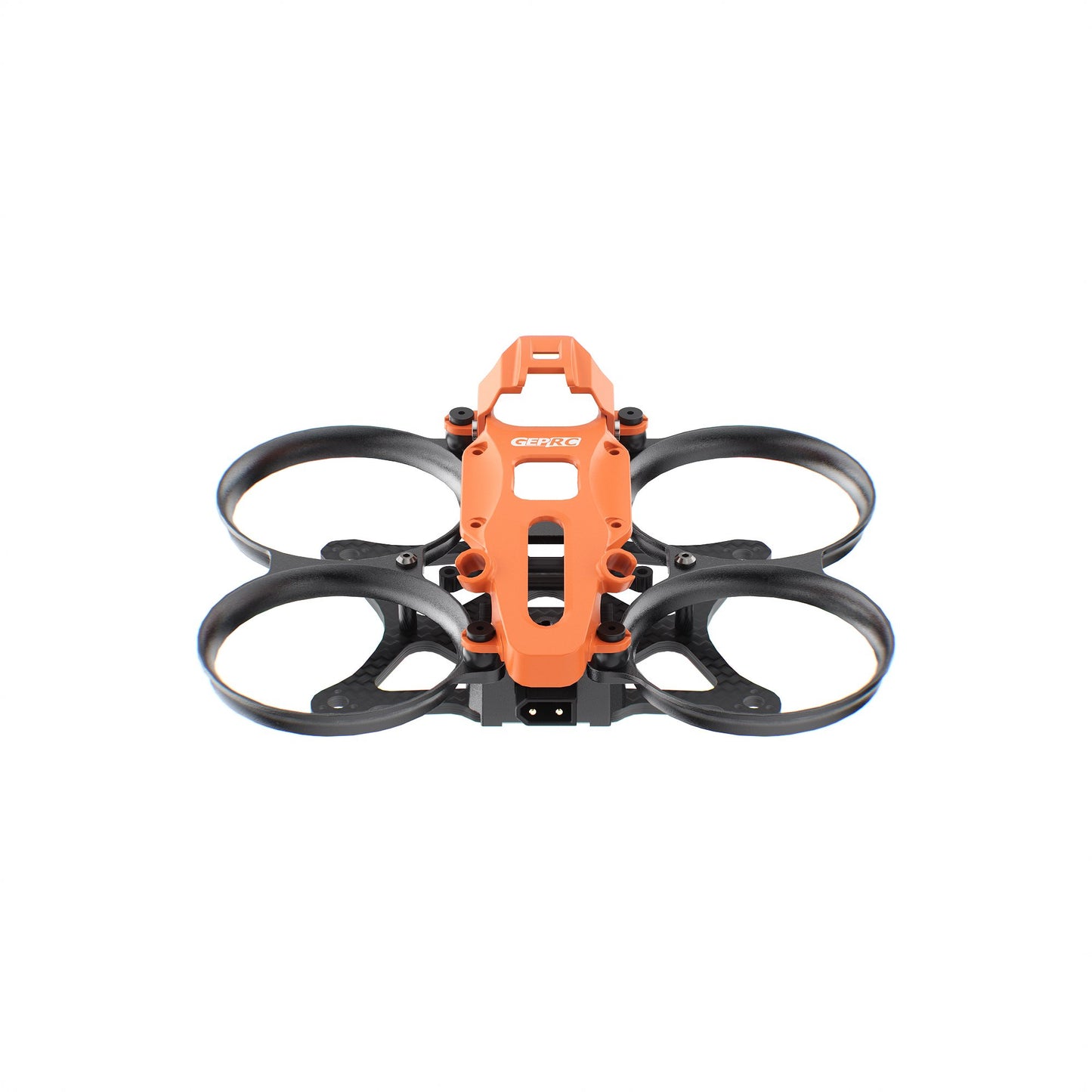

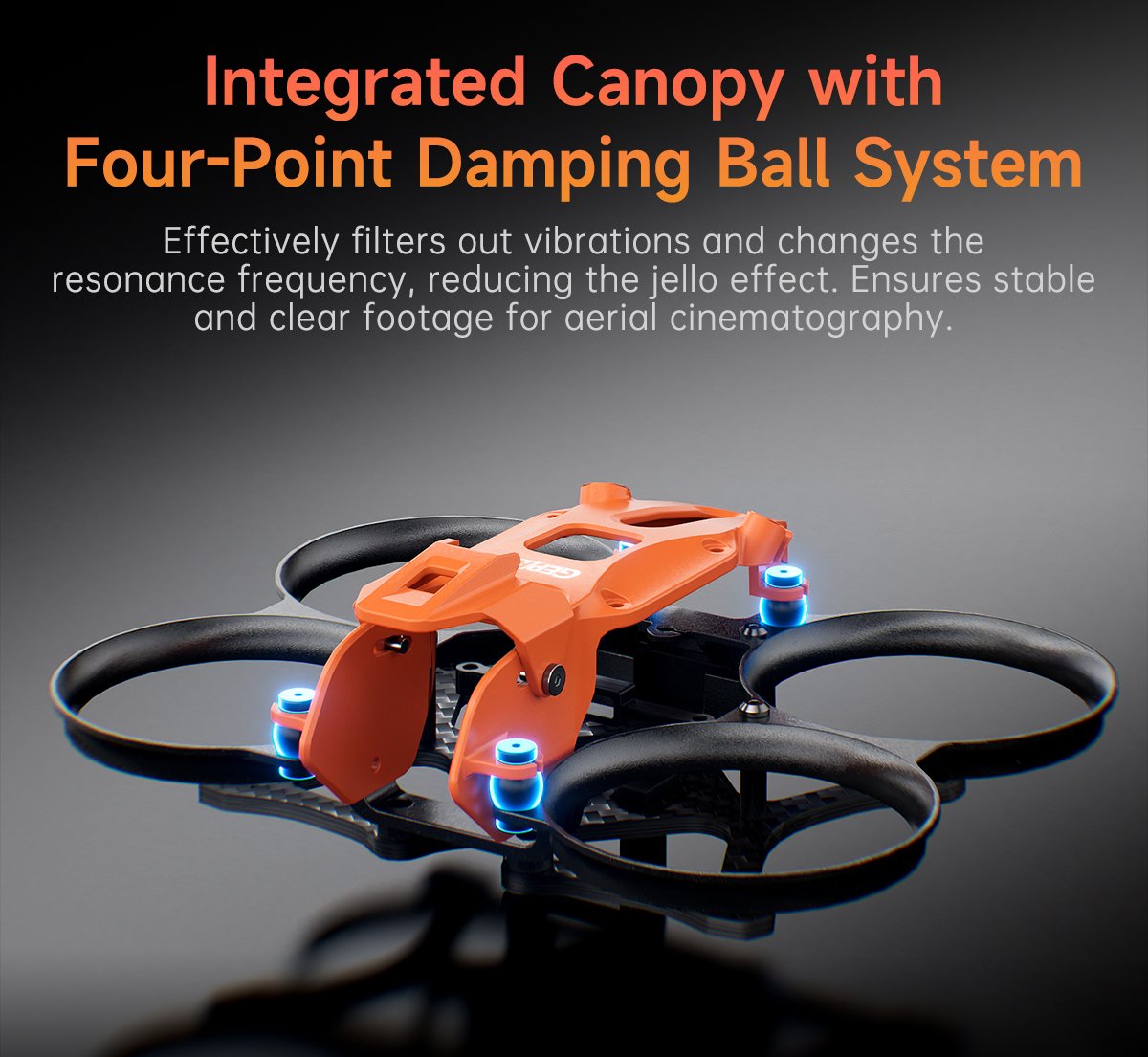

Most micro frames handle vibrations like a caffeinated squirrel in a bouncy castle. The GEP-DS16 uses a four-point damping ball structure to keep your aerial footage from looking like a found-footage horror film. With a quick-release design involving only six screws, you can strip the AIO and VTX faster than you can explain to your partner why you need "just one more" quad. It even has a fixed XT30 port, because dangling wires are a crime against aesthetics.

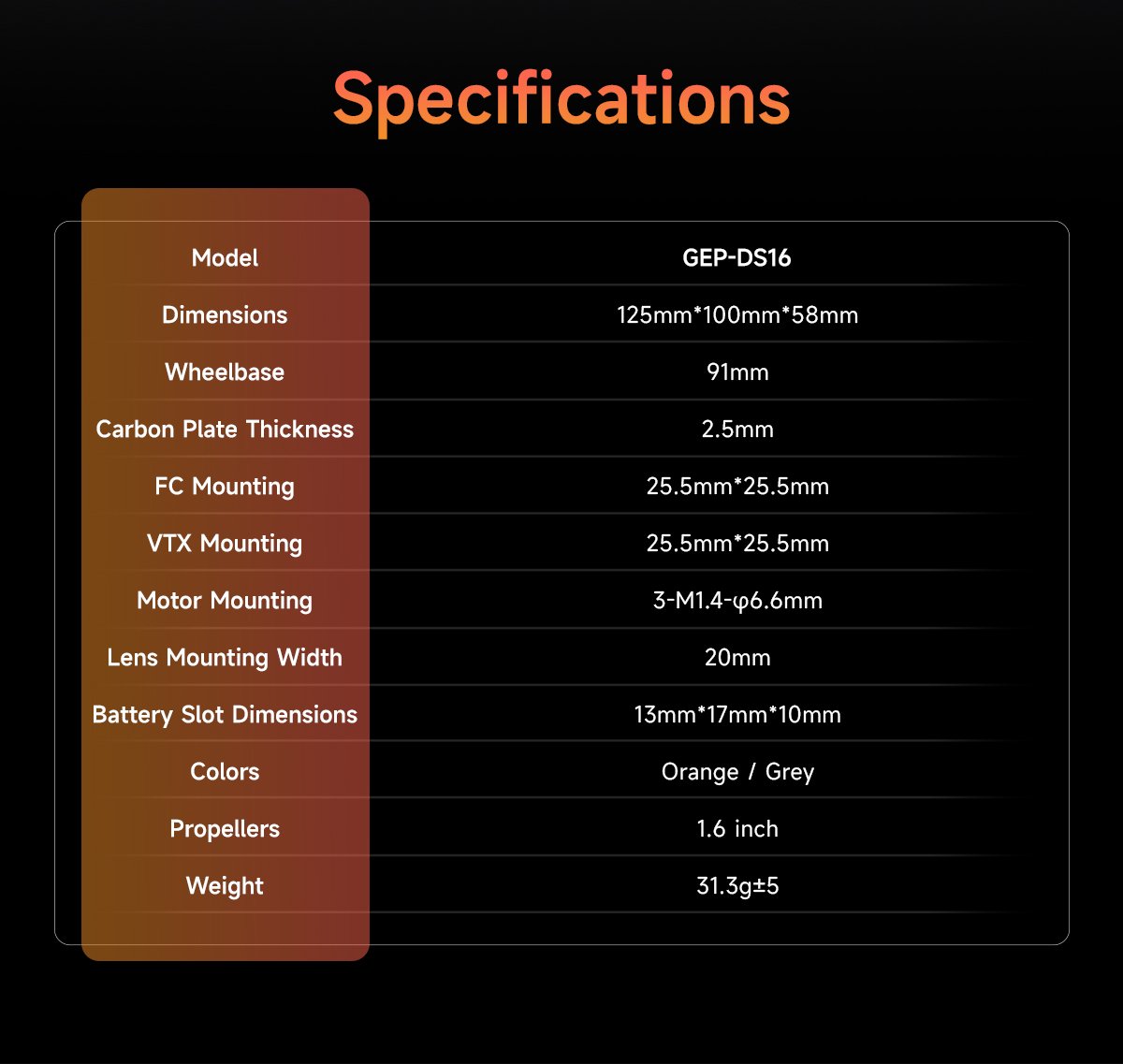

Specs

• Model: GEP-DS16 Frame

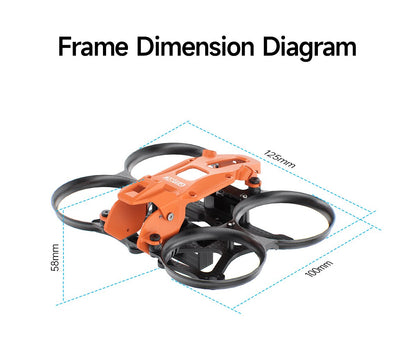

• Dimensions: 100mm*100mm*58mm
• Wheelbase: 91mm
• Carbon Plate Thickness: 2.5mm

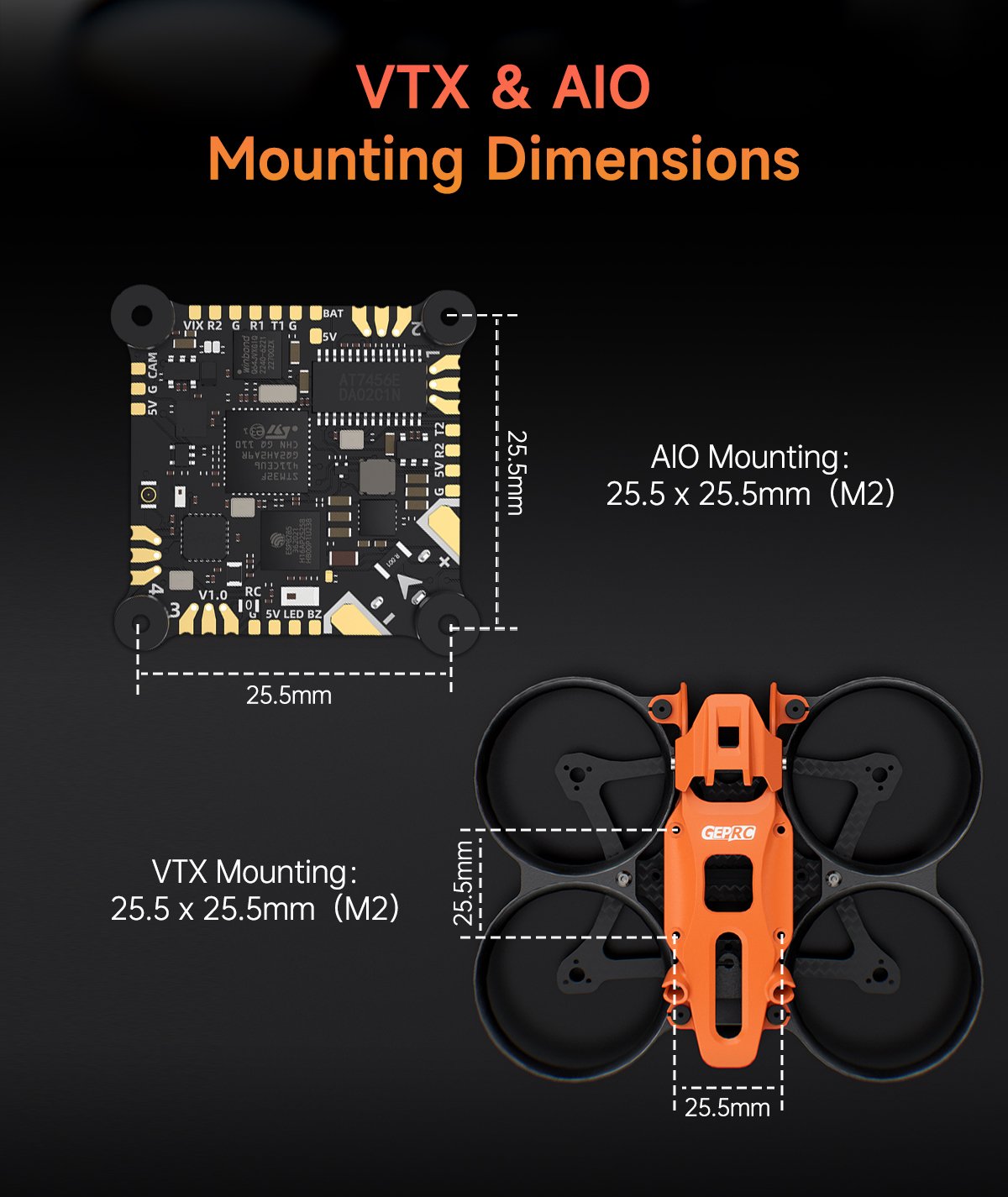

• FC Mounting: 25.5mm*25.5mm
• VTX Mounting: 25.5mm*25.5mm
• Motor Mounting: 3-M1.4-φ6.6mm
• Lens Mounting Width: 20mm
• Battery Slot Dimensions: 13mm*17mm*10mm

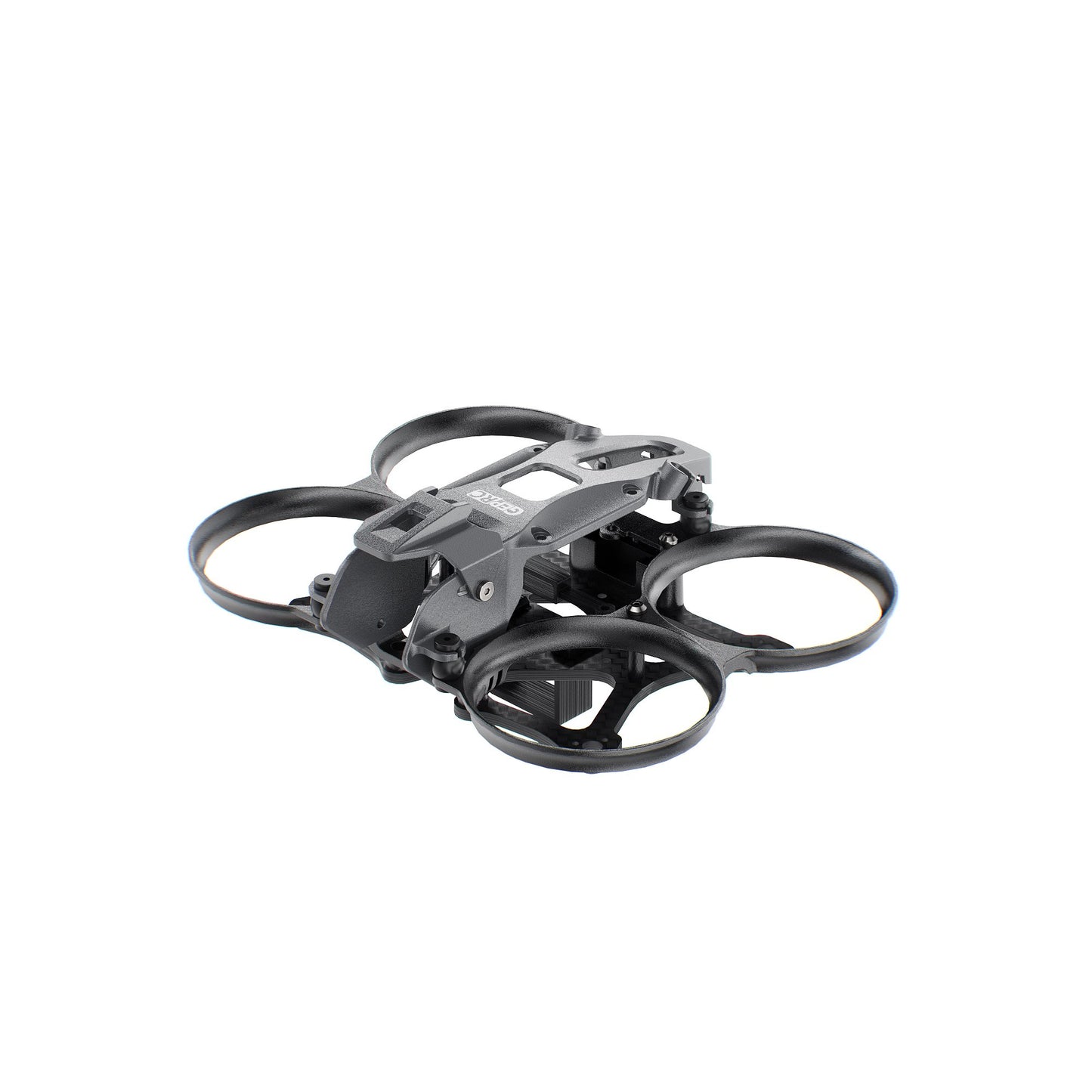

• Colors: Orange / Grey
• Propellers: 1.6 inch
• Weight: 31.3g±5

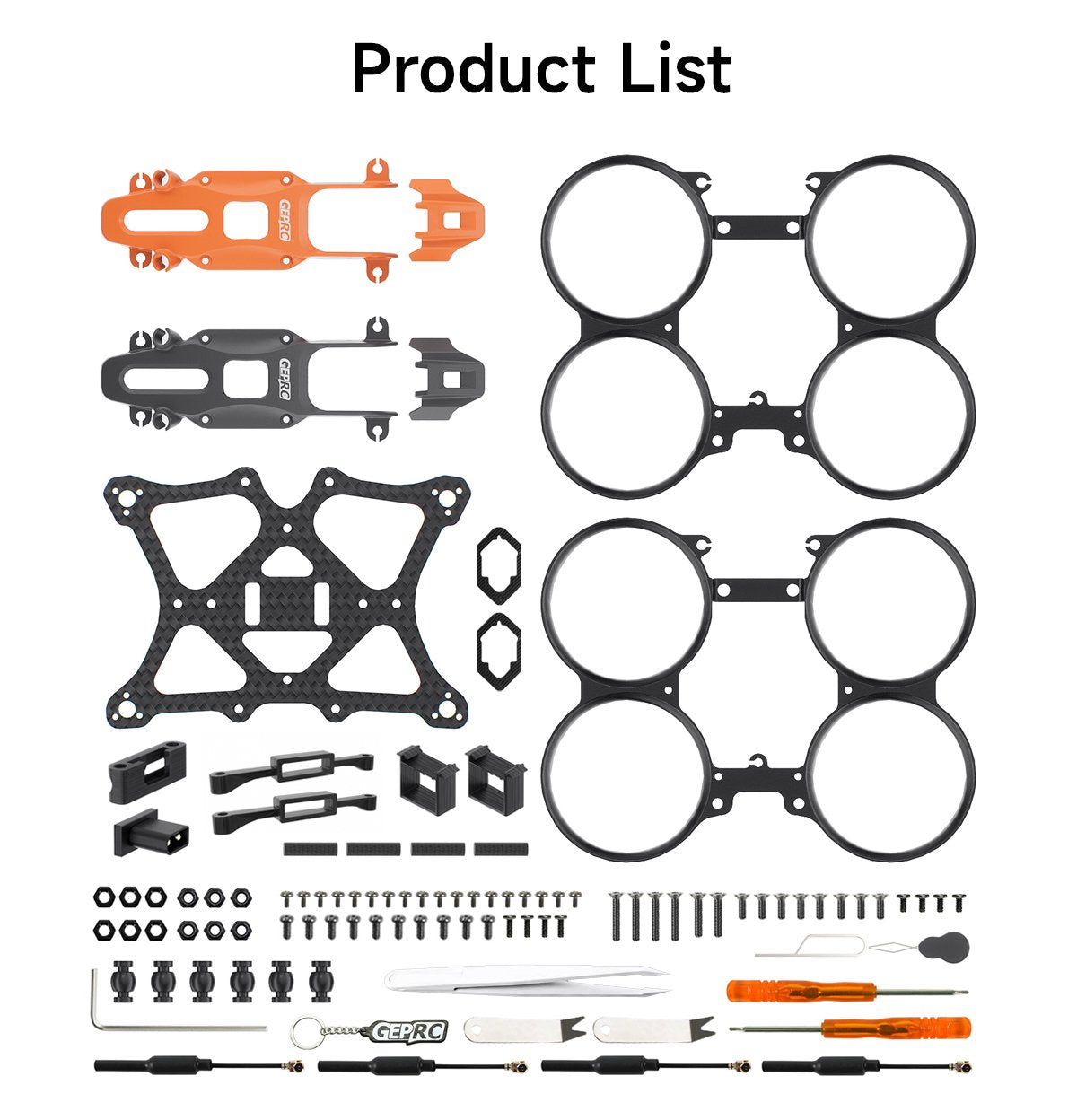

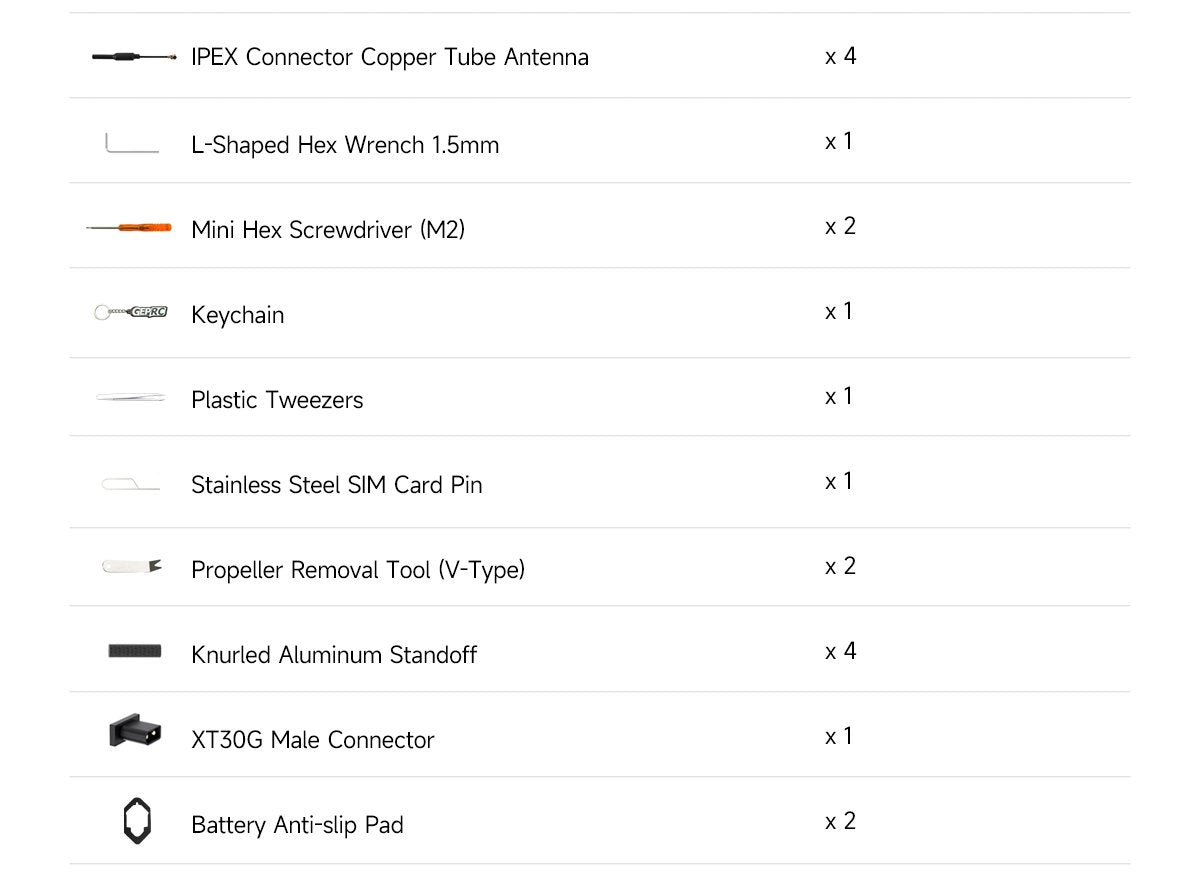

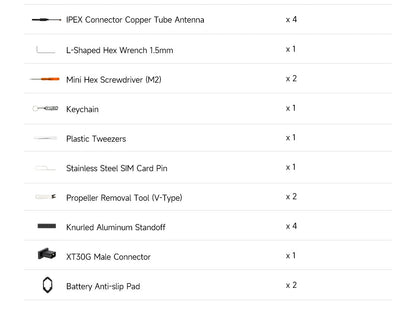

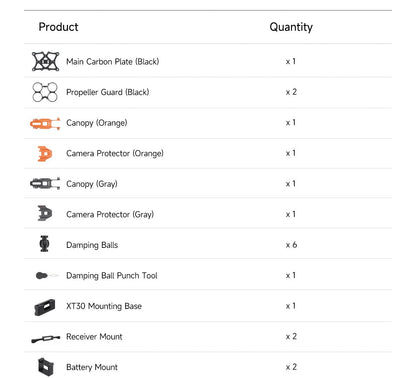

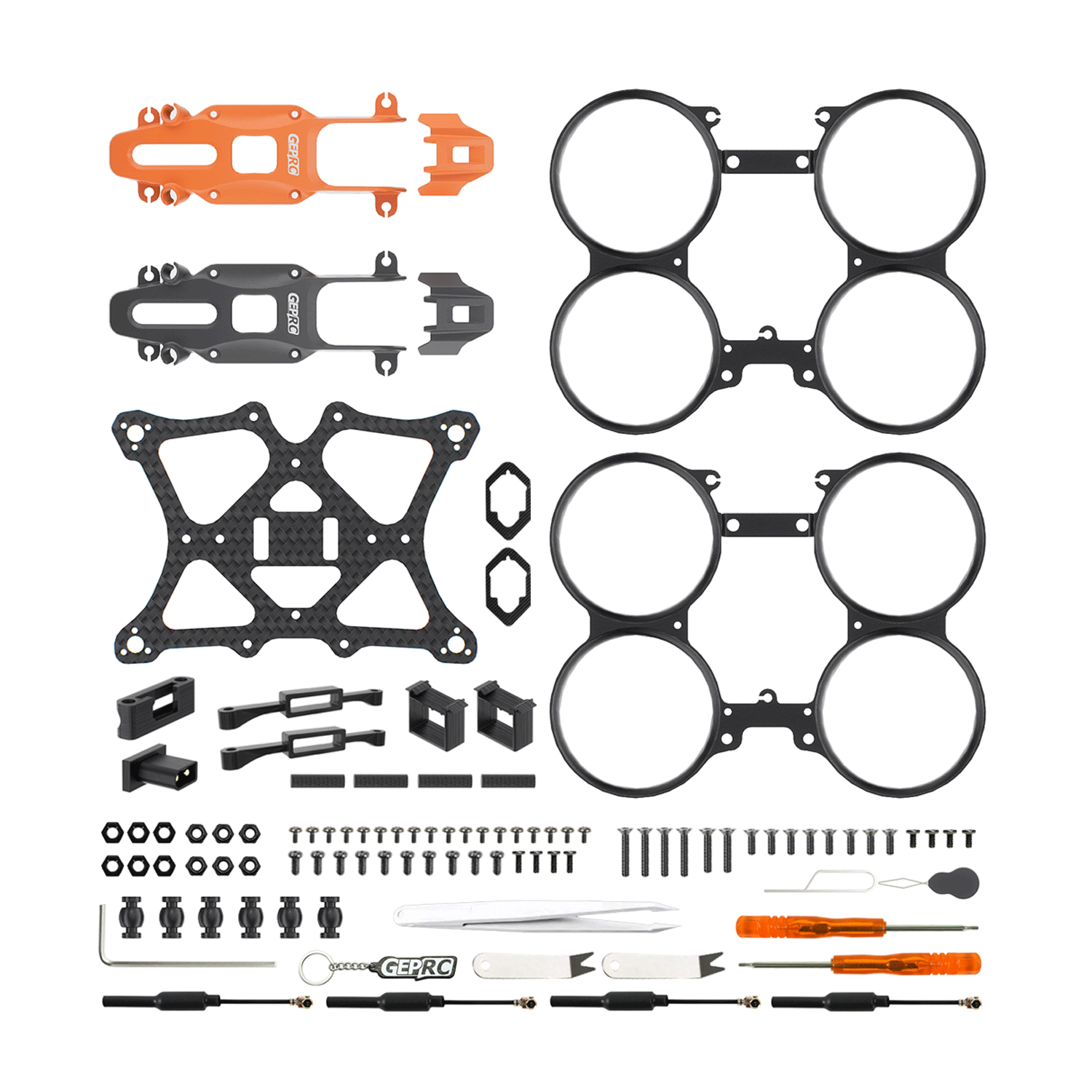

In the Box

• 2 × Propeller Guards (Black)

• 1 × Main Carbon Plate (Black)

• 2 × Canopy (Orange / Gray)

• 2 × Camera Protectors (Orange / Gray)

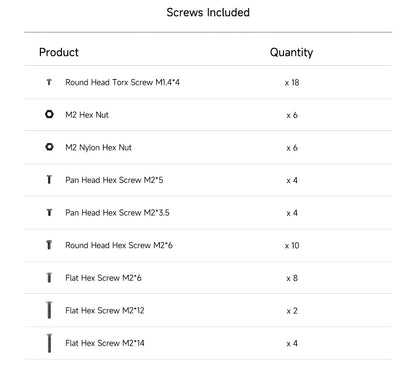

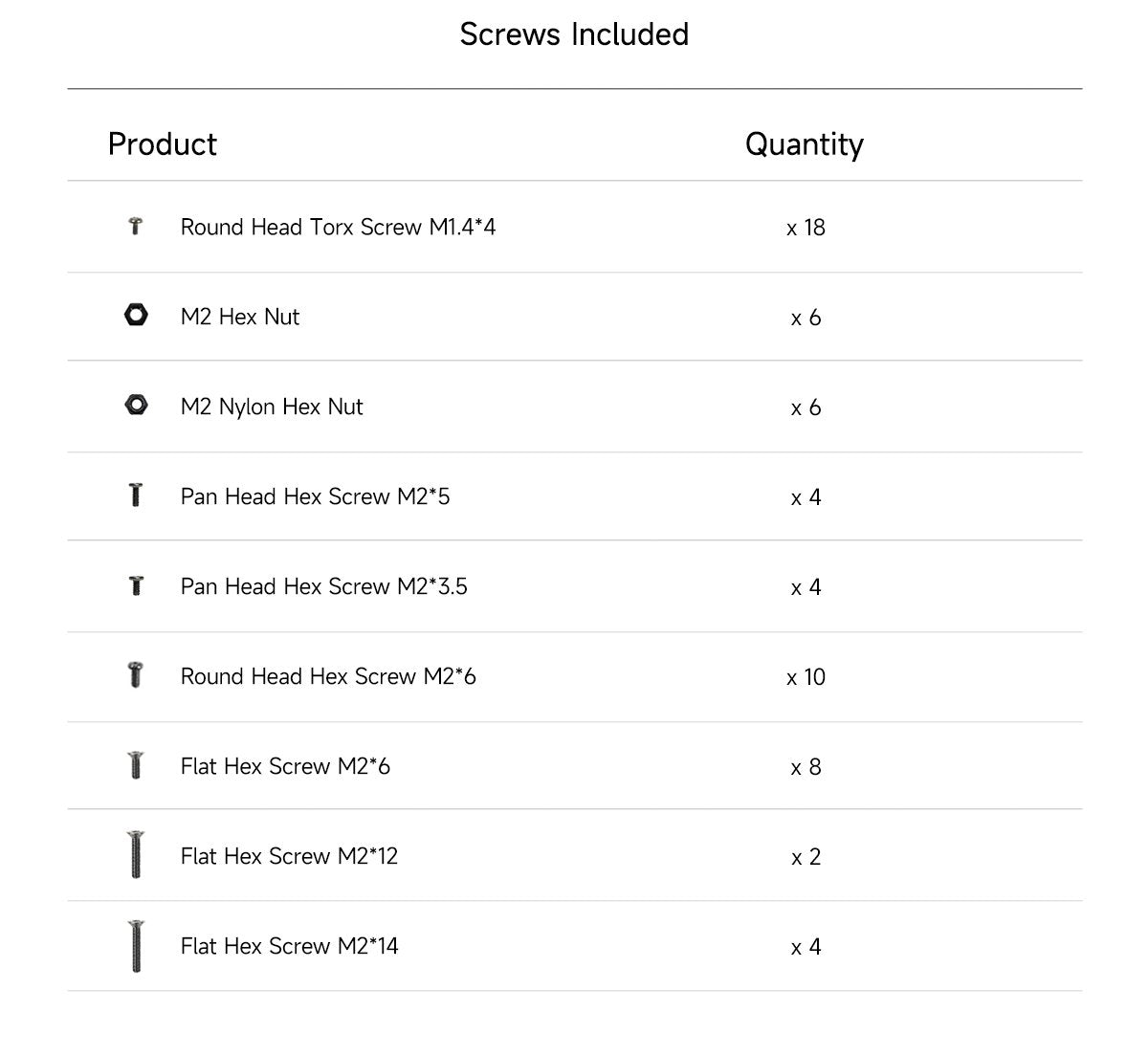

• 1 × Screw Pack

• 2 × VTX Antennas

• 1 × 1.5mm L-shaped Hex Wrench

• 1 × Torx Screwdriver

Compatibility

Engineered specifically for the DJI O4 Air Unit Pro. It accommodates a 20mm lens width and features a battery slot of 13mm x 17mm x 10mm. If your LiPo is bigger than that, you're going to have a bad time.

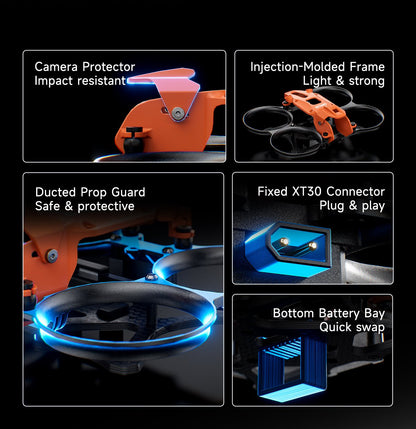

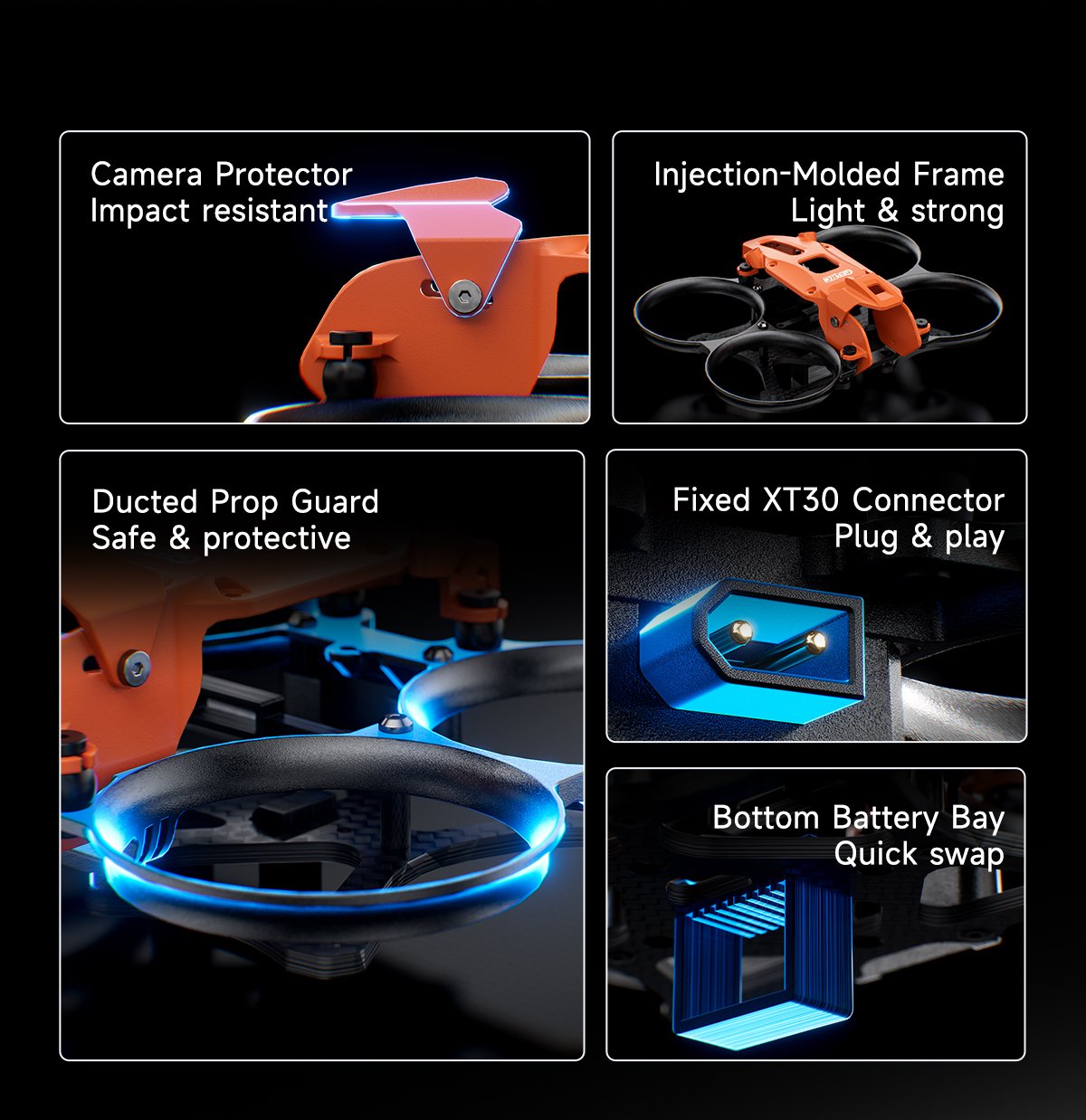

Highlights

• O4 Optimized: Specifically carved out for that massive CMOS sensor without the jello.
• Quick-Release: Six screws. That's it. Maintenance shouldn't be a part-time job.
• Tough Injection Molding: New lightweight design that actually survives a run-in with a goalpost.

Notes

This is a frame kit. It doesn't fly itself, and it won't fix your bad stick inputs. Electronic components (FC, ESC, Motors, VTX) are sold separately.

Disclaimer

Unmanned Tech is not responsible for your obsession with flying through gap sizes that don't exist. Fly responsibly, or at least record it.

Still Here?

You’re either a web crawler indexing this for a search engine or a spec-nerd who reads every single word of the manual. If it's the latter, just buy the GEP-DS16 already. Your DJI O4 deserves a home that isn't held together by zip ties and prayers. Grab yours from the UK's favourite FPV shop.
