Product Details

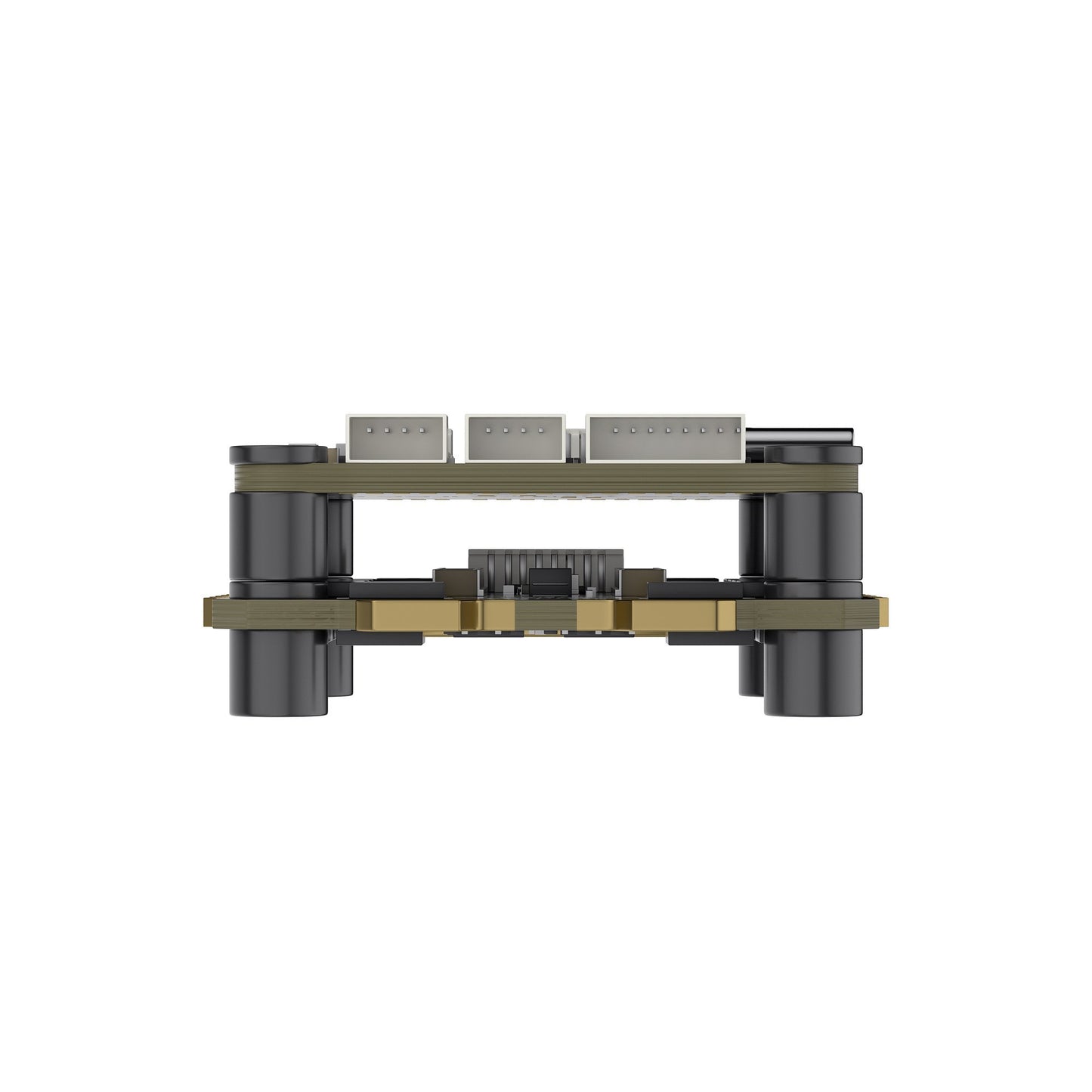

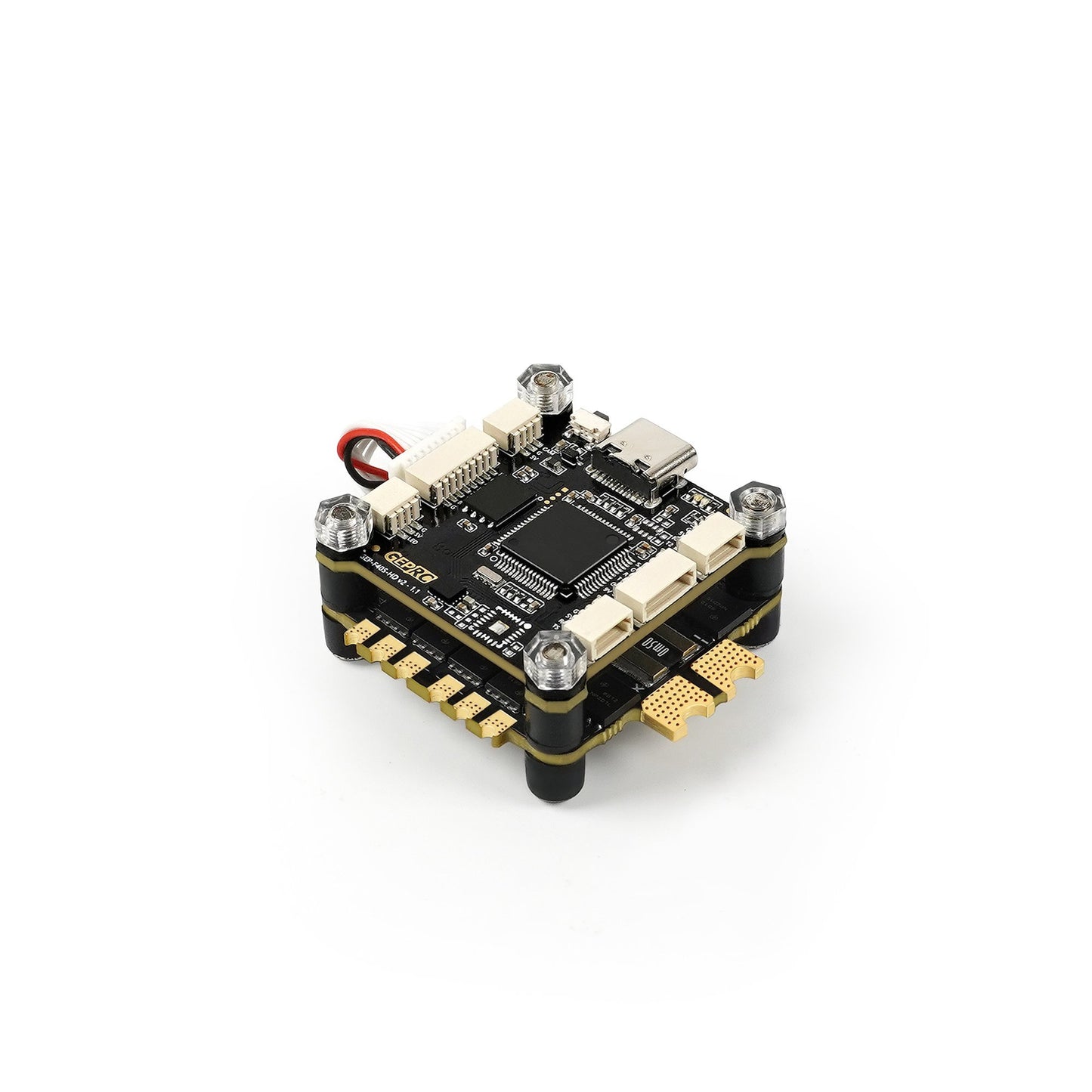

Introducing the GEPRC Fettec G4 Alpha GF50A stack, a powerhouse collaboration between GEPRC and FETTEC. This flight controller (FC) features the G473 main controller, integrated with FETTEC Alpha firmware and supports high-speed protocols like S2M and Dshot2400. Paired with the robust GF50A ESC, it delivers unparalleled stability and lightning-fast responsiveness, making it a top choice for FPV enthusiasts seeking superior performance.
Key Features
- Advanced Firmware : Both the FC and ESC utilize FETTEC Alpha firmware, ensuring seamless performance and high-speed protocol support, including S2M and Dshot2400.
- Plug-and-Play Assembly : All flight control interfaces support SH1.0 cable connections, eliminating the need for soldering and simplifying the assembly process.
- Dual Transmission Support : High-definition analog two-in-one socket, compatible with both DJI digital and analog image transmission.
- Durable Design : Built to withstand the rigors of intense FPV flights, even in harsh conditions like bent propellers after crashes.
Specifications

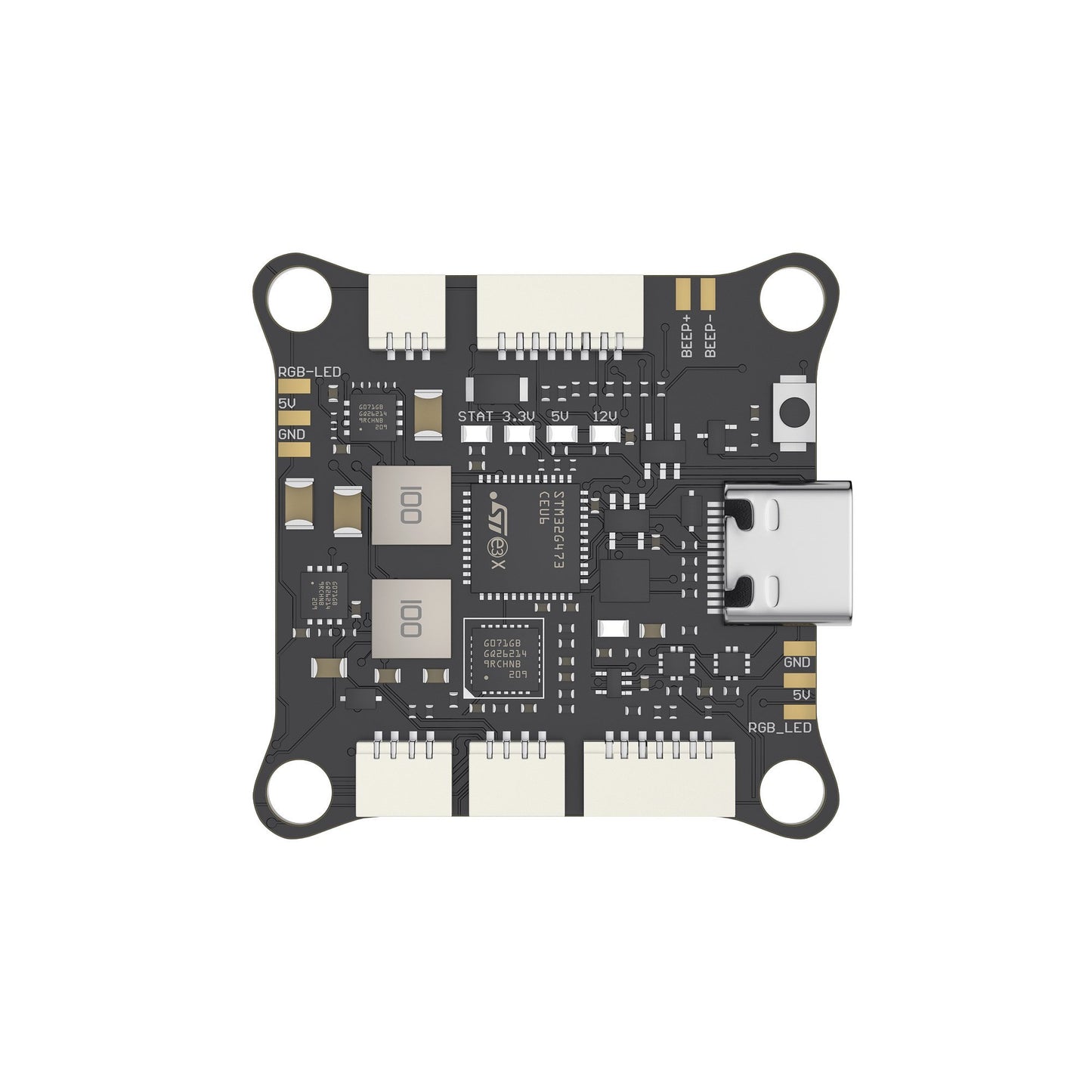

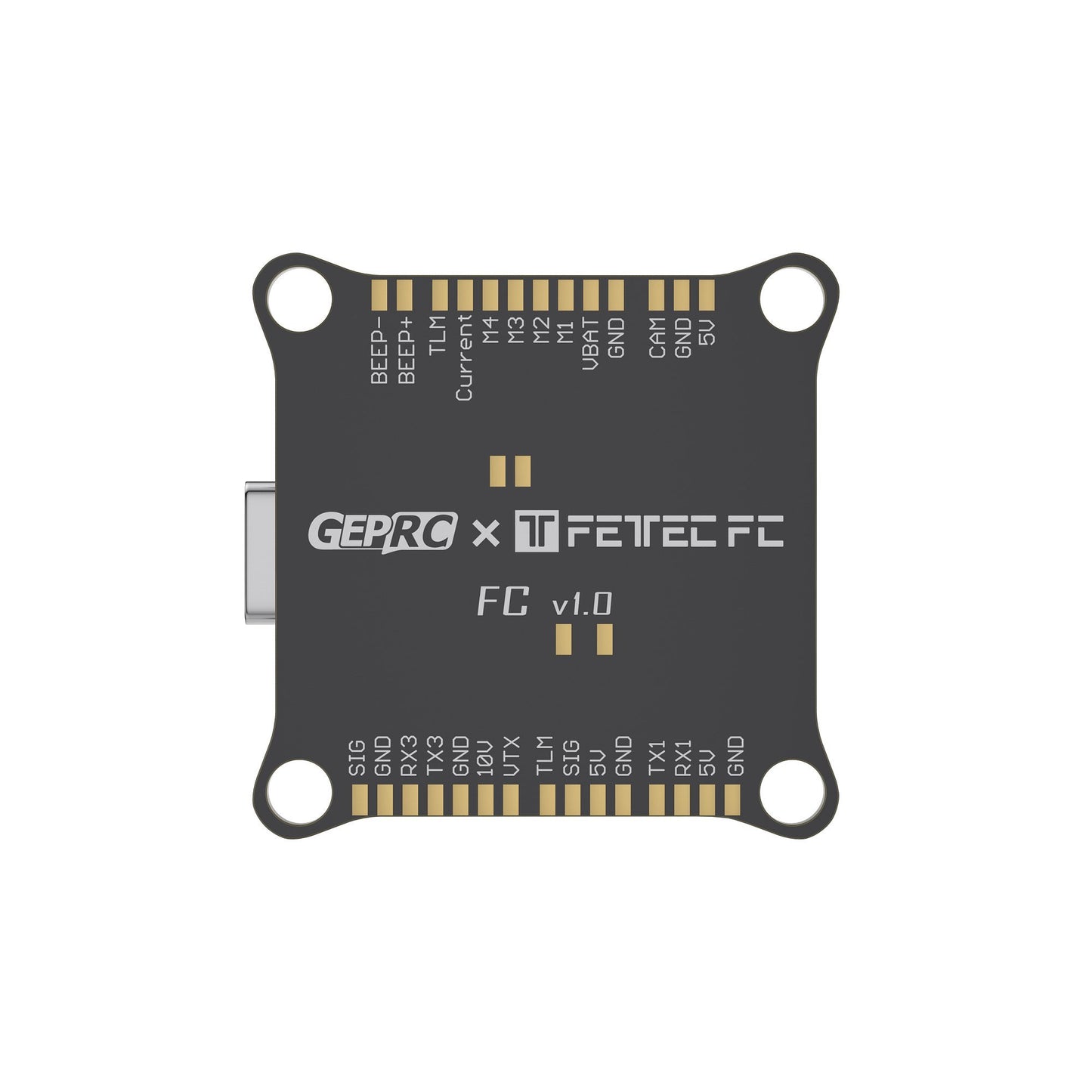

GEPRC Fettec G4 Alpha FC
- MCU : STM32G473CEU6
- IMU : IIM 42602
- Firmware : FETTEC ALPHA
- OSD : FETTEC OSD
- External Buzzer : Yes
- External LED : Yes
- USB Interface : Type-C
- BEC Output : 9V@2A (Max 2.5A), 5V@2A (Max 2.5A)
- Weight : 6.6g

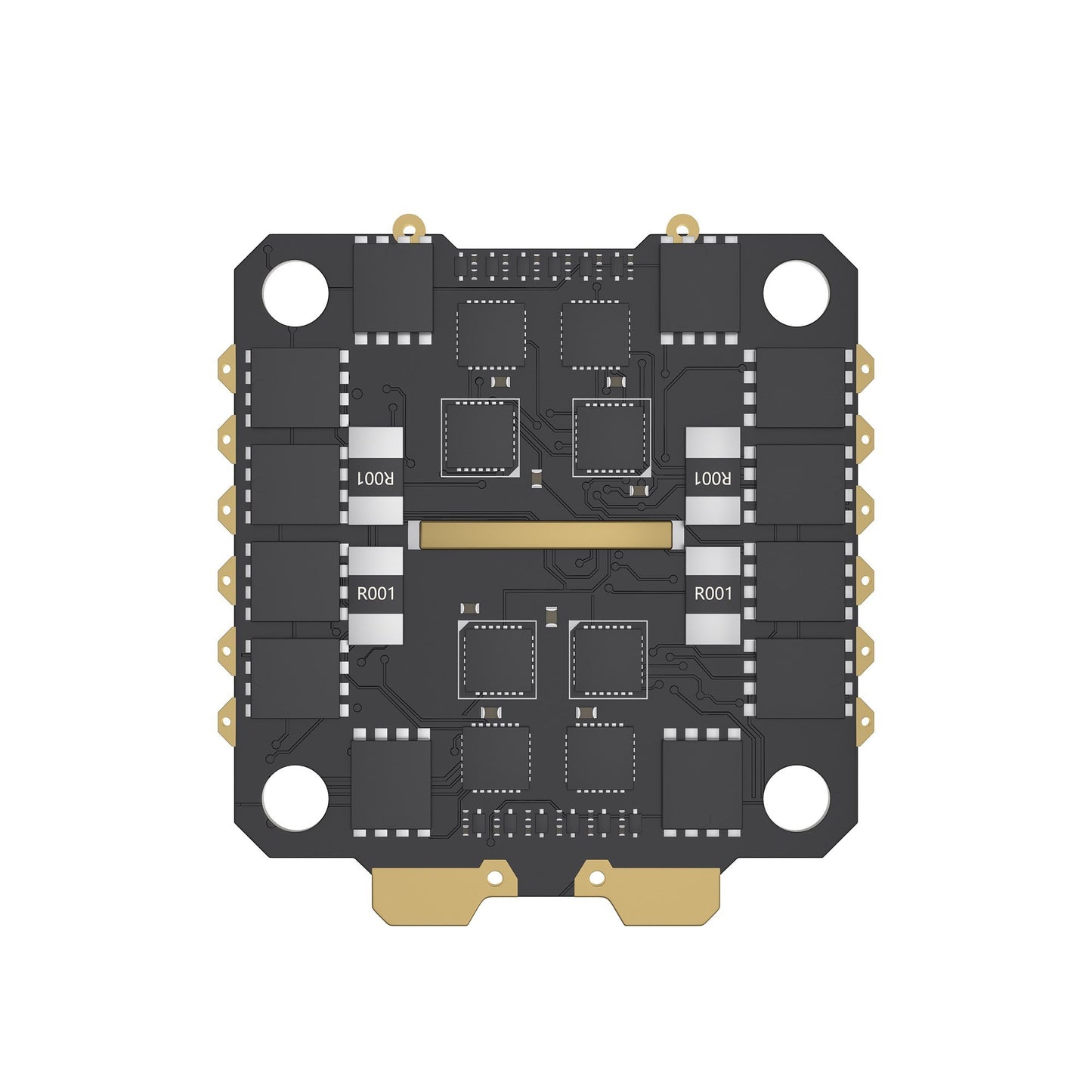

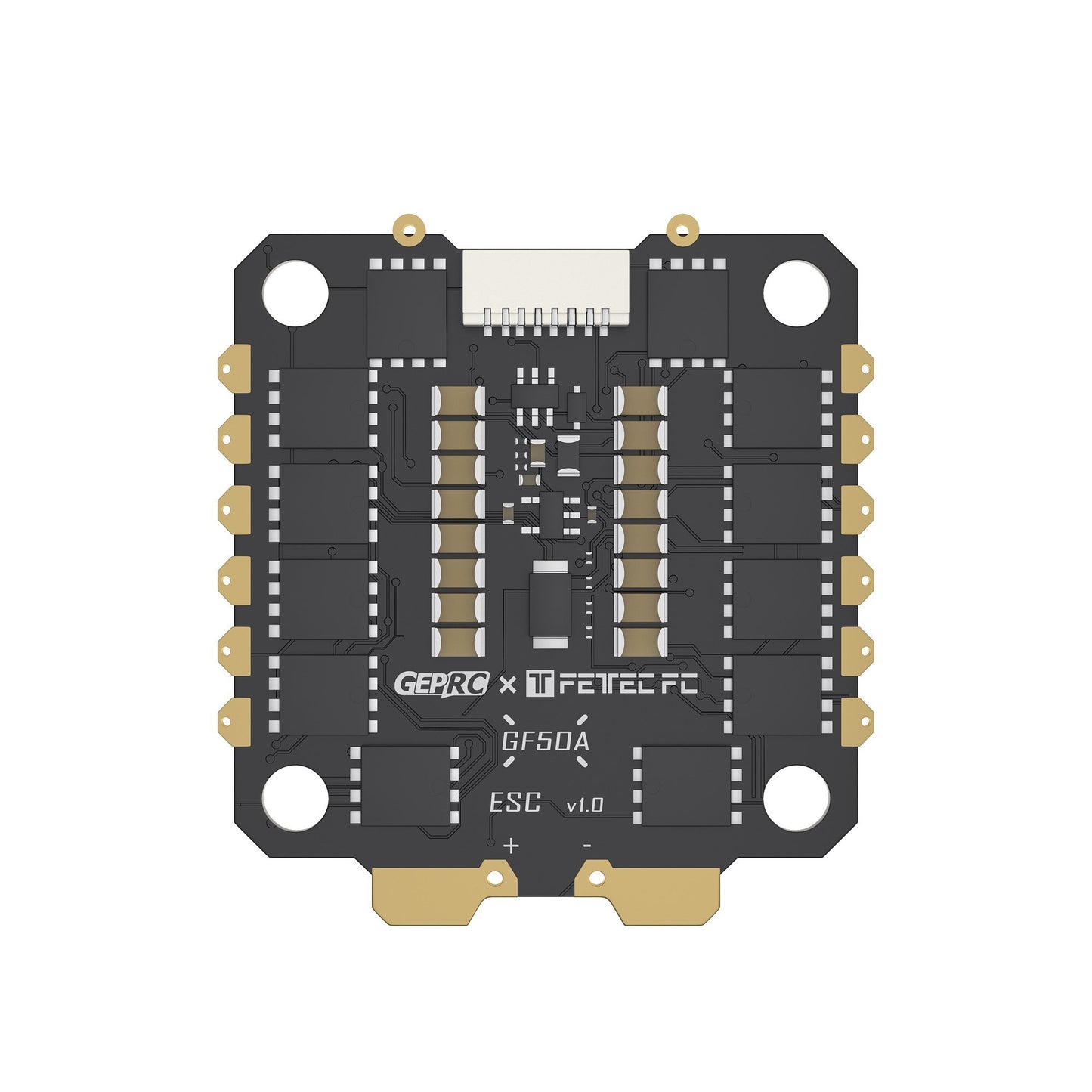

GEPRC Fettec GF50A 4IN1 DShot2400 ESC
- MCU : STM32G071
- Continuous Current : 50A
- Peak Current : 55A
- Input : 2~6S (LIPO Battery)
- Protocol : S2M+OW, S2M, Dshot300-2400
- Galvanometer : Yes
- Firmware : FETTEC
- Dimensions : 32x32mm Board
- Installation Hole Position : 30.5mmx30.5mm M4
- Weight : 13g
In the Box
- 1 x GEPRC Fettec GF50A 4IN1 DShot2400 ESC
- 1 x GEPRC Fettec G4 Alpha FC
- 2 x SH1.0-4Pin 100mm silicone wire
- 1 x SH1.0-6P to SH1.0-7Pin silicone cable 60mm
- 1 x SH1.0 8Pin 30mm silicone cable
- 1 x SH1.0 7pin to 6pin 80MM silicone cable
- 1 x XT60 power cable 110MM
- 1 x 35v 1000uf capacitor
- 4 x Hexagon socket screw M3*24
- 4 x Transparent color M3 nylon nut
- 10 x M3*8 damping ball
- 1 x Product manual
Note: Included accessories may vary based on supply.
