GEPRC EM3215 900KV/750KV Motor
The GEPRC EM3215 Motor is a high-performance solution from the EM series , crafted specifically for long-range FPV drones . Available in 900KV and 750KV variants, this motor offers powerful and efficient operation for builds using 9-10 inch propellers , making it perfect for pilots seeking smooth, reliable performance over extended distances.
Engineered with a high-strength M5 steel shaft and high-torque magnetic circuit design , the EM3215 is built to handle demanding FPV setups with precision. The compact 19mm×19mm base simplifies installation, while the use of premium components like N52H magnets and NMB bearings ensures durability and longevity.
Whether you choose the 900KV version for higher power or the 750KV variant for smoother efficiency, the EM3215 delivers exceptional thrust and stability for your long-range adventures.
Key Features:
- Designed for long-range FPV : Optimized for 9-10 inch propellers.
- Durable steel shaft : M5 high-strength steel for reliability under load.
- Efficient magnetic circuit : Provides high torque and consistent performance.
- Premium components : N52H magnets and NMB bearings for smooth operation.
- Compact base : 19mm×19mm mounting for easy integration into builds.
Specifications:

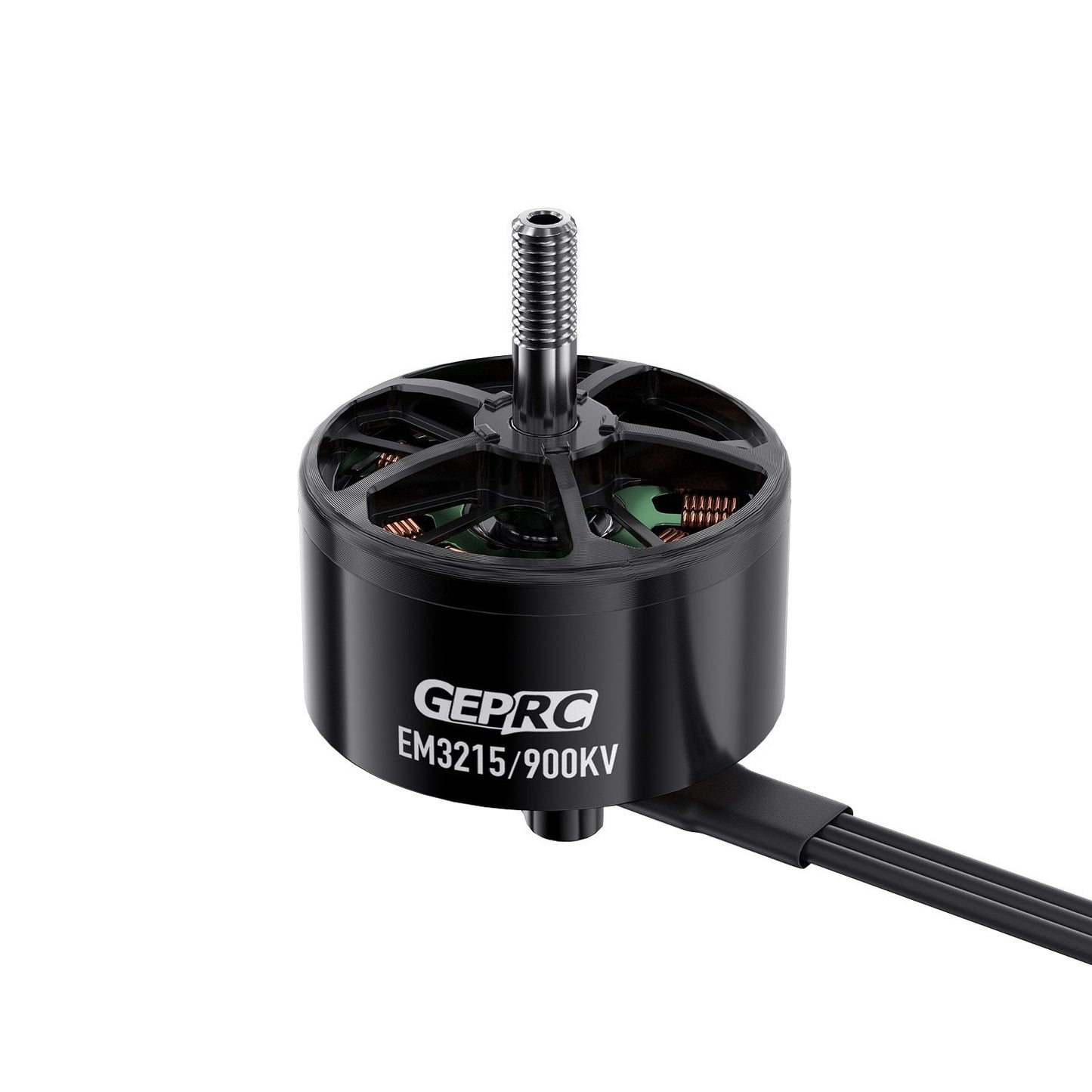

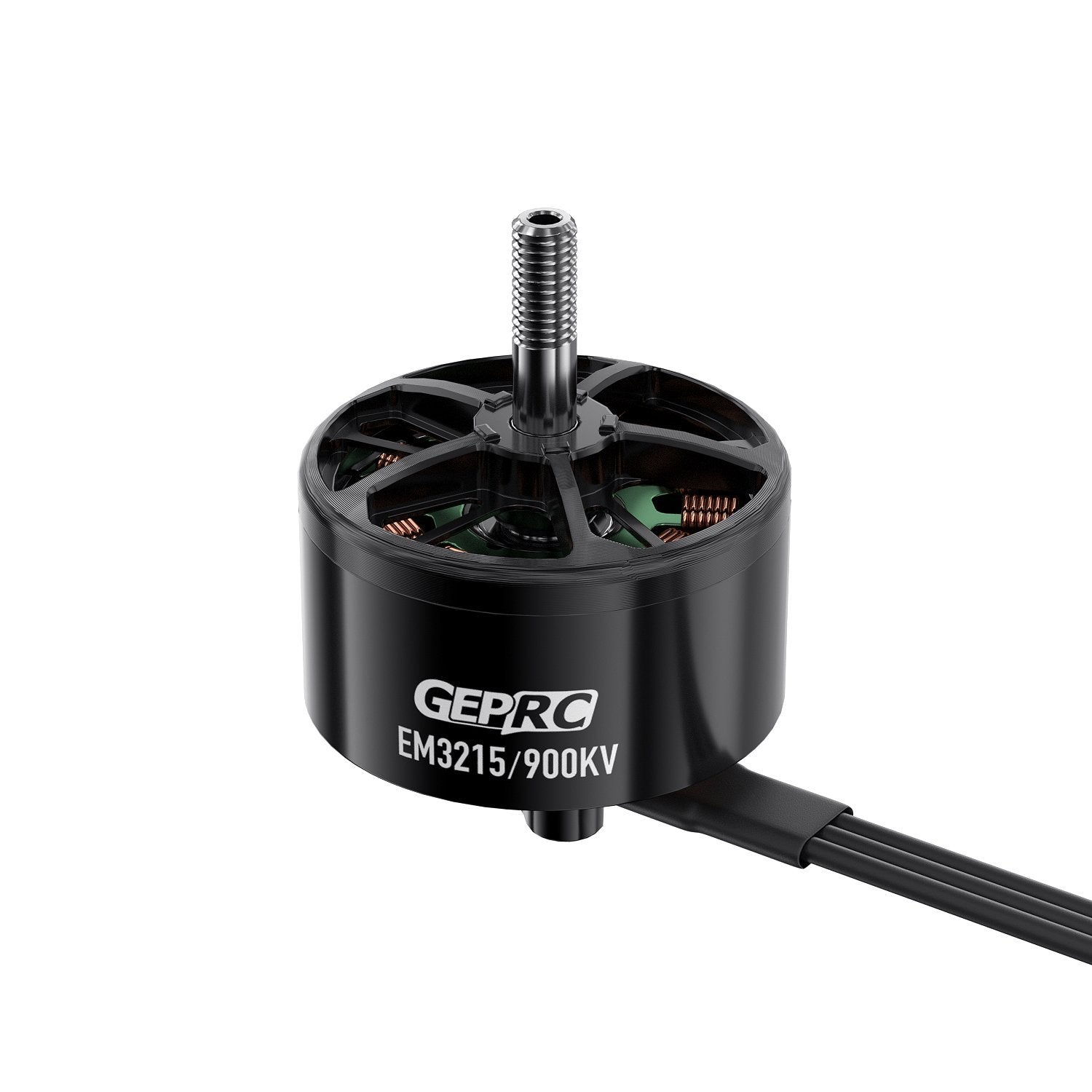

EM3215 900KV Motor
- KV : 900KV
- Maximum Power : 1780W
- Peak Current : 75A
- Resistance : 33mΩ
- Compatible Propellers : 9-10 inch
- Input Voltage : 25.2V (6S LiPo)
- Winding : Single-strand copper winding
- Weight : 122g (including wires)

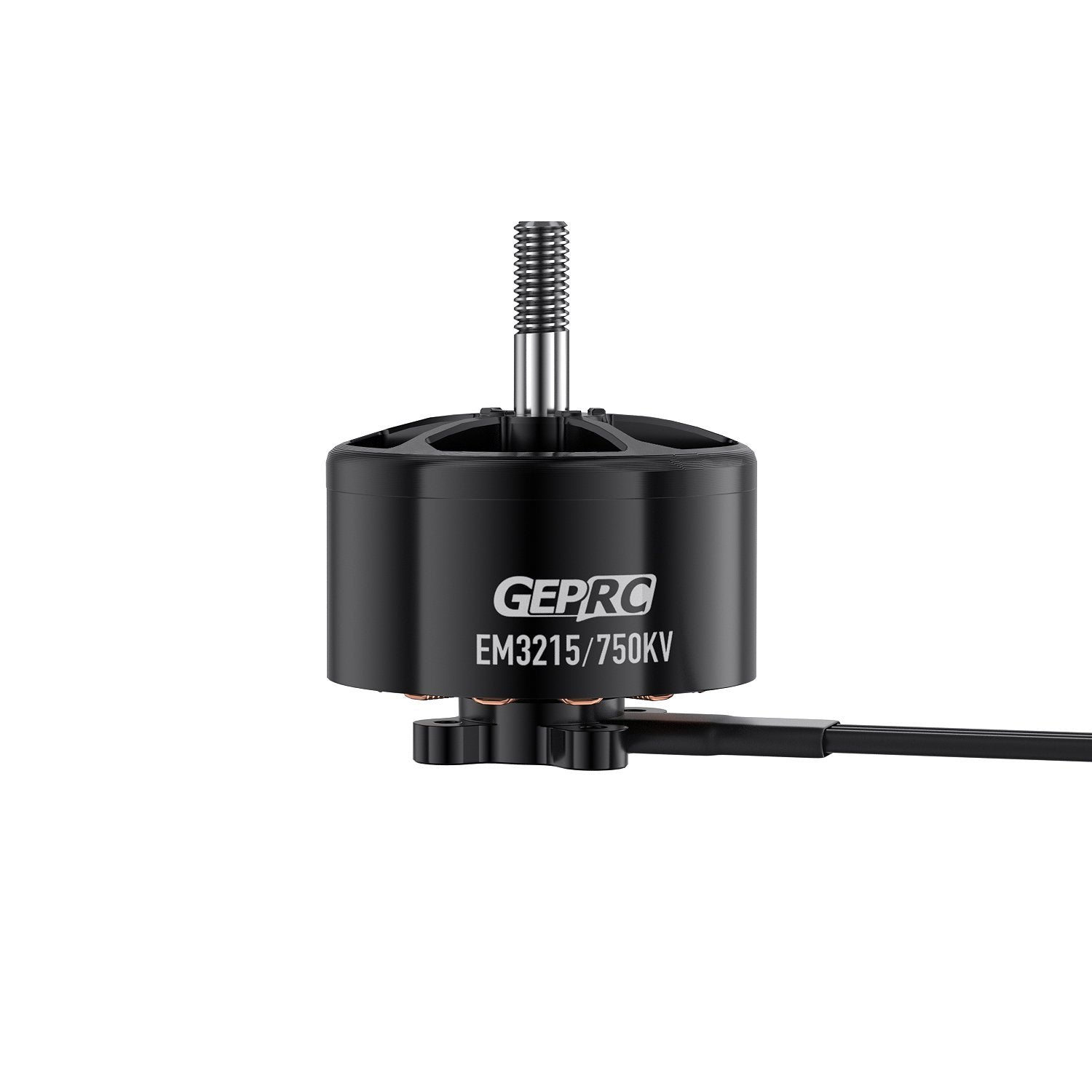

EM3215 750KV Motor
- KV : 750KV
- Maximum Power : 1450W
- Peak Current : 61A
- Resistance : 43mΩ
- Compatible Propellers : 10 inch
- Input Voltage : 25.2V (6S LiPo)
- Winding : Multi-strand copper winding
- Weight : 122g (including wires)
Common Specifications
- Magnet : N52H
- Bearing Type : NMB
- Configuration : 12N14P
- Dimensions : φ38.6mm × 30.7mm
- Shaft Diameter : φ5mm
- Shaft Protrusion : 17.2mm
- Mounting Hole Size : 19mm × 19mm

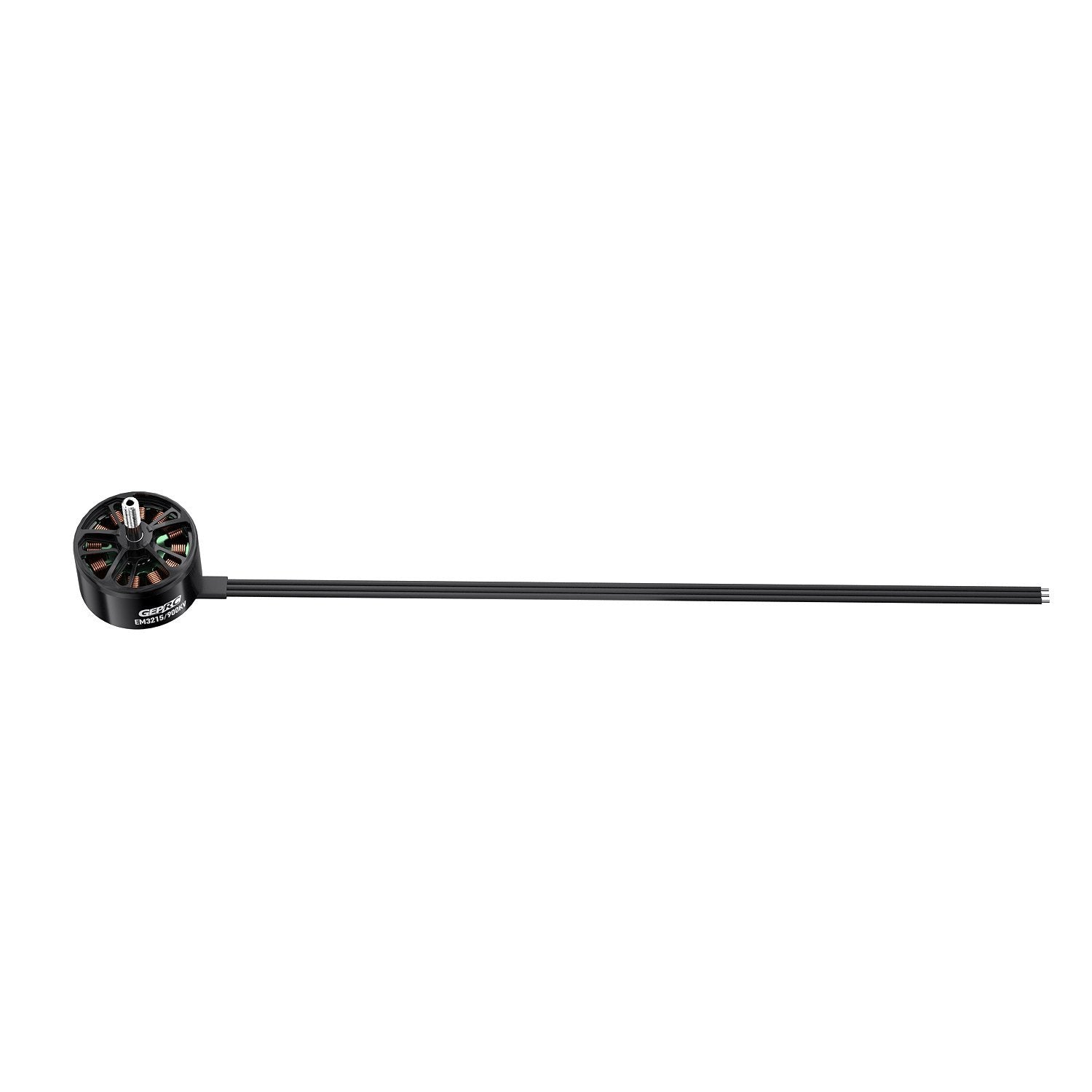

- Lead Length : 300mm / 18AWG
- Compatible ESC : 60A-80A
What's in the Box?
- 1 × GEPRC EM3215 Motor (900KV or 750KV)
- 4 × M3×8 round head screws
- 1 × M5 flange nut
Disclaimer: Accessories included are subject to availability and may vary based on stock.
