Product Details

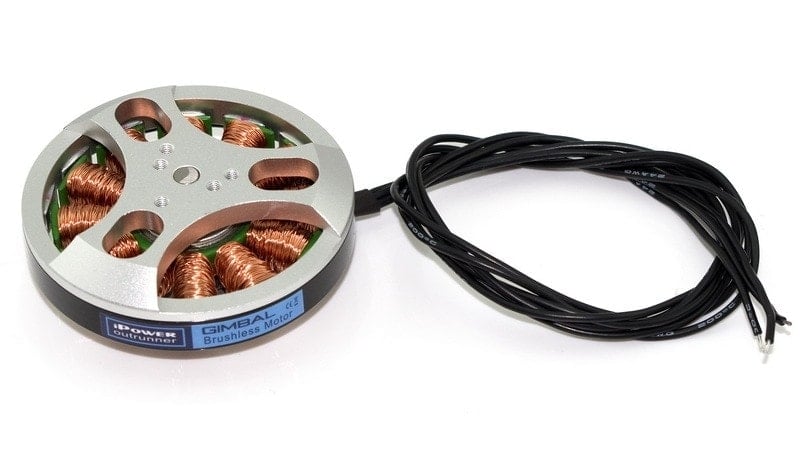

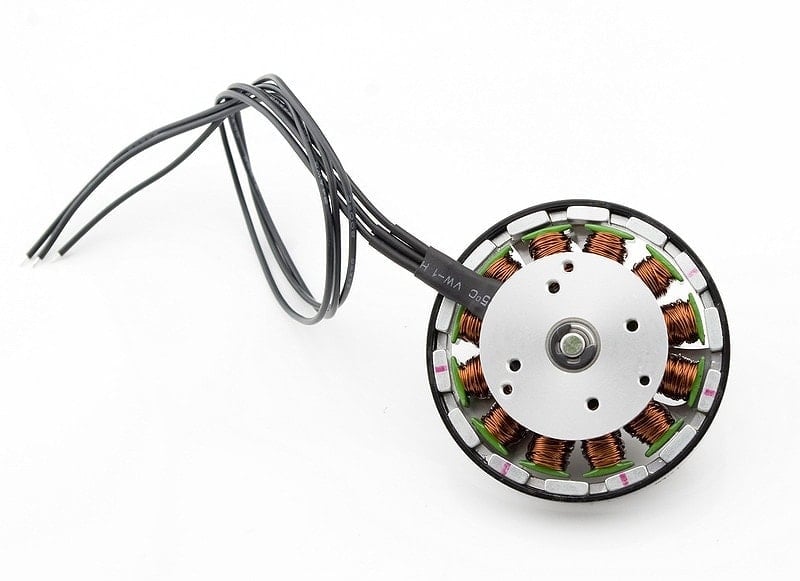

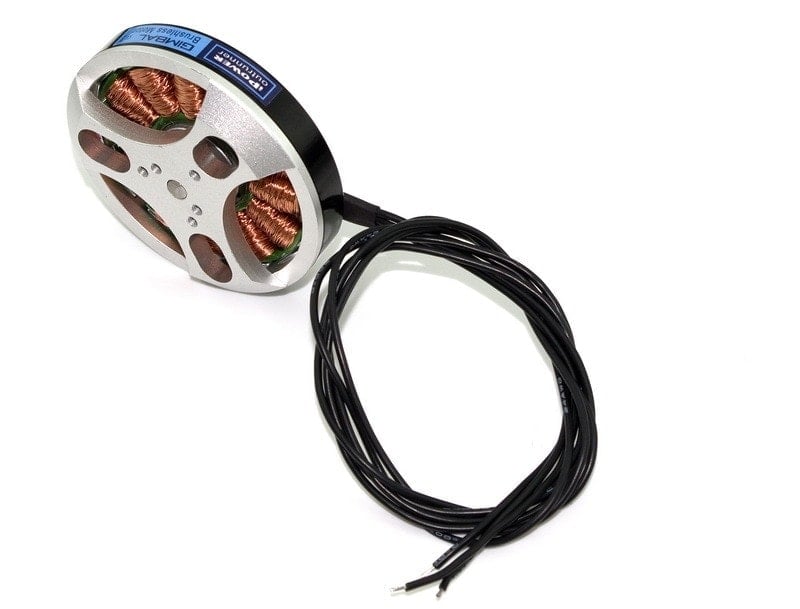

This is a brushless motor with special motor wingdings to be used as a brushless gimbal motor for the smoothest and fastest gimbal. This motor is designed to be used for DSLR cameras around 800g to 1.2Kg
GBM5206-150 Specifications
- Motor Dimensions:60x18mm
- Stator Dimensions:25x6mm
- Copper wire(OD):0.21mm
- Configuration: 12N14P
- Internal Resistance: 0.093 ohm
- Motor Wind type: Star style
- Pre-wound with 150 turns,
- 5mm shaft
- Bottom mounting holes: 23mm center to center (3 holes) or 25mm center to center (4 holes)
- Top mounting holes: 12mm center to center (2 holes) or 17mm center to center (3 holes)
- Camera range: 800-1200grams(DSLR)
