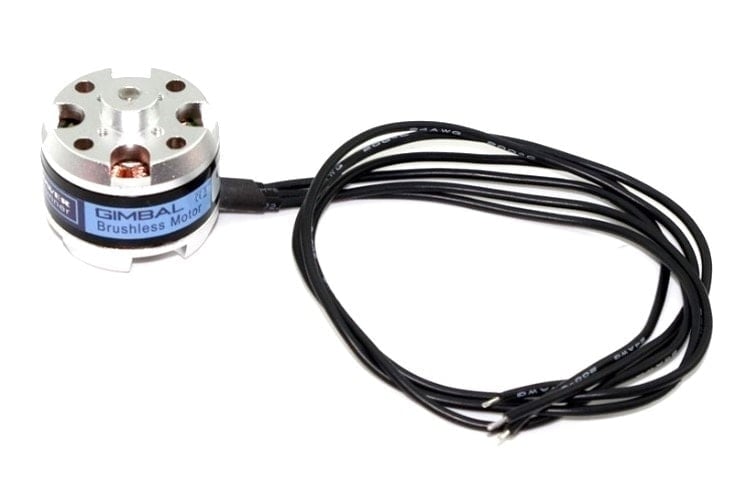

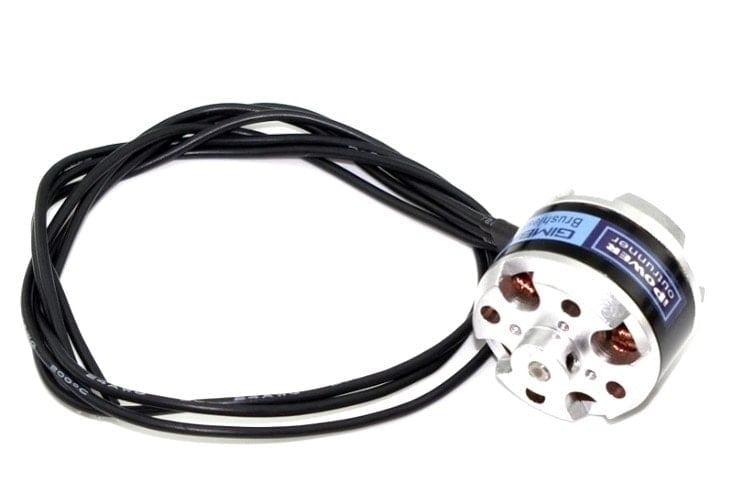

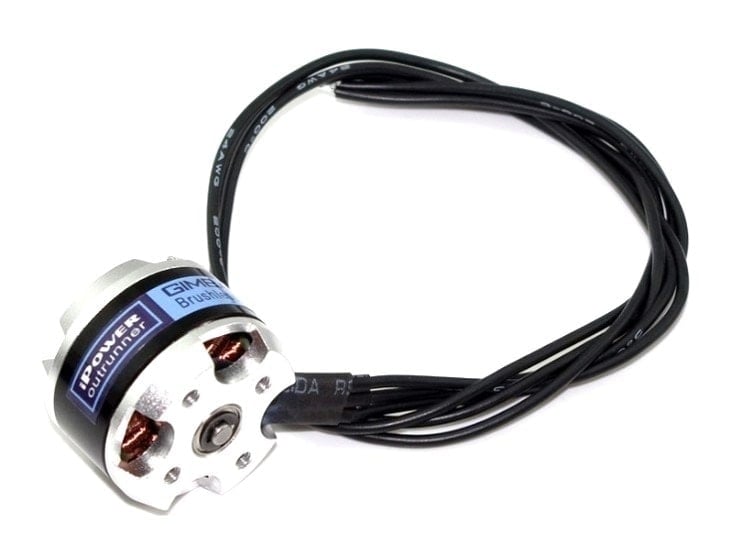

GBM2208-80 Brushless Gimbal Motor (GoPro size camera)

This is a brushless motor with special motor wingdings to be used as a brushless gimbal motor for the smoothest and fastest gimbal. This motor is designed to be used for gopro size cameras around 100-200g

GBM2208-80 Specifications

• Model NO.:GBM2208-80T

• Motor Dimensions:28x22mm

• Stator Dimensions:22x8mm

• Copper wire(OD):0.16mm

• Configuration:12N14P

• Resistance:14.6 ohms

• Wind type and termination method:Star style

• Pre-wounded with 80 turns,3.17mm shaft

• Bottom mounting holes: 16 and 19mm center to center

• Top mounting holes: 12mm center to center

• Camera range: 100-200grams(GoPro size)

• Weight:43g
