Product Details

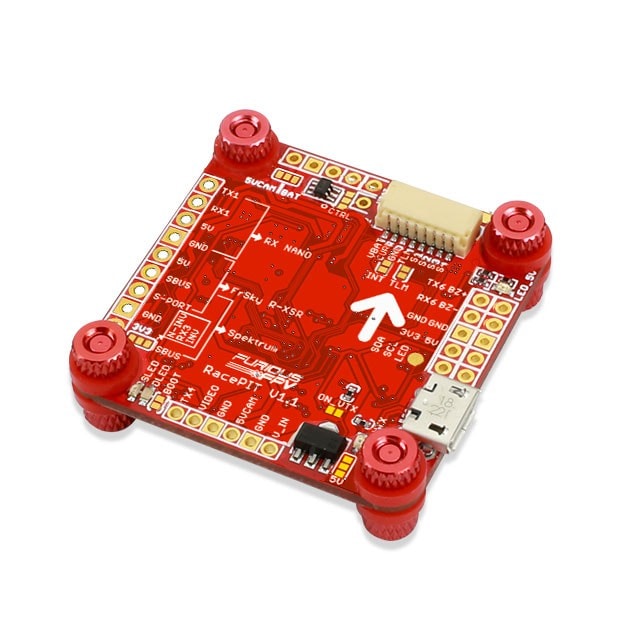

The FuriousFPV RacePIT flight controller is loaded with so many features, you'll be hard-pressed to utilize them all. Some notable features include camera switching, 4-in-1 connector, 5V BEC, Blackbox, VTX power switch, and clean mounting for TBS Crossfire receiver and TBS Unify Nano32 VTX.
Capable of running 2-6S input voltage, 6 Uarts, and a built-in inverter for S.BUS and S.PORT means you'll be able to adapt the RacePIT FC to almost any build.
Features
- Built-in connector for 4in1 ESC as well as solder pads
- Built-in power switch for VTX, support 5V & VBAT
- Built-in Camera Switcher Inverter for SBUS & S.PORT
- Full 6 Uarts for Simultaneous Connections of Runcam Device, GPS, CRSF RX, Bluetooth, and Others
Specifications
- Item Name: F4 Flight Controller AIO OSD BEC
- Input Voltage: 2-6S Lipo
- CPU: STM32F405
- Gyro: MPU6000
- Built-in 16MB Black Box flash
- Built-in Betaflight OSD
- Built-in 5V 2A BEC Output

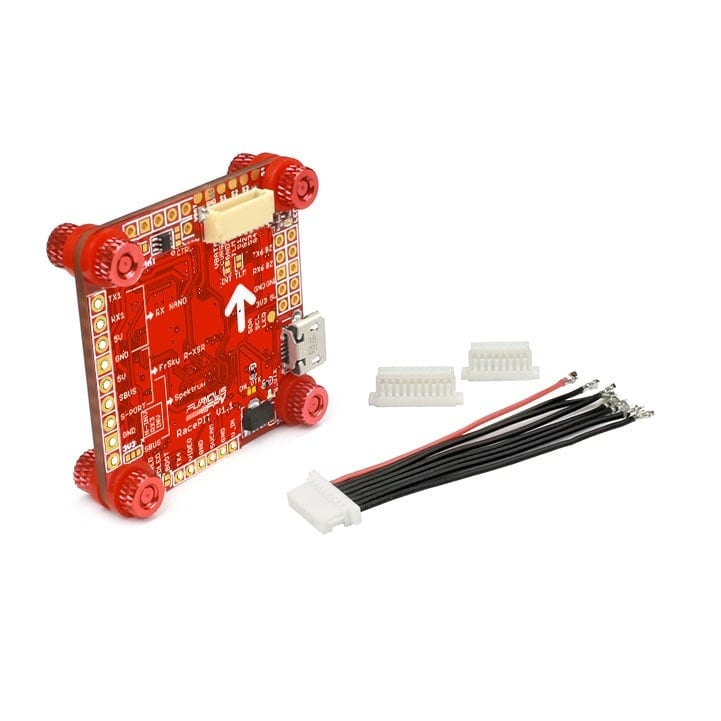

Includes
- 1x RacePIT F4 Flight Controller Board
- 1x 8P Cable
- 2x Cable Connector Plugs
- 1x Bag of Screws
