Product Details

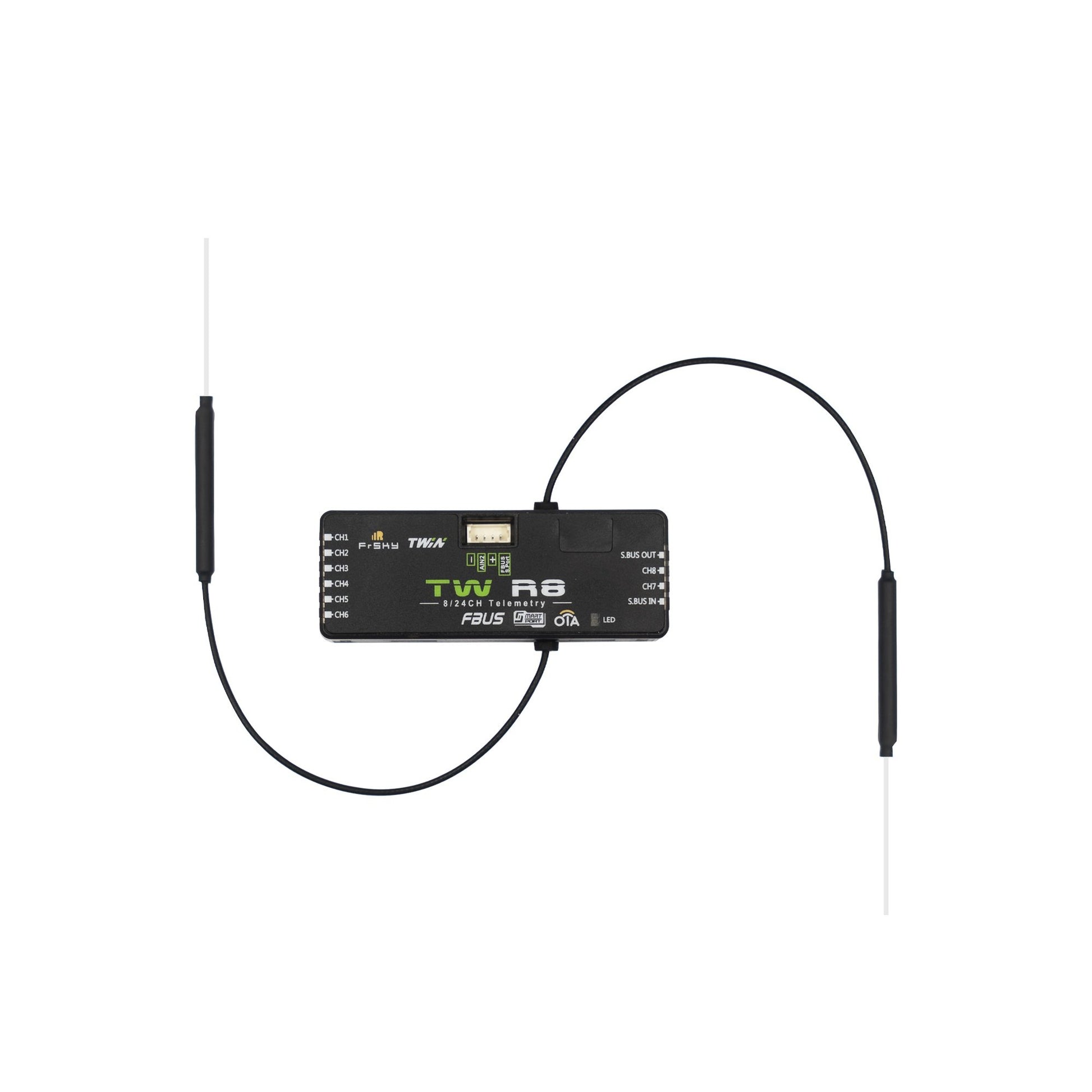

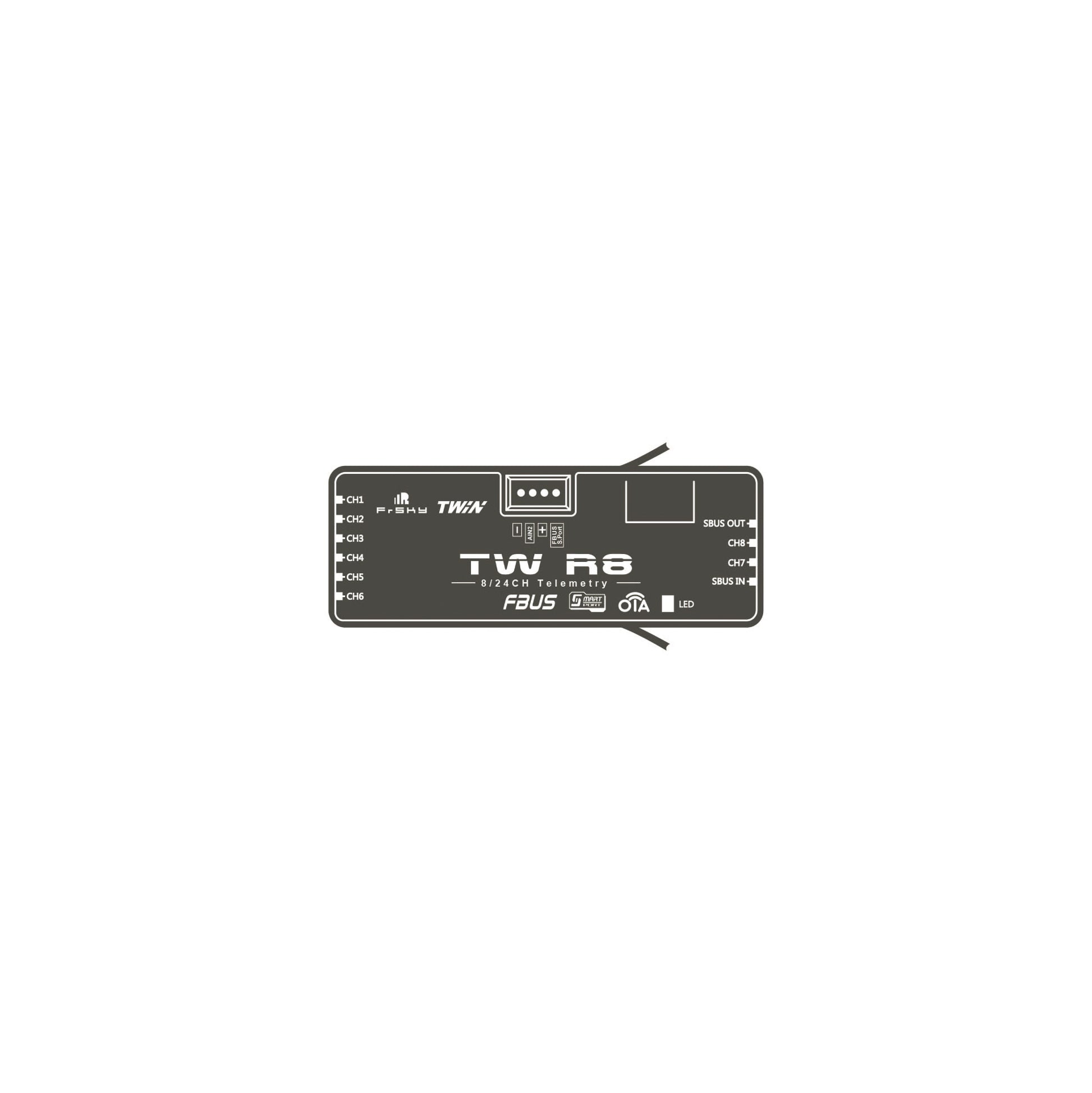

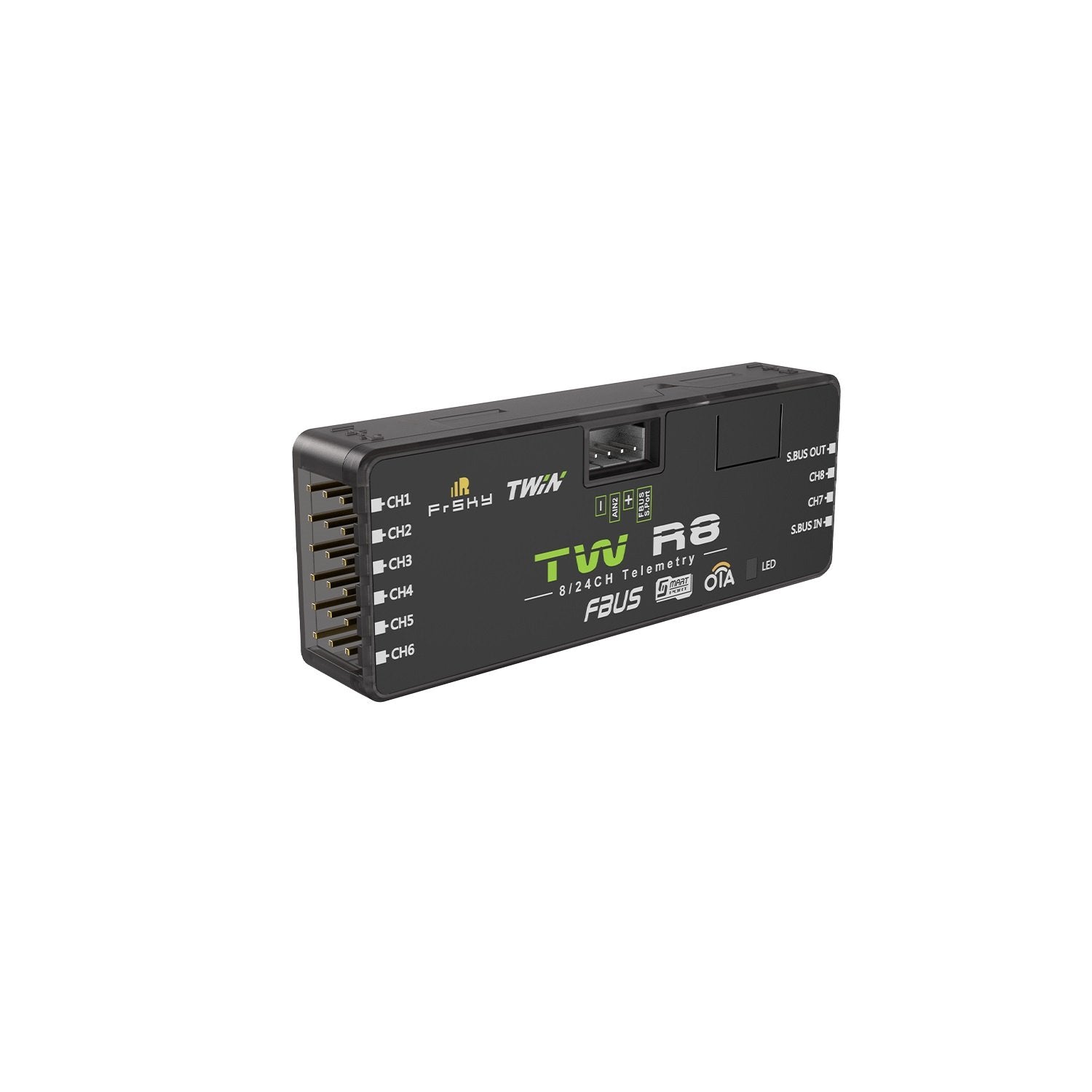

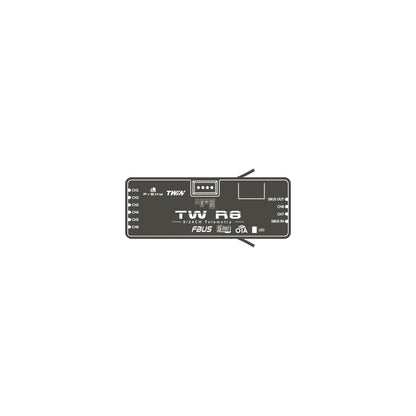

FrSky TWIN Series TW R8 Receiver - Double the Frequency, Double the Control
Overview
Introducing the FrSky TWIN Series TW R8 Receiver , a dual-frequency, next-gen receiver designed to redefine signal reliability. With the new TW protocol , both 2.4GHz bands are simultaneously active, unlike conventional systems where a backup frequency kicks in only when the primary fails. This active-active dual-band approach boosts signal stability, giving you enhanced control and peace of mind.
Equipped with dual 2.4G antennas and multiple ports (including SBUS In/Out and 8 PWM channels ), the TW R8 is built for versatility and signal redundancy. For telemetry junkies, the FBUS protocol integrates seamlessly with your gear, providing real-time data over a single wire. This not only simplifies the build but also cuts down on wiring chaos, making the TW R8 a dream for those who crave efficient setups.
Like its Archer series siblings, the TW R8 comes with Black-Box functionality, storing vital flight data like power and signal strength for future analysis. And with Over-The-Air (OTA) firmware updates, keeping your system up to date is effortless and cable-free.
Features
- Simultaneous dual-band 2.4GHz TW mode for increased signal stability
- Integrated Black-Box function to record key flight data
- Extended control range (varies based on RF power settings)
- OTA firmware updates for hassle-free system updates
- 8 high-precision PWM channel ports
- SBUS Out port supporting 16CH / 24CH modes
- SBUS In port for signal redundancy
- FBUS / S.Port for seamless telemetry integration
Specifications
- Frequency: Dual 2.4GHz

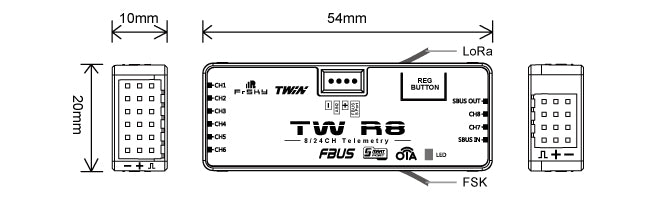

- Dimensions: 54 x 20 x 10mm
- Weight: 9.8g
- Operating Voltage: 3.5 - 12V (Ensure voltage exceeds 2.8V during use)
- Current Consumption: 80mA @ 5V
- Voltage Measurement (via AIN2): 0-36V
- Antenna Connector: IPEX4
- Compatibility: TWIN Series Radios & RF modules in TW mode
What's in the Box
- 1x FrSky TW R8 Receiver
- 2x Detachable 2.4G Antennas
- 1x User Manual
Note: Accessories may vary depending on supply.
