Frsky TW SR12

FrSky TW SR12 Receiver - Dual-Band Resilience with Advanced Stabilization and 12 Configurable Channels

Overview

The FrSky TW SR12 is the ultimate receiver for RC enthusiasts who prioritize resilience, long-range performance , and customizable stabilization . Part of the TWIN series , it leverages the TW active-active protocol , simultaneously running on dual 2.4GHz frequency bands . Unlike traditional active-standby redundancy systems, both bands are always operational, ensuring unmatched signal reliability and long-range control.

With 3×2.4G antennas for maximum signal stability and 12 configurable channel ports , the TW SR12 gives you the flexibility to assign ports to PWM, SBUS, FBUS, or S.Port , tailoring the setup to your needs. The FBUS protocol simplifies communication by combining signal control and telemetry into a single connection, cutting down on wiring and streamlining your build.

The ADV Stabilizer feature is a huge upgrade over standard gyroscope stabilization, offering advanced stabilization modes like Auto-Level , Hover , and Knife-Edge . The SR12 also boasts high-precision telemetry sensors for real-time altitude and vertical speed monitoring, further enhancing control and feedback for demanding pilots.

The SR12 is packed with features including Black-Box flight data recording , Over-The-Air (OTA) firmware updates , and a built-in power switch function accessible through optional external switches, all while ensuring safe, reliable power delivery via XT30 connectors .

Features

• Simultaneous dual 2.4GHz TW mode for superior signal reliability and long-range control
• ADV Stabilizer function with programmable stabilization channels and flight modes:
  • Enhanced classical stabilization with Stabilization , Auto-Level , Hover , and Knife-Edge modes
  • Advanced mode includes stabilization file sharing, programmable parameters, and developer access
• High-precision telemetry sensors for monitoring altitude and vertical speed
• Black-Box data recording for essential flight logging
• Over-The-Air (OTA) firmware updates for easy, wireless upgrades
• 12 configurable channel ports :
  • CP1: PWM / SBUS OUT / FBUS / S.Port / SBUS IN
  • CP2-12: PWM / SBUS OUT / FBUS / S.Port
• SBUS Out port supporting 16CH / 24CH modes
• SBUS In port for signal redundancy
• FBUS/S.Port for streamlined telemetry and control
• Built-in power switch function compatible with optional external switches
• Long control range , dependent on RF power settings

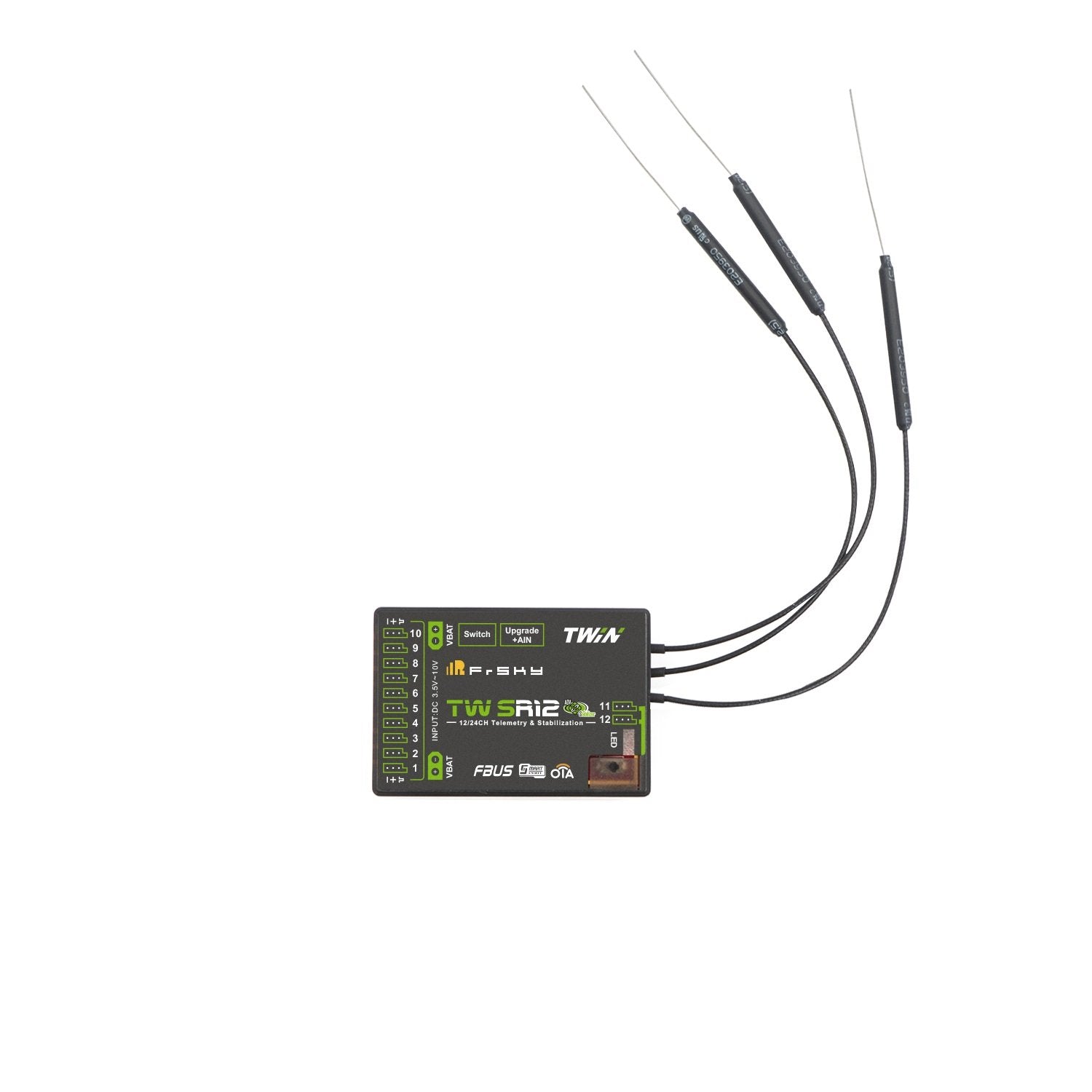

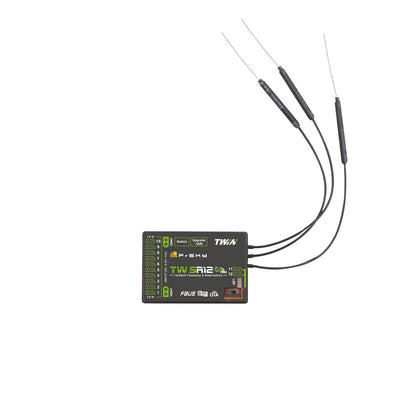

• 3×2.4G antennas for robust dual-band performance

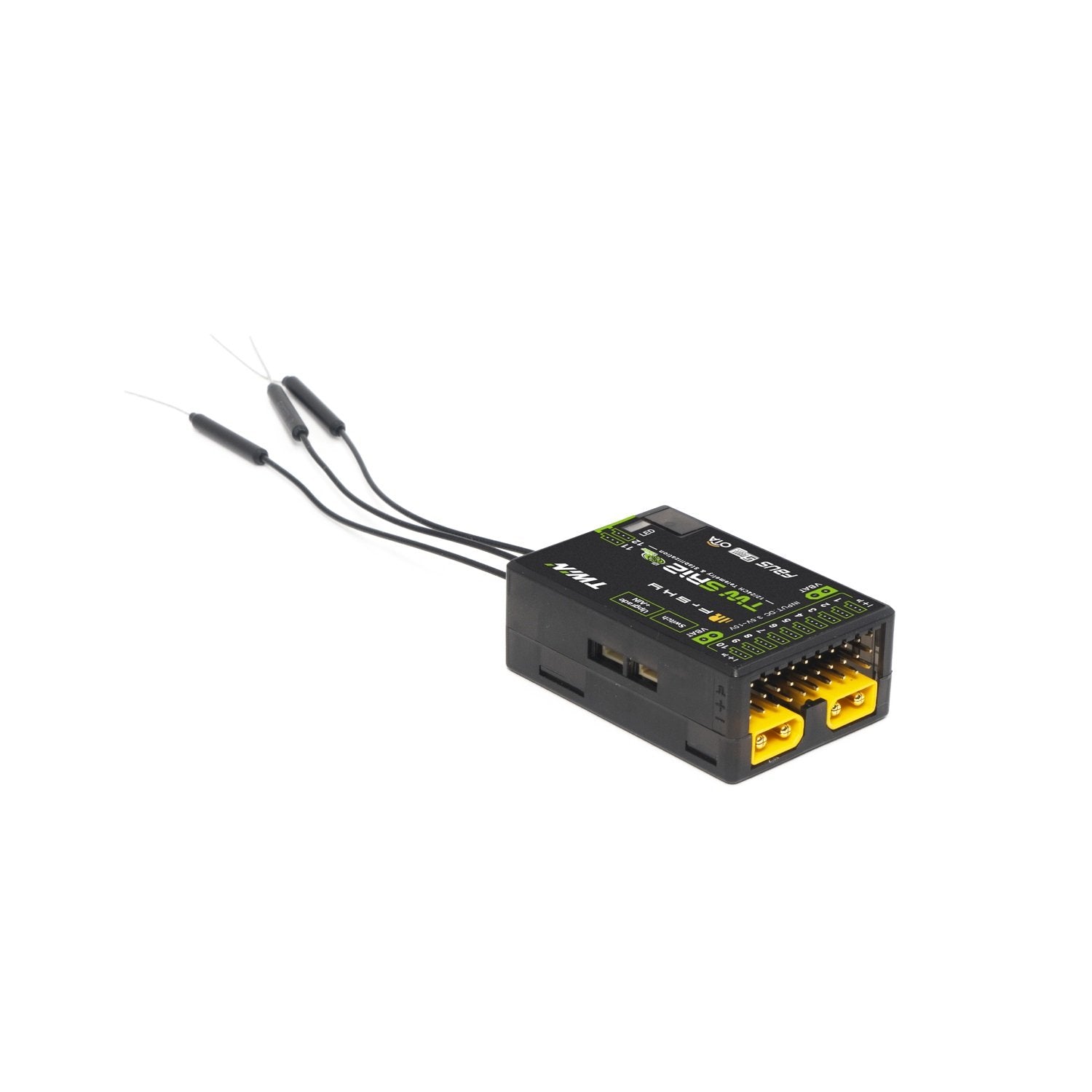

• XT30 power input connectors for safe and efficient power supply

Specifications

• Frequency: Dual 2.4GHz

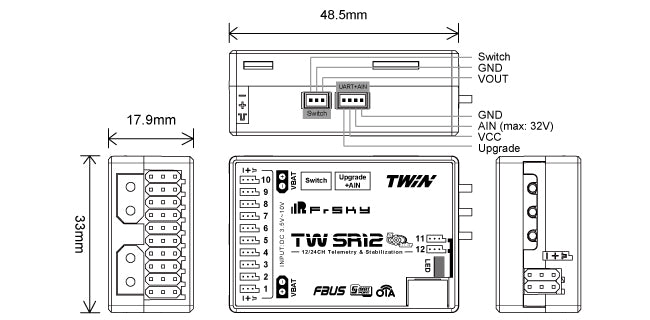

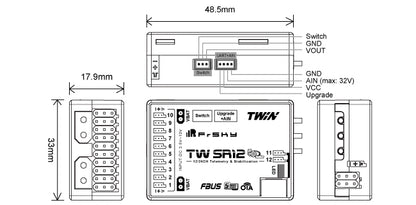

• Dimensions: 54 x 20 x 10mm
• Weight: 9.8g
• Operating Voltage: 3.5 - 12V (Ensure voltage exceeds 2.8V during use)
• Current Consumption: 80mA @ 5V
• Voltage Measurement (via AIN2): 0-36V
• Antenna Connector: IPEX4
• Compatibility: TWIN series radios & TW protocol-capable RF modules

What's in the Box

• 1x FrSky TW SR12 Receiver
• 3x Detachable 2.4G Antennas
• 1x User Manual

Note: Accessories may vary depending on supply.
