Product Details

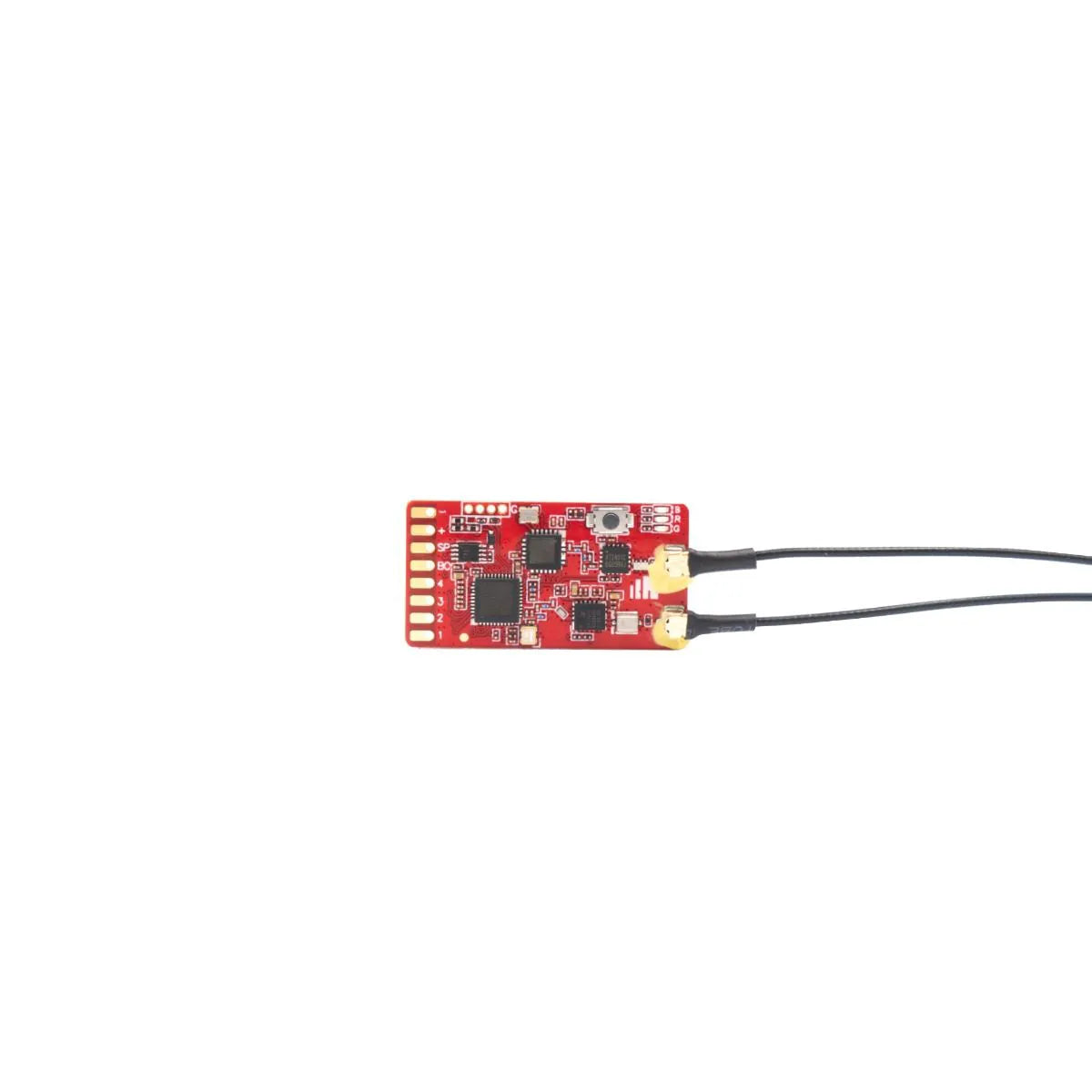

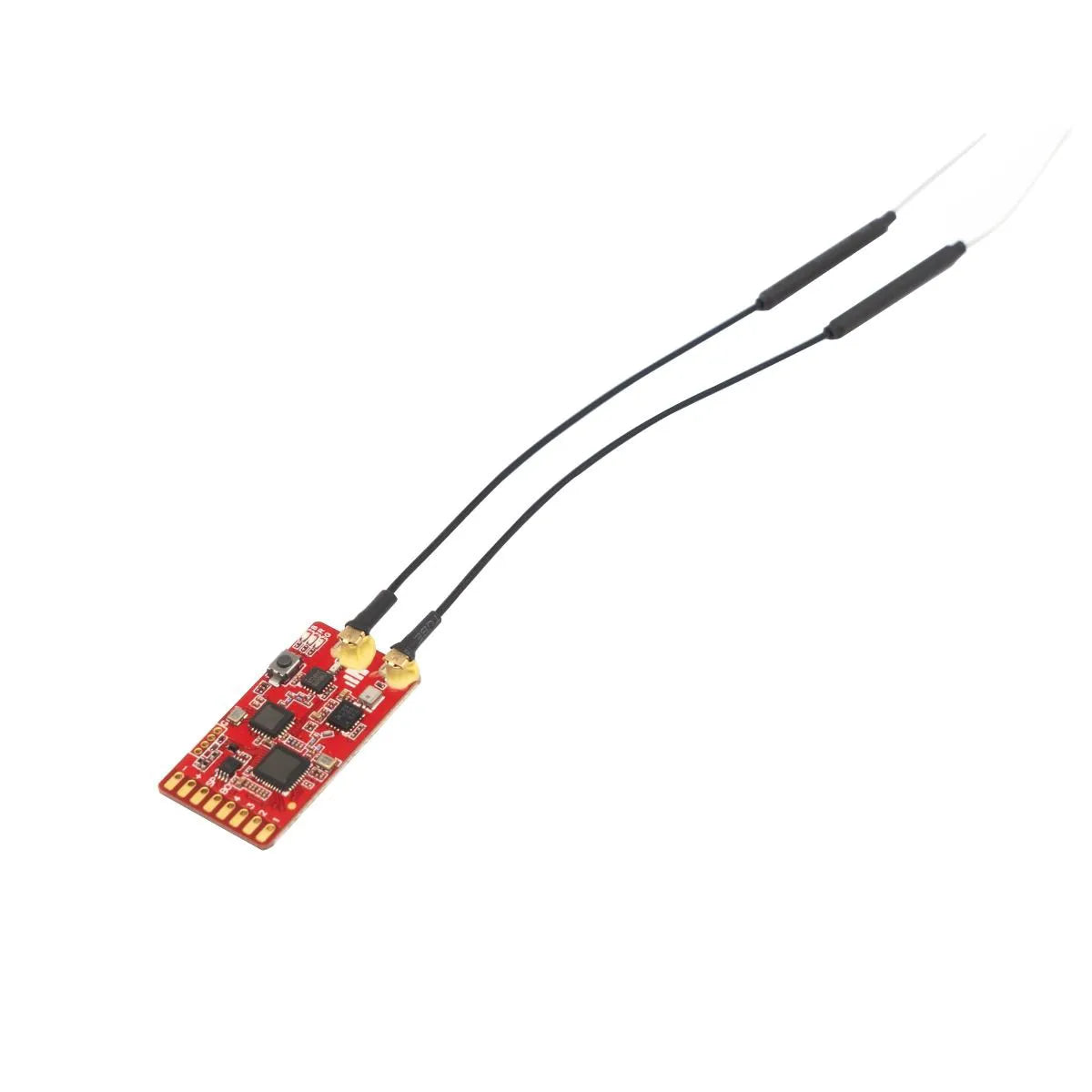

Say goodbye to weak signals and hello to the TWMX receiver! This mini powerhouse features a revolutionary TW active-active protocol, ensuring a stable signal and long range communication up to tens of kilometers. And we haven't even mentioned the best part yet- its compact size and light weight make it perfect for those with limited installation space.
But don't let its small size fool you, the TWMX packs a punch with its 2x 2.4G antennas and versatile output options, including one SBUS and 4 PWM channels. Plus, the FBUS and S.Port telemetry compatibility make it a breeze to connect to your other devices.
Ready to hit the racetrack? The TWMX also supports 4ms race mode with ultra-low latency, so you can have a fast and reliable signal without any signal loss fears. Upgrade your receiver game with the TWMX.
Highlights
- TW Active-Active Protocol: This receiver benefits from simultaneously integrating dual active 2.4G frequency bands, which provides a stable and resilient radio communication solution for RC users.
- Compact Design: The TWMX receiver is light weight and has a smaller size, making it very suitable for users with limited installation space and weight constraints.
- Versatile Connectivity: With a signal output that includes one SBUS output channel and 4 PWM output channel ports, the TWMX receiver also supports telemetry functions through FBUS / S.Port and can be connected to any device that supports FBUS protocol through only one line, simplifying the model build and reducing the number of wires needed.
Features
- Simultaneous working dual 2.4G TW mode
- Black Box function
- 4ms race mode with telemetry
- Long control range (Range varies based on the RF Power settings.)
- Over-The-Air (OTA) FW update
- 4 PWM channel ports
- SBUS Out (Supports 16CH / 24CH mode)
- FBUS / S.Port
Specifications
- Frequency: Dual 2.4GHz

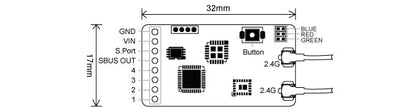

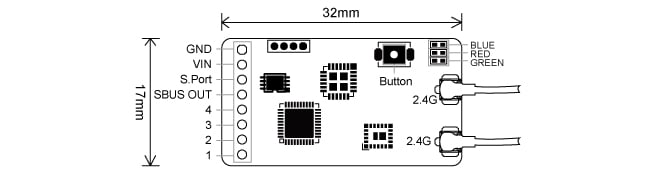

- Dimension: 32*17*4mm (L*W*H)
- Weight: 3.8g
- Operating Voltage: 3.5-10V (Please ensure the supplied voltage exceeds 2.8V during the use.)
- Operating Current: ≤90mA@5V
- Antenna connector: IPEX1
- Compatibility: TWIN series Radio & RF module in TW mode.
Resources
Included
- 1pc FrSky TW MX 2.4Ghz Receiver
