Product Details

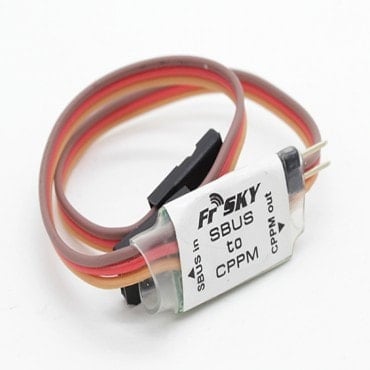

This is the SBUS to CPPM converter/decoder from FrSky. As you would expect, it converts SBUS output from your receiver into CPPM signal. This is quite useful for the case where your device (such as flight controllers like APM) is only compatible with PPM signals. This decoder also comes with a helpful manual inside the package and you can also access the manual in the 'Resources' section below.
Specifications:
- Weight: 14.9 grams
- Total length: 360mm
- Operating Temperature Range: -10-80℃
- Operating Voltage Range: 4-10V
- Max Current: 700mA
- Precision: 0.615
- Signal: 21ms and 28ms
Resources
- The FrSky SBUS to CPPM Converter Manual
