Product Details
FrSky R9 and R9M radio control system is the first FrSky long range system which works in the frequency of 900MHz. The R9M module offers 4 switchable RF power outputs so you can choose the appropriate power for different flight situations. Compared to another FrSky 2.4GHz long range receiver like the L9R, the R9 receiver has a longer operating range up to 10KM and above. Moreover, the R9 is also a redundancy receiver which can connect to another receiver to ensure the security of your aircraft.

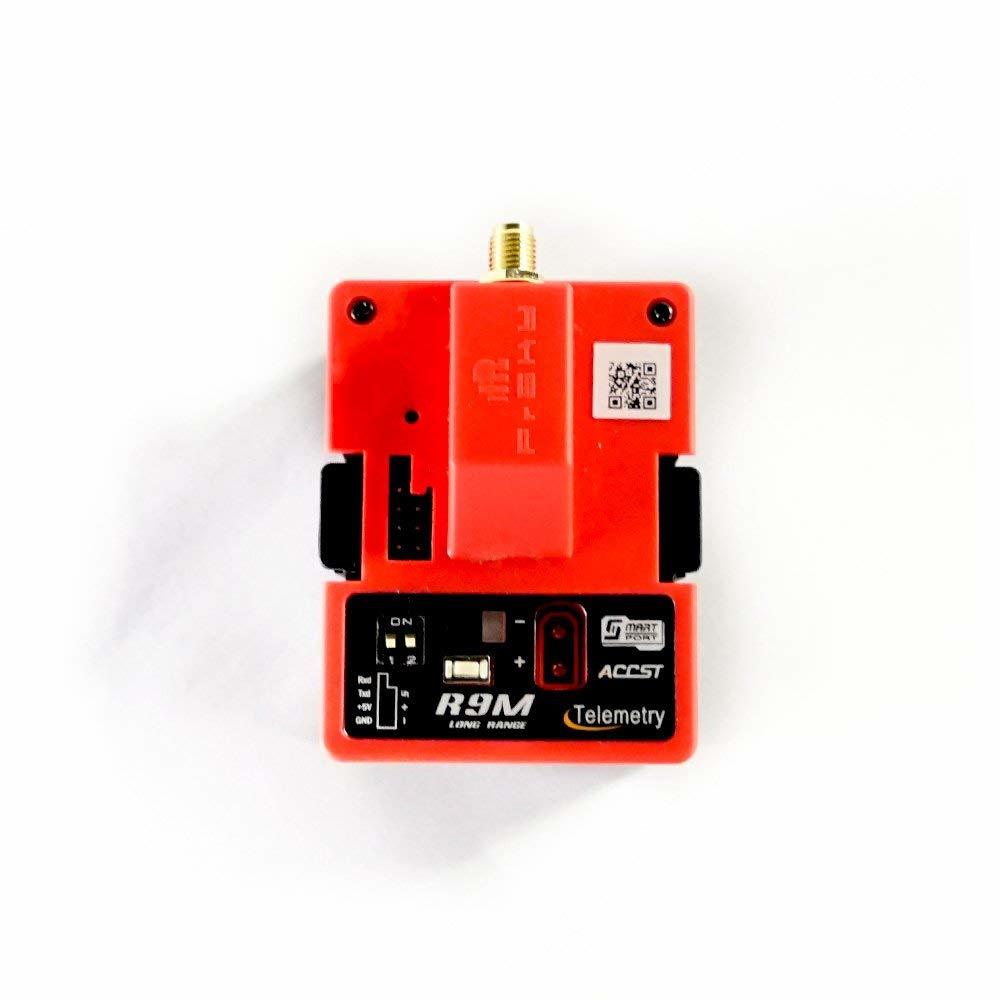

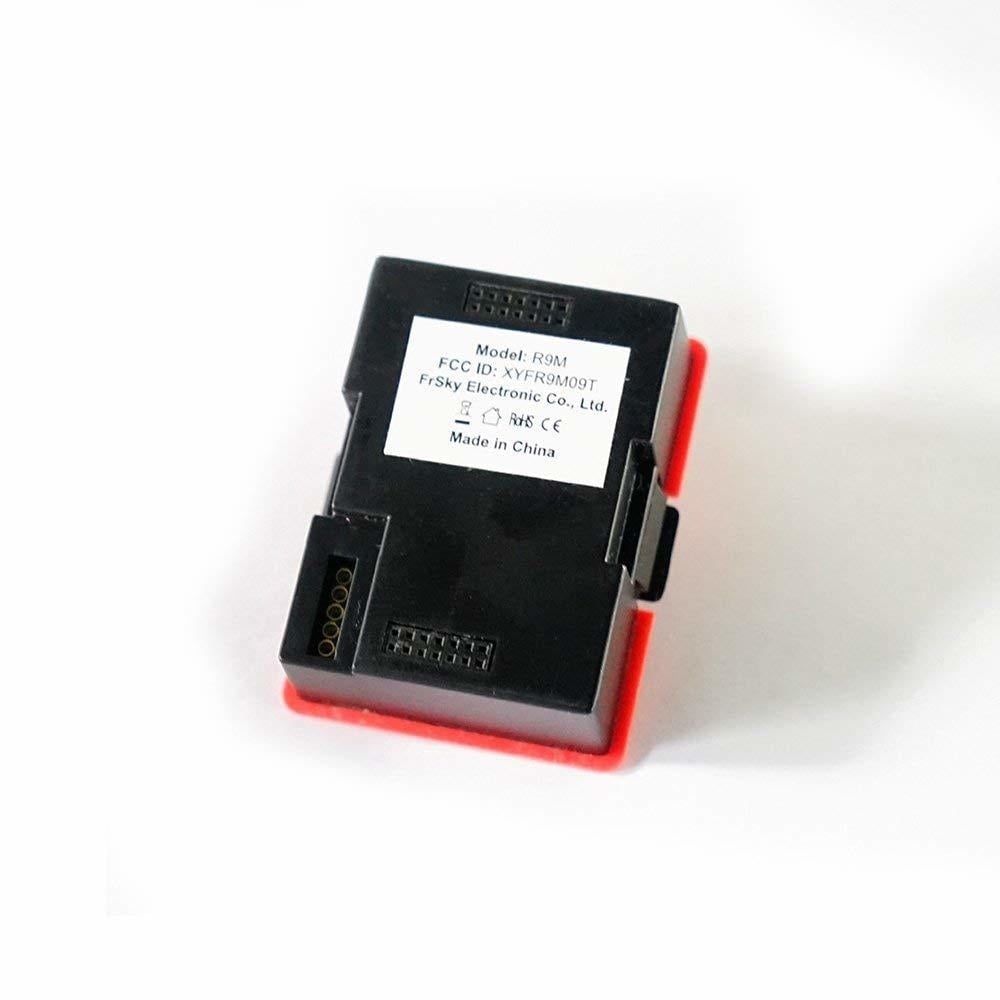

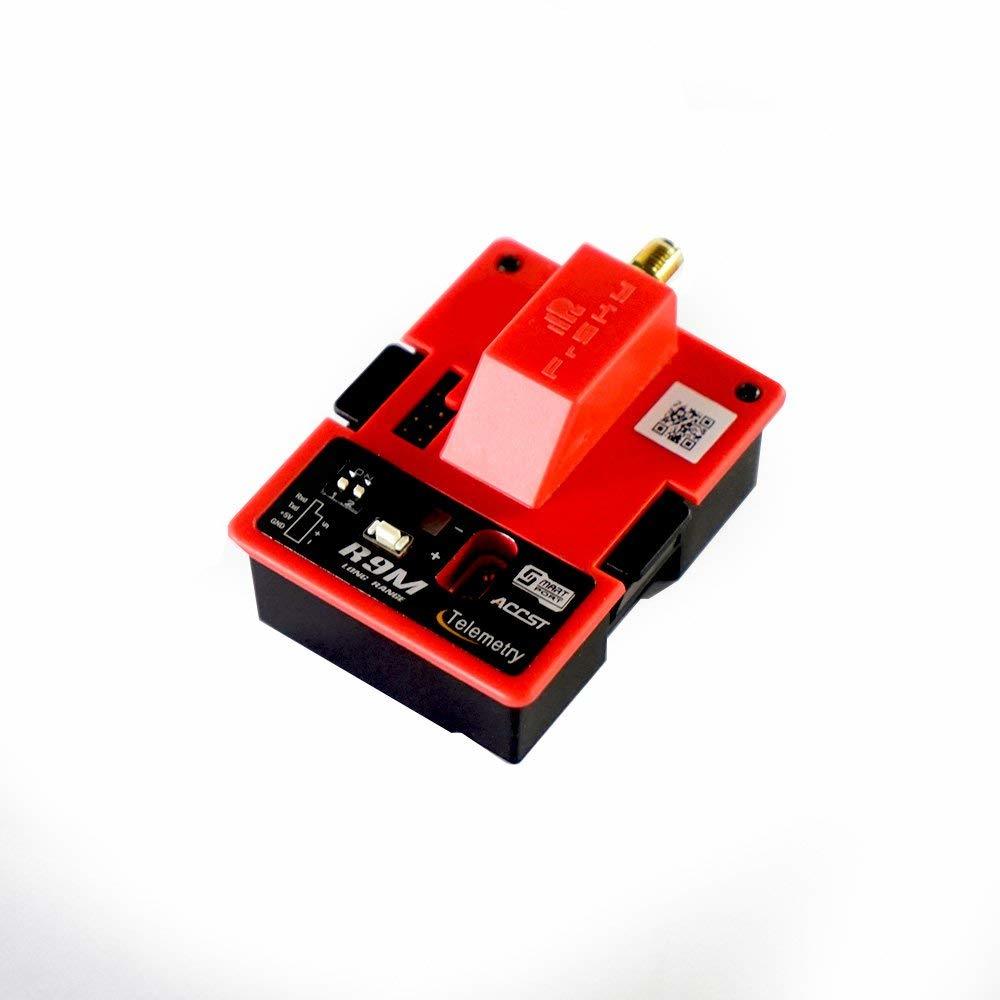

R9M Long Range TX Module Features
- 900MHz/868MHz working mode
- Long range, low latency and high precision RC system
- Optional RF power (Non-EU Version)
- Telemetry（25mW） and non-telemetry （200mW / 500mW） modes selectable （EU Version）
- RF Power (Flex): 10mW/ 100mW/ 500mW/ 1W (telemetry supported for all levels)
- Smart Port enabled and support telemetry data transmission
R9M Long Range TX Module Specification

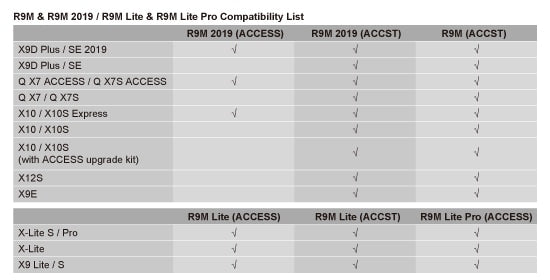

- Compatibility : R9 series
- Vin Voltage Range:4V-12.6V
-
External Power Supply: 4V~12V (2s Li-Battery is recommended )
(*3s Li-Battery is not recommended as external power supply, or it will damage) - Telemetry Interface: Smart Port
- Upgrade Interface: Smart Port
- Modulations: PXX or CPPM (auto-detected

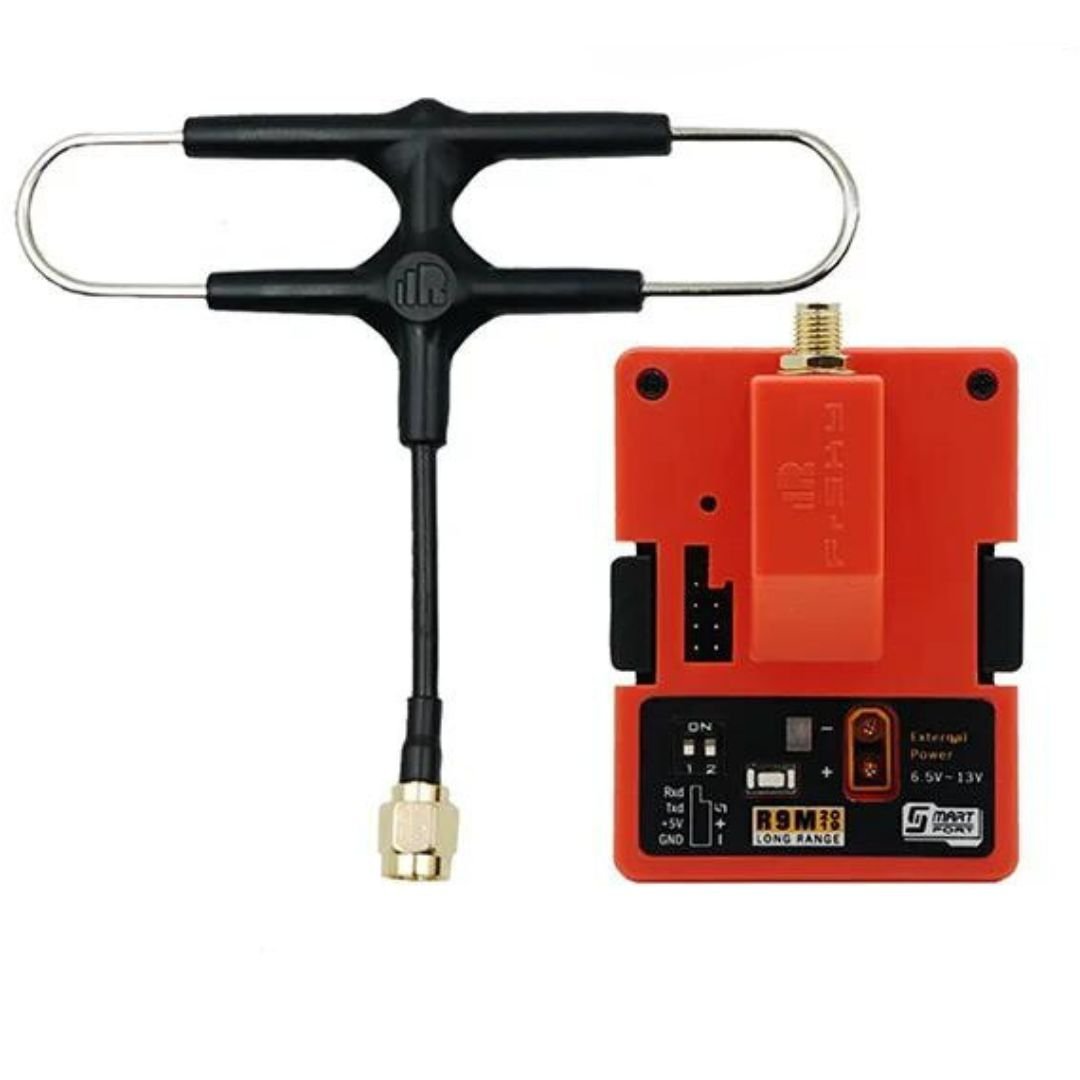

Combo Contents
- 1x R9M module

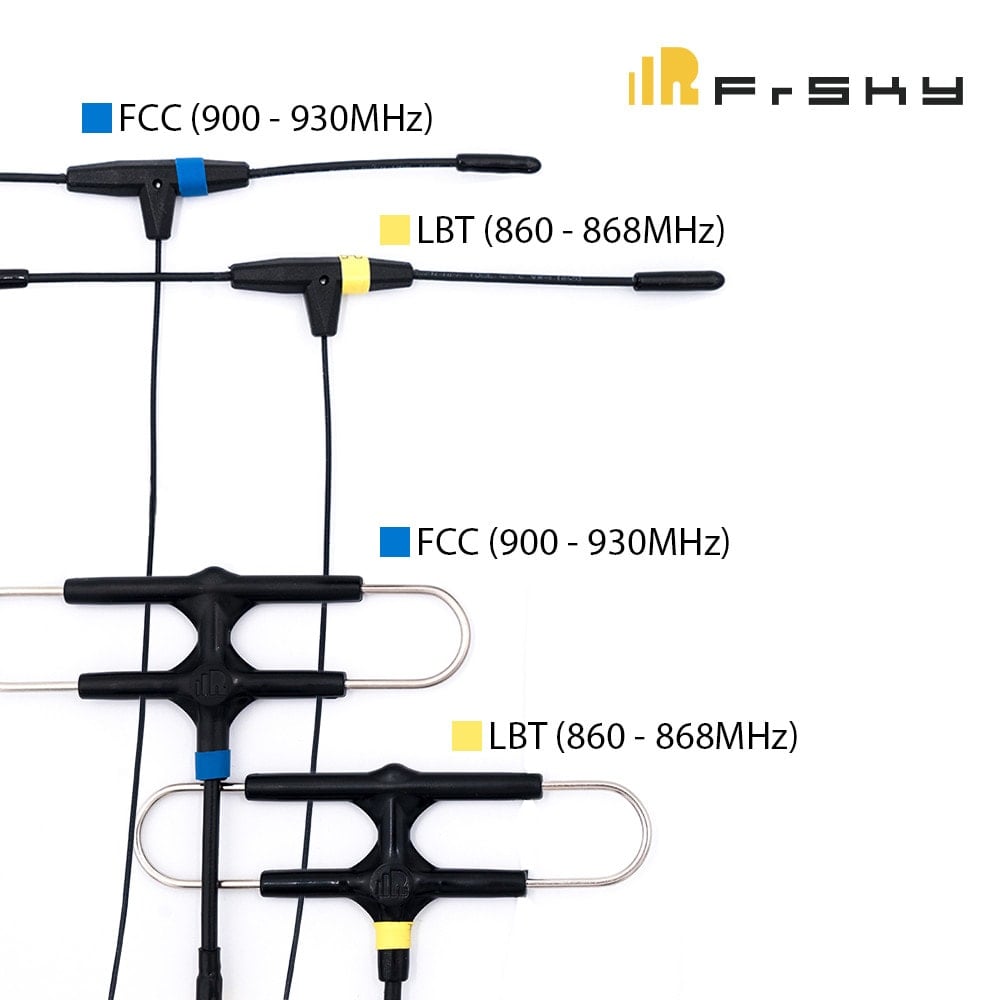

- 1x Super 8 Antenna
