Product Details

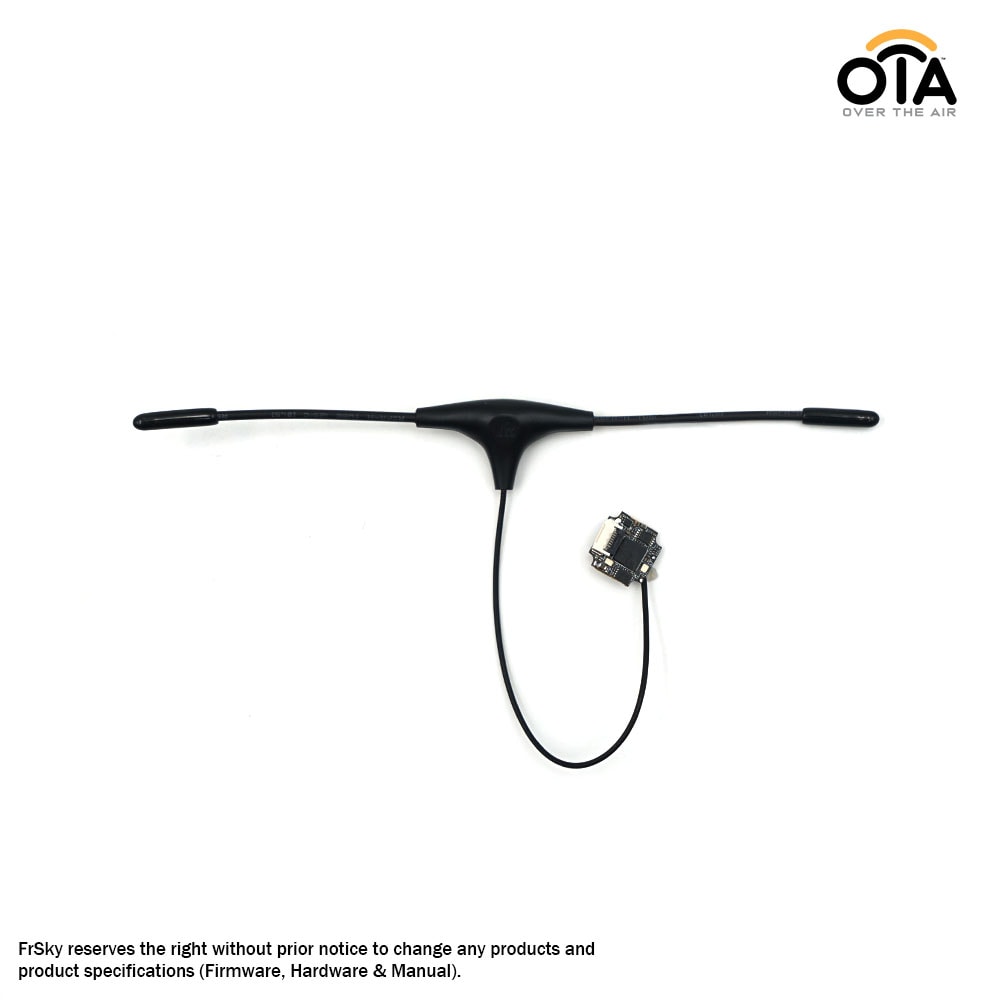

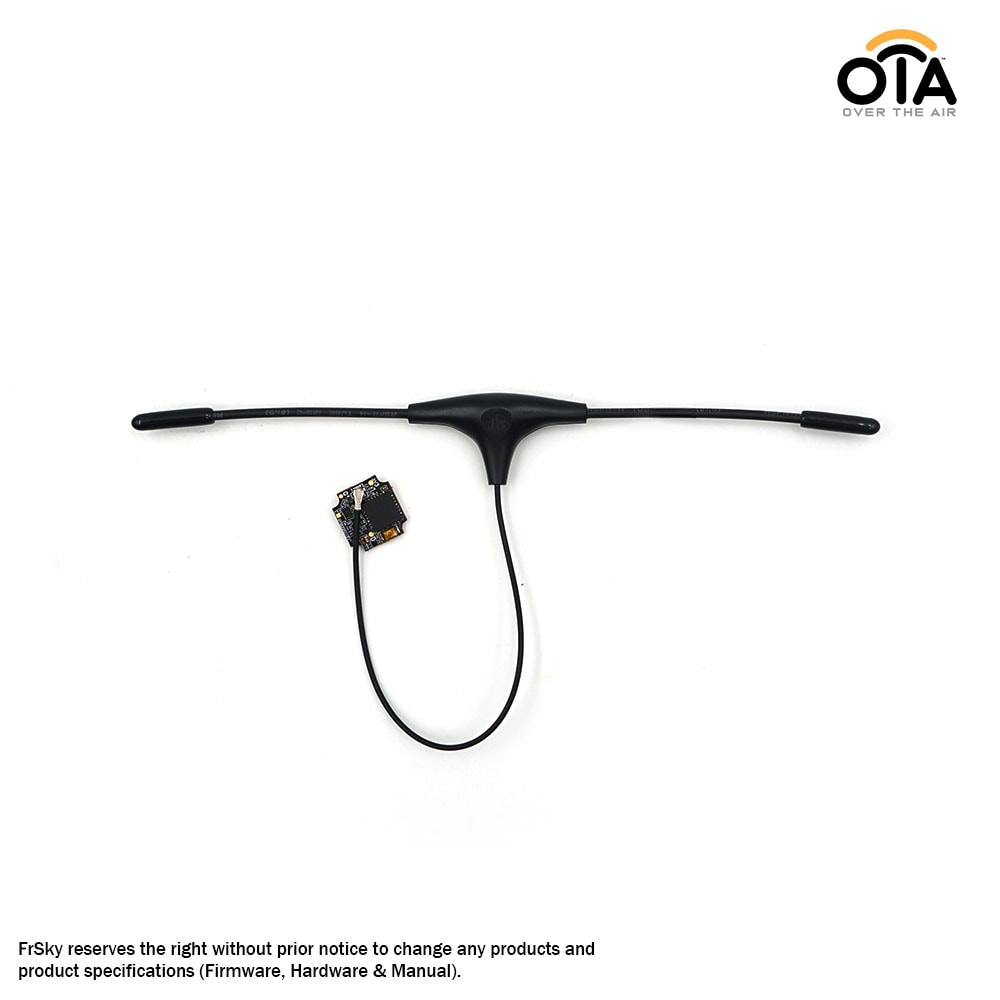

FrSky R9 MM-FC-OTA is the ultra mini 868MHz receiver which can be easily connected with our dedicated FrSky or Airbot flight controller boards using a flexible flat cable for a tiny FC/RX package. The R9 MM-FC-OTA supports wireless over the air firmware updates, and features an inverted S.Port output that makes it compatible with more devices. In addition, it can also be used as a standalone receiver.
Key Features
- 868MHz(EU Version)
- Mini size and super lightweight
- Supports OTA firmware update
- Supports firmware version check
- F.Port enabled and supported telemetry data transmission
- Battery voltage detection supported
- Low latency and high precision
Specifications
- Dimension: 12.4*12.8*3mm (L×W×H)
- Weight: 0.6g (without antenna)
-
Number of channels:
Non-LBT Version: 16CH (Telemetry)
LBT Version: 16CH (Telemetry) / 16CH (No Telemetry) - Operating Voltage Range: DC 4V~6V
- Operating Current: 100mA@5V
- Operating Range: Up to 10km or above
-
Compatibility: R9M Lite/R9M/R9M 2019 with ACCST firmware
R9M Lite/R9M Lite Pro/R9M 2019 with ACCESS firmware
