Product Details
FrSky ARCHER PLUS R8 Receiver - Full-Range Precision with Enhanced RF Stability
Overview
Meet the FrSky ARCHER PLUS R8, the latest in the evolved Archer Plus Series, designed to push RF performance to the next level. The R8 is engineered with enhanced anti-RF-interference capabilities, ensuring smoother signal transmission—even through the spark of an ignition system. With both ACCESS and ACCST D16 modes, the R8 smartly selects the appropriate RF protocol during the binding process, making it easy to get connected and stay connected.
One of the standout features is its Black-Box functionality, allowing you to record essential flight data (think power and signal info) for later analysis. The receiver's dual detachable antennas offer full-range performance, guaranteeing optimal signal reception and range in all conditions. The R8 also serves as a perfect primary receiver in redundant setups, thanks to its SBUS In port .
For those into telemetry, the R8 opens up even more possibilities with the FBUS protocol , allowing seamless integration with devices like XACT servos and ADV Sensors , simplifying your builds and offering flexible telemetry options. And with Over-The-Air (OTA) firmware updates, you can keep your gear up to date without the hassle of cables.
Features
- Enhanced anti-RF interference capability for stronger, more stable performance
- Smart-matching for ACCESS & ACCST D16 modes during binding
- Built-in Black-Box function to log essential flight data
- 8 high-precision PWM channel ports
- SBUS Out port supporting 16CH/24CH modes
- SBUS In port for signal redundancy
- Telemetry-ready (via S.Port or FBUS protocol)
- Over-The-Air (OTA) firmware updates
- External voltage detection for monitoring battery/device power levels
Specifications

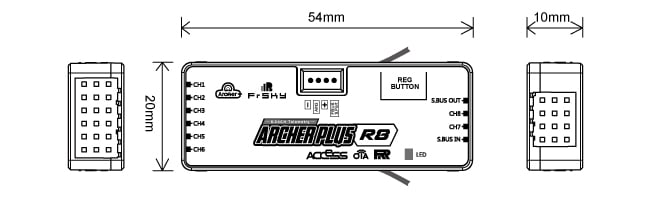

- Dimensions: 54 x 20 x 10mm
- Weight: 9.8g
-
Number of Channels:
- 8 High-Precision PWM + 16 SBUS Channels Mode
- 8 High-Precision PWM + 24 SBUS Channels Mode
- Operating Voltage Range: 3.5 - 10V
- Current Consumption: <65mA @ 5V
- Operating Range: >2km (full range, may vary based on local conditions)
- Voltage Measurement (via AIN2): 0-35V
- Antenna Connector: IPEX4
- Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters
What's in the Box
- 1x FrSky Archer Plus R8 Receiver
- 2x Detachable Antennas
- 1x Instruction Manual
Note: Accessories may vary depending on supply.
