Product Details

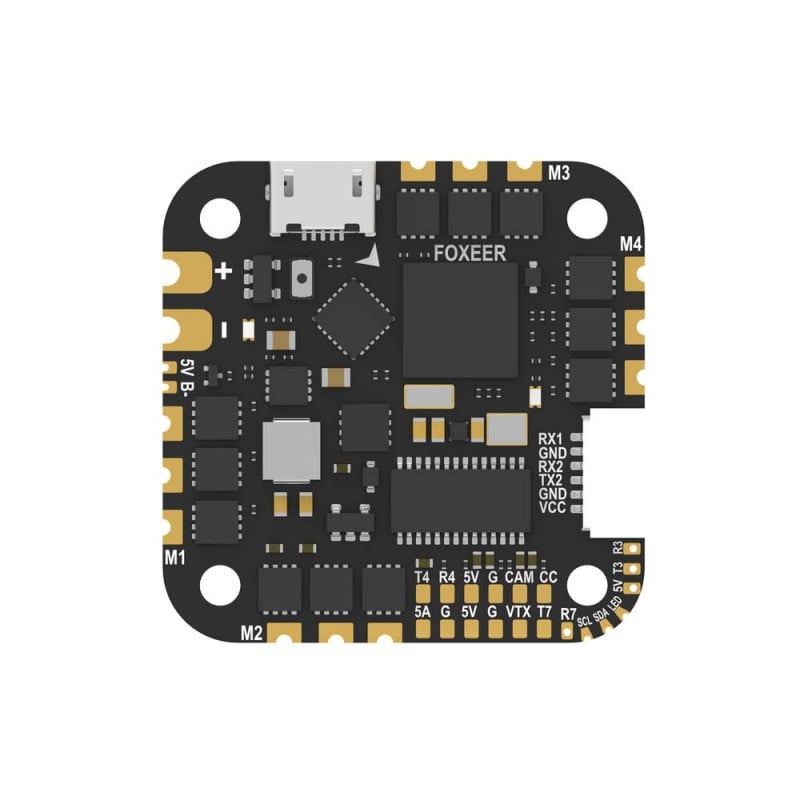

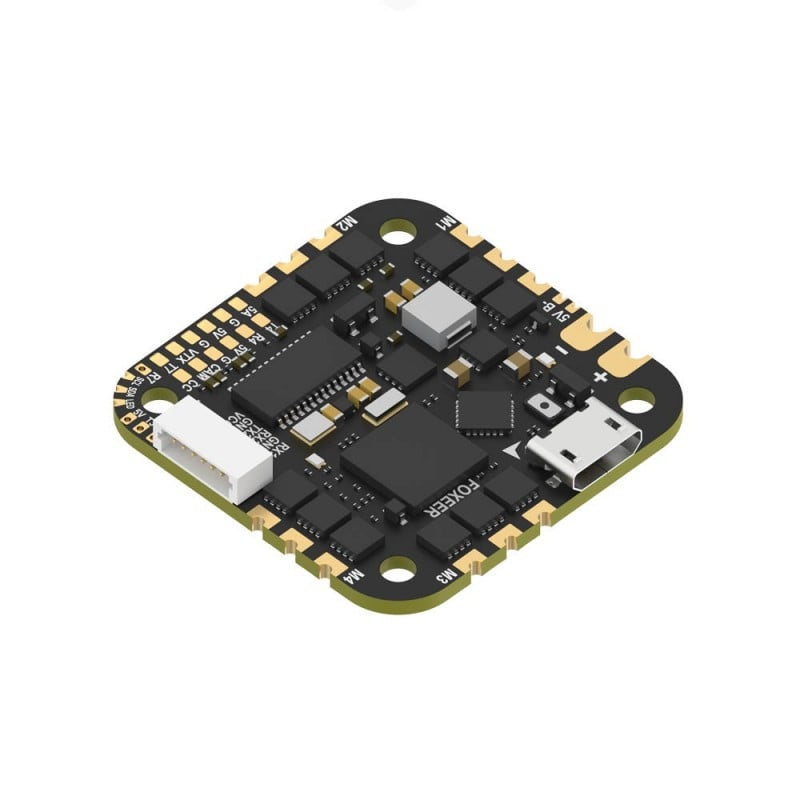

The Foxeer Reaper AIO V4 F745 is a power-packed flight controller and ESC combo, designed to streamline your FPV builds without compromising on performance. With its compact 32.5mm x 32.5mm footprint and lightweight 8.6g design, this all-in-one board is perfect for tight builds that demand high reliability and efficiency. The Reaper AIO V4 is equipped with the powerful STM32F745 CPU , a robust MPU6000 gyro , and supports 2-4S LiPo batteries, making it an ideal choice for racers and freestyle pilots alike.
Thanks to its Bluejay BLS firmware and continuous 35A current rating (bursting up to 45A), the integrated ESC ensures silky-smooth motor control. With Blackbox logging (16MB Flash), 5 UARTs , and a plug-and-play DJI FPV support via an 8-pin connector, tuning and compatibility have never been easier. Whether you're a telemetry minimalist or a data junkie, this board has the versatility you need.
Key Features:
- CPU : STM32F745 with BF OSD and 16MB Blackbox storage for smooth control and flight data recording.
- ESC Firmware : Bluejay BLS 16.7 supporting DShot300/600 for seamless motor input.
- Power Options : Runs on 2-4S LiPo with a BEC output of 5V/2A.
- Durability : Operates in a wide temperature range of -20°C to +55°C and up to 95% humidity.
- Compact & Lightweight : 32.5mm x 32.5mm size, 8.6g weight.
Specifications:
- Input Voltage : 2-4S LiPo (8.4-16.8V)
- ESC Continuous/Burst Current : 35A x 4 / 45A x 4
- Mounting Holes : 25.5mm x 25.5mm, 3mm or M2 screws
- Supported Protocols : BLHeli-S ESC programming, Stick programming
- Dimensions : 32.5mm x 32.5mm
- Weight : 8.6g
In the Box:
- 1 x Foxeer Reaper AIO V4
- Rubber columns
- XT30 cable
- DJI cable
- Capacitor
Disclaimer: Included accessories may vary based on supply availability.
Included
- 1x Foxeer Reaper AIO V4 Flight Controller
- 1x Accessories Kit
