Product Details
Introducing Foxeer's latest marvel, the Pagoda Pro Antenna! It's here to outshine its predecessors in the Foxeer Antenna series with a fresh makeover and souped-up performance.
But wait, there's more! Don't forget to explore our treasure trove of VTX Antennas and other fantastic Foxeer products , handpicked just for you!
🌟 Key Product Highlights 🌟
- Made and tested to perfection: You can trust the craftsmanship and quality that goes into each Pagoda Pro Antenna, ensuring top-of-the-line range and signal quality.
- Petite but mighty: The Pagoda Pro Antenna's compact size and lightweight design pack a punch without weighing you down.
- Built to survive the apocalypse (almost): Featuring a double-jacket semi-rigid cable and 360° root reinforcement, this antenna can take a beating and keep on transmitting!
📑 Specifications 📑
| Center Frequency | 5.8GHz |
| Gain | 3dBi |
| Axial Ratio | Close to 1 |
| Band Width | 5.5G~6GHz |
| Radiation Efficiency | 98% |
| SWR | <1.22 at Center Frequency |
| Connector | SMA |
| Dimension | 17*23mm |

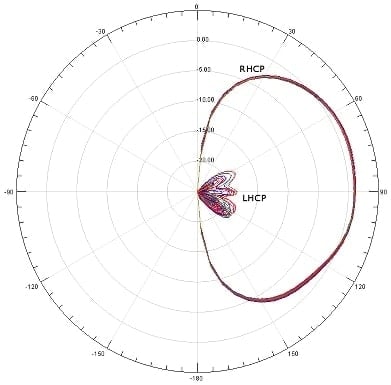

| Polarization | RHCP |
| Case Material | PC+ABS |
| Weight | Long SMA/RPSMA: 11.5g |
| Short SMA/RPSMA: 11g | |
| 15cm SMA: 14.4g | |
| MMCX: 7.5g | |
| UFL: 6g | |
| Quantity | 1pc Antenna |
| Length | Long SMA/RPSMA: 86mm |
| Short SMA/RPSMA: 68mm | |
| MMCX:91mm | |
| UFL: 86mm |
📦 What's Inside the Box? 📦
1x Foxeer Pagoda Pro 5.8GHz Long SMA Antenna - RHCP
Get ready to elevate your FPV, maker, and IoT game with the Pagoda Pro Antenna! It's witty, funny, and downright amazing—just like you. So, what are you waiting for? Add this bad boy to your cart and prepare for liftoff! 🚀
