Product Details

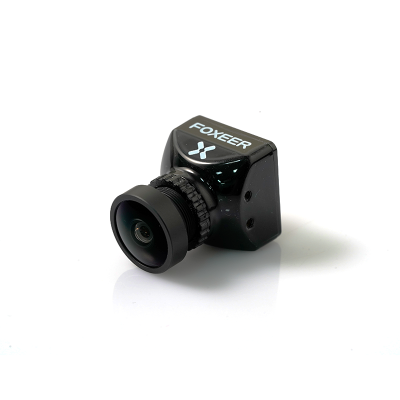

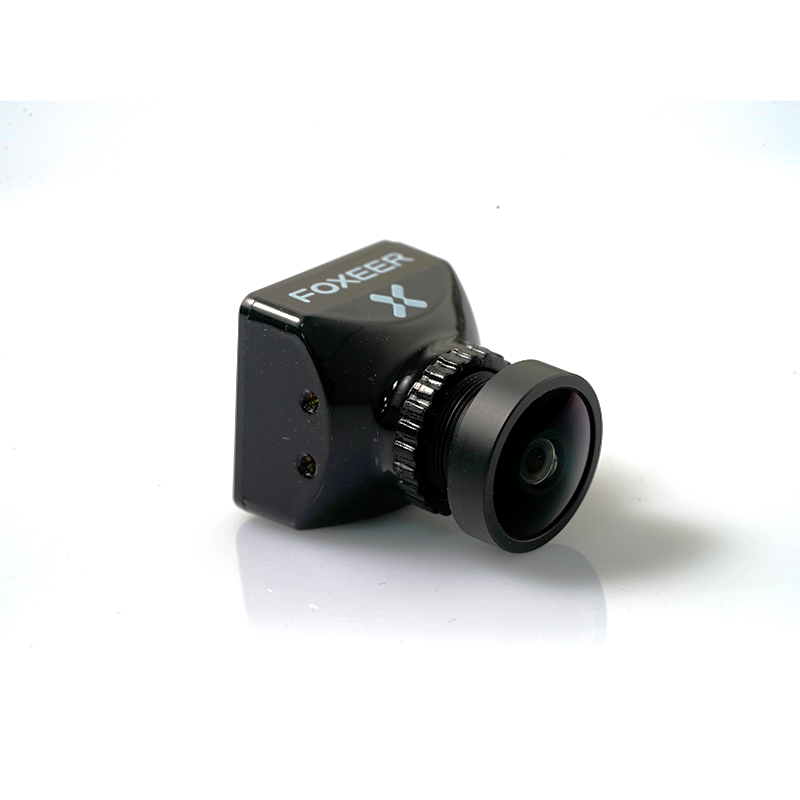

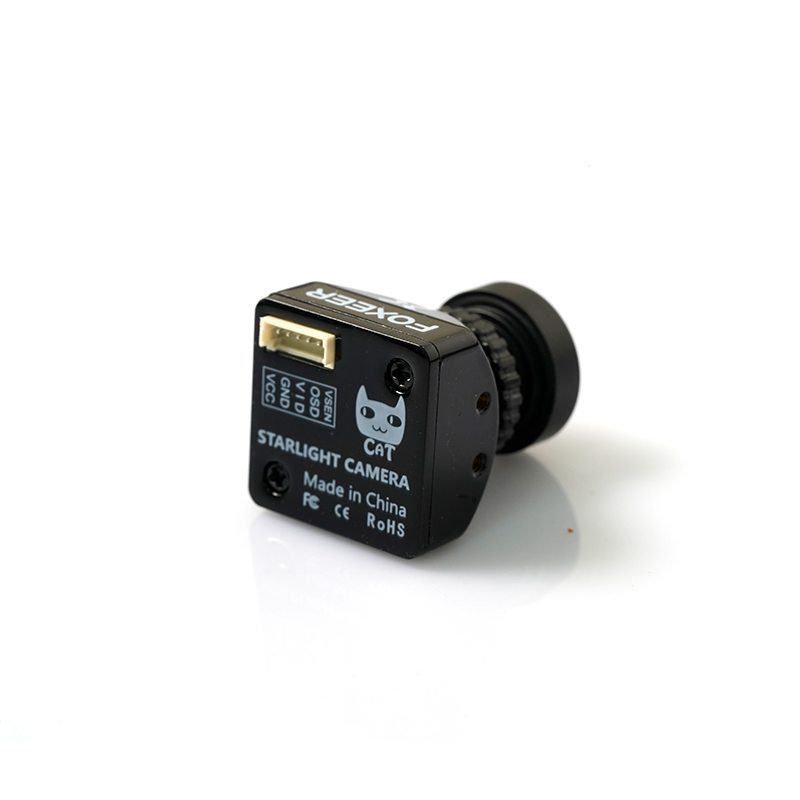

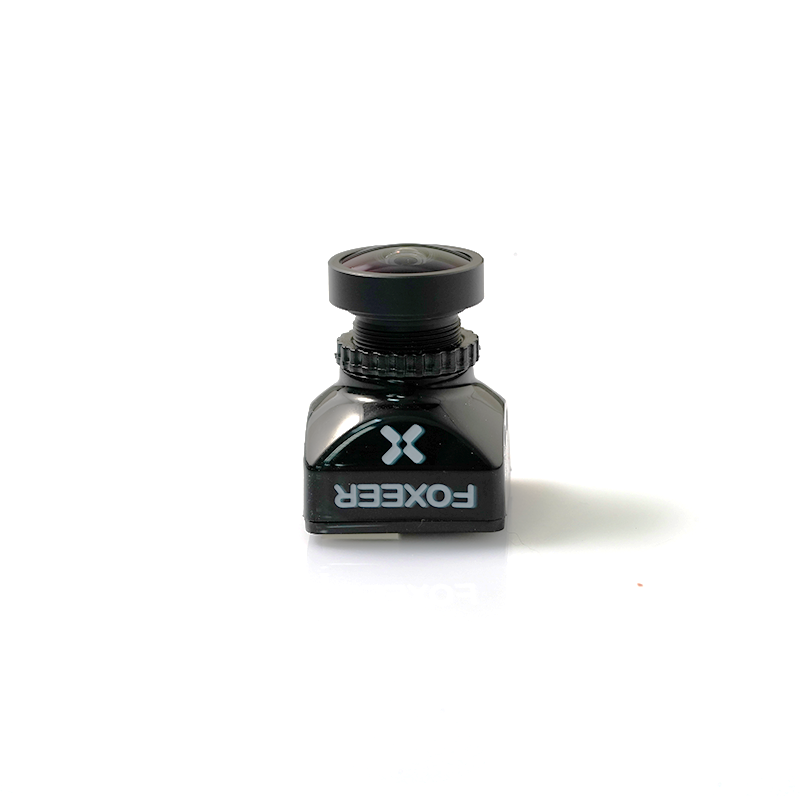

Foxeer Mini Cat 4 1200TVL StarLight FPV Camera
The Foxeer Mini Cat 4 is the FPV camera that laughs at bad lighting. With 1200TVL resolution, StarLight tech, and wide dynamic range, this compact unit keeps your video sharp whether you’re flying at golden hour or in “hope the sun comes back” mode. Basically, it’s night vision without the sketchy military surplus goggles.
Why You Want It
Because missing gates isn’t always your fault—sometimes it’s your camera. The Mini Cat 4 gives you crystal-clear vision in everything from blinding light to twilight dives. Low latency keeps your reactions razor sharp, and the mini form factor slides into racing builds without adding bulk. Durable too, so when you smack concrete, your camera will likely survive (can’t say the same for your ego). (Wallet-wink: yes, we’ll happily sell you another if you manage to break it.)
Specifications
| Sensor Type | Sony 1/3" CMOS Sensor |
| Scale | 4:3(Default)/16:9 Switchable |
| Tv System | PAL(Default)/NTSC Switchable |
| Resolution | 1200TVL |
| Lens | M12 2.1mm Low Light Lens |
| FOV | 4:3 FOV-H: 95° , FOV-V: 72°, FOV-D:120° |
| 16:9 FOV-H: 95°, FOV-V: 53°, FOV-D:110° | |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.00001Lux |
| White Balance | Auto |
| DNR | 3DNR |
| WDR | 100dB |
| DAY/NIGHT | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Input Voltage | 5V~20V |
| Language | ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA |
| Working Temperature | -10°~50°C RH90% MAX |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Consumption | 95mA±15% @ DC12V |
| Dimension | 22*22mm |
| Weight | 11.8g(Exclude cable) |
camer
What’s in the Box*
- 1× Foxeer Mini Cat 4 Camera
- 1× Mounting hardware set
- 1× Cable harness
Disclaimer
Box contents may vary, but the camera—the bit you actually wanted—will always be inside.
Still Here?
If you’re still reading, either you fly at night or you just love drooling over specs. The Foxeer Mini Cat 4 1200TVL StarLight FPV Camera gives you unmatched clarity, low-light magic, and race-ready latency. Add it to your cart before your mates leave you flying blind at the next session.
