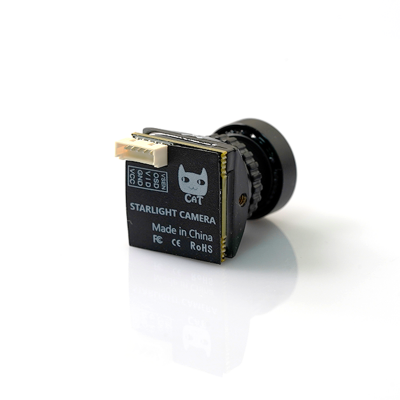

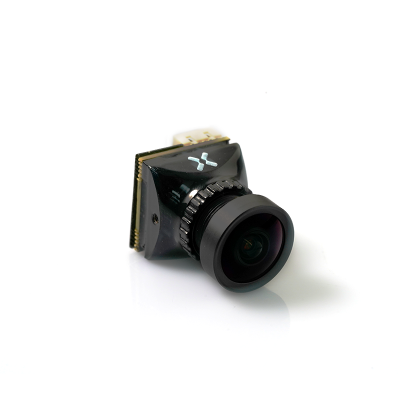

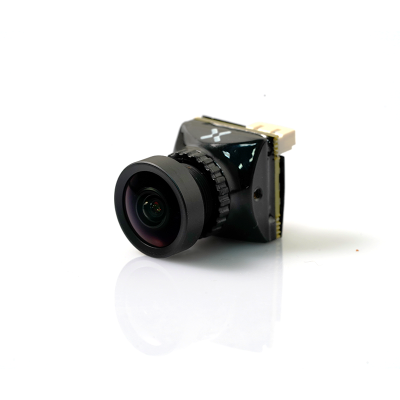

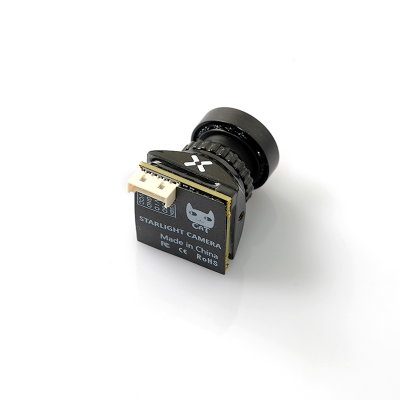

Foxeer Micro Cat 4 1200TVL StarLight FPV Camera - Ultra Compact Design
The Foxeer Micro Cat 4 is proof that size doesn’t matter—at least when it comes to FPV cameras. Packing 1200TVL resolution and StarLight low-light performance into a frame small enough for micro and nano builds, this featherweight champ delivers pro-level imaging where every gram counts. Tiny camera, big flex.
Why You Want It
Because flying blind indoors or at dusk isn’t fun unless you’re into drywall repair. The Micro Cat 4 gives you crystal-clear footage and night-friendly visibility, all in a package so light it barely registers on your scale. Built tough enough to handle micro-sized crashes (yes, they still sting), this camera proves you don’t need a full-size rig to see like a pro. (Snake-oil callout: no, it won’t make you fly better—just less blind.)
Specifications
| Sensor Type | Sony 1/3" CMOS Sensor |
| Scale | 4:3(Default)/16:9 Switchable |
| Tv System | PAL(Default)/NTSC Switchable |
| Resolution | 1200TVL |
| Lens | M12 2.1mm Low Light Lens |
| FOV | 4:3 FOV-H: 95° , FOV-V: 72°, FOV-D:120° |
| 16:9 FOV-H: 95°, FOV-V: 53°, FOV-D:110° | |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.00001Lux |
| White Balance | Auto |
| DNR | 3DNR |
| WDR | 100dB |
| DAY/NIGHT | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Input Voltage | 5V~20V |
| Language | ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA |
| Working Temperature | -10°~50°C RH90% MAX |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Consumption | 95mA±15% @ DC12V |
| Dimension | 19*19mm |
| Weight | 11.8g(Exclude cable) |
What’s in the Box*
- 1× Foxeer Micro Cat 4 Camera
- 1× Mounting hardware set
- 1× Cable harness
Disclaimer
Box extras may vary, but the Micro Cat 4 itself always makes the trip.
Still Here?
Alright, micro pilot—you clearly care about the details. The Foxeer Micro Cat 4 1200TVL StarLight FPV Camera delivers pro-grade clarity, wide FOV, and low-light visibility in the smallest possible form. Add it to your basket before your next hallway crash session turns into a guessing game.
