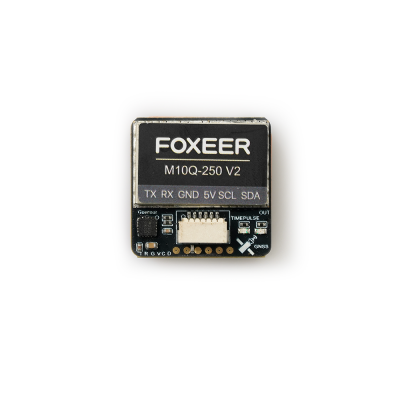

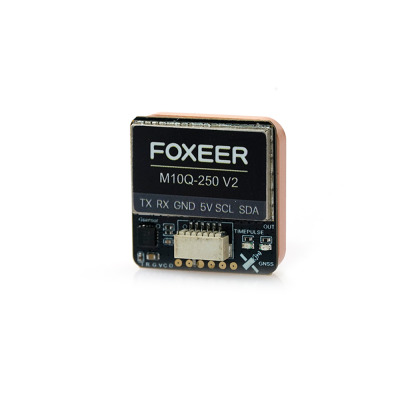

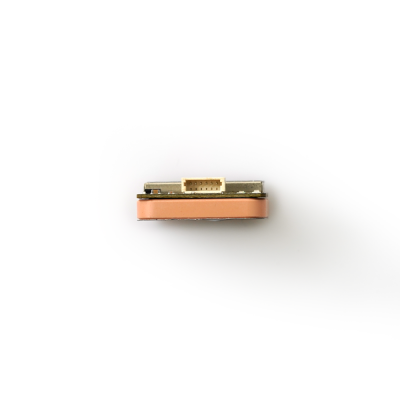

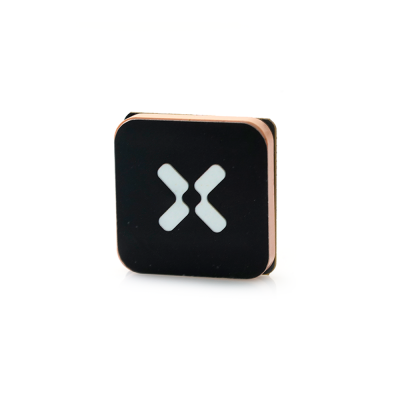

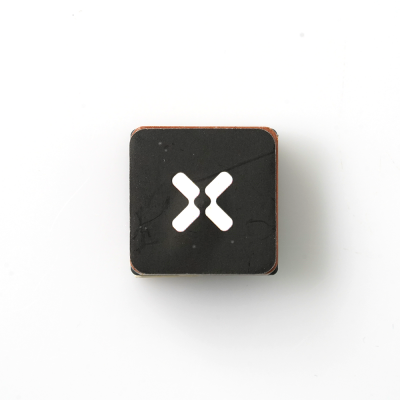

Foxeer M10Q 250 V2 GPS Module
The Foxeer M10Q 250 V2 GPS is for pilots who like their positioning as precise as their excuses after crashing. With an extra-long 250 mm cable, multi-constellation GNSS, and lightning-fast locks, this module is built for cinematic rigs, long-range beasts, and heavy-lift drones where placement freedom actually matters. Think “rescue mode without the rescue mission.”
Why You Want It
Because losing a quad in a field is only funny the first time. This GPS locks satellites faster than your FC reboots, delivers rock-solid accuracy, and plays nice with large frames that need flexible mounting. Weather resistant, lightweight, and professional-grade—basically, it’s your quad’s insurance policy. (Existential shrug: we can’t stop dumb thumbs, but at least you’ll know *where* you dumb-thumbed.)
Specifications
| Chip | M10(10th Generation Chip) |
| Frequency | GPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1 |
| Input Voltage | 5V |
| Antenna | Ceramic Antenna |
| Channel | 72 |
| Battery | Bilid-in |
| Compass | IST8310 |
| Compass Orientation | Plug facing direction of flight and obviously antenna up, BF: CW 180 flip |
| Baud Rate | 115200bps |
| Protocol | Dual NMEA/UBLOX |
| Output Frequency | 1Hz-10Hz,10Hz default |
| Speed Accuracy | 0.05m/s |
| Horizontal Positioning Accuracy | 2D ACC1.5m(outdoor) |
| Receiver Sensitivity | Trace -166dBm; Capture -160dBm |
| Dynamic Characteristics | Height 50000m; Speed 500m/s; Acceleration 4G |
| Operating Temperature | -40C-+85C |
| Storage temperature | -40C-+105C |
| Weight | 12g |
| Size | 25*25*8mm |
What’s in the Box*
- 1× Foxeer M10Q 250 V2 GPS Module
Disclaimer
Accessories may vary, but the long-cable GPS is guaranteed—it’s literally in the product name.
Still Here?
Alright, spec-hoarder—you made it this far, so here’s the takeaway: the Foxeer M10Q 250 V2 GPS is the module for large frames, cinematic drones, and long-range flights that need placement flexibility and pro-grade accuracy. Grab one before your “lost quad” story becomes the next FPV meme in your group chat.
