Product Details

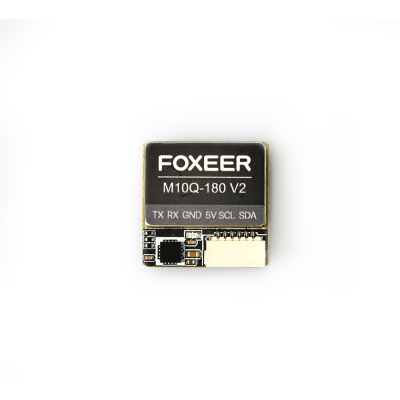

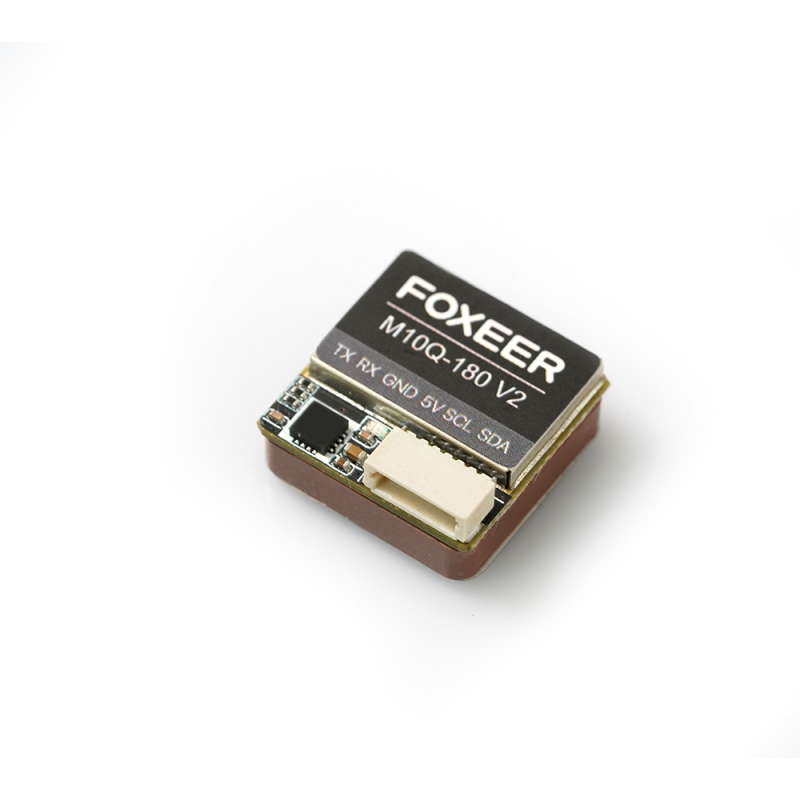

Foxeer M10Q 180 V2 GPS Module
The Foxeer M10Q 180 V2 GPS is for FPV pilots who think “nano” modules are cute but laughably short-leashed. With a 180 mm extended cable, this GNSS powerhouse mounts where you want it—on beefy long-range rigs, cinematic lifters, or that Frankenstein freestyle frame you swore was “just a prototype.”
Why You Want It
Because GPS taped next to your VTX is basically self-sabotage. The extended lead lets you shove this module up and away from interference, giving you fast locks, reliable rescue mode, and a fighting chance of actually finding your quad after a lawn-dart impression. Plus, it’s weather resistant—rain won’t save you from dumb thumbs, but at least the module won’t die trying. (Yes, we profit every time you lose a quad.)
Still mounting GPS next to your VTX? The Foxeer M10Q 180 V2 gives you a 180 mm cable for clean placement + 10 Hz GNSS. Save signal, save quads—buy it.
Specifications
| Chip | M10(10th Generation Chip) |
| Frequency | GPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1 |
| Input Voltage | 5V |
| Antenna | Ceramic Antenna |
| Channel | 72 |
| Battery | Bilid-in |
| Compass | IST8310 |
| Compass Orientation | Plug facing direction of flight and obviously antenna up, BF: CW 270° Flip |
| Baud Rate | 115200bps |
| Protocol | Dual NMEA/UBLOX |
| Output Frequency | 1Hz-10Hz,10Hz default |
| Speed Accuracy | 0.05m/s |
| Horizontal Positioning Accuracy | 2D ACC1.5m(outdoor) |
| Receiver Sensitivity | Trace -166dBm; Capture -160dBm |
| Dynamic Characteristics | Height 50000m; Speed 500m/s; Acceleration 4G |
| Operating Temperature | -40C-+85C |
| Storage temperature | -40C-+105C |
| Weight | 7.5g |
| Size | 18*18*8mm |
What’s in the Box*
- 1× Foxeer M10Q 180 V2 GPS Module
Disclaimer
Accessories may vary, but the extended-cable GPS always shows up—it’s literally in the name.
Still Here?
If you’ve made it this far, you either fly long-range or just like reading specs instead of flying. The Foxeer M10Q 180 V2 GPS module gives your quad precise positioning, reliable rescue mode, and cable length sanity. Order now, or risk another “lost drone in field” meme starring you.
