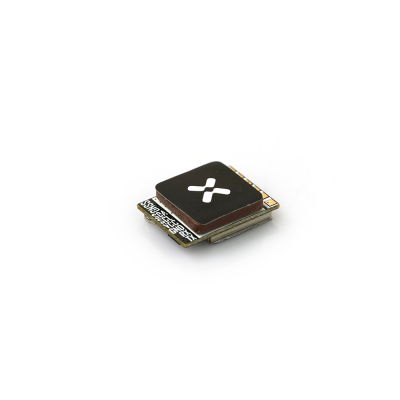

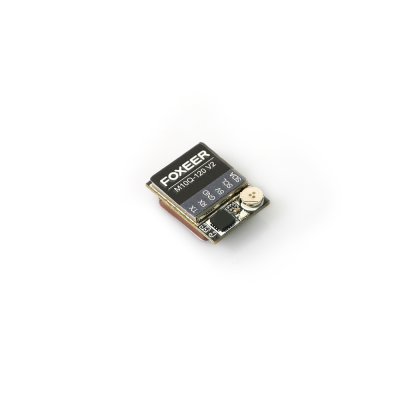

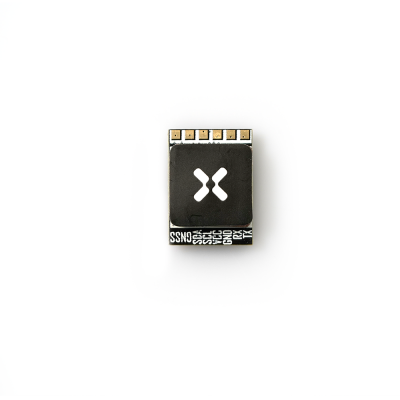

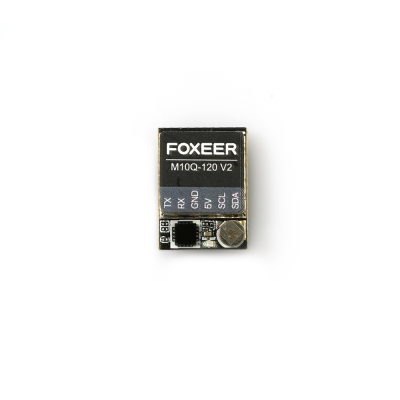

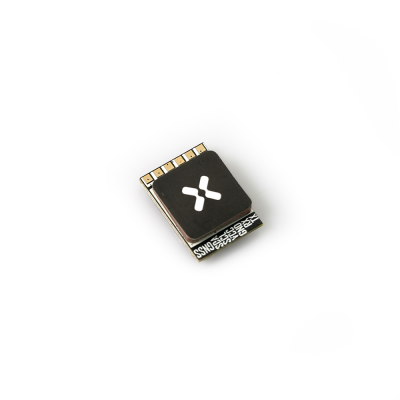

Foxeer M10Q 120 V2 GPS Module
The Foxeer M10Q 120 V2 GPS module is the FPV pilot’s answer to “where the hell did my quad go?” With multi-constellation GNSS, lightning-fast satellite lock, and a form factor that won’t wreck your AUW, it’s basically Google Maps for drones—minus the traffic alerts.
Why You Want It
Because blind faith in turtle mode only gets you so far. This module locks onto satellites faster than your mate finds excuses for crashing, delivering pinpoint navigation and flawless rescue mode performance. Lightweight, durable, and weather-resistant, it’s your quad’s insurance policy—without the monthly premium. (Yes, we profit from your paranoia.)
Yeah, rescue mode is useless without GPS—this Foxeer M10Q 120 V2 locks satellites in seconds and weighs only 6 g. Buy one before your quad ghosts you.
Specifications
| Chip | M10(10th Generation Chip) |
| Frequency | GPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1 |
| Input Voltage | 5V |
| Antenna | Ceramic Antenna |
| Channel | 72 |
| Battery | Bilid-in |
| Compass | IST8310 |
| Compass Orientation | Plug facing direction of flight and obviously antenna up, BF: CW 90° Flip |
| Baud Rate | 115200bps |
| Protocol | Dual NMEA/UBLOX |
| Output Frequency | 1Hz-10Hz,10Hz default |
| Speed Accuracy | 0.05m/s |
| Horizontal Positioning Accuracy | 2D ACC1.5m(outdoor) |
| Receiver Sensitivity | Trace -166dBm; Capture -160dBm |
| Dynamic Characteristics | Height 50000m; Speed 500m/s; Acceleration 4G |
| Operating Temperature | -40C-+85C |
| Storage temperature | -40C-+105C |
| Weight | 2.7g |
| Size | 12.5*17*5mm3 |
What’s in the Box*
- 1× Foxeer M10Q 120 V2 GPS Module
- 1× Pre-soldered connector cable
- 1× Adhesive pad for lazy mounting
Disclaimer
Accessories may vary, but the GPS module itself won’t ghost you. Promise.
Still Here?
Look, if you’re still scrolling, you’re either a spec-sheet addict or already lost a quad in a field. The Foxeer M10Q 120 V2 GPS module gives your drone precise positioning, rescue mode reliability, and zero excuses. Grab one now before your next “that’ll buff out” moment ends with a missing quad poster.
