Product Details
Specifications
| Center Frequency | 5.75GHz |
| Gain | 2.6dBi |
| Axial Ratio | Close to 1 |
| Band Width | 5.5G~6GHz |
| Radiation Efficiency | 98% |
| SWR | 1.07 at Center Frequency |
| Polarization | RHCP/LHCP |
| Case Material | PC+ABS |

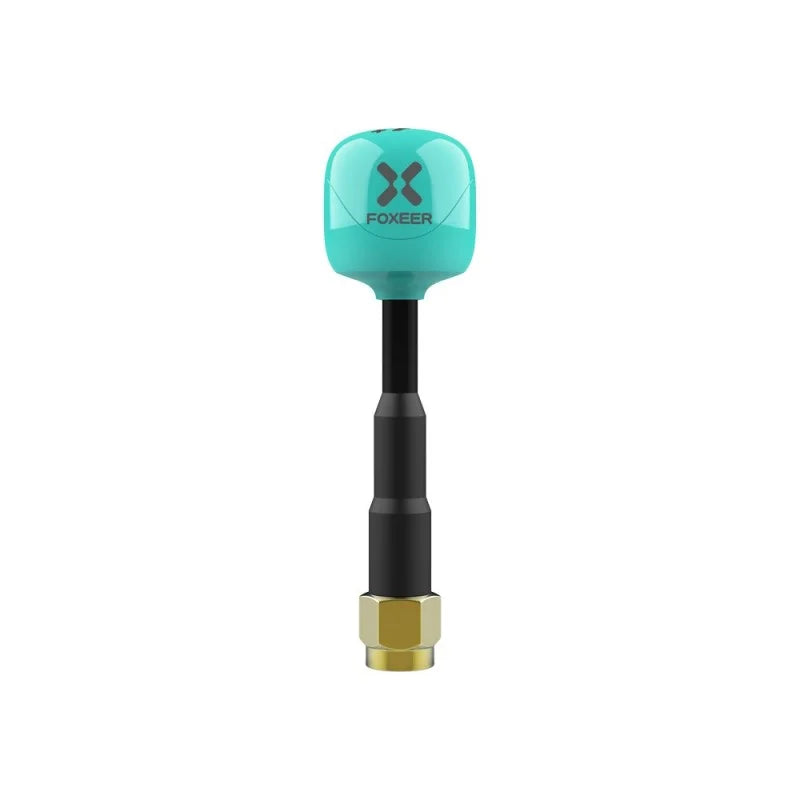

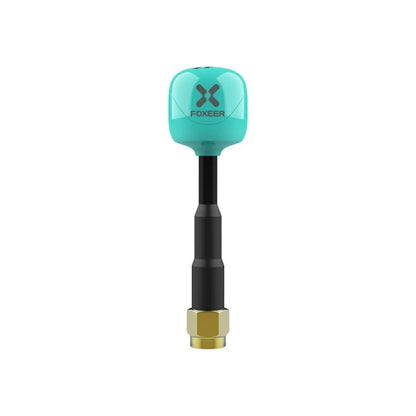

| Weight | SMA/RPSMA: 7.8g |

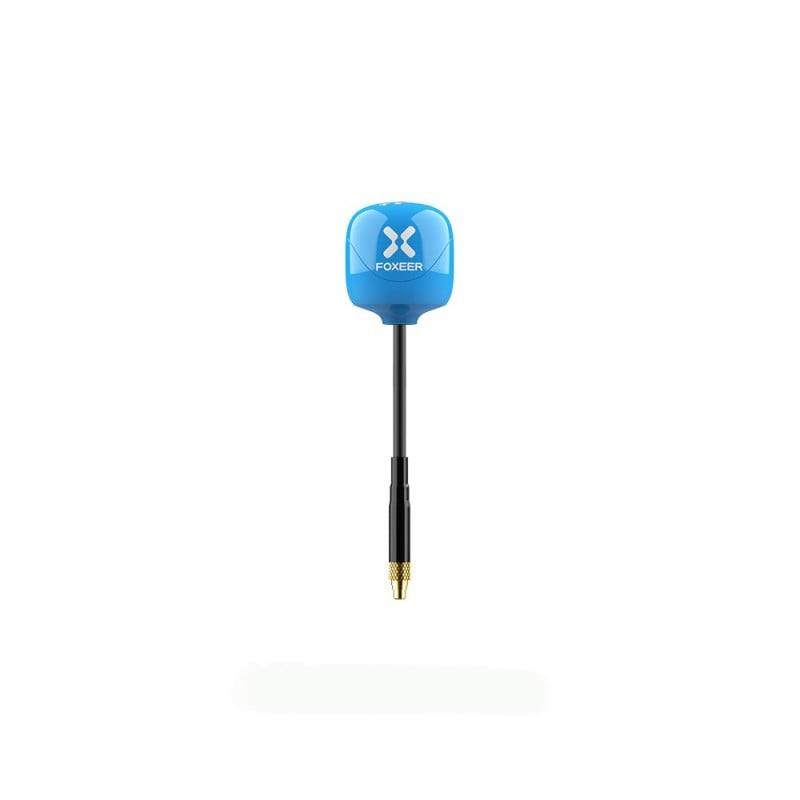

| Straight MMCX: 4.4g | |
| Angle MMCX: 4.5g | |
| SMA-10CM: 9.7g | |
| Angle SMA-15CM: 13.9g | |

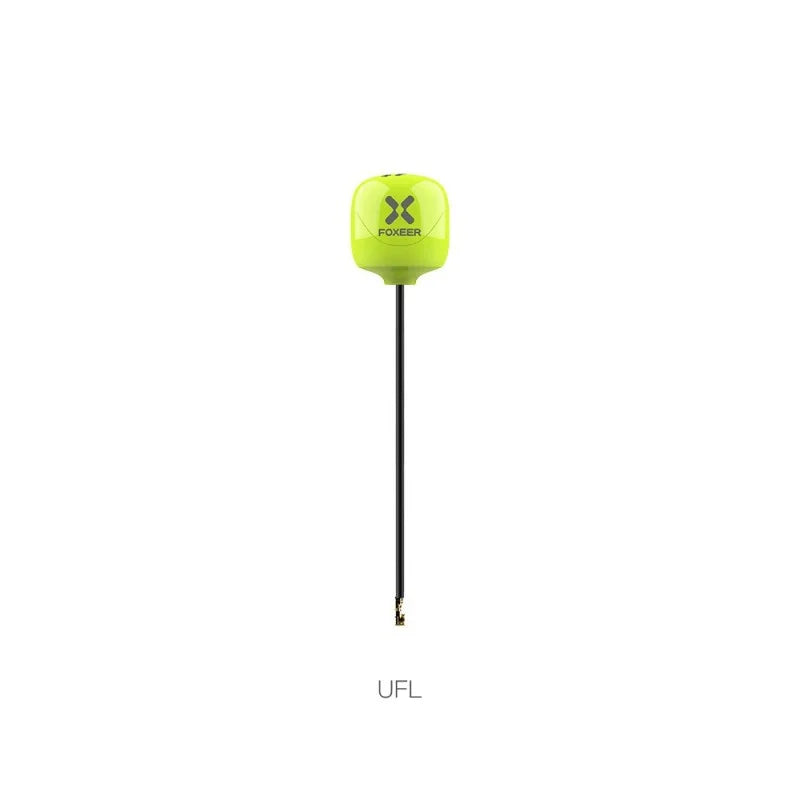

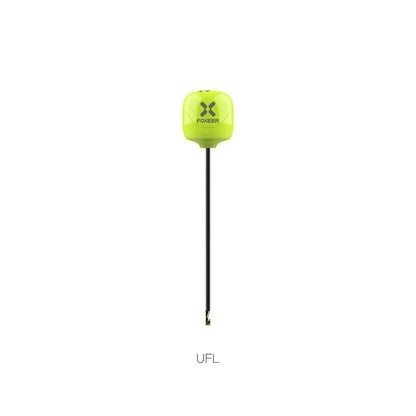

| UFL : 2.8g | |

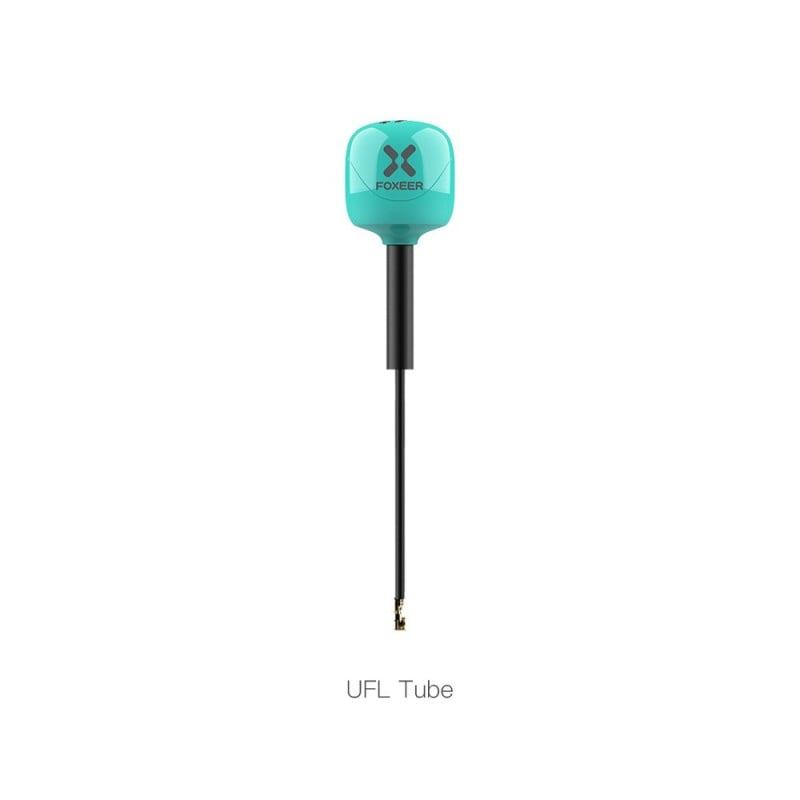

| UFL Tube Short: 2.9g | |
| UFL Tube Long: 3.8g | |
| Angle MMCX Tube Short: 4.8g | |
| Angle MMCX Tube Long: 6.8g | |

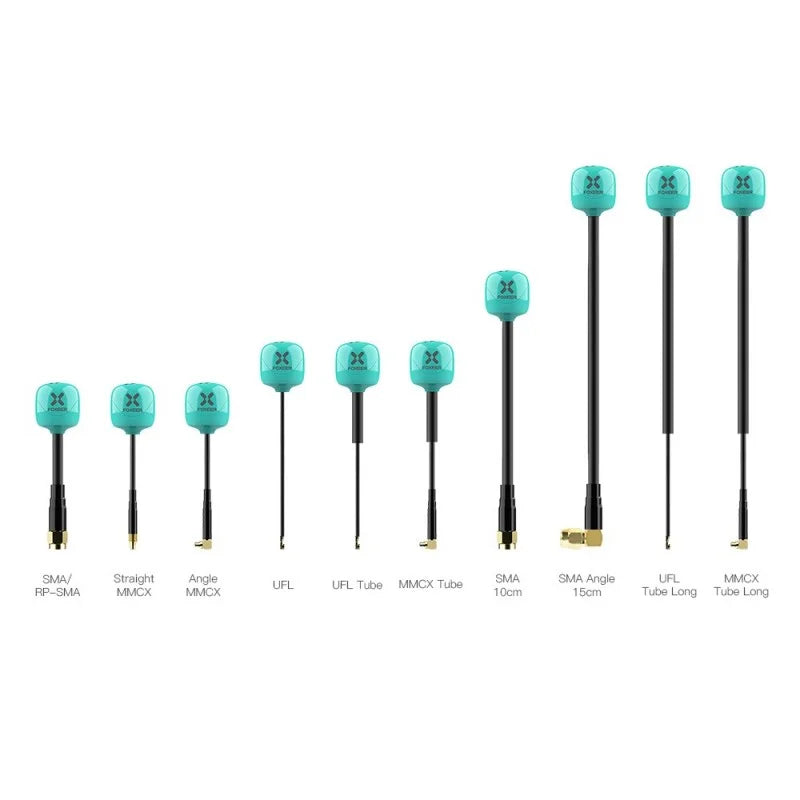

| Connector & Length | SMA/RPSMA/Straight MMCX/Angle MMCX: Φ11*60mm |
| UFL: Φ11*85mm | |
| UFL Tube Short/ Angle MMCX Tube Short: Φ11*95mm | |
| SMA-10CM: Φ11*100mm | |
| SMA 15CM Angle: Φ11*150mm | |
| UFL Tube Long/ Angle MMCX Tube Long: Φ11*165mm | |
| Quantity | 2pcs Antennas |
