Product Details
Foxeer FP1112 2CH Video Switcher Board
Tired of fumbling between multiple cameras mid-flight? Enter the Foxeer FP1112 2CH Video Switcher , a compact and lightweight module designed to make switching between video feeds as smooth as your next FPV flight. Whether you're running a dual-camera setup or toggling your on-screen display (OSD), this module has you covered with its easy-to-use PWM-controlled interface.

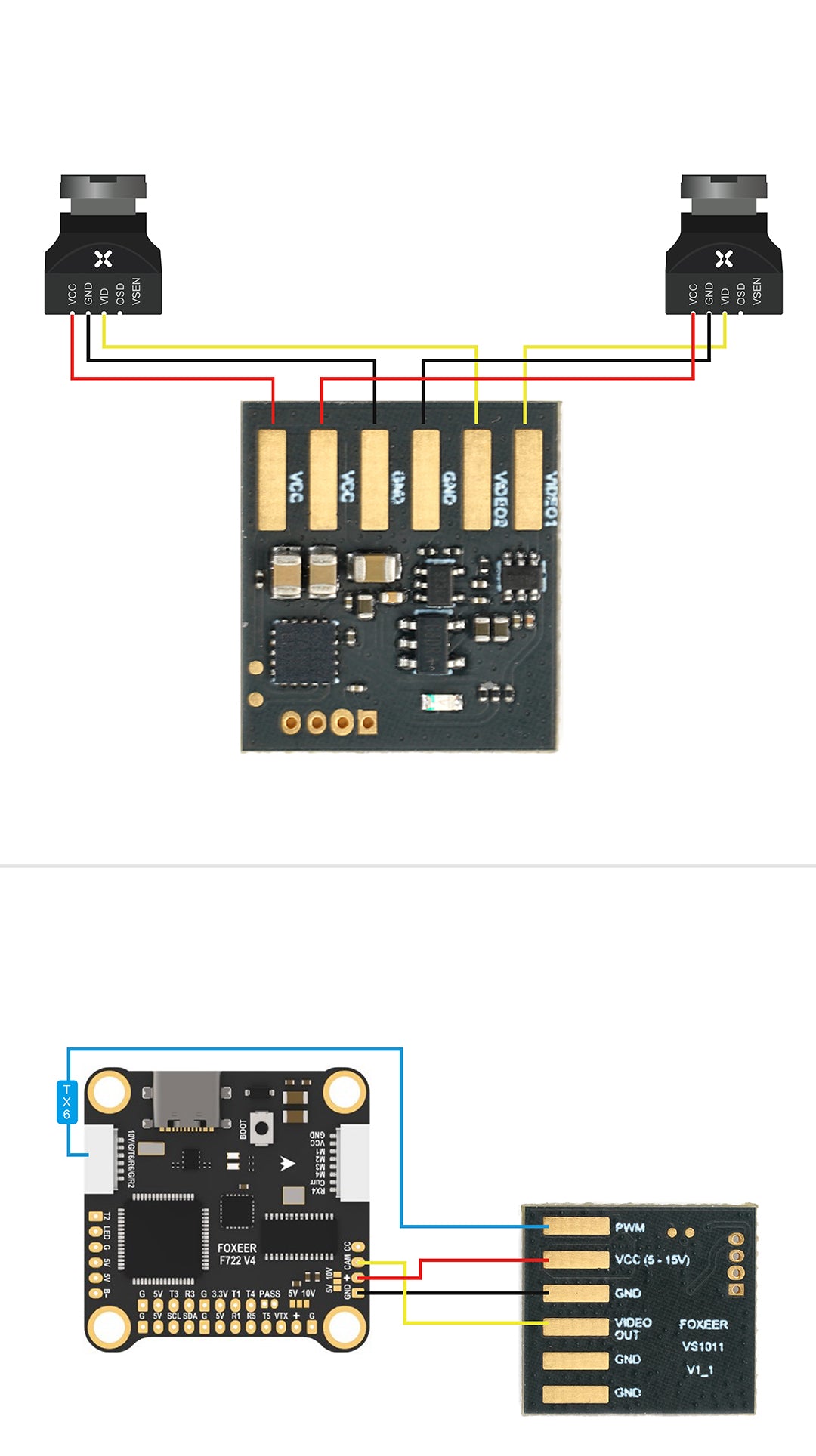

Designed for pilots who want versatility without the extra weight, the FP1112 allows seamless switching between two video inputs while maintaining a single output. A handy LED indicator on the PCB flashes to let you know which channel is currently active—so no guessing games mid-flight. With its broad input power range (5V-15V), you can easily power it from your radio receiver via the PWM input, keeping your wiring setup clean and straightforward.
Key Features:
- 2 video inputs : Easily switch between dual cameras or video sources
- PWM control : Seamlessly operate the module via 1-2MS PWM signal
- LED channel indicator : Know exactly which input is active at a glance
- Wide power range : Operates between 5V and 15V, ideal for various setups

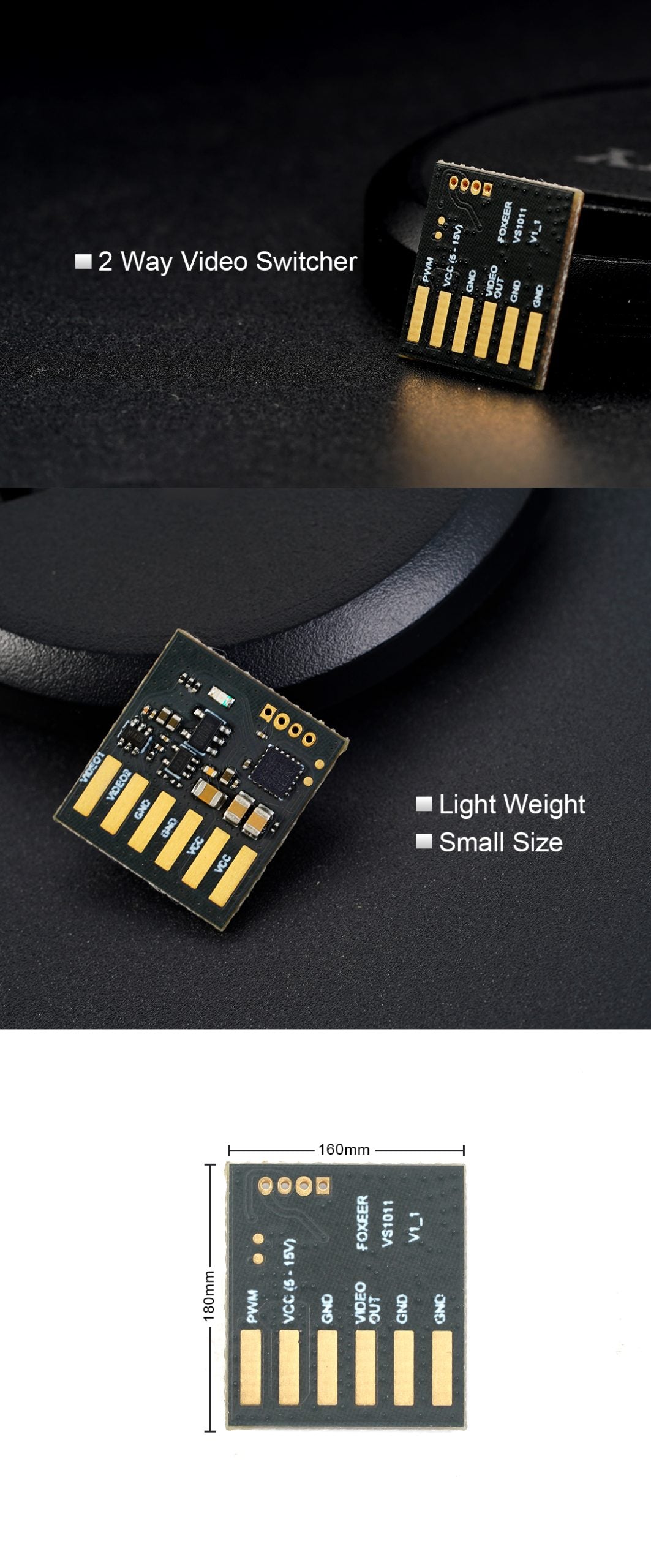

- Lightweight & compact : Weighs just 0.8g and measures 16x18mm
Specifications:
- Input Power : 5V-15V
- Control Input : 1-2MS PWM
- Input Channels : 2
- Output Channels : 1
- Dimensions : 16x18mm
- Weight : 0.8g
What's in the Box:
- 1x Foxeer FP1112 Video Switcher Module
-
1x
Head Pins
Note: Accessories may vary based on availability.
