Product Details
The Foxeer Falkor cameras offer one of the best pictures you can currently get from an FPV camera. It is designed to be used in any environment and has the option to automatically adapt the settings for you for the best possible image. The Falkor also supports betaflight camera control, this lets you change camera settings directly from your flight controller.
Specifications
- Brand: Foxeer
-

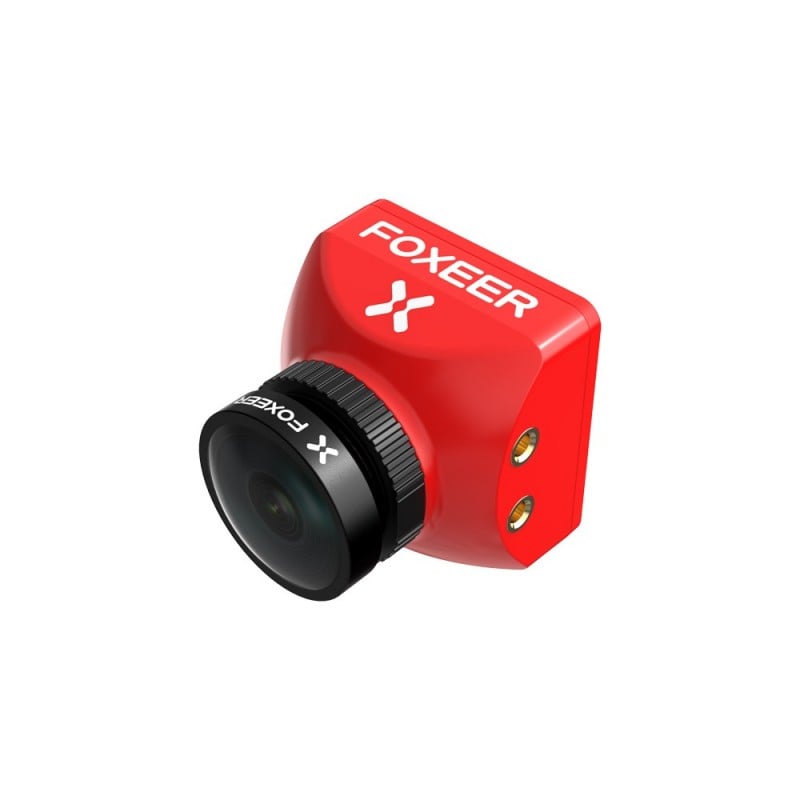

Item name: Falkor Mini FPV Camera
- Horizontal Resolution:1200TVL
- Sensor: CMOS
- Lens : 1.8mm/2.5mm
- PAL/NTSC Switchable
- Picture scale: 4:3 / 16:9 Switchable
- Power: DC 5-40V
- Weight: 8.7g (excluding bracket)
Specifications
| Sensor Type | Sony 1/3" CMOS Sensor |
| Scale | 4:3(Default)/16:9 Switchable |
| Tv System | PAL(Default)/NTSC Switchable |
| Resolution | 1200TVL |
| Lens | M12 1.7mm |

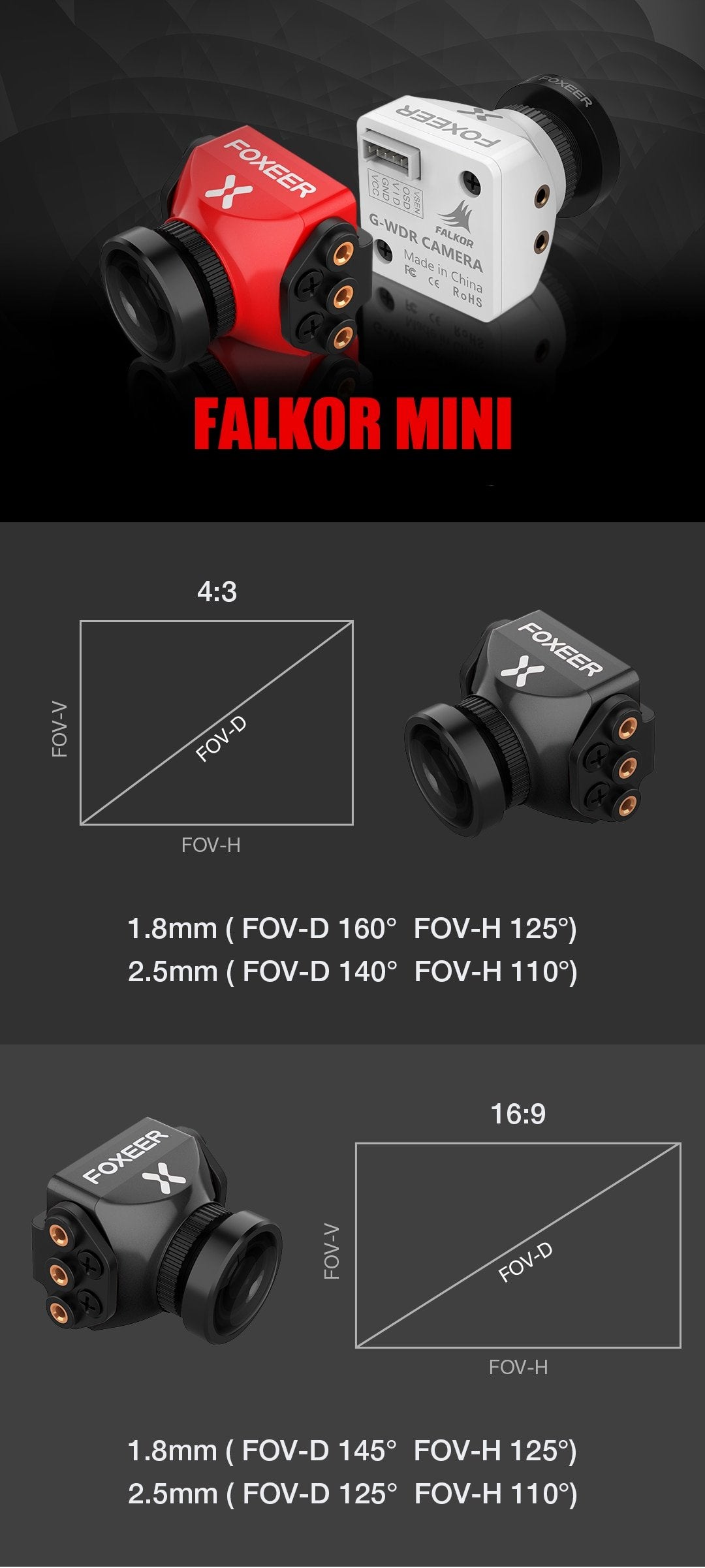

| FOV | 4:3 FOV-H: 138° FOV-D:172° |
| 16:9 FOV-H: 138° FOV-D:158° | |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.0001Lux |
| White Balance | Auto |
| DNR | 3DNR |
| WDR | 100dB |
| DAY/NIGHT | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Input Voltage | 4.6V~20V |
| Language | ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA |
| Working Temperature | -10°~50°C RH90% MAX |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Consumption | 95mA±15% @ DC12V |

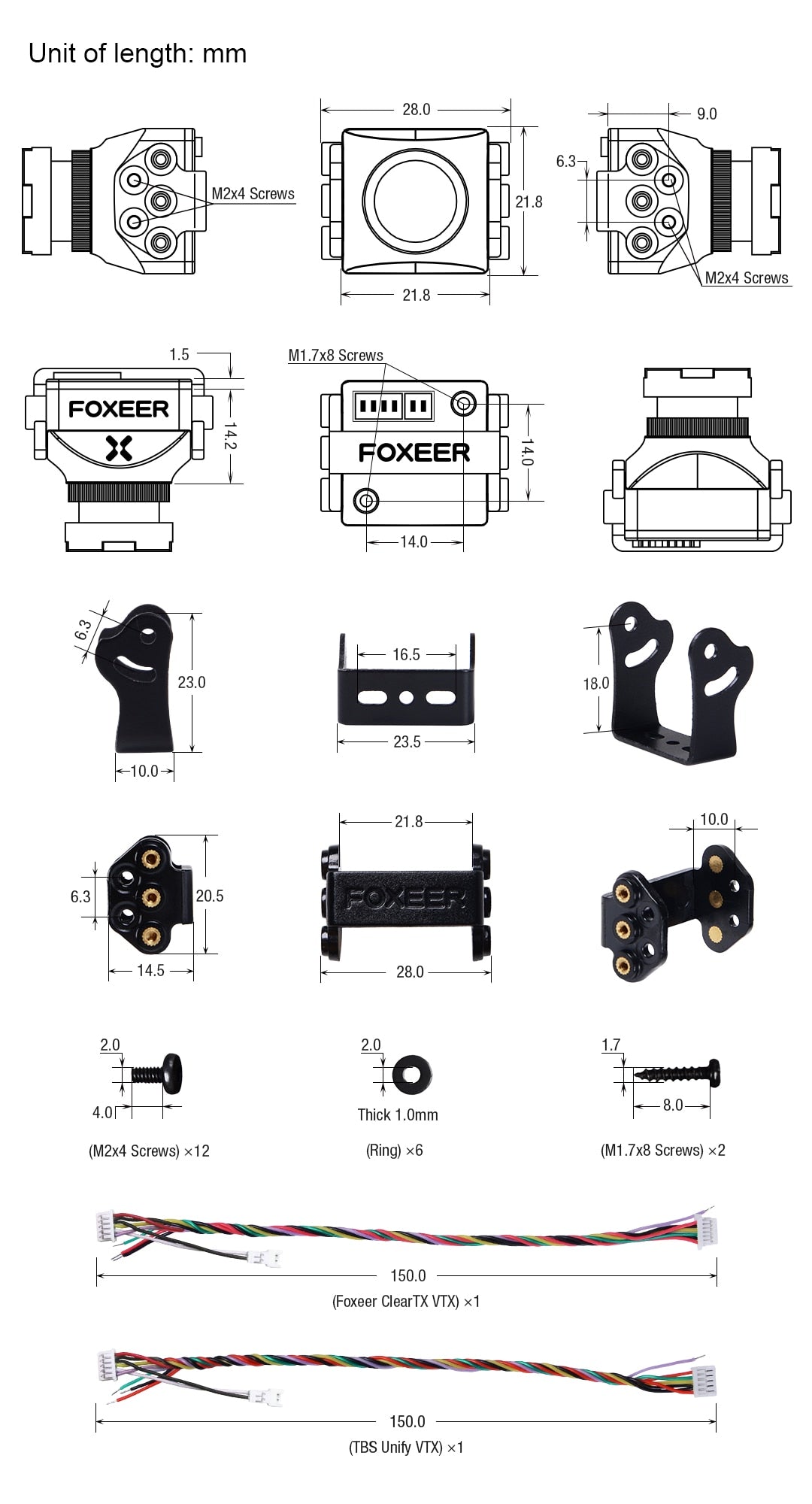

| Dimension | 22*22mm; 28*22(with Bracket) |
| Weight | 10.2g(Exclude cable) |
