Product Details

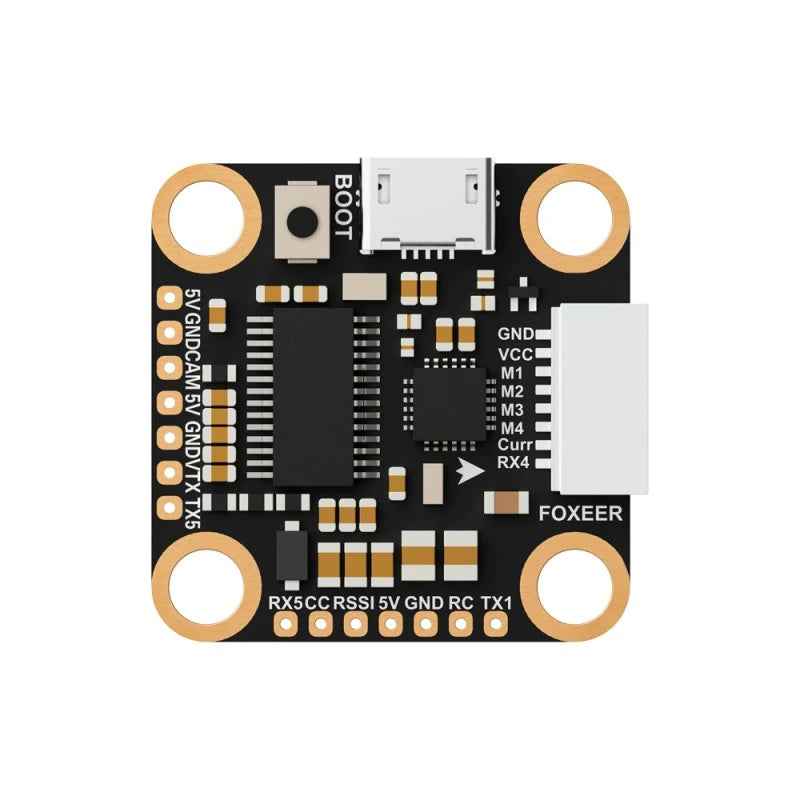

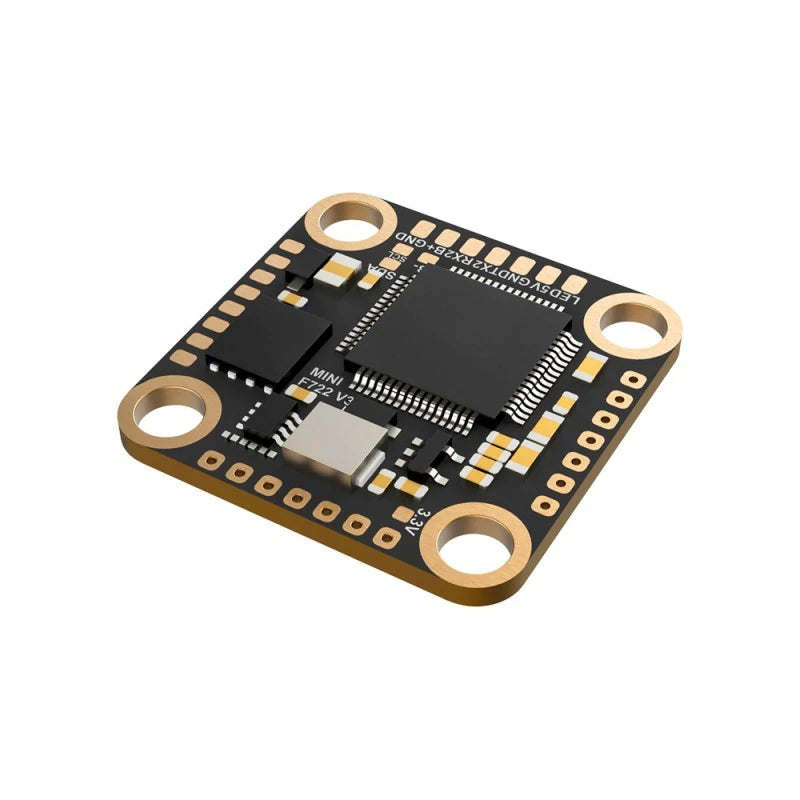

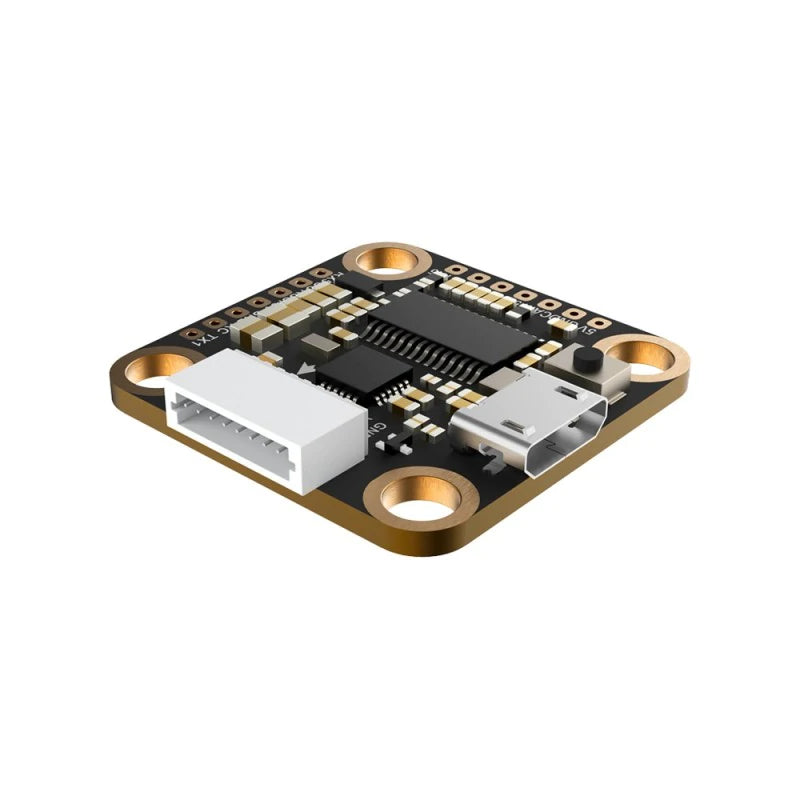

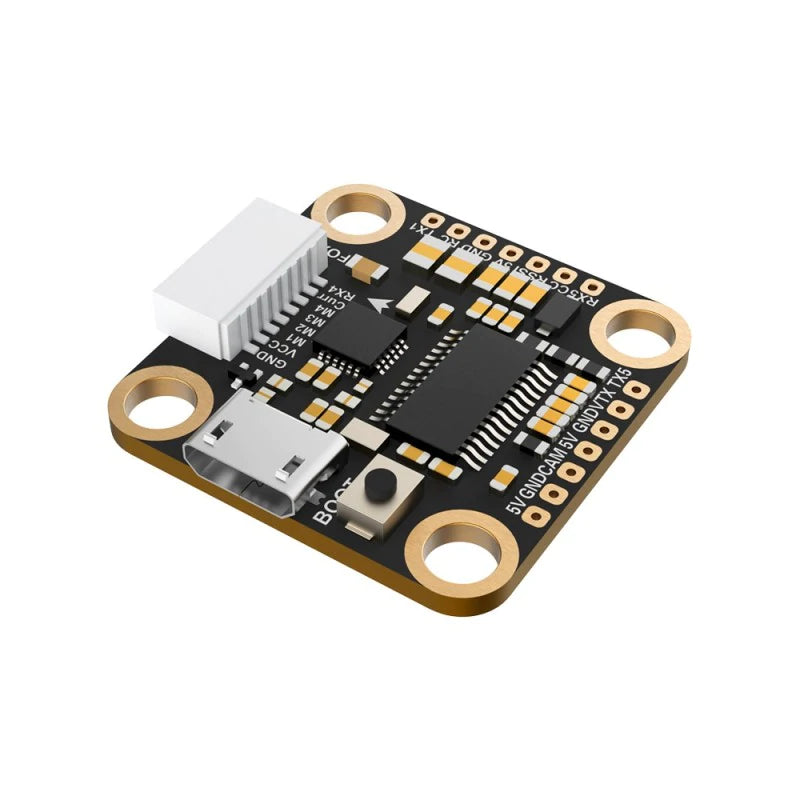

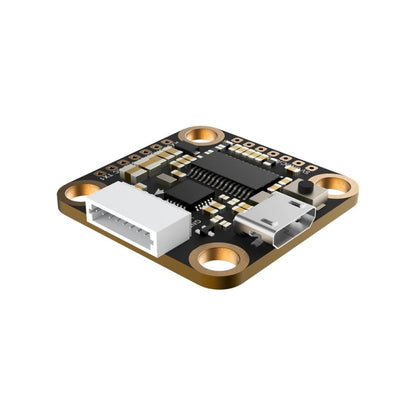

The Mini F722 V3 Flight Controller by Foxeer features the latest F7 processing technology, STM32F722RET6, BMI270 Gyro, and many other specs that make this 20x20 FC a winner!
Specifications
| Model | Mini F722 V3 |
| CPU | STM32F722RET6 |
| Power Supply | 2~6S Lipo (6.5V~30V) |
| BEC Output | DC5V/3A |
| OSD | BF OSD |
| Black Box | 16M Flash Memory |
| UART | 4 Set |
| ESC Telemetry | RX4 |
| Buzzer | YES |
| Smart Audio | YES |
| LED | 1 Set 2812 LED |
| USB | Micro USB |
| Fireware | FOXEERF722V3 |
| Size | 26X26mm |
| Mounting Hole | 20X20mm,Φ4mm |
| Weight(g) | 4g |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Package Includes | 1*FC, 4*Rubbers Columns |
Includes
- 1 x FC
- 4 x Rubbers Columns
