Product Details
The Foxeer Digisight V2 is a low latency FPV camera compatible with both Analog and Digital FPV systems, making it an extremely versatile camera.
Specifications
| Sensor Type | Sony 1/3" CMOS Sensor |
| Scale | 4:3(default)/16:9 Switchable |
| Tv System | PAL(default)/NTSC Switchable |
| Resolution | Digital 720P/Analog 1000TVL |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | 720P Digital HD/CVBS Analog Signal |
| FOV |
Digital: FOV-H:120° FOV-D: 145°
Analog: FOV-H:125° FOV-D: 155° |
| Shutter Speed | Auto |
| Minimum Illumination | 0.01Lux |
| White Balance | Auto |
| DNR | 3DNR 2DNR |
| WDR | 120dB |
| Mode | DAY/CLOUDY/Night/LED |
| Fast Mode Switch | Long Press Right Button to switch among DAY/CLOUDY/Night/LED |
| Flight OSD | Cam Title / Voltage (Only in analog) / Time |
| Input Power |
Digital: 3.3V from VTx
Analog: 4.5~20V |
| Language | ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文 |
| Working Temperature | -10°~50°C RH90% MAX |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |

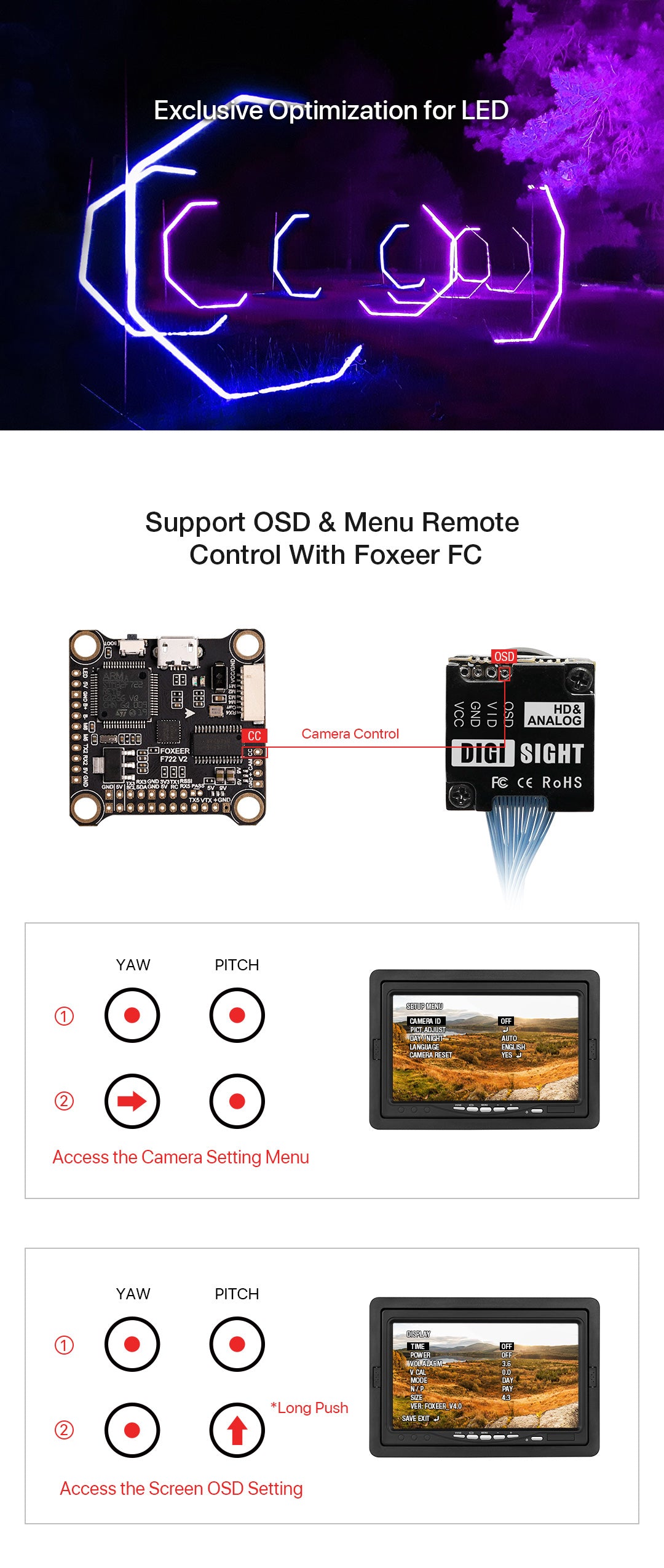

| Menu | Analog via camera programming board, Digital via VTx and Cam board |
| Consumption |
Analog:50mA±15% @ DC12V 115mA±15% @ DC5V
Digital:350mA@3.3V(Powered by VTX) |
| Cable Length | 150mm |

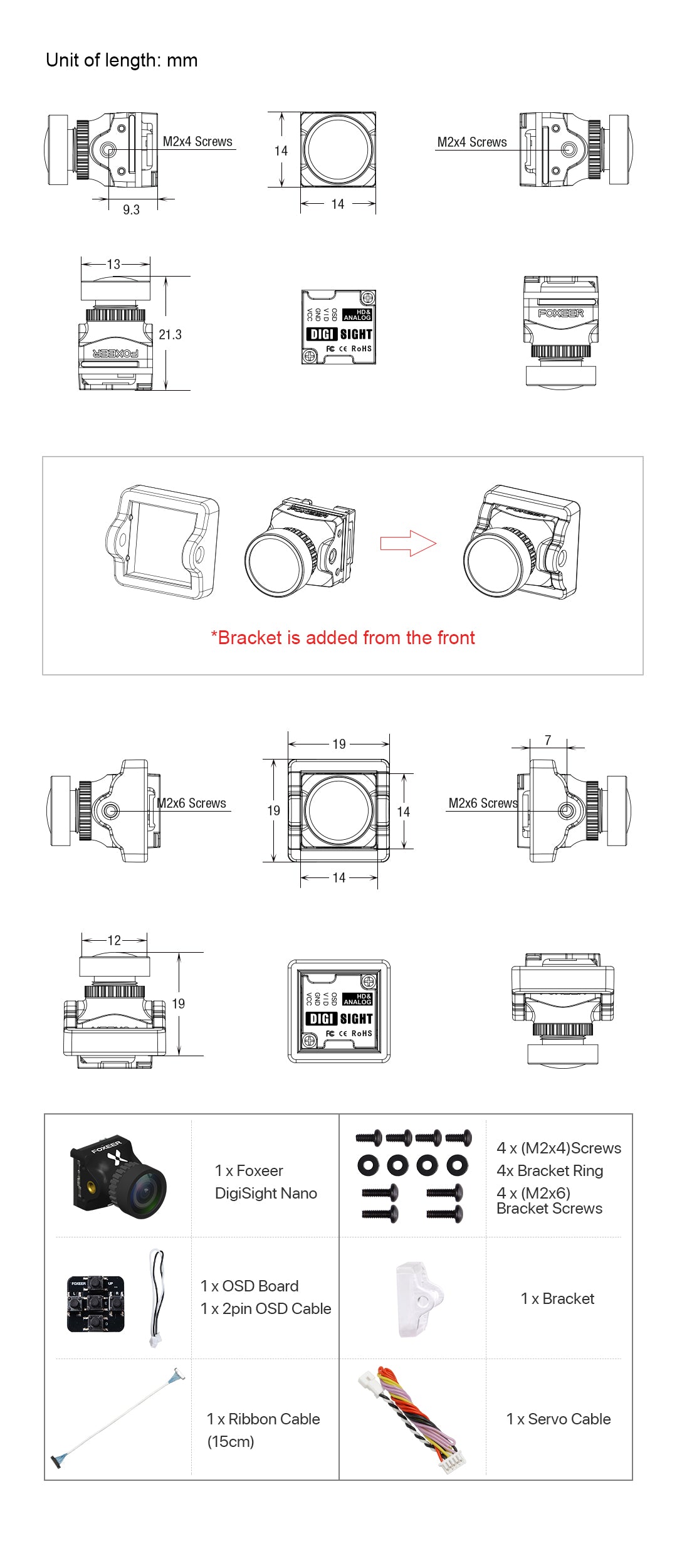

| Dimension | 14*14mm; 19*19mm(Add Bracket) |
| Weight | 4.3g(Exclude cable) |
