Product Details
Many FPV pilots had a small piece of their hearts broken when gopro decided to bin the session camera. We have been promised small form factor cameras from other companies and although some came close, but they could not match the gopro session in terms of quality. Well Foxeer have genuinely tried to offer this with their box 2 camera, and I think they have done a great job.

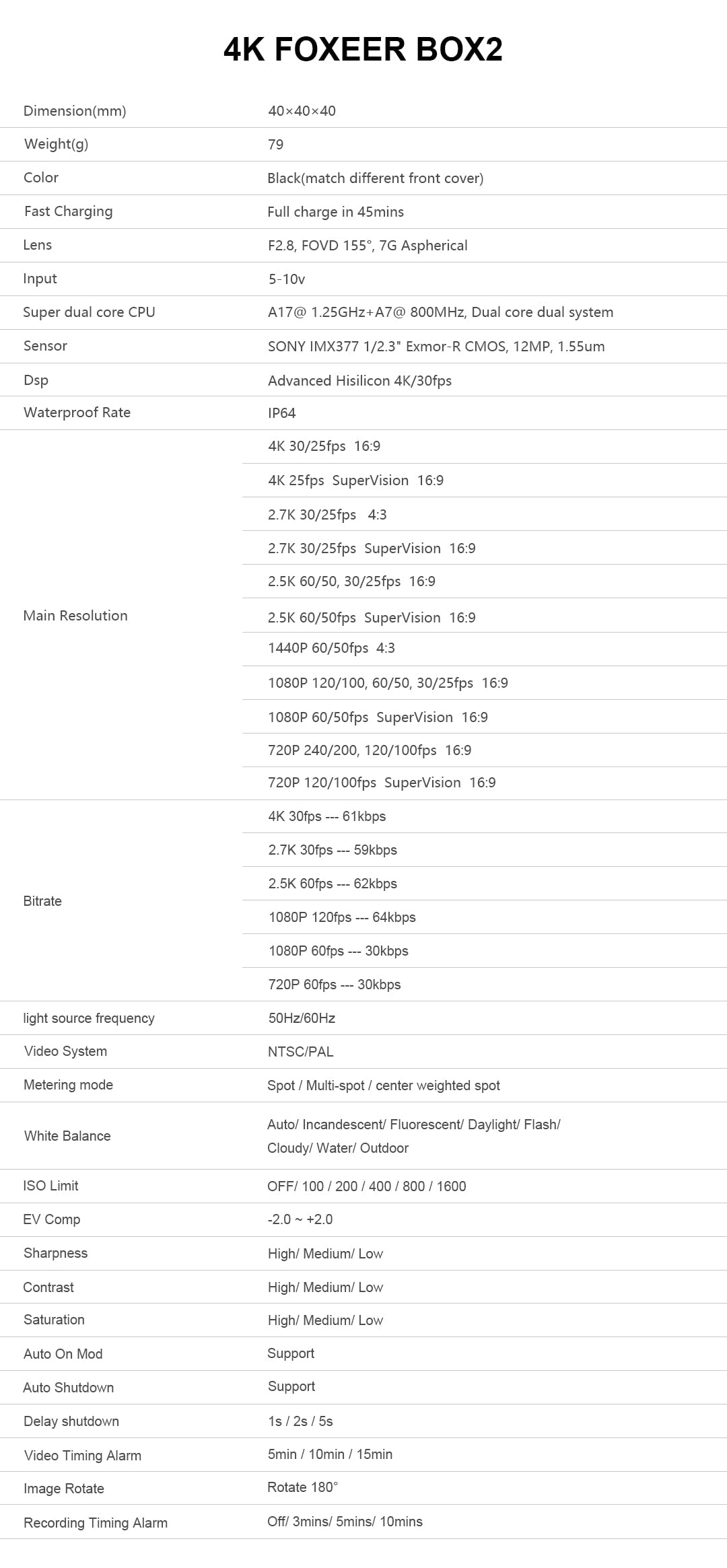

Specifications
| General |
Brand: Foxeer

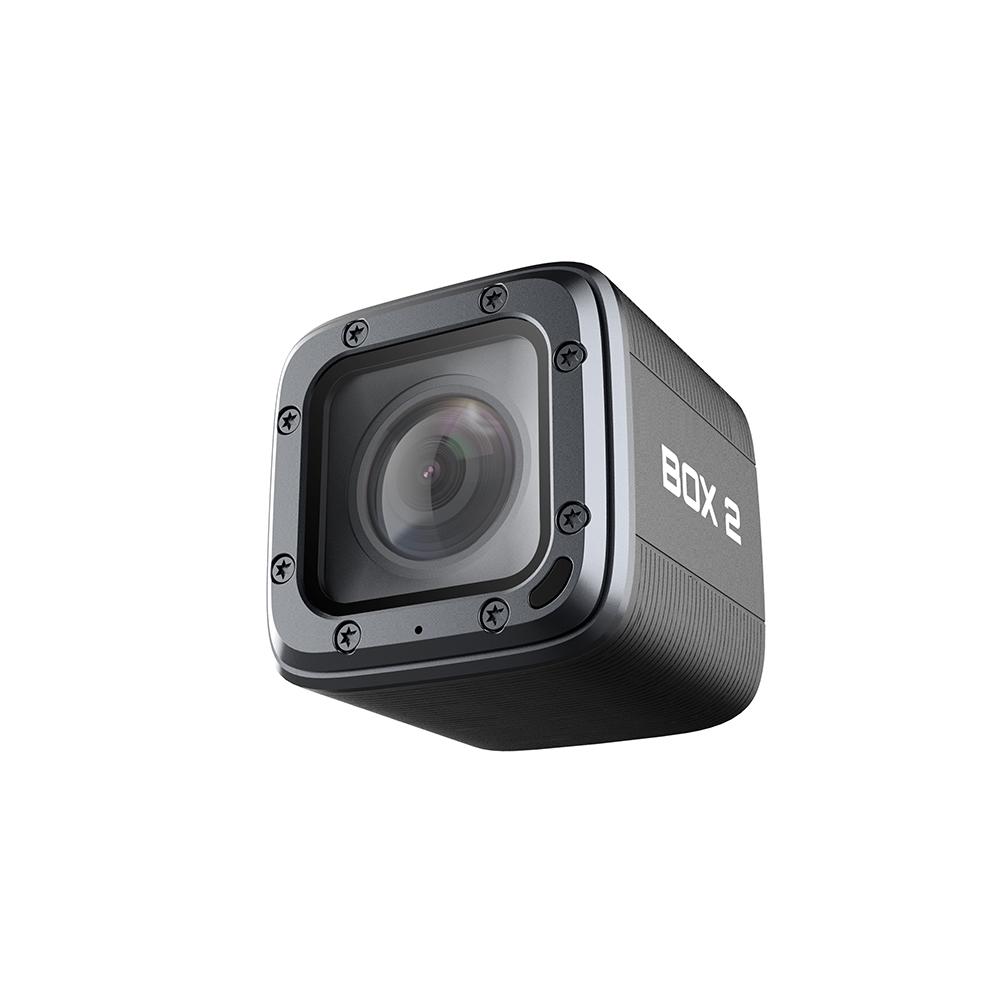

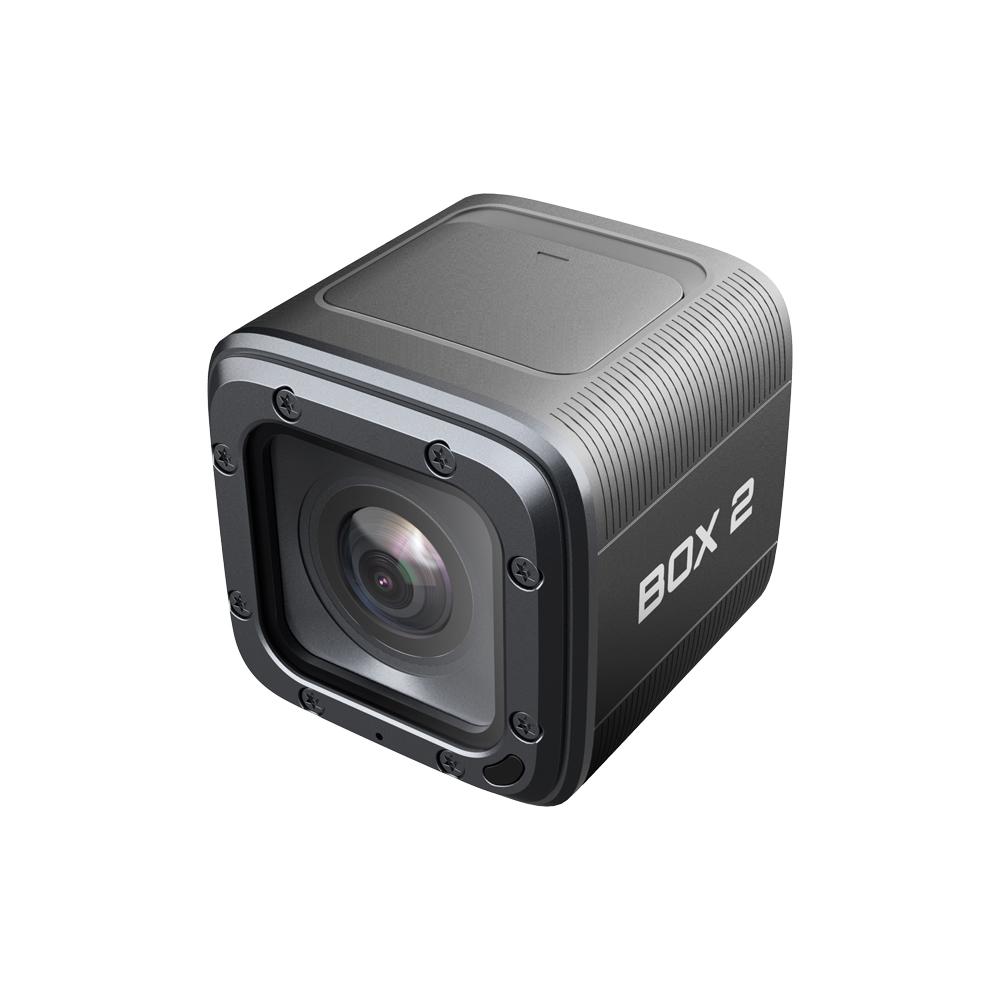

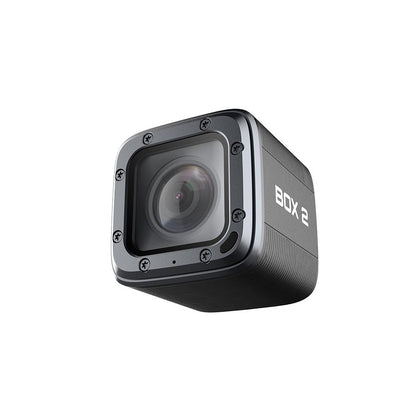

Item Name: Box 2
Color: Black
Size: 40 X 40 X 40mm
Weight: 79g
|
| Specification |

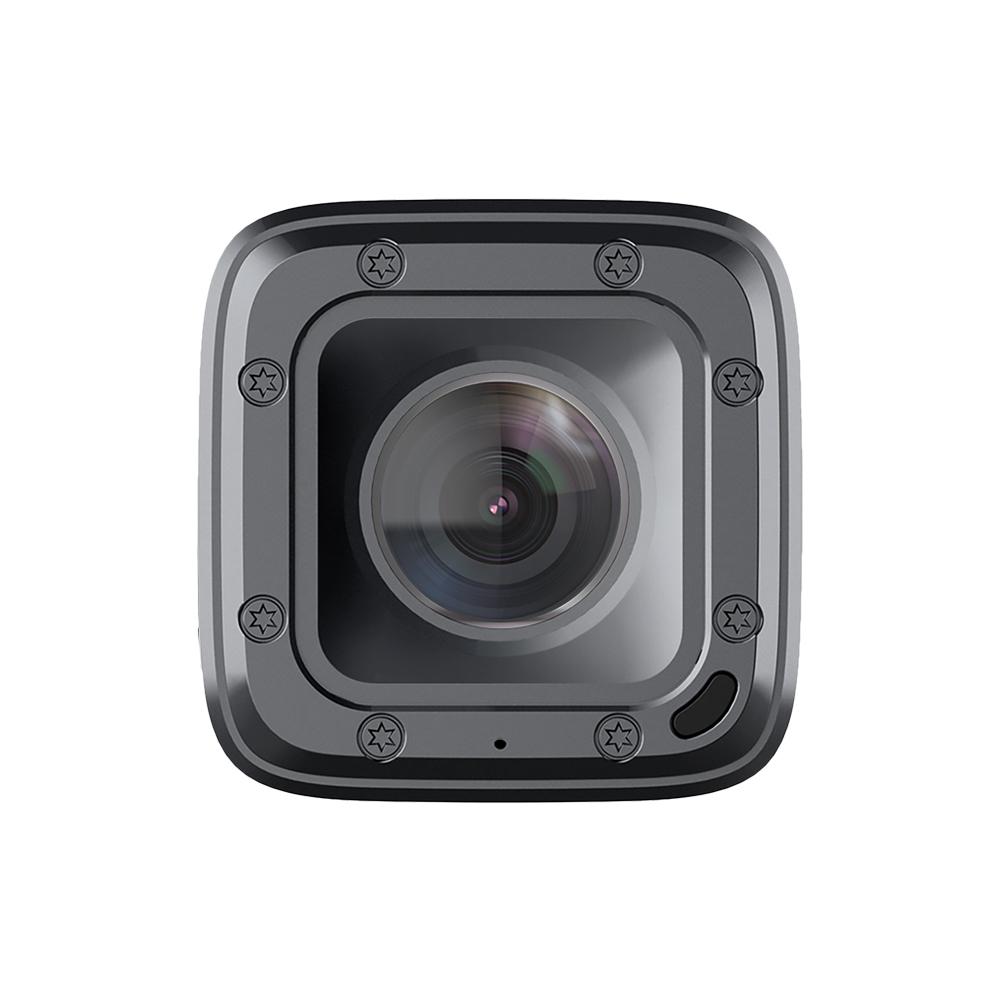

Lens: F2.8,FOVD 155°,7G Aspherical
Super Dual Core CPU: A17@1.25GHz+A7@800MHz,Dual Core dual System
Sensor: Sony IMX377 1/2.3" Exmor-R COMS,12MP,1.55um
Dsp: Adcanced Hisilicon 4K/30fps
Waterproof Rate: IP64

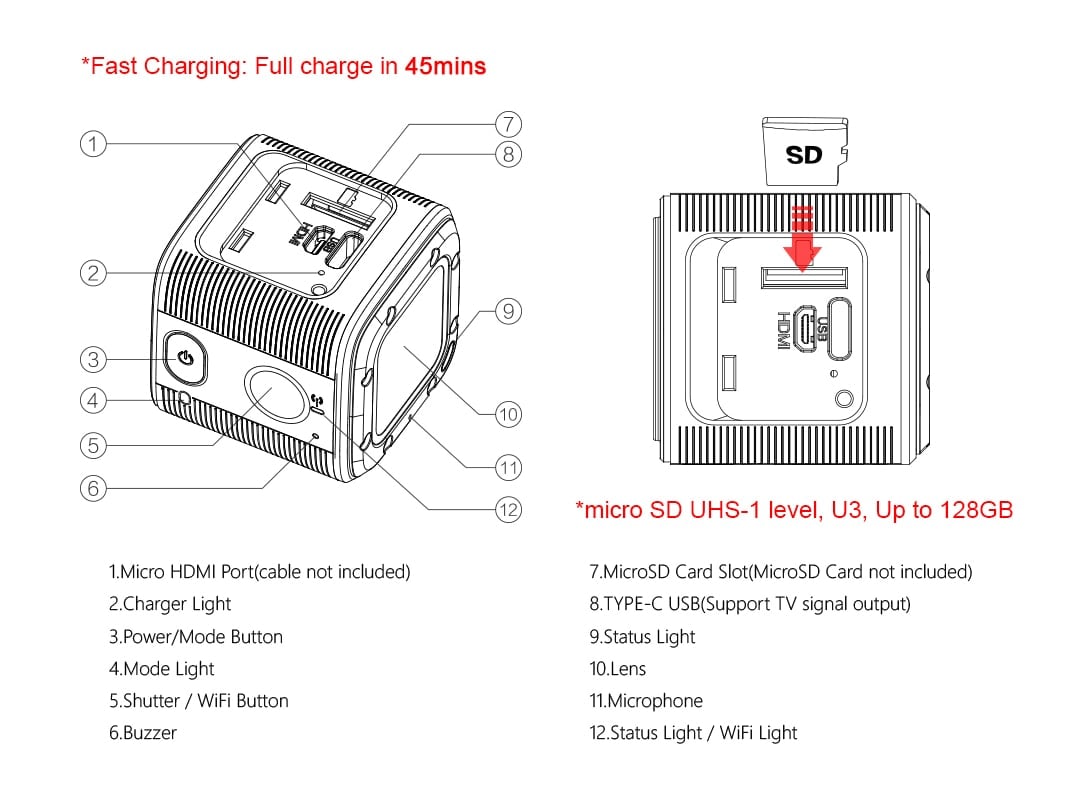

Fast Charging: Full Charge In 45mins
Input: 5-10V
Main Resolution: 4K 30/25fps 16:9
4K 25fps SuperVision 16:9
2.7K 30/25fps 4:3
2.7K 30/25fps SuperVision 16:9
2.5K 60/50,30/25fps 16:9
2.5K 60/50 SuperVision 16:9
1440P 60/50fps 4:3
1080P 120/100,60/50,30/25fps 16:9
1080P 60/50fps SuperVision 16:9
720P 240/200,120/100fps 16:9
720P 120/100fps SuperVision 16:9
Video Mode:
Normal Video: Support
Time-Lapse: Interval:1/2/5/10/30/60s
Loop Video: OFF/1/2/3/5min
Slo-Mo: 4X(1080P 120/100fps)/8 X (720P 240/200fps)
EIS: Adopt BMI160 Gyroscope
WDR: OFF/ON
Video Format: H.264 & H.265 for Optional
HBV: 60Mb/s
FOV: Wide/Medium/Narrow
Video Quality: High/Medium/Low
Photo Mode
Single Photo: Support
Timing Photo: Countdown Time 2s,3s,5s,10s,30s,60s
Aoto Photo: Shooting Interval time 3S,5S,10s,30s,60s
Burst Photo: Photo rate 3p/s,5p/s,10p/s
Long Exposure: Shutter time 1/30s,1s,2s,5s,10s,30s,60s
Photo Pixel: 16M 14M 12M 10M 8.3M 5M 3M
Parameter
Light Source Frequency: 50/60Hz
Video Sytem: NTSC/PAL
Metering Mode: Spot/Multi-spot/center weight spot
White Balance: Auto/Incandescent/Fluorescent/Daylight/Flash/Cloudy/Water/Outdoor
ISO Limit: OFF/100/200/400/800/1600
EV Comp: -2.0 - +2.0
Sharpness: High/Medium/Low
Contrast: High/Medium/Low
Saturation: High/Medium/Low
Auto On Mod: Support
Auto Shutdown: Support
Delay Shutdown: 1/2/5s
Video Timing Alarm: 5/10/15mins
Image Rotate: Rotate 180°
Recording Timing Alarm: Off/3/5/10mins
Audio Function
Audio: PCM 48KHZ 16bit,AAC Compression
External Stereo MIC: Support
Transmission And Storage:
UAV Control: -
bluetooth: bluetooth 4.0,Compatible 2.0
WIFI: Support
USB: TYPE-C USB/Support TV Signal Output
HDMI: Micro HDMI Video Port

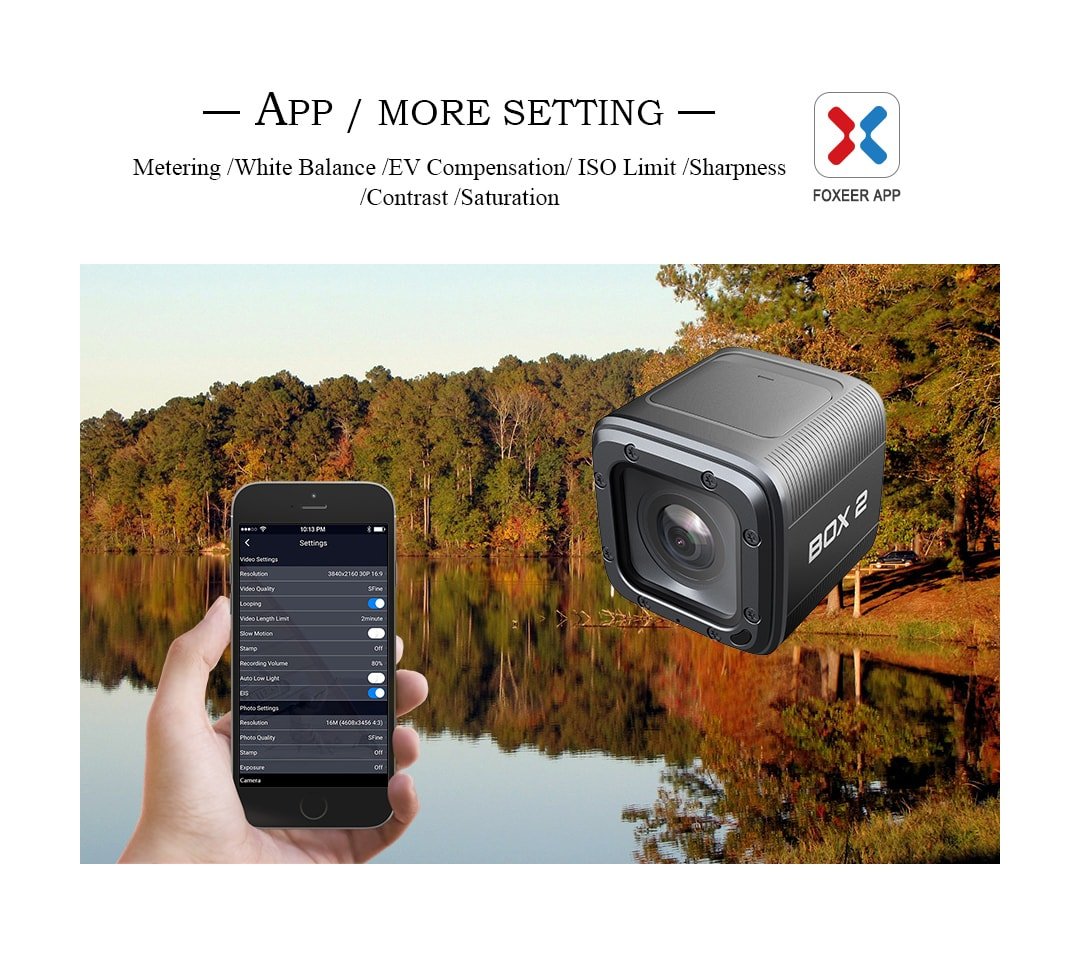

APP: Support
SD Card: Micro SD UHS-1 Level,U3,Up to 128GB(SD Card Excluded)
Battery: 950mAh,3.8V, Non-replaceable
Option: Waterproof Case,bluetooth Remote Controller,External Mic Cable,UV Filter
|
| Package Contents |
1 X Box 2
1 X Type-C Cable
1 X Curved Adhesive Mounts
1 X Flat Adhesive Mounts
1 X Standard Frame
1 X Mounting Buckle
1 X Manual
|
