Product Details
Features
- Toray T700 Carbon with silk coating
- 300mm wheelbase
- Supports Analog/Vista/DJI/HDZero FPV systems
- 19x19/20x20 FPV camera support
- 30x30 flight stack mounting holes in centre
- 20x20 or 30x30 mounting holes at rear
Specifications
| Material | Toray T700 carbon with silky coating |
| Wheelbase | 300mm |

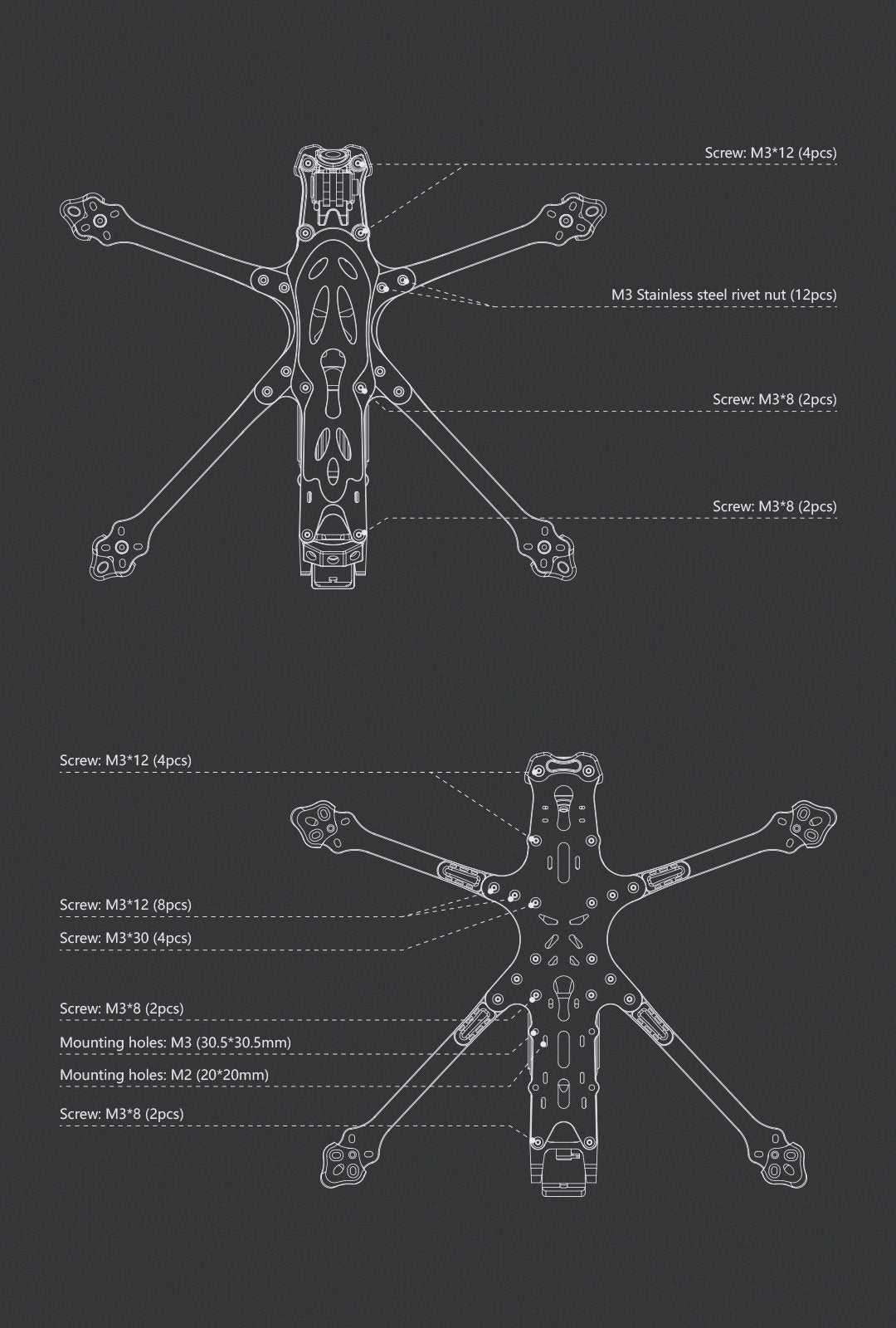

| Mouting hole | 30*30mm for stack; 20x20/30.5x30.5mm at tail |
| Camera size | 19x19/20x20mm |
| Max Battery Length | 150mm |
| System | Analog/Vista/DJI/HDZero |
| Weight | Weight 183.5g(excluded TPU Kit) |

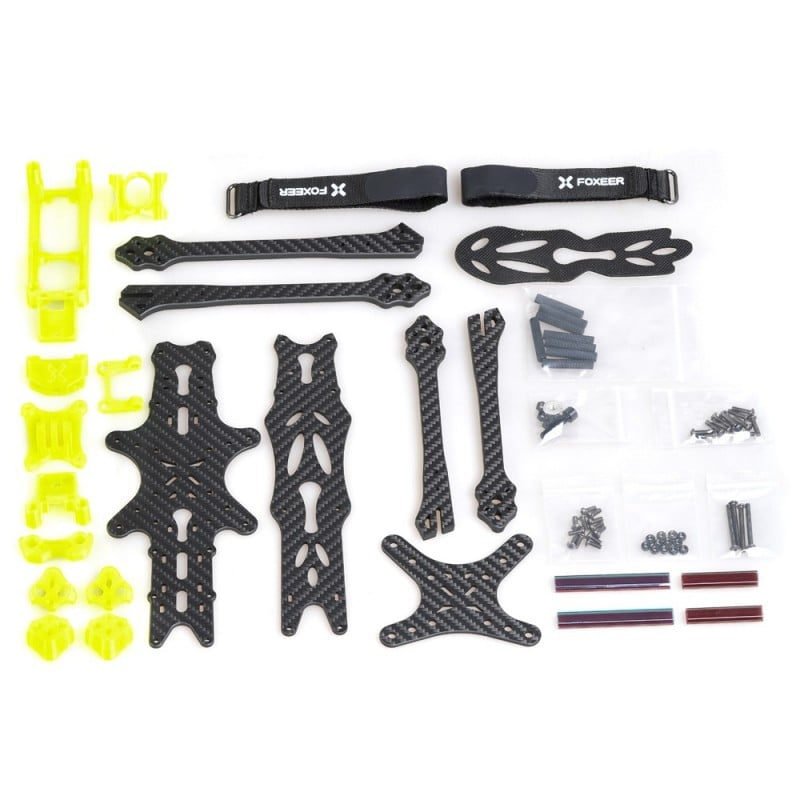

| Packing List | |
| 5.5mm Arm 16*16mm mounting - 4 | |
| 2.5mm Top Plate - 1 | |
| 2.5mm X-reinforce plate - 1 | |
| 2.5mm Bottom Plate - 1 | |
| Aluminum Column M3*Φ5.5*30 - 8 | |
| Aluminum Column M3*30 - 4 | |
| TPU Cam Mount - 1 | |
| TPU VTX & SMA Antenna Mount - 1 | |
| TPU Arm guard/Motor Mount - 4 | |
| TPU DJI GPS Mount - 1 | |
| TPU 915 Antenna Mount - 1 | |
| TPU GPS Mount - 1 | |
| TPU Gopro Mount - 1 | |
| TPU Bottom Plate Front Protective Mount - 1 | |
| M3*8 Screw - 12 | |
| M3*12 Screw - 12 | |
| M3*30 Screw - 4 | |
| M3*16 Screw - 4 | |
| M3*30 Screw - 4 | |
| M3 Nut- 12 | |
| M5 Nut - 1 | |
| M5*20 Screw - 1 | |
| Motor Wire Protector - 4 | |
| Battery Anti-slip Mat -1 | |
| 250*20mm Strap - 2 |
