Product Details

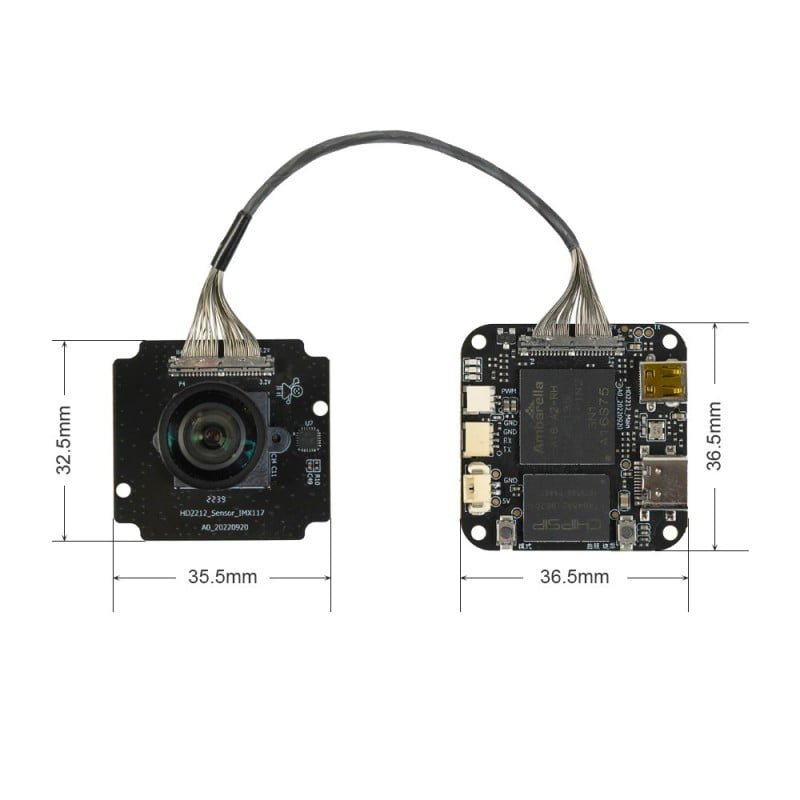

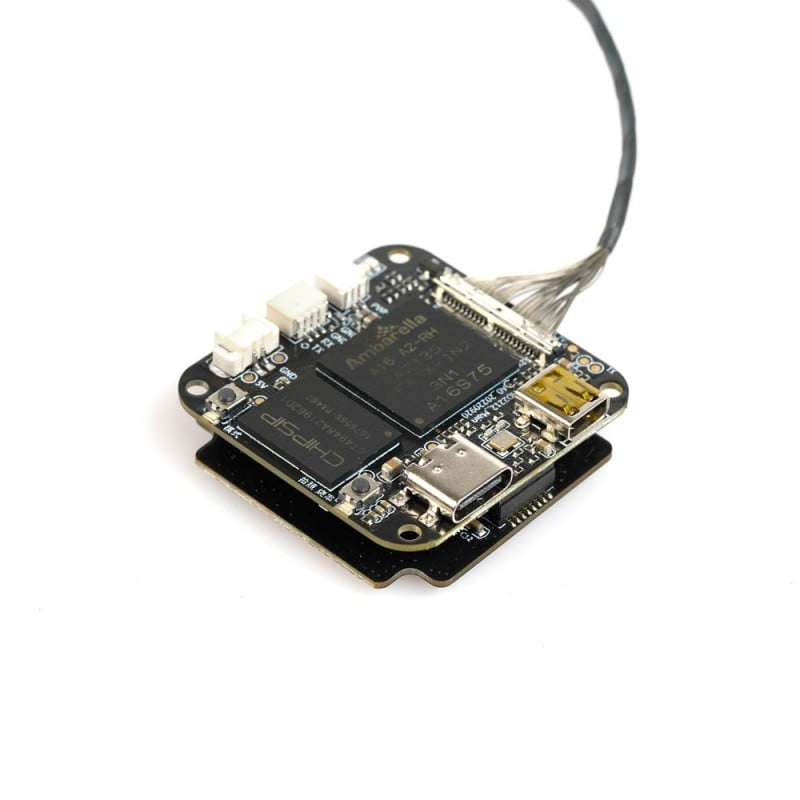

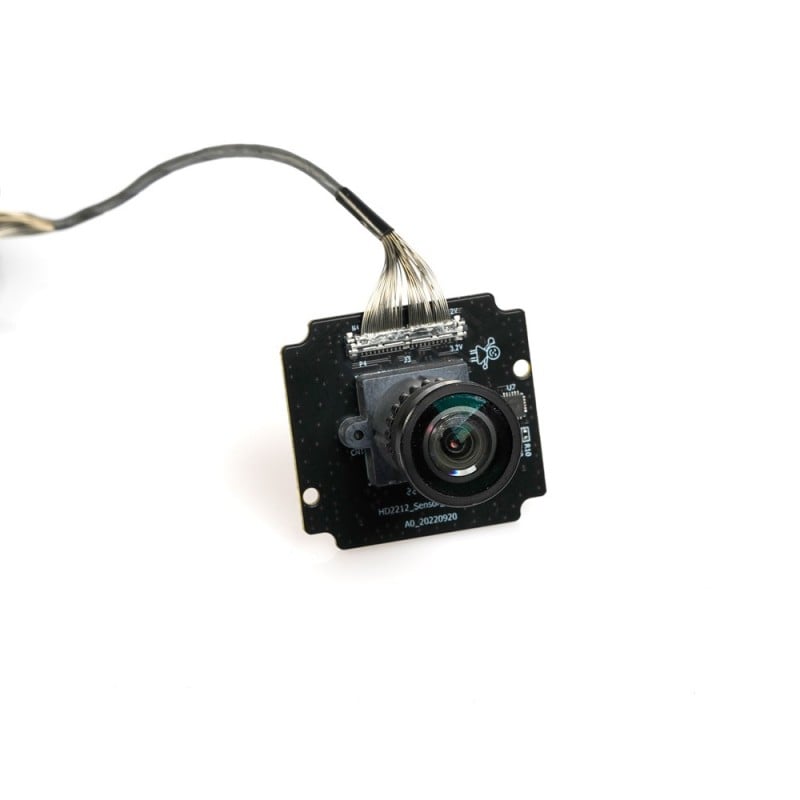

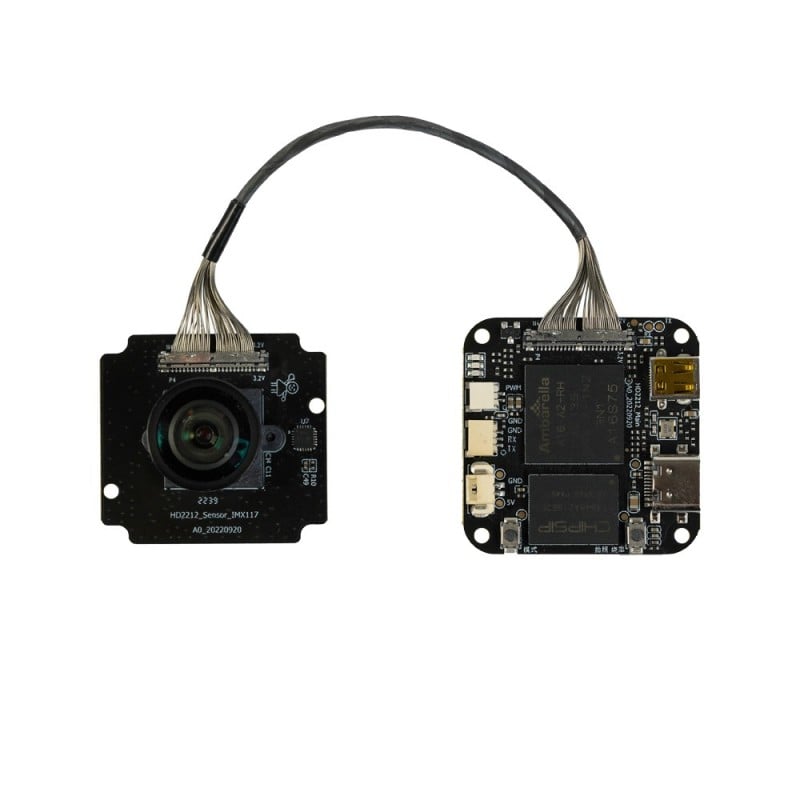

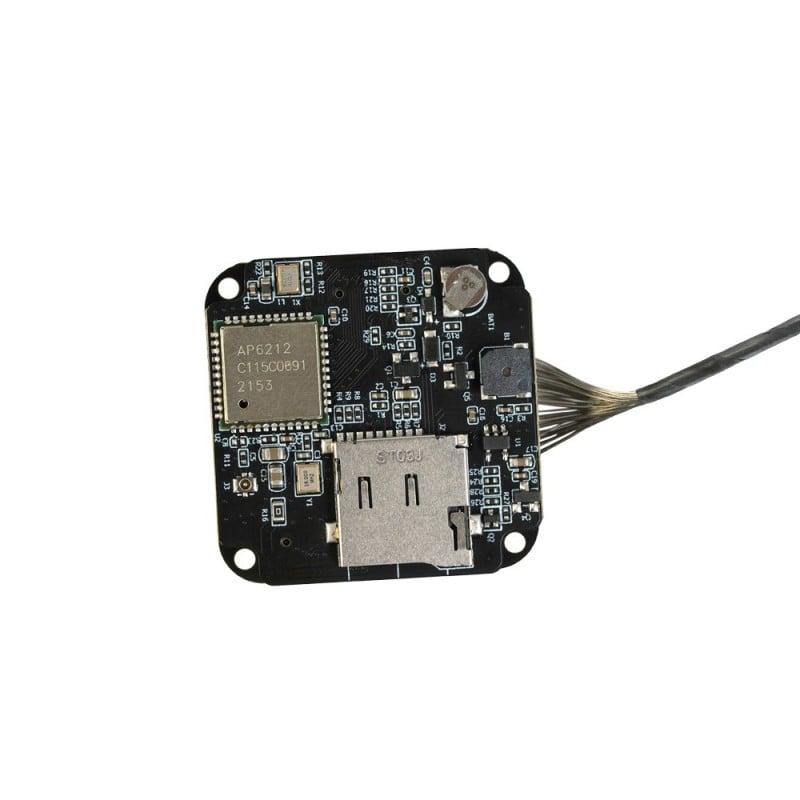

If you are looking to add a lightweight, high quality camera module to your custom UAV/Drone, then this module is ideal. it is essentially the same internals form the Foxxer Legend 3 4K camera. However with some features specific to what you will need on a UAV. This includes both AV-TX Out to an analog VTX, or HDMI out to a digital VTX system (such as herelink). YOu can also control this camera via PWM input to control the recording, or mode of this camera.
Foxeer 4K Ambarella A12 HD Camera Manual
Specifications
| Chip | Ambarella A12 |
| Sensor | Sony IMX117 1/2.3 Inch 12MP |
| ISO | AUTO,100, 200, 400, 800, 1600 |
| Lens | 90 degree Distortionless |
| TV Out | NTSC/PAL |
| Resolution | 4K 30fps |
| 2.5K 30fps, 60fps | |
| 1080P 120fps, 60fps 30fps | |
| 720P 240fps, 120fps | |
| Video loop length | 1min / 2min / 3min / 5min |
| Video Format | H.264 codec,mp4 |
| HBV | 60Mb/S |
| Photo resolution | 16M 14M 12M 8.3M 5M 3M |
| Auto Photo | Shooting interval time 3s 5s 10s 30s 60s |
| Single Photo | Support |
| Long Exposure | Shutter Time 1/30s, 1s, 2s, 5s, 10s, 30s, 60s |
| Metering Mode | Multi-spot |
| White Balance | Auto/Incandescent/D4000/D5000/Daylight/Cloudy/D9000/D10000/Flash/Fluorescent/underwater/Outdoor |
| Effect | Art/Brown/Negative/B&W/Vivid/70s Film |
| Auto Shutdown | Support |
| SD Card | U3 up to 128G |
| Input Voltage | 5V |
| Interface | Micro HDMI |
| USB | Type-C |
| Remote control | PWM control standby/recording and photo |
| Lens | Changeable |
| OEM/ODM | Support |
| Consumption | 2.75W Recording and Wifi On |
| Weight | 28g |
| APP | Search Foxeer on Google Play and APPStore, Choose HS1223 in APP. |
Sample Footage
This is taken with the Foxeer Legend 3, but the internals are the same as this camera module, just with a different FOV lens.
