Product Details
The battery is designed to hang on top, the center of gravity is centered, and it is very easy to control.With VTC64S3000mAh battery
Up to 25 minutes in the air. Break through the conventional traversing machine and bring a new experience!
Specifications

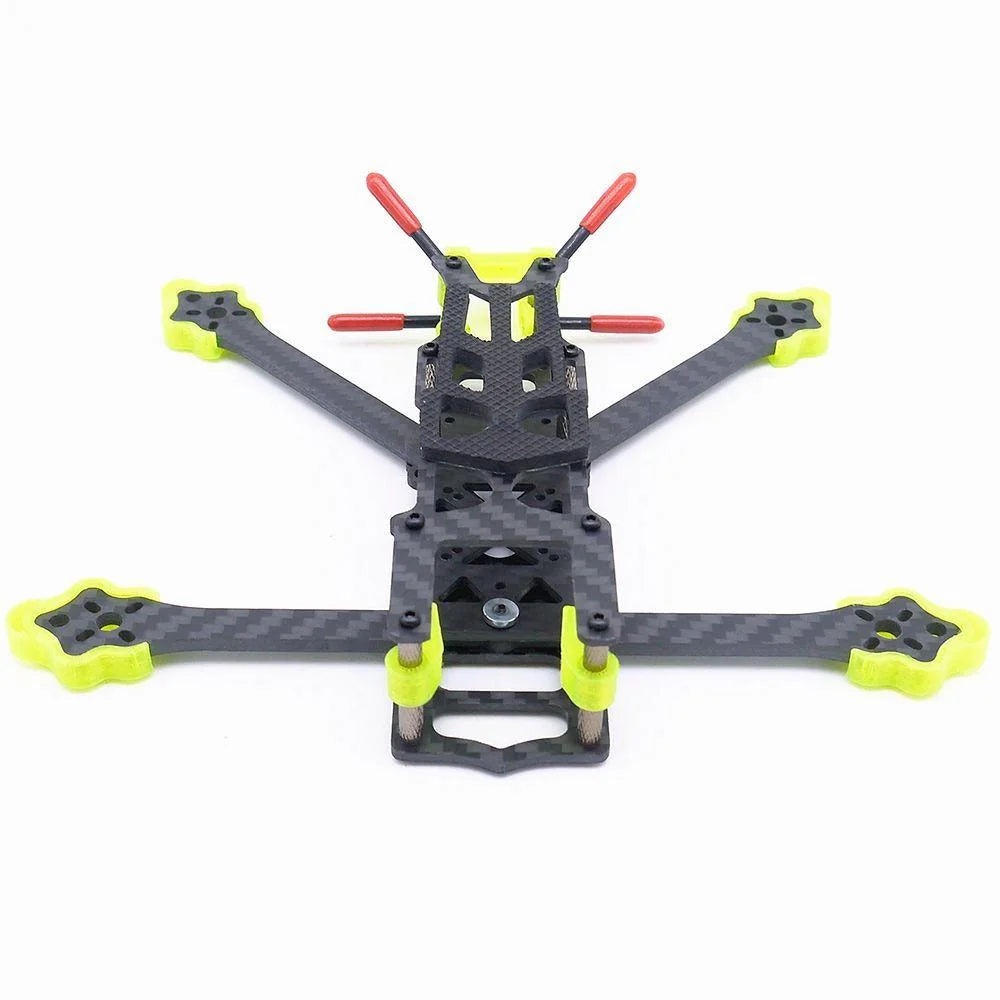

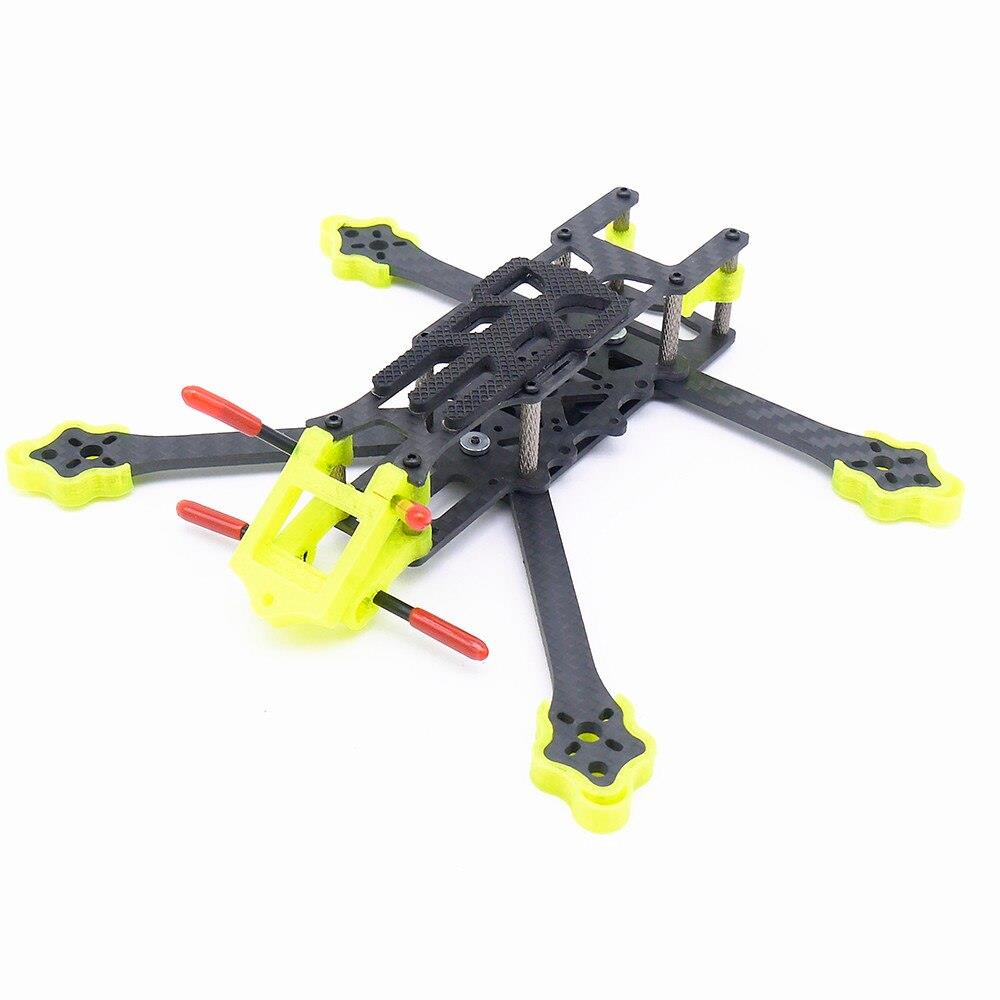

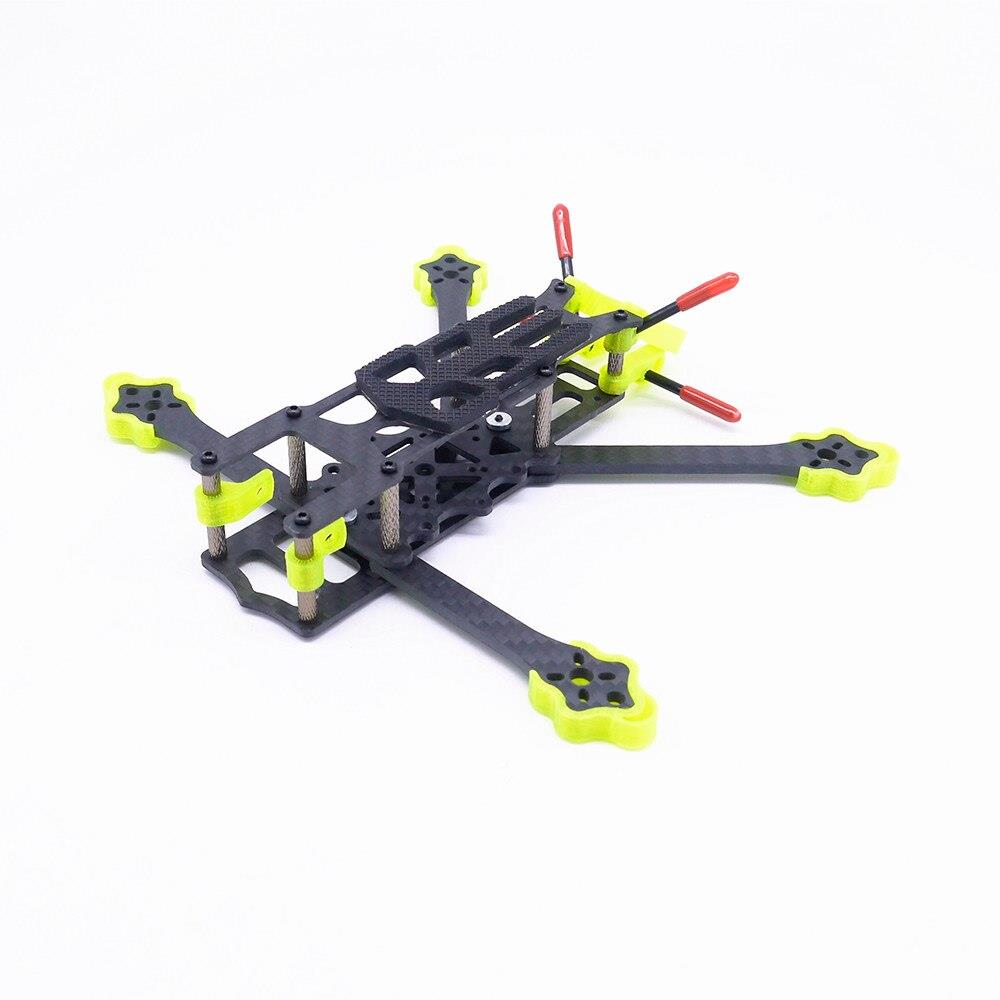

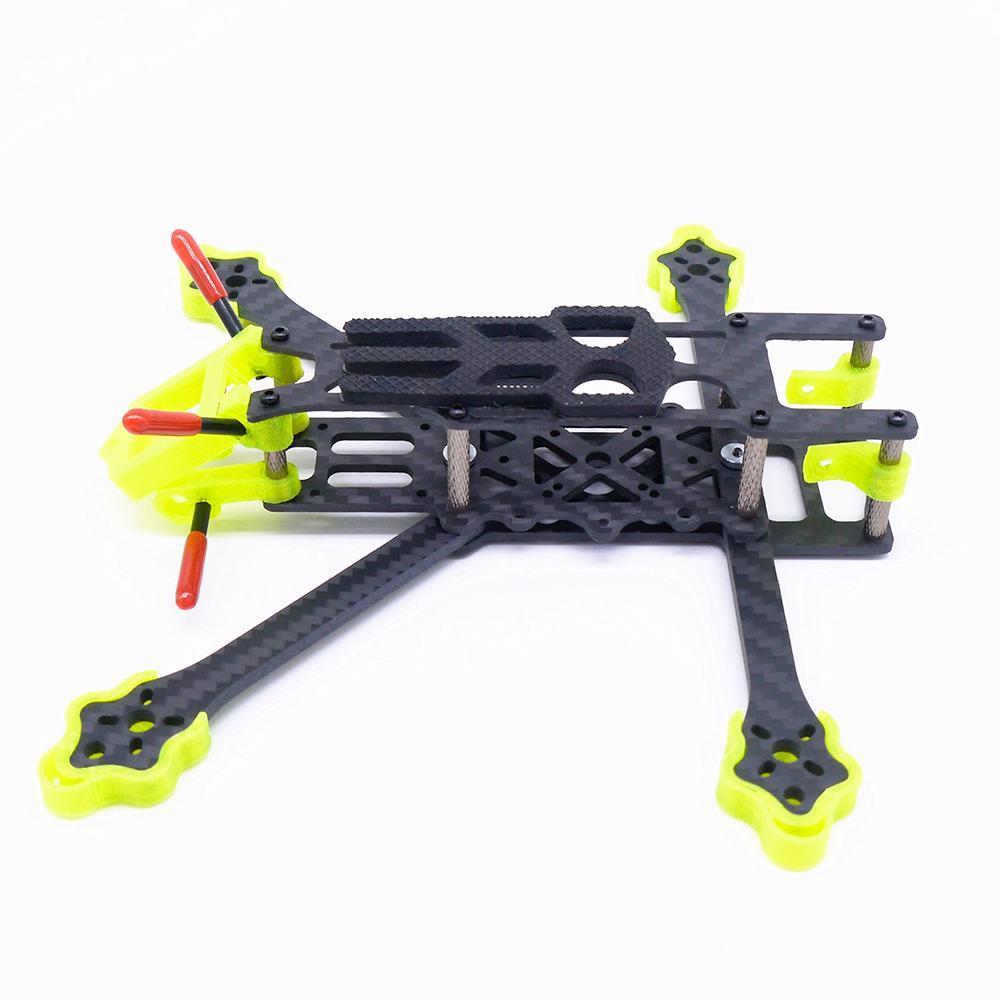

- Item Name: FonsterFpv Raven Frame kit
- Wheelbase: 170mm

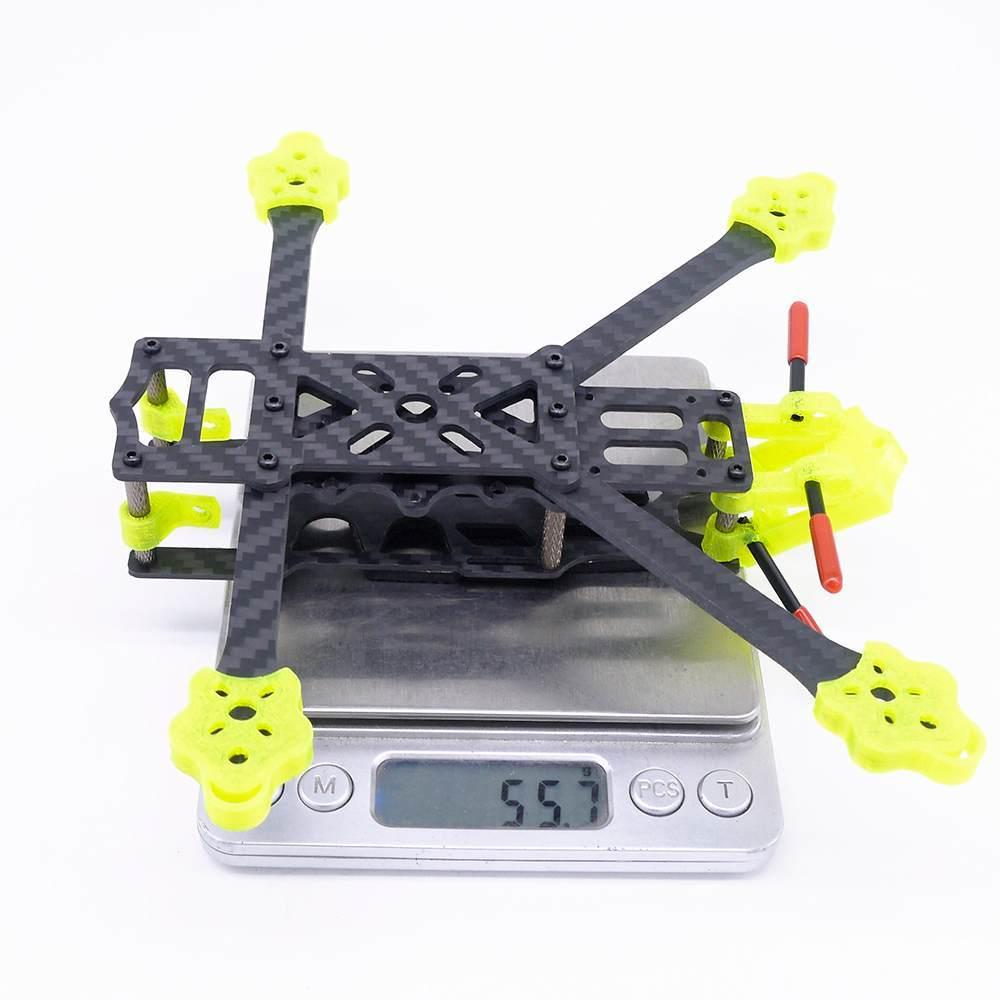

- Weight: 55.7g
- Arm Plate thickness: 3.0mm
- Other accessories thickness: 2.0mm
- Paddle: 4.0 inch paddle
- Flight control hole distance: 16*16mm, 20*20mm, 25.5*25.5mm, 30.5*30.5mm
- Image transmission hole distance: 20*20mm
- Camera installation width: 19mm/20mm
- Motor mounting hole position: 9x12mm
Recommended Parts
- Motor: 1505 3450KV motor
- Battery: 3S/4S 1100mah or 3-4S 18650
- Propeller: T4*2.5 two blades/4024 two blades
- GPS: BN-220 GPS
Included
- FonsterFpv Raven 170mm Frame Kit
- TPU Accesories
