Product Details

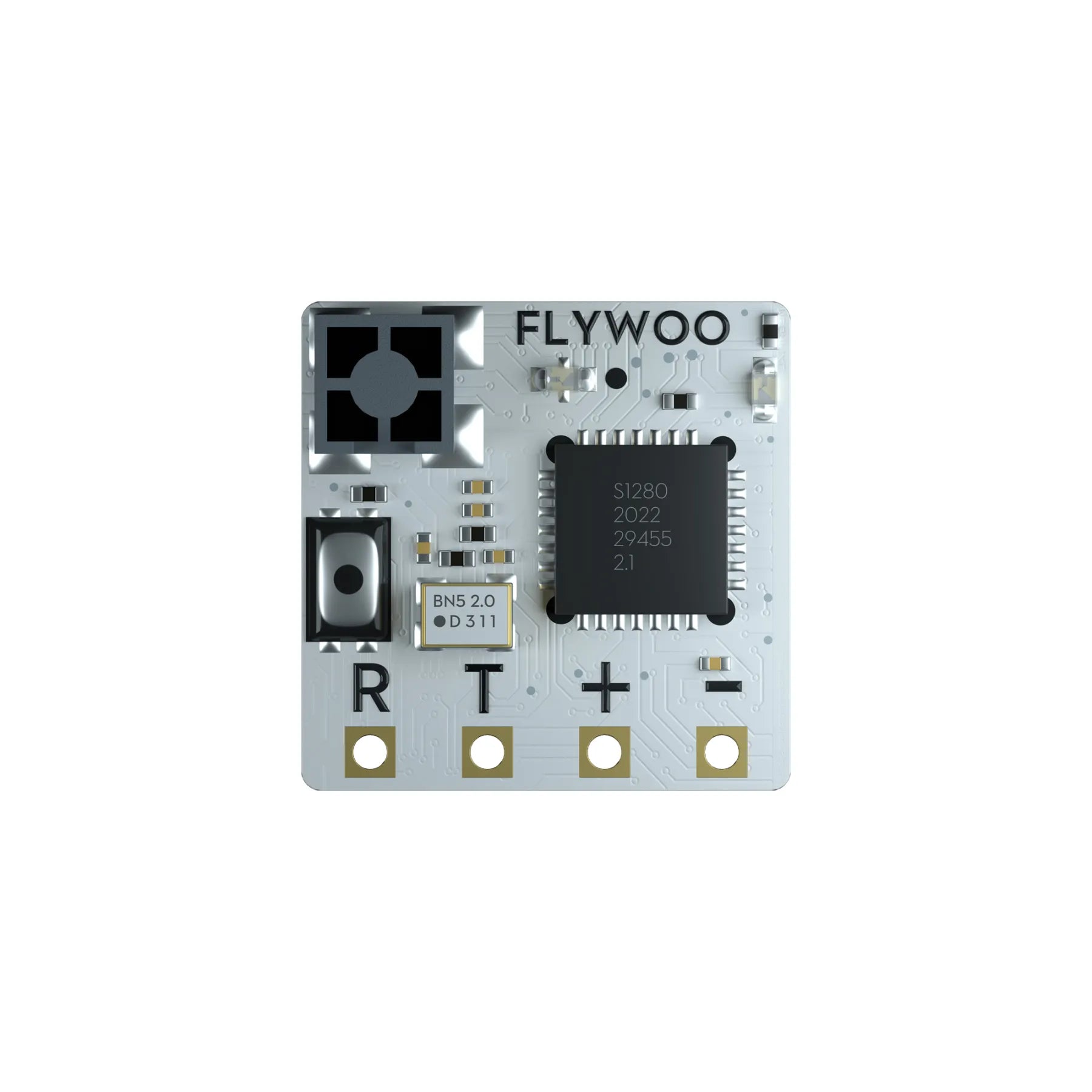

Flywoo TCXO 2.4G ELRS: Precision Redefined
Introducing the Flywoo TCXO 2.4G ELRS receiver—your ultimate solution for extending the range and reliability of your RC links. With a temperature-compensated crystal oscillator, this module significantly boosts the accuracy of the MCU clock frequency, leading to superior performance and dependable connections. Say goodbye to range anxiety and hello to uninterrupted, long-distance control.
Key Features
- Enhanced MCU Clock Frequency Accuracy: Guarantees reliable performance.
- Improved RC Link Performance: Ensures robust and consistent connections.
- Extended Control Distances: Operate devices from further away with confidence.
- Low Latency & High Refresh Rates: Enjoy seamless, real-time control.
- EL24E Version: Features a built-in SMD antenna.
- EL24P Version: Comes with an IPEX connector for a dipole antenna.
- Based on ESP8285 MCU: Reliable and upgradeable via WiFi.
- Equipped with SX1280 (or SX1281) IMLTRT RF Module: Advanced RF performance.
Specifications
General
- Type: ISM2.4GHz
- MCU: ESP8285
- RF Module: SX1280 (or SX1281) IMLTRT
- Frequency Range: 2400 MHz to 2500 MHz
- Receive Refresh Rate: 25Hz~500Hz
- Working Voltage: 5V

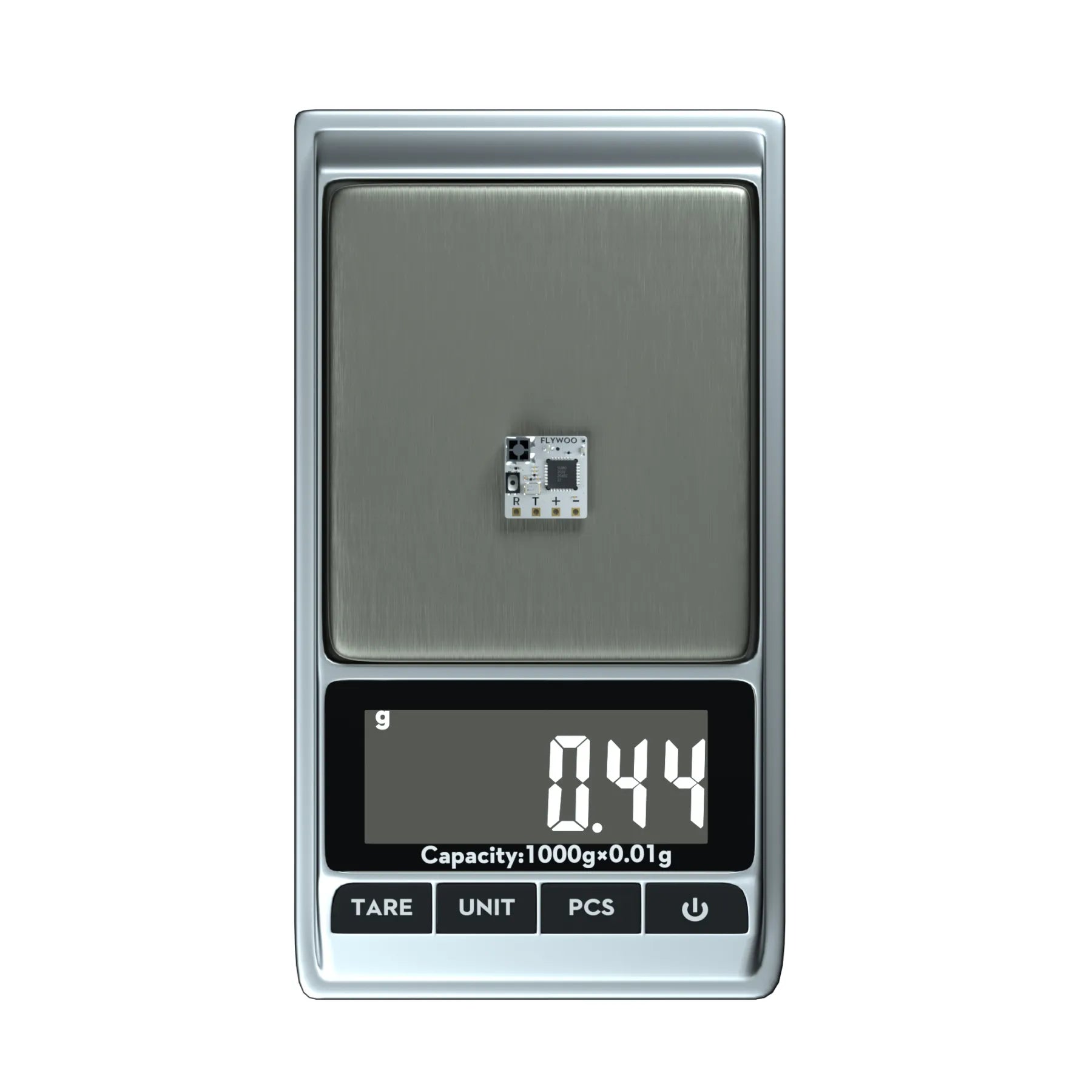

- Weight: 0.44 grams (without antenna)

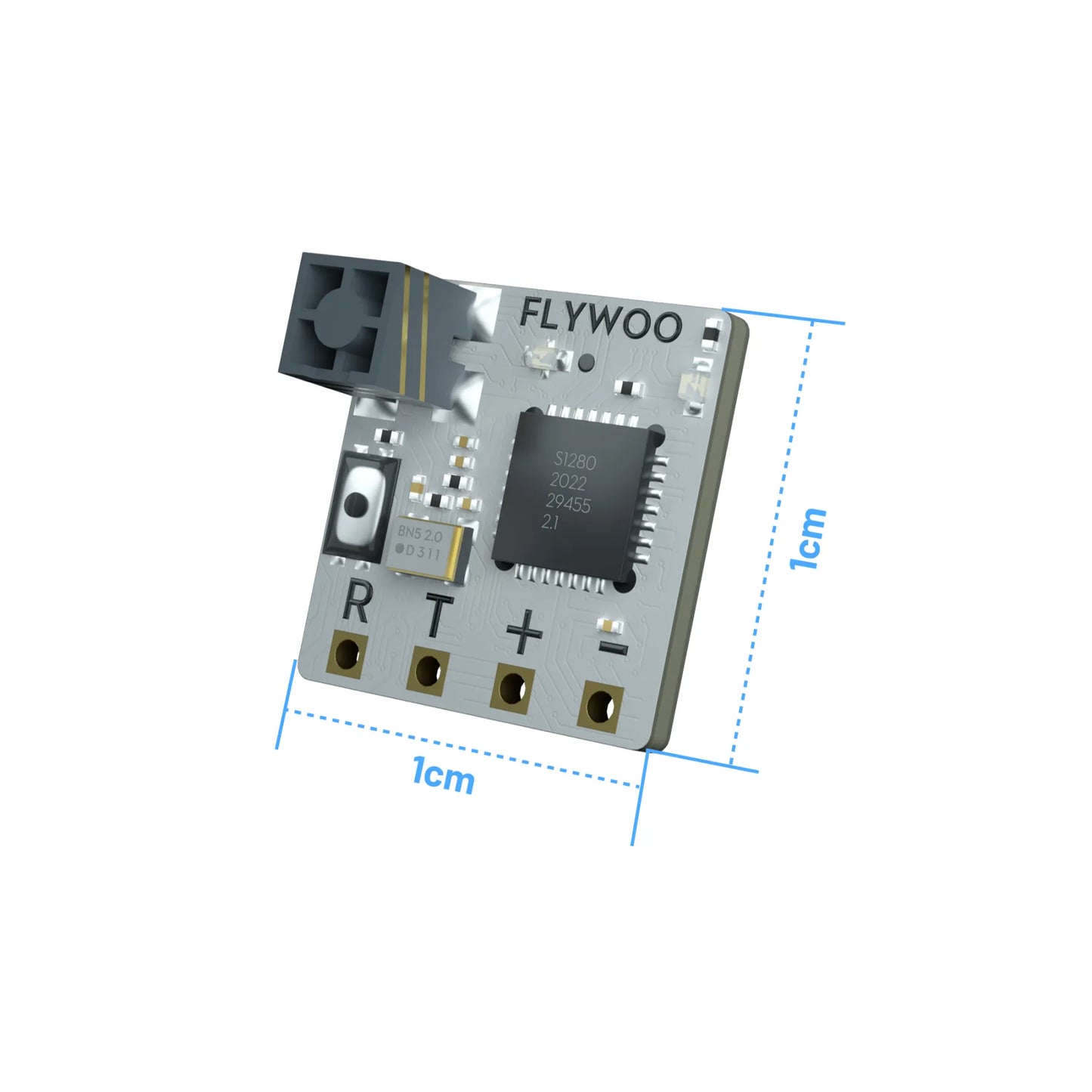

- Dimensions: 10mm x 10mm x 6mm
- Communication Protocol: CRSF (Betaflight)
- Peak Gain: 3.7dB
Firmware
- Default Firmware: Flywoo EL24E 2.4GHz RX 3.0.0

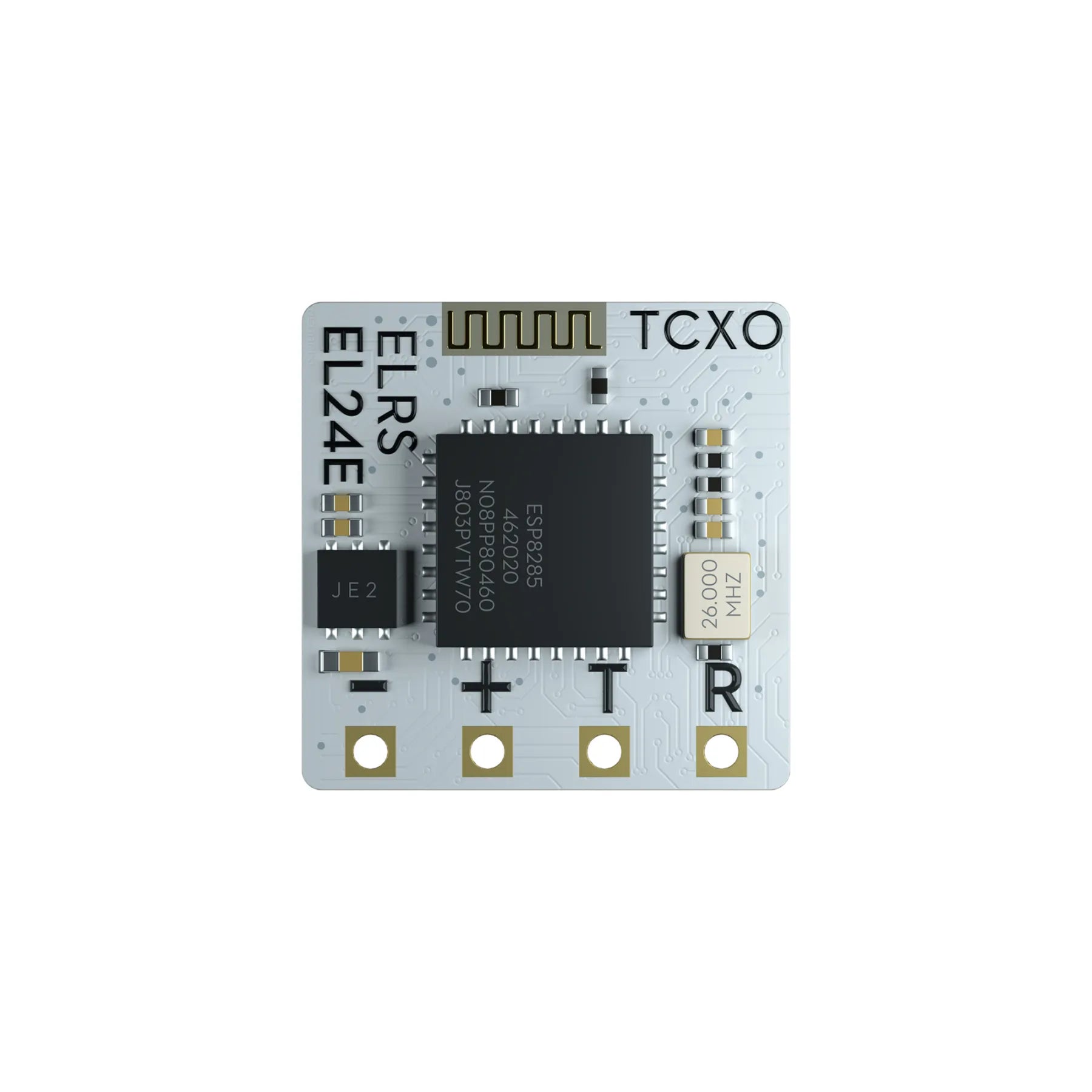

- Built-in TCXO: Temperature-compensated crystal oscillator for enhanced stability.
What's in the Box?
- 1 x Flywoo TCXO 2.4G ELRS EL24E
- 1 x Silicone Cable
- 1 x Heat Shrink Tubing
Disclaimer: Accessories may vary based on supply
