Product Details
Flywoo TCXO 2.4G ELRS: Your Gateway to Unmatched RC Performance
Meet the Flywoo TCXO 2.4G ELRS Receiver—the latest innovation that takes your RC control to new heights. Featuring a temperature-compensated crystal oscillator (TCXO), this module fine-tunes the accuracy of the MCU clock frequency, ensuring superior performance and reliability of your RC link. Say hello to extended control distances and enjoy the benefits of low latency and high refresh rates for seamless operations.
Key Features
- Enhanced MCU Clock Frequency Accuracy: Delivers precise and reliable control.
- Improved RC Link Performance: Boosts overall connection stability.
- Extended Control Distances: Operate your devices over greater distances with confidence.
- Low Latency & High Refresh Rates: Experience smooth, real-time control.
- EL24P Version: Includes an IPEX connector for a dipole antenna.
- Based on ESP8285 MCU: Upgradeable via WiFi for future-proofing.
- Equipped with SX1280 (or SX1281) IMLTRT RF Module: Advanced radio frequency capabilities.
Specifications
General
- Type: ISM2.4GHz
- MCU: ESP8285
- RF Module: SX1280 (or SX1281) IMLTRT
- Frequency Range: 2400 MHz to 2500 MHz
- Receive Refresh Rate: 25Hz~500Hz
- Working Voltage: 5V

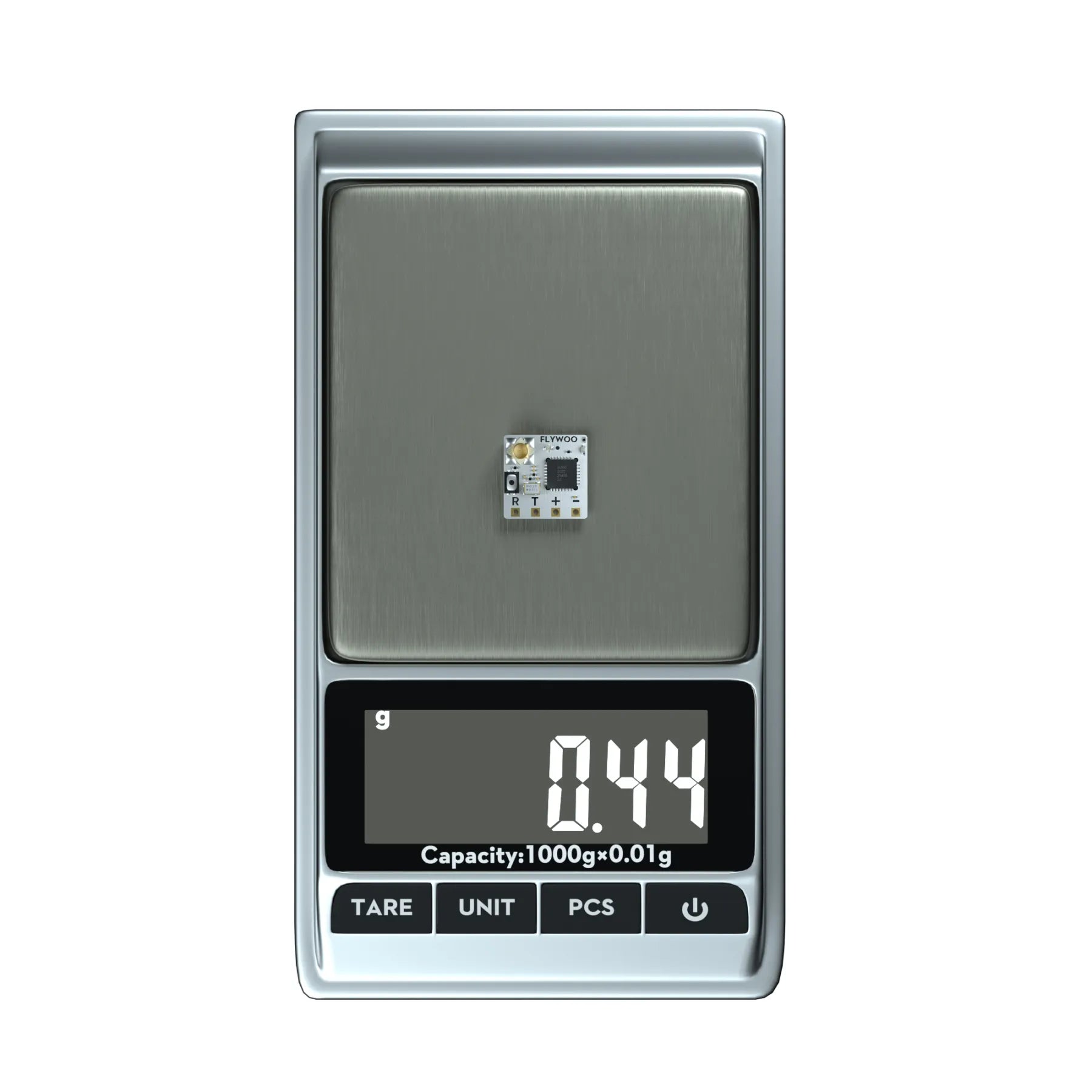

- Weight: 0.44 grams (without antenna)

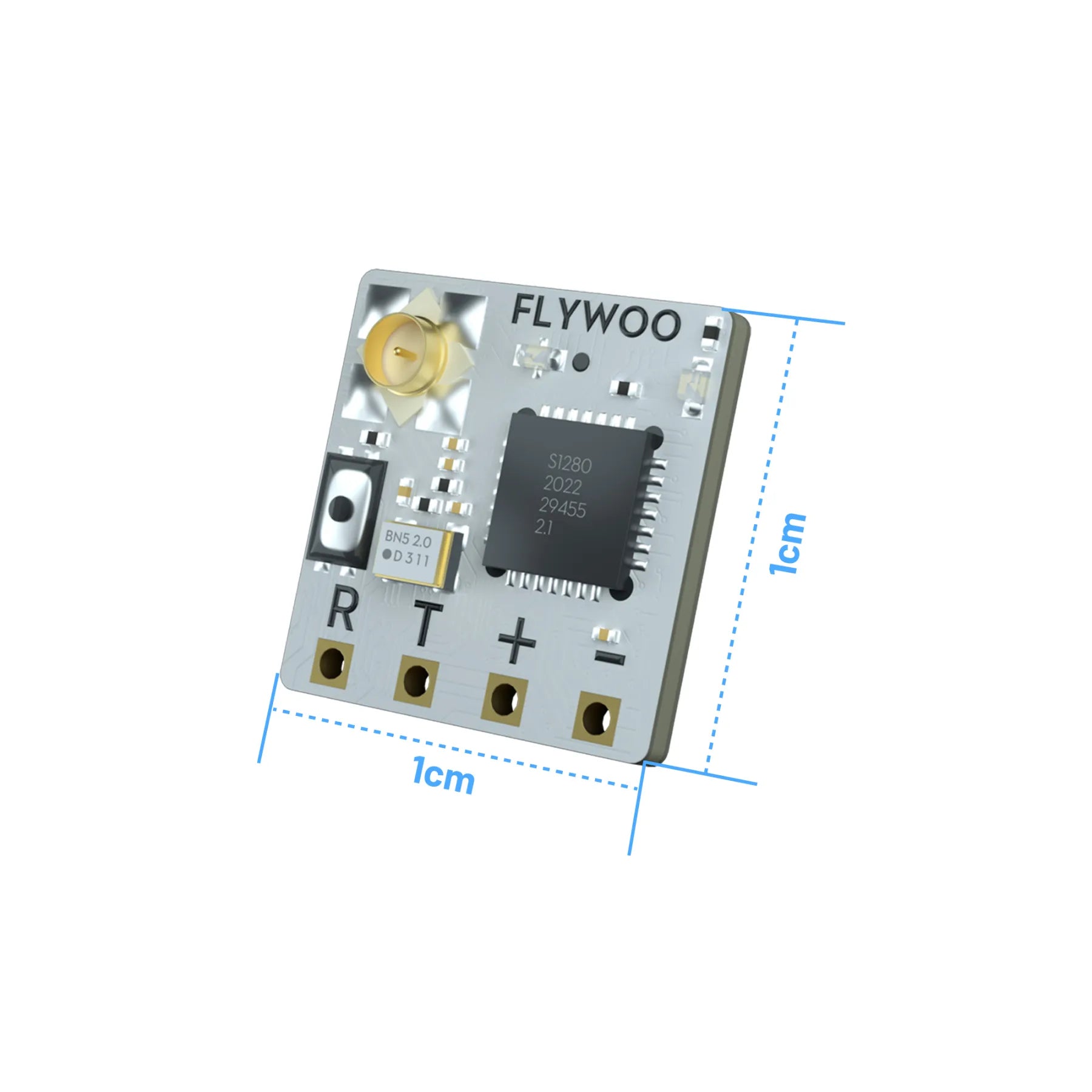

- Dimensions: 10mm x 10mm x 6mm
- Communication Protocol: CRSF (Betaflight)
- Peak Gain: 3.7dB
Firmware
- Default Firmware: Flywoo EL24E 2.4GHz RX 3.0.0
- Built-in TCXO: Ensures temperature-compensated accuracy for stable operations.
What's in the Box?
- 1 x Flywoo TCXO 2.4G ELRS EL24P
- 1 x Silicone Cable
- 1 x Heat Shrink Tubing

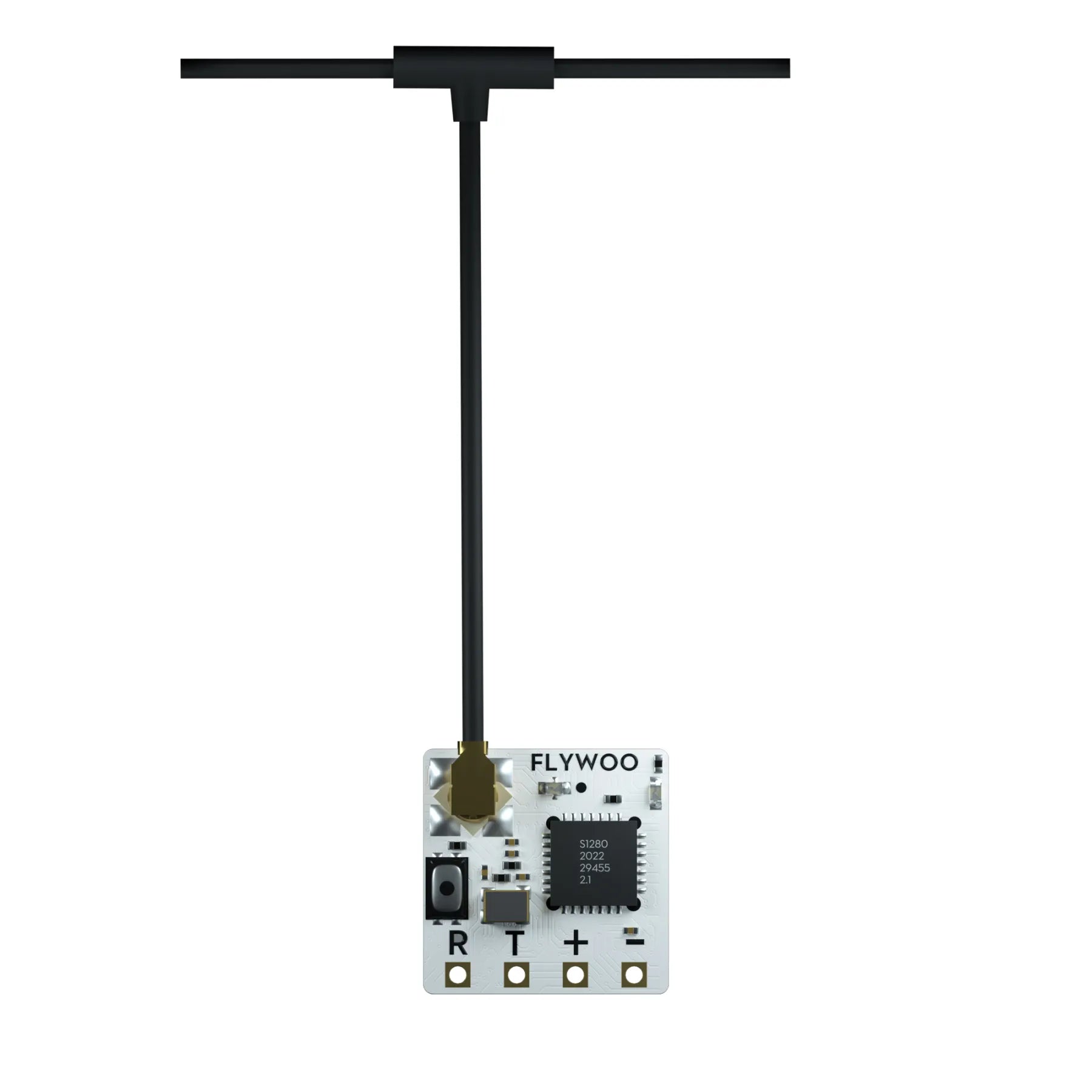

- 1 x T Antenna
Disclaimer: Accessories may vary based on supply.
