Product Details

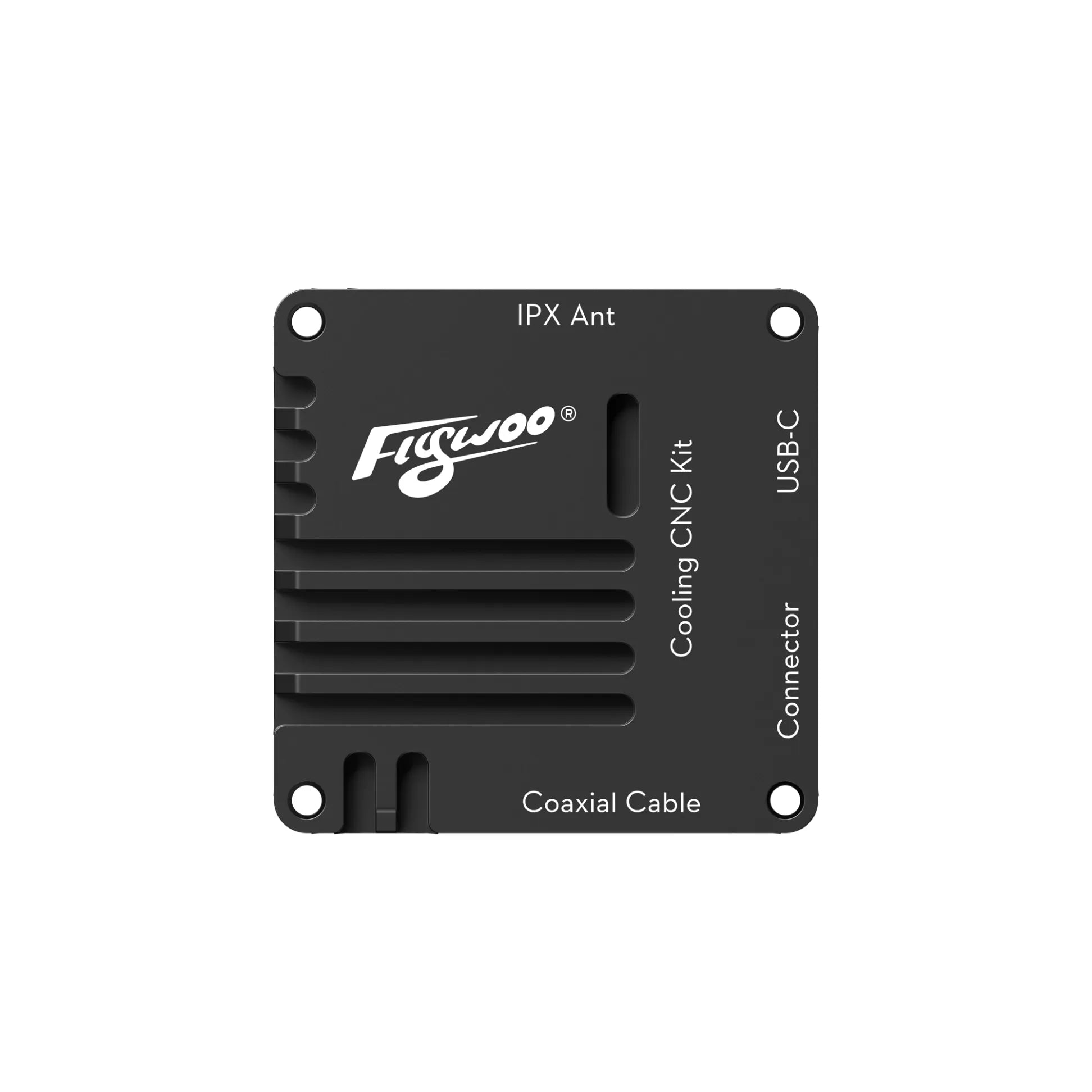

Flywoo CNC Aluminum Heatsink & Mount Kit for DJI O4 Air Unit - Lightweight Cooling & Protection
Keep your DJI O4 Air Unit running cool and protected with the Flywoo O4 CNC Combo Kit . Engineered specifically for the demanding O4 system, this premium cooling solution is crafted from a single piece of aviation-grade 6061 aluminum . This unibody design provides both exceptional heat dissipation and robust structural protection in one sleek package.
Searching for a way to prevent thermal throttling and enhance the reliability of your DJI O4? This aluminum heatsink significantly improves cooling performance. When combined with Flywoo's lightweight O4 camera housing (available in the Combo option), this kit achieves a remarkable 3g weight reduction compared to standard solutions, with the CNC kit itself weighing only 5.1g . Don't sacrifice durability for weight - this kit offers both.
Designed for maximum compatibility, the Flywoo O4 CNC Kit supports both 20x20mm and 25.5x25.5mm M2 mounting configurations , making it a versatile upgrade for almost any FPV drone frame accommodating the DJI O4 Air Unit. Ensure optimal performance and longevity for your expensive VTX with this essential DJI O4 accessory .
Key Features:
- Optimized O4 Cooling: Specifically designed heatsink significantly improves heat dissipation for the DJI O4 Air Unit.
- Aviation-Grade Aluminum: Unibody CNC construction from 6061 aluminum for durability and thermal conductivity.
- Lightweight Performance: Weighs only 5.1g, minimizing impact on your drone's agility.
- Enhanced Protection: Provides robust structural protection for the O4 module.
- Synergistic Weight Savings: Achieves a 3g weight reduction when used with Flywoo's O4 Cam Shell (included in Combo).
- Universal Mounting: Supports both 20x20mm and 25.5x25.5mm M2 mounting patterns.
Specifications:
- Color: Black
- Material: 6061 Aviation Aluminum

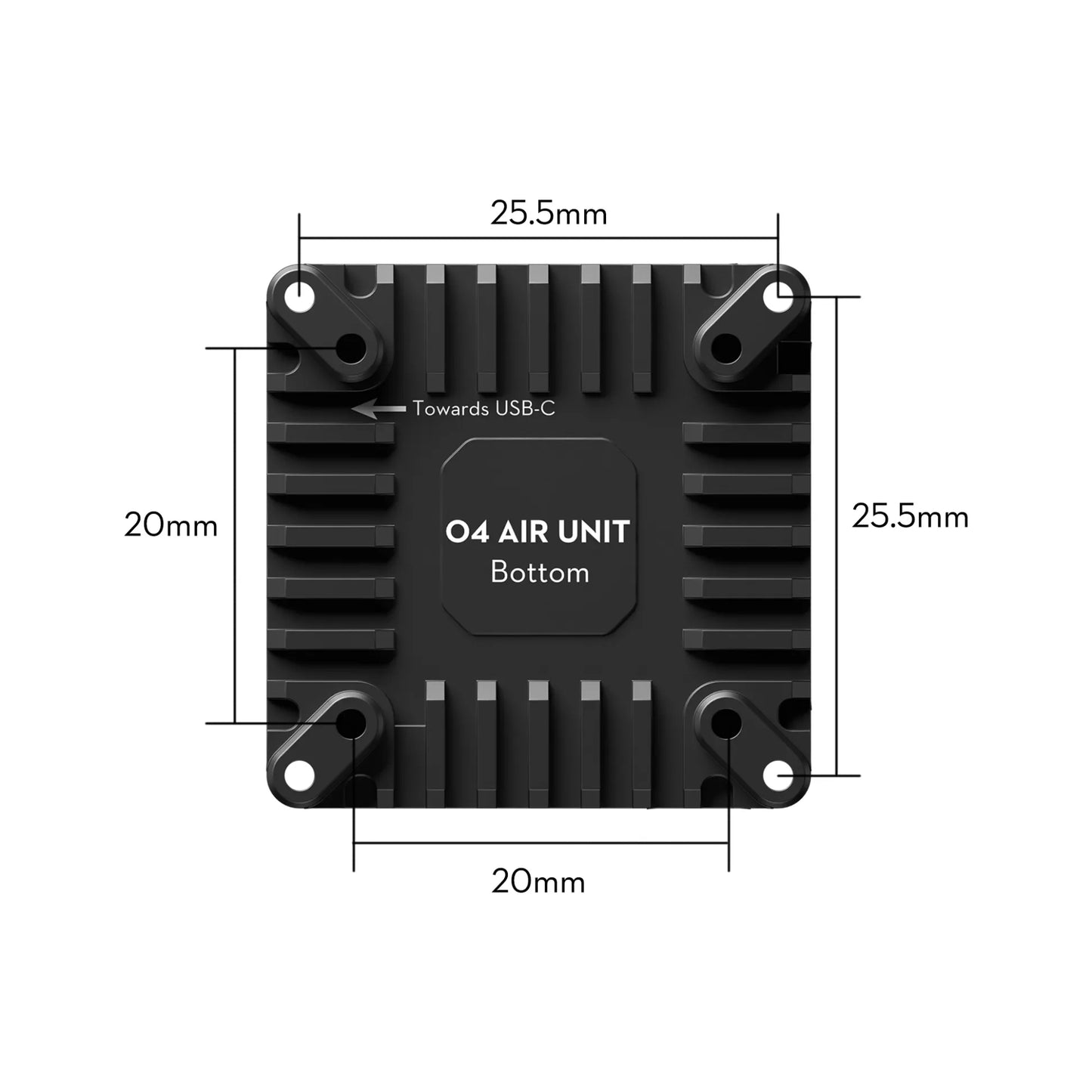

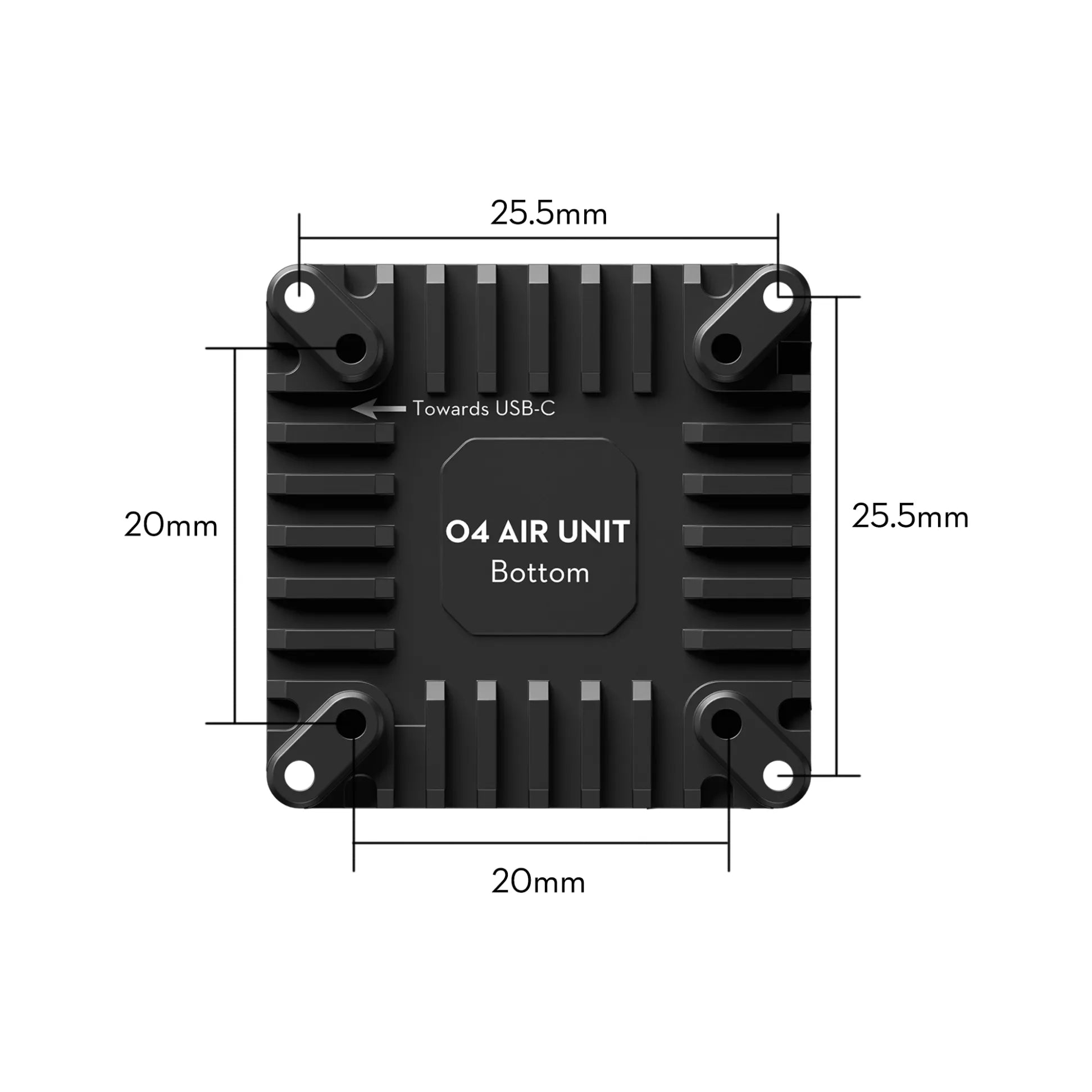

- Mounting Holes: M2 20mm x 20mm / 25.5mm x 25.5mm

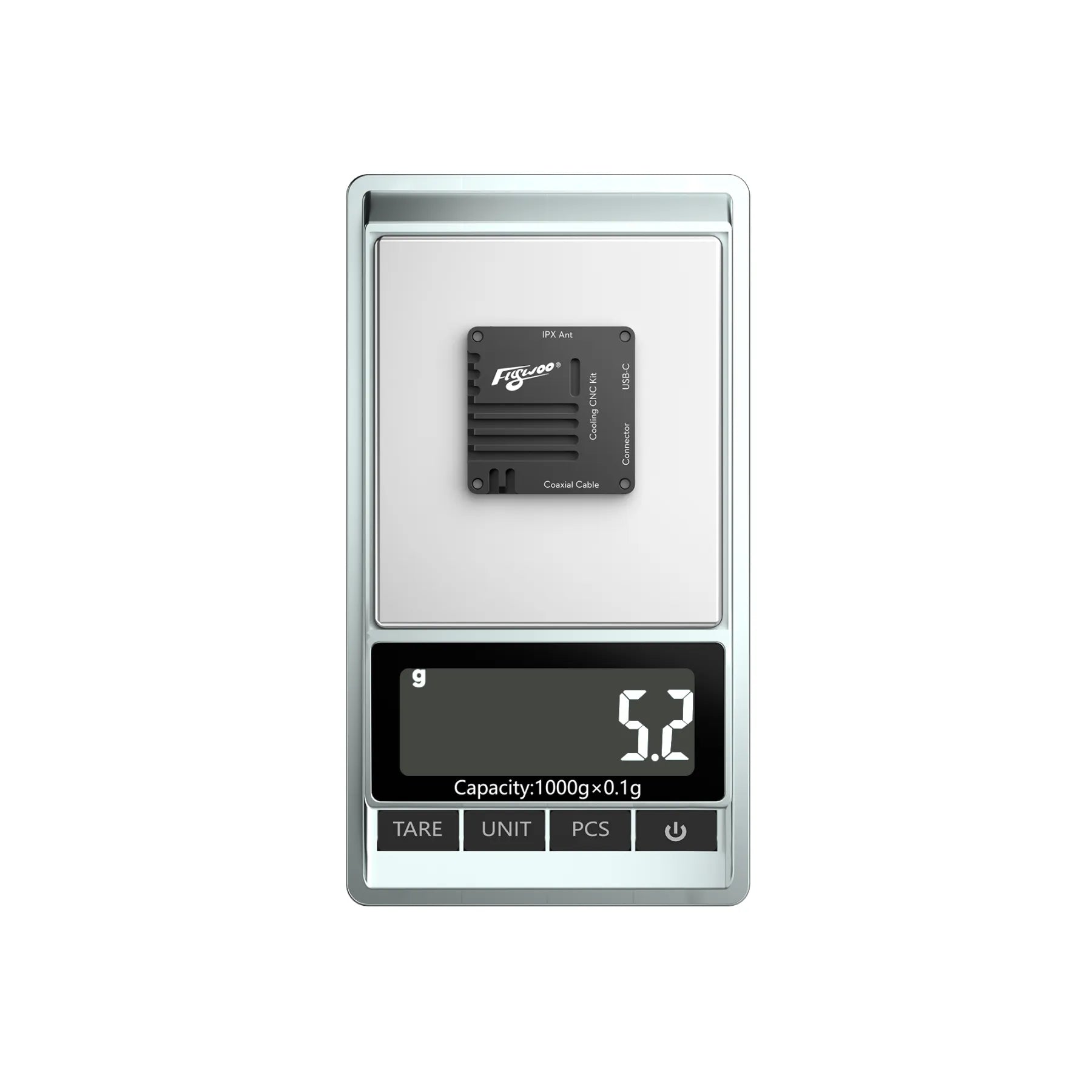

- Weight: 5.1g
- Dimensions: 29mm x 29mm x 10mm

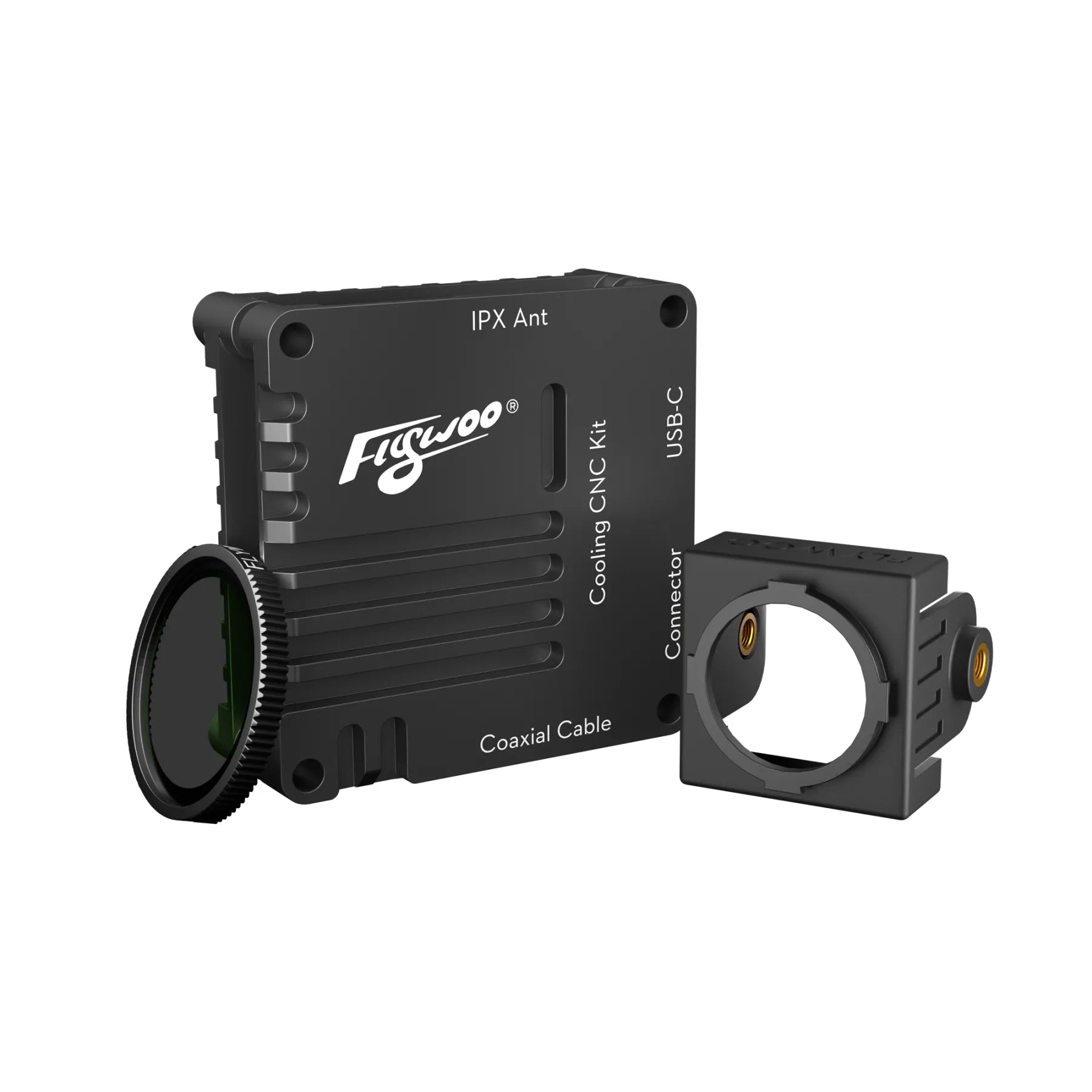

What's in the Box:
- 1x Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL
- 1x Flywoo O4 Cam Shell - Black
- 1x Flywoo O4 UV Filter
- 1x O4 CNC Kit
-
2x
thermal grease
- 4x M2X7 Screws
Disclaimer: Please note: Included accessories such as screw types or thermal grease packaging may vary slightly based on manufacturer supply and batch.
