Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4G (16x16) - Small Size, Big Performance
The Flywoo GOKU GN405 Nano HD FC V3 is a powerhouse flight controller packed into a compact 16x16mm form factor. Designed for micro drone builds that demand precision without compromise, it features the STM32F405 BGA MCU and the ultra-reliable ICM-42688P gyro , ensuring smooth, responsive flight performance.
Equipped with a high-precision TCXO ELRS 2.4G receiver , this FC provides rock-solid connectivity for long-range and freestyle flights alike. The inclusion of six UART ports offers extensive expansion options for all your peripherals, and the plug-and-play compatibility with DJI O3/O4 air units makes it an excellent choice for high-quality HD video transmission.
The USB-C port streamlines connectivity, ensuring fast firmware updates and easy configuration without the hassle of outdated cables. With support for 2-6S LiPo input , this FC is versatile enough to power anything from nimble micros to more aggressive freestyle builds.
Key Features:
- Compact 16x16mm mounting holes - Perfect for tight builds.
- STM32F405 BGA MCU - Reliable processing power for precise control.
- ICM-42688P Gyro - Smooth and stable flight performance.
- Built-in TCXO ELRS 2.4G receiver - High-precision connectivity for reliable control.

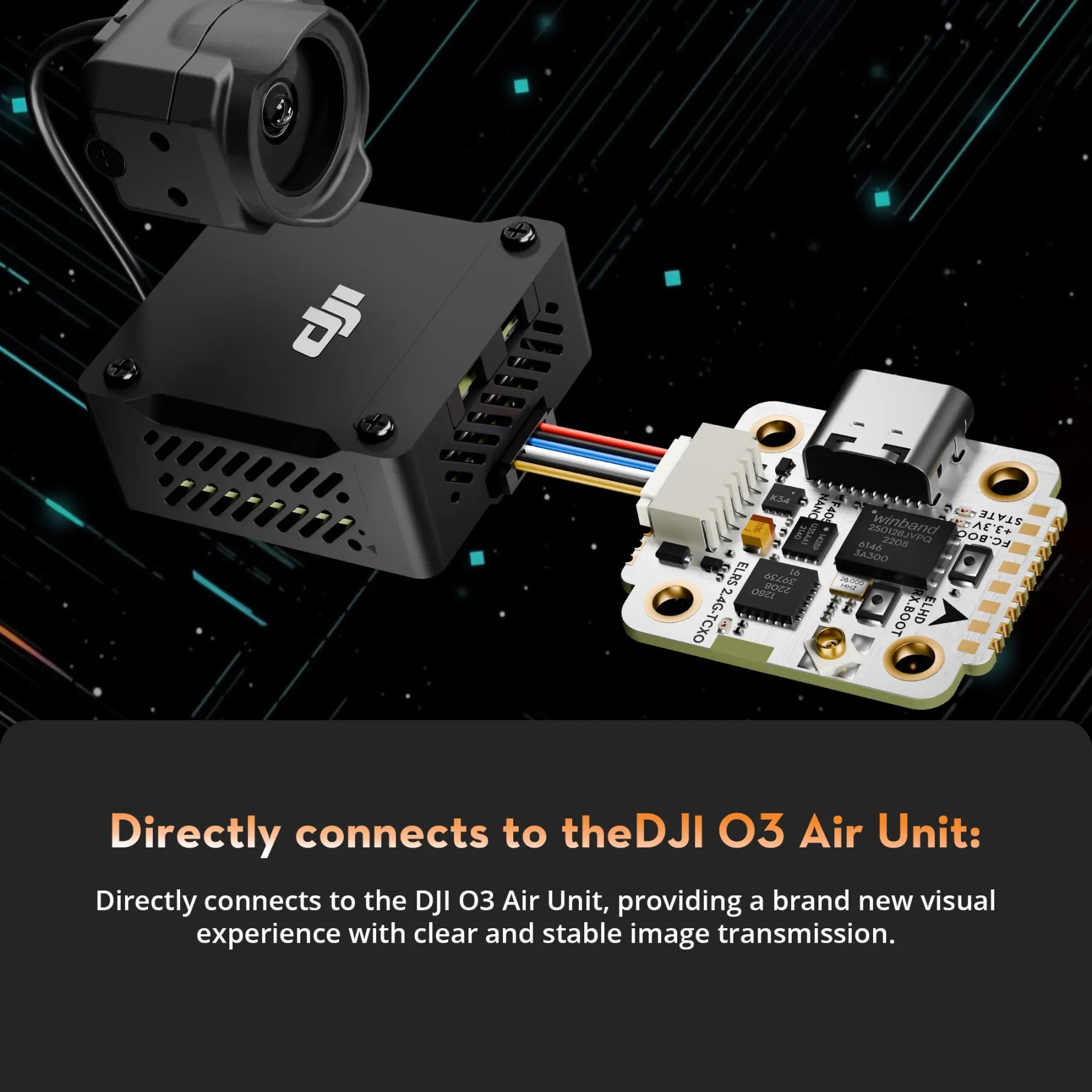

- DJI O3/O4 plug-and-play support - Seamless digital video transmission integration.
- Six UART ports - Plenty of room for your favorite add-ons.

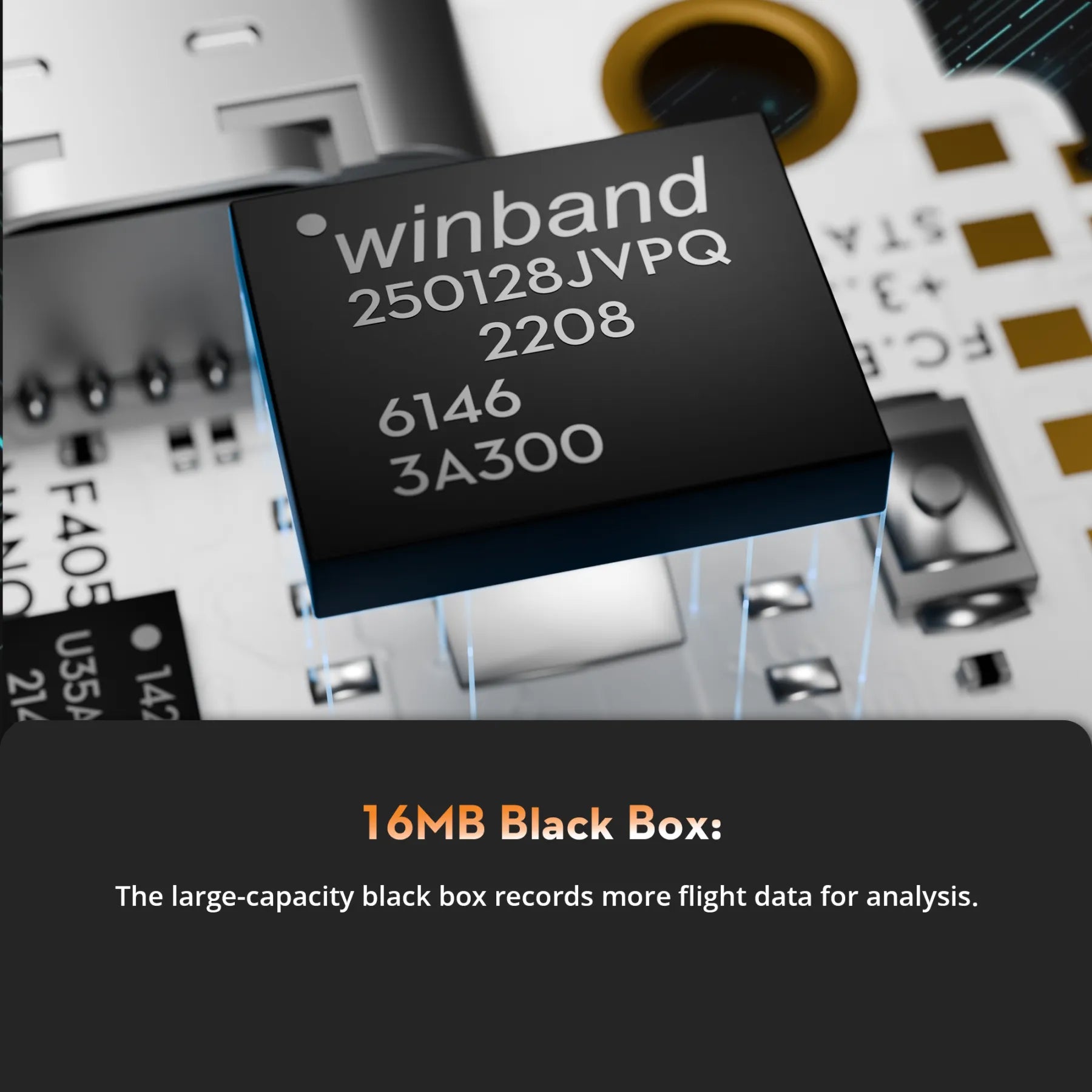

- 16MB Black Box - Capture flight data for better tuning and performance insights.

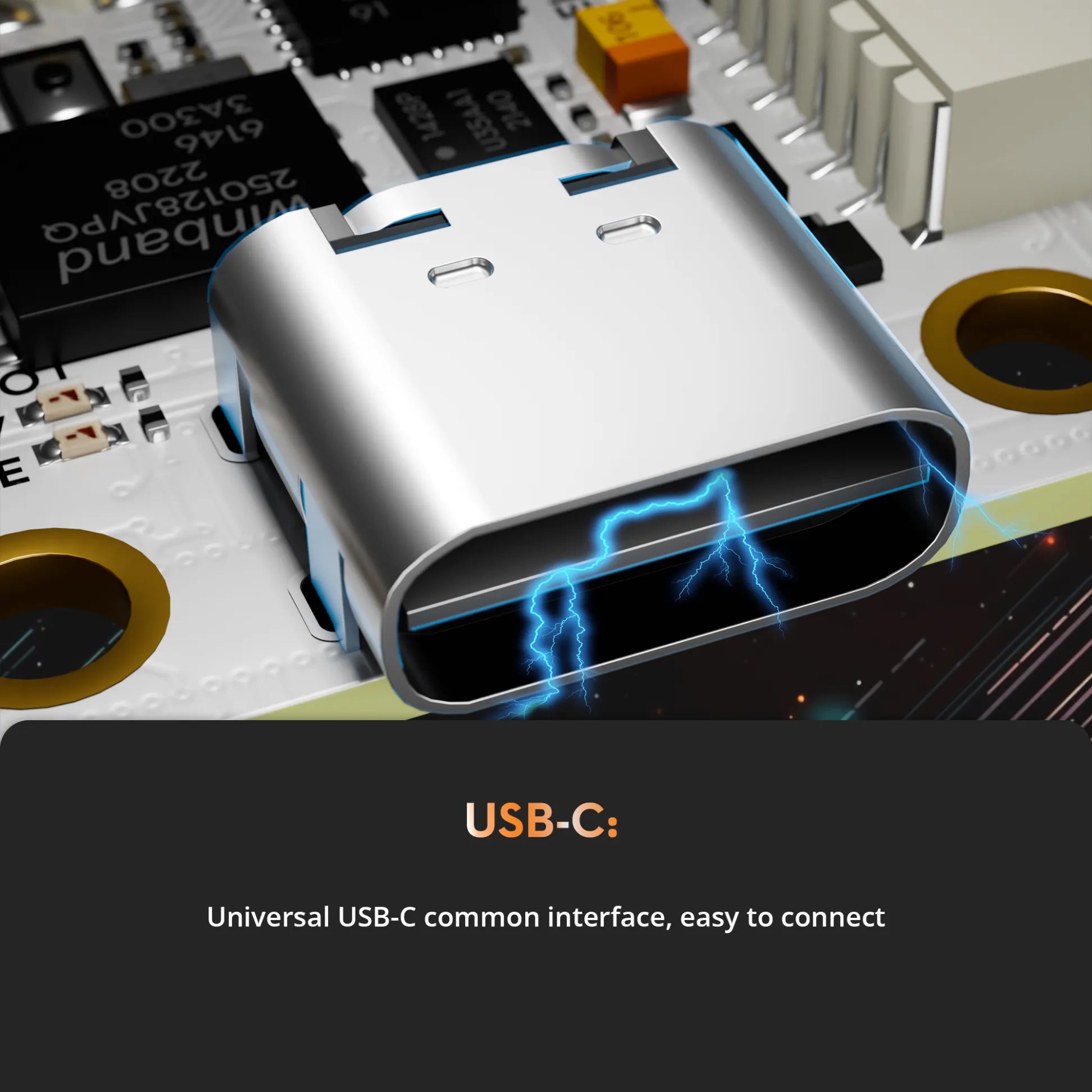

- USB-C connectivity - Modern, hassle-free updates and configuration.
- 2-6S LiPo support - Wide voltage range for versatile builds.
Specifications:
- Model: Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4G
- MCU: STM32F405 BGA
- Gyro: ICM-42688P (SPI)
- OSD: Not included

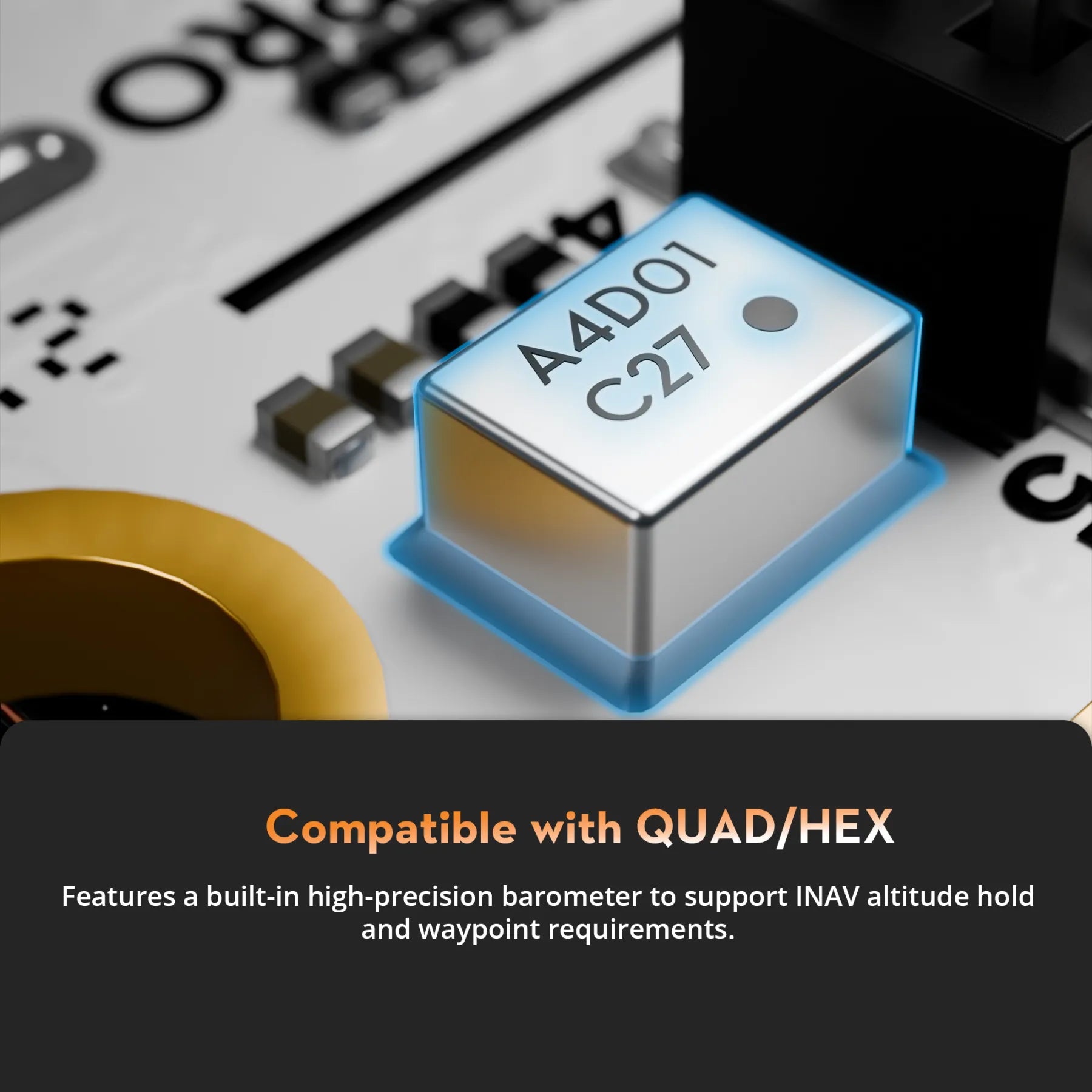

- Barometer: DP310
- Black Box Storage: 16MB
- USB Port: Type-C
- UART Ports: 6 (1,2,3,4,5,6)
- Input Voltage: 7.4V - 24V (2-6S LiPo)
- BEC Output: 5V 2A / 3.3V 0.5A
- Dimensions: 25mm x 23mm x 8mm
- Mounting Holes: M2 16x16mm
-
Weight:
- 3g (FC only)
- 7.8g (FC + 20A ESC)
- 9.4g (FC + 20A HEX ESC)
- 6.5g (FC + 35A ESC)
What's in the Box:
- 1x Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4G
- 1x Cable set
- 1x Mounting hardware
Note: Included accessories may vary based on availability.
