Flywoo

Flywoo Goku F405 HD 1-2S 12A ELRS V2 AIO Flight Controller (BMI270) 25.5x25.5

Name: Flywoo Goku F405 HD 1-2S 12A ELRS V2 AIO Flight Controller (BMI270) 25.5x25.5
Brand: Flywoo
SKU: FW19005347
Price: 55.00 GBP
Availability: InStock

SKU:FW19005347

£55.00 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

In stock

UK delivery: typically 1–3 working days

Order by 3pm Monday–Friday for same-day dispatch. Eligible UK orders over £100 qualify for free shipping.

Some batteries and export-controlled products have shipping or destination restrictions. Checkout shows the options available for your order.

View full delivery information

View full details

Product Details

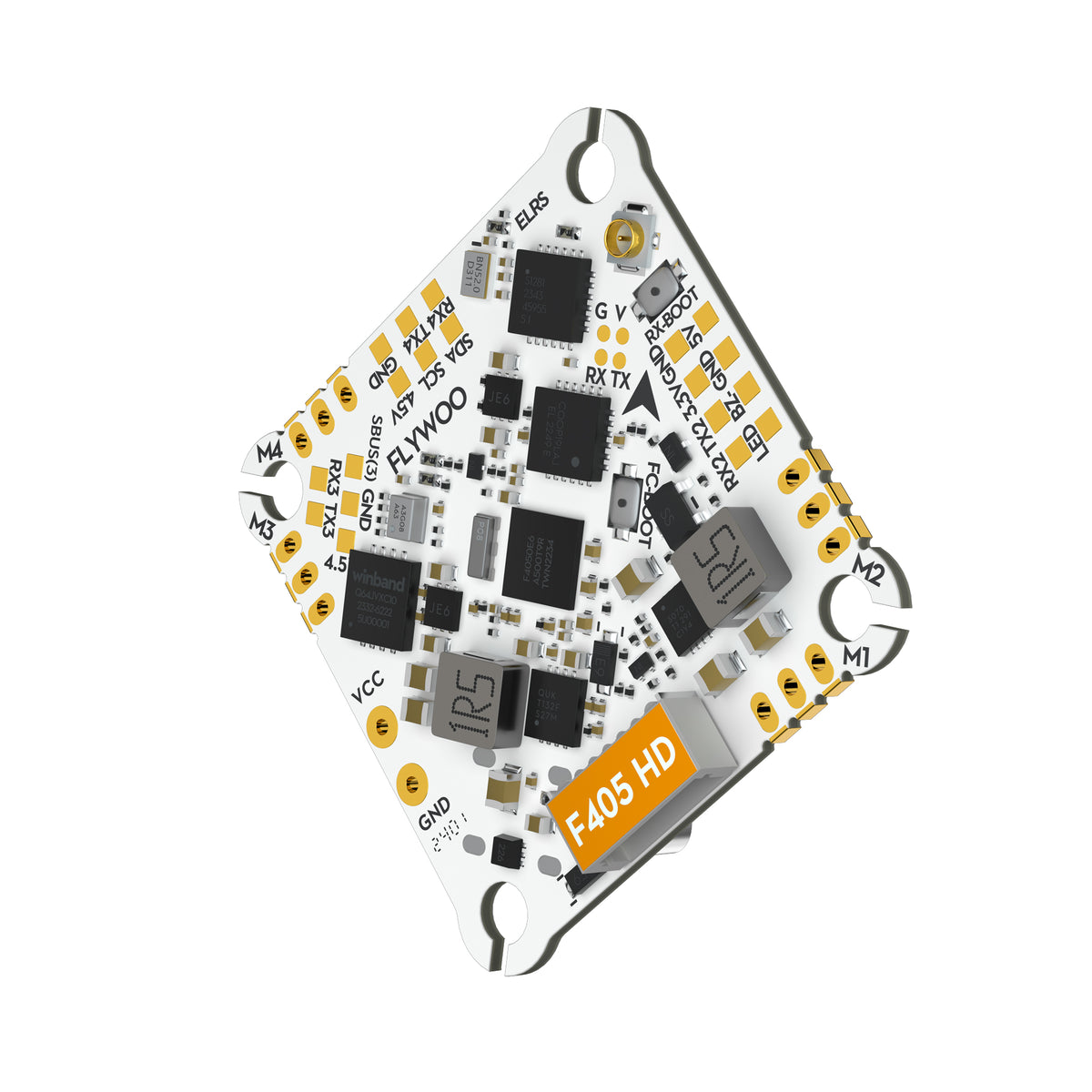

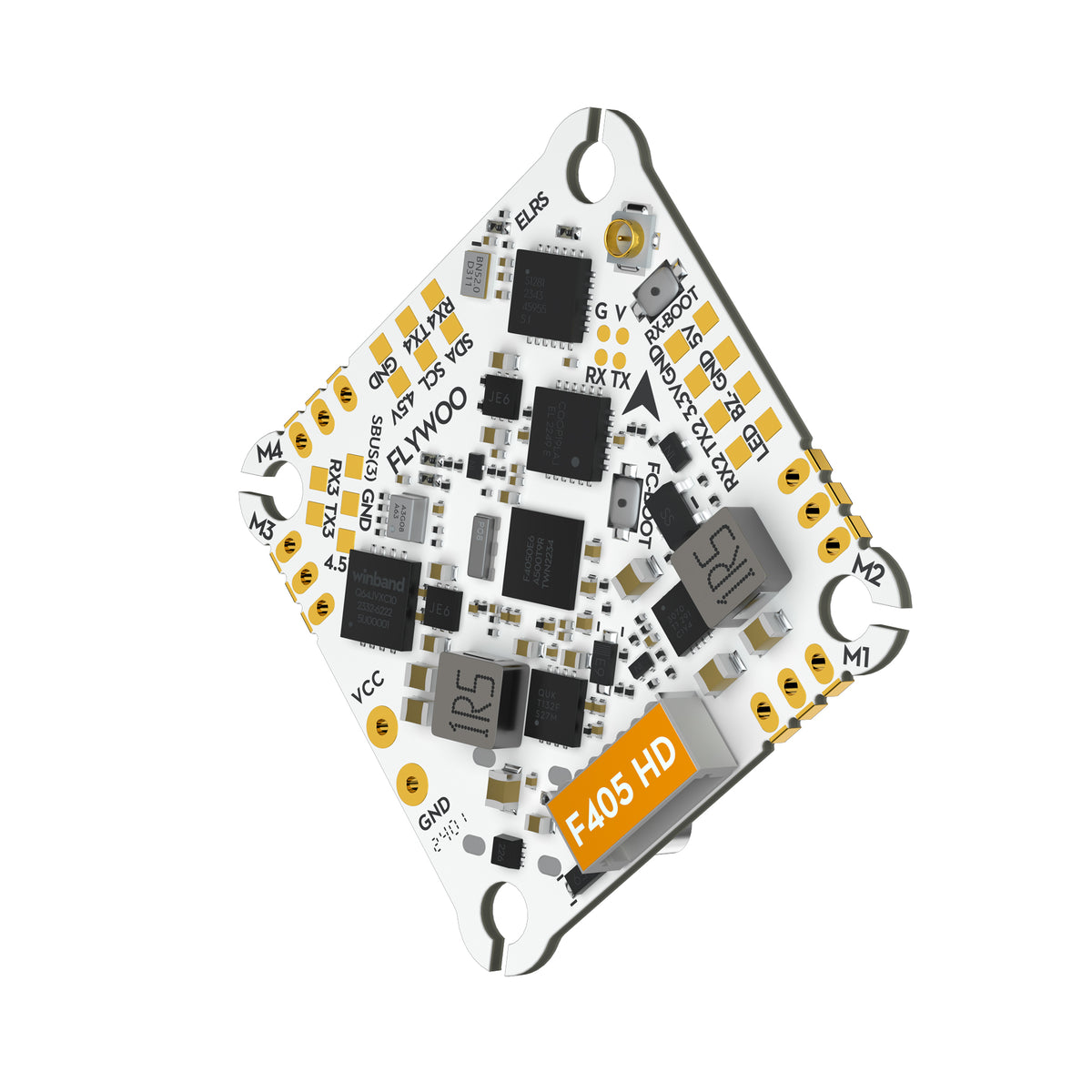

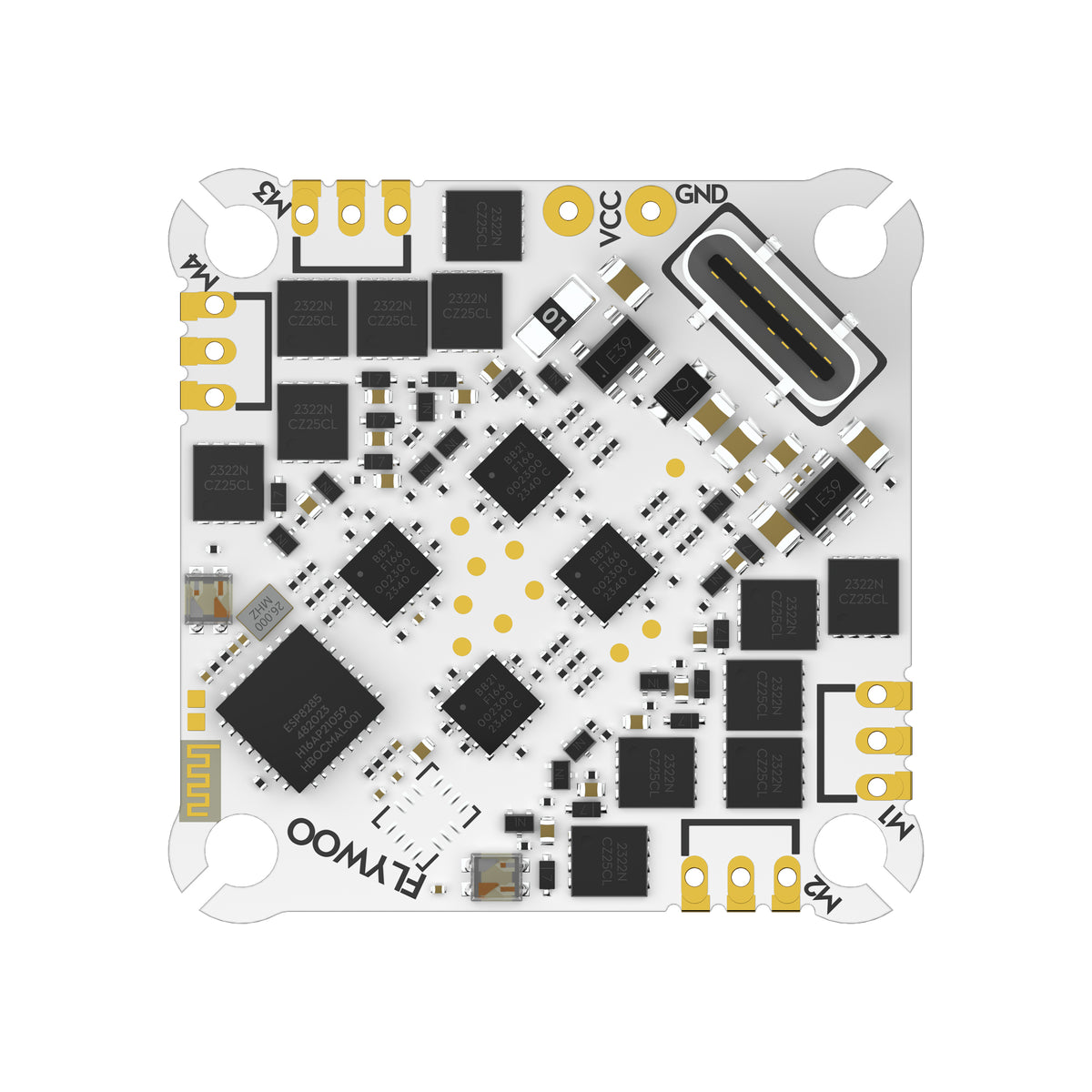

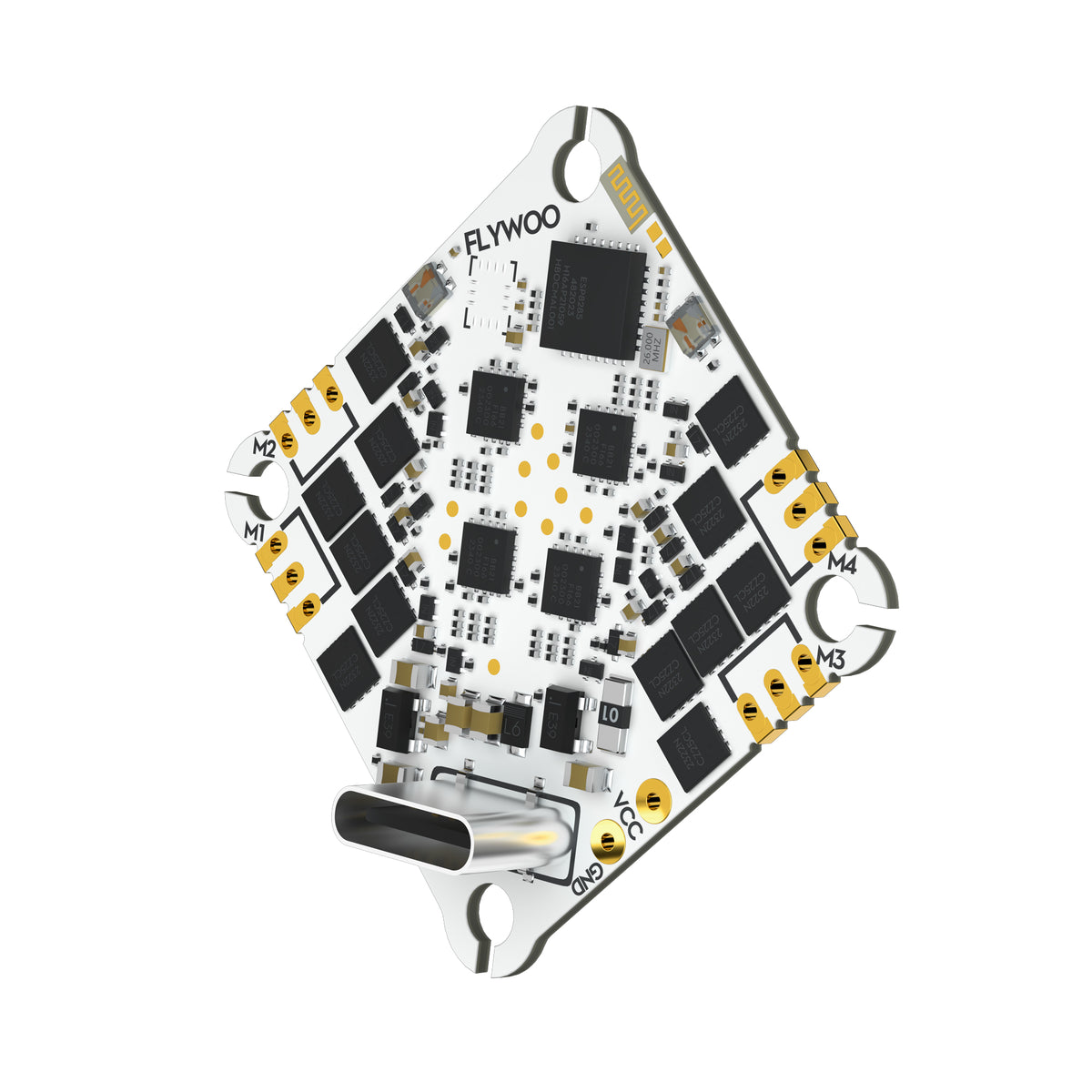

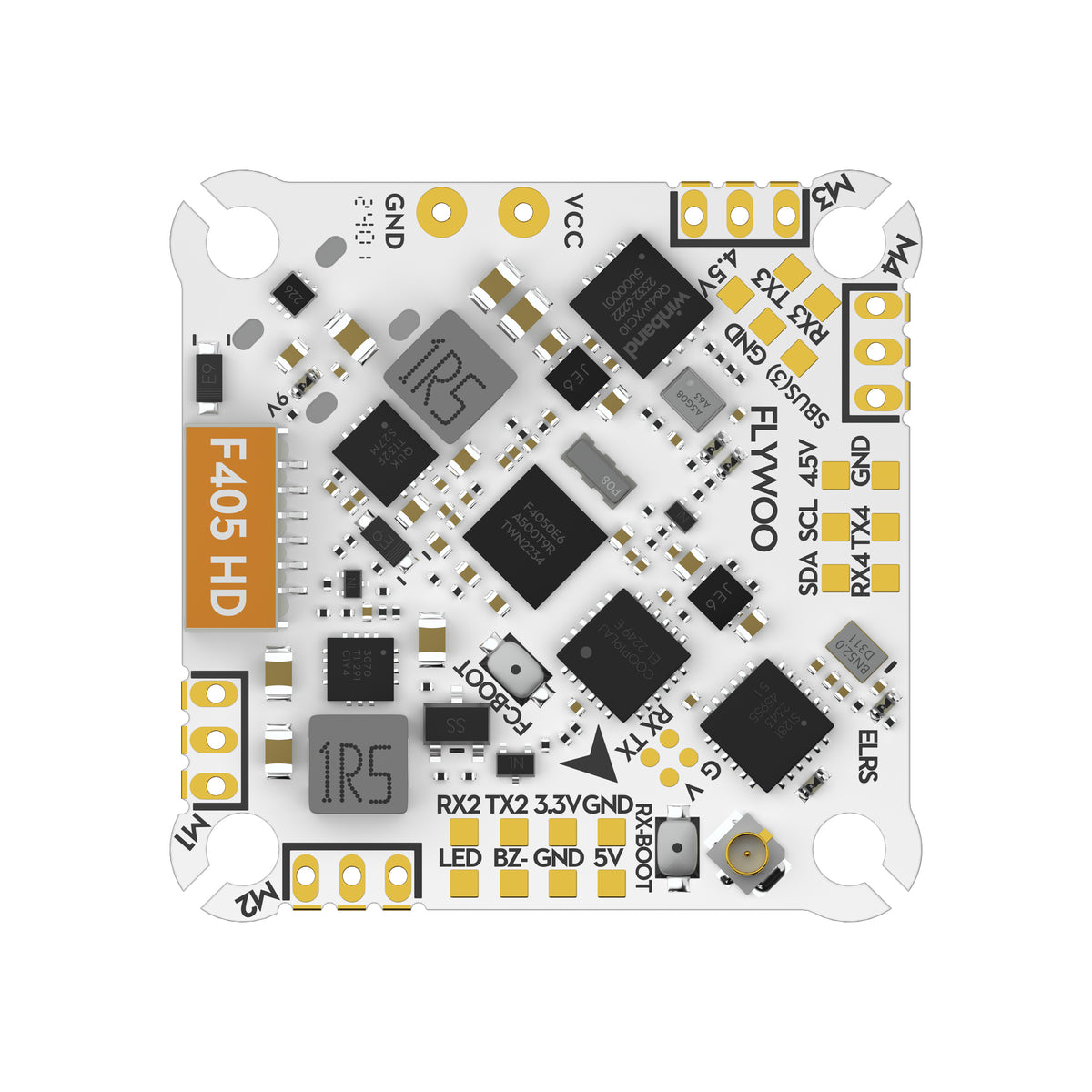

Flywoo Goku F405 HD 1-2S 12A ELRS V2 AIO

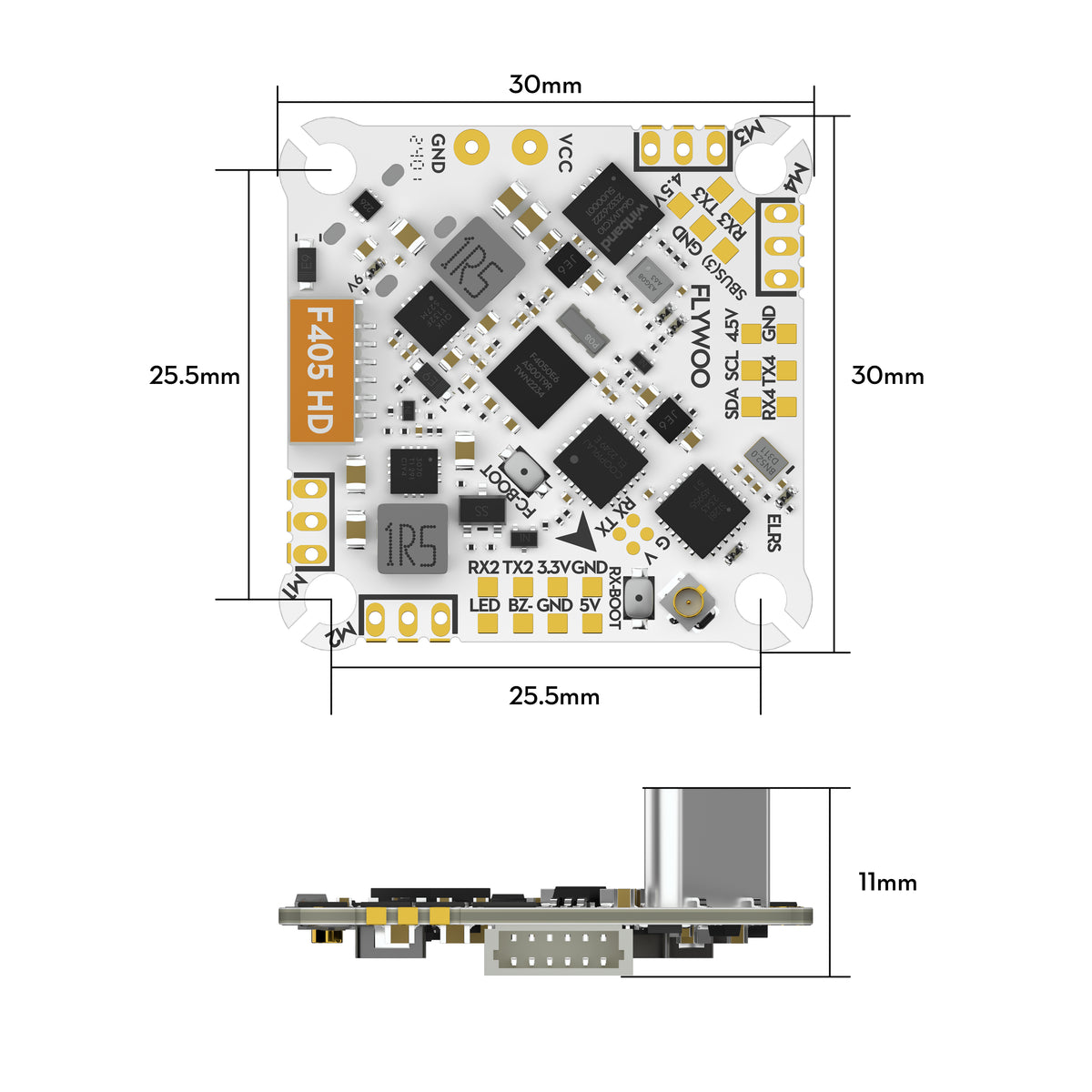

Tired of cooking your DJI digital VTX while waiting for GPS lock or doing delicate wire gymnastics on a micro build? Flywoo sorted it out. The Goku F405 HD 1-2S 12A ELRS AIO V2 packs a dedicated 9V 2A BEC, an onboard serial ExpressLRS 2.4GHz receiver, and plug-and-play digital VTX ports into a 25.5x25.5mm footprint. Designed specifically for 1-2S HD micro whoops and toothpicks, this AIO flight controller features zero-solder motor sockets and an integrated USER2 electronic switch so you can kill VTX power before your transmitter turns into a miniature toaster. We have been thrashing micro rigs in the UK for a decade—this is how micro HD flight controllers should be built.

Highlights

O3/O4 Ready 9V BEC: Dedicated 9V 2A clean power rail prevents digital VTX brownouts and overheating shutdowns.
Plug & Play Connections: Direct sockets for motor wires and DJI digital VTX harnesses eliminate tiny soldering nightmares.
Integrated Serial ELRS: Onboard 2.4GHz ExpressLRS receiver running on UART1 with simple Wi-Fi and passthrough updates.
USER2 Thermal Cut-off: Turn off 9V VTX power directly from your radio switch while configuring Betaflight settings.
Bluejay Pre-Flashed ESC: 12A 1-2S BLHeli_S ESC loaded with Bluejay 0.19.2 48kHz for immediate RPM filtering support.

Why You Want It

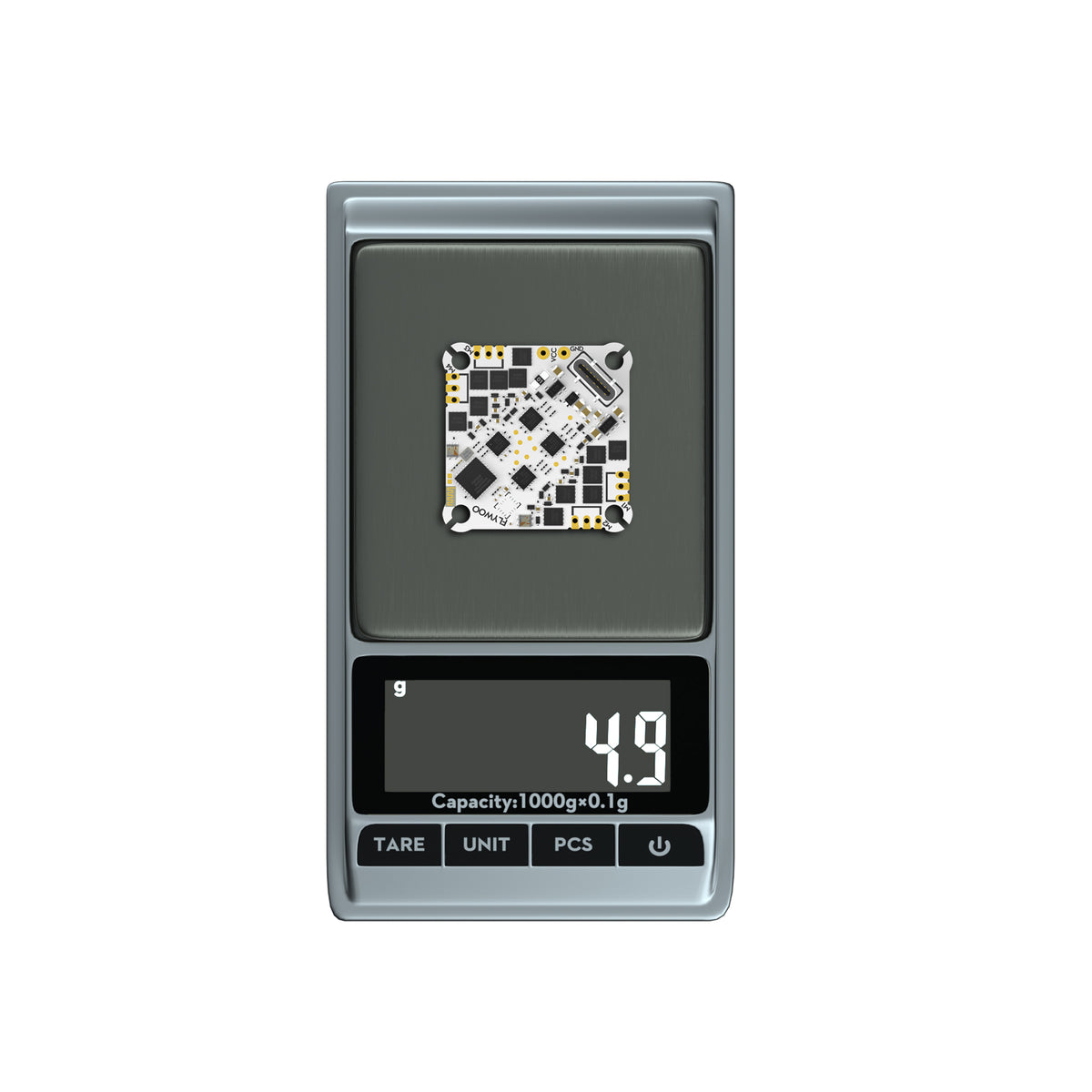

Cramming high-definition video into a tiny toothpick drone usually involves burnt fingers, power brownouts, and melted TPU mounts. Flywoo integrated an F405 MCU, 12A ESC, DPS310 barometer, blackbox logging, and a 2.4GHz ELRS receiver onto a single board weighing under 5 grams. It eliminates micro-soldering headaches while keeping your HD video feed stable during low voltage drops.
